Doors, Hood and Trunk: Locations

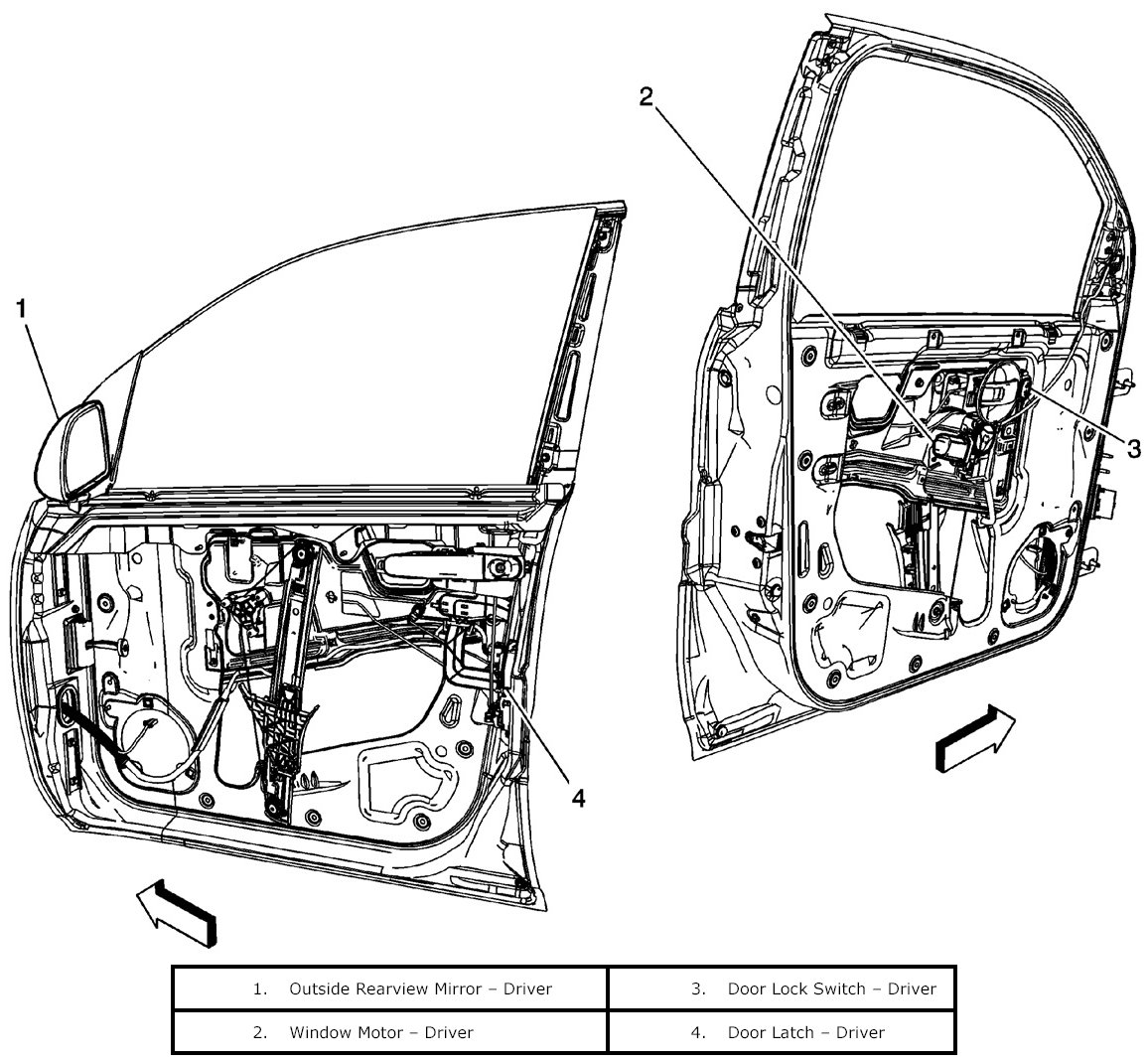

Driver Door:

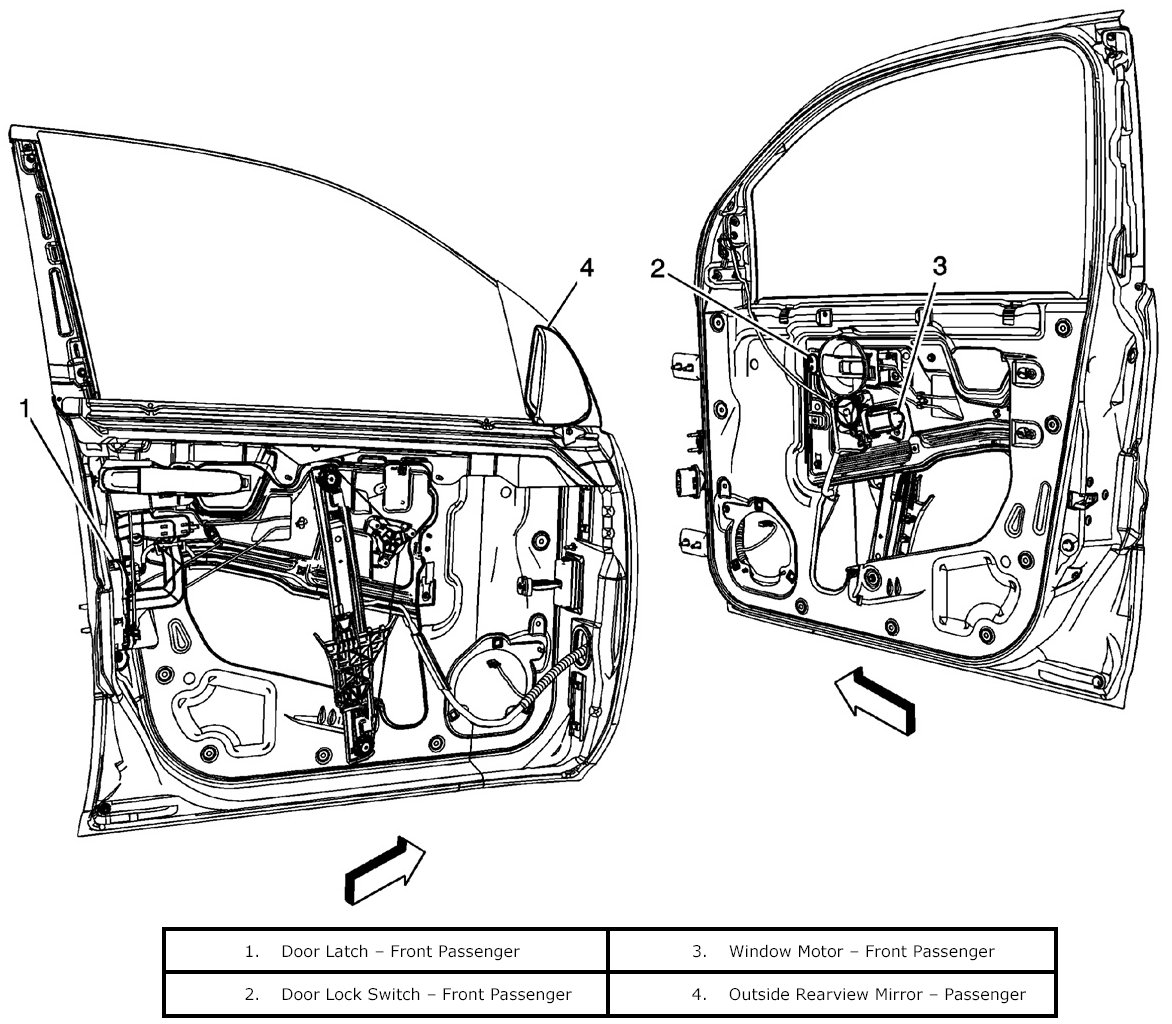

Passenger Door:

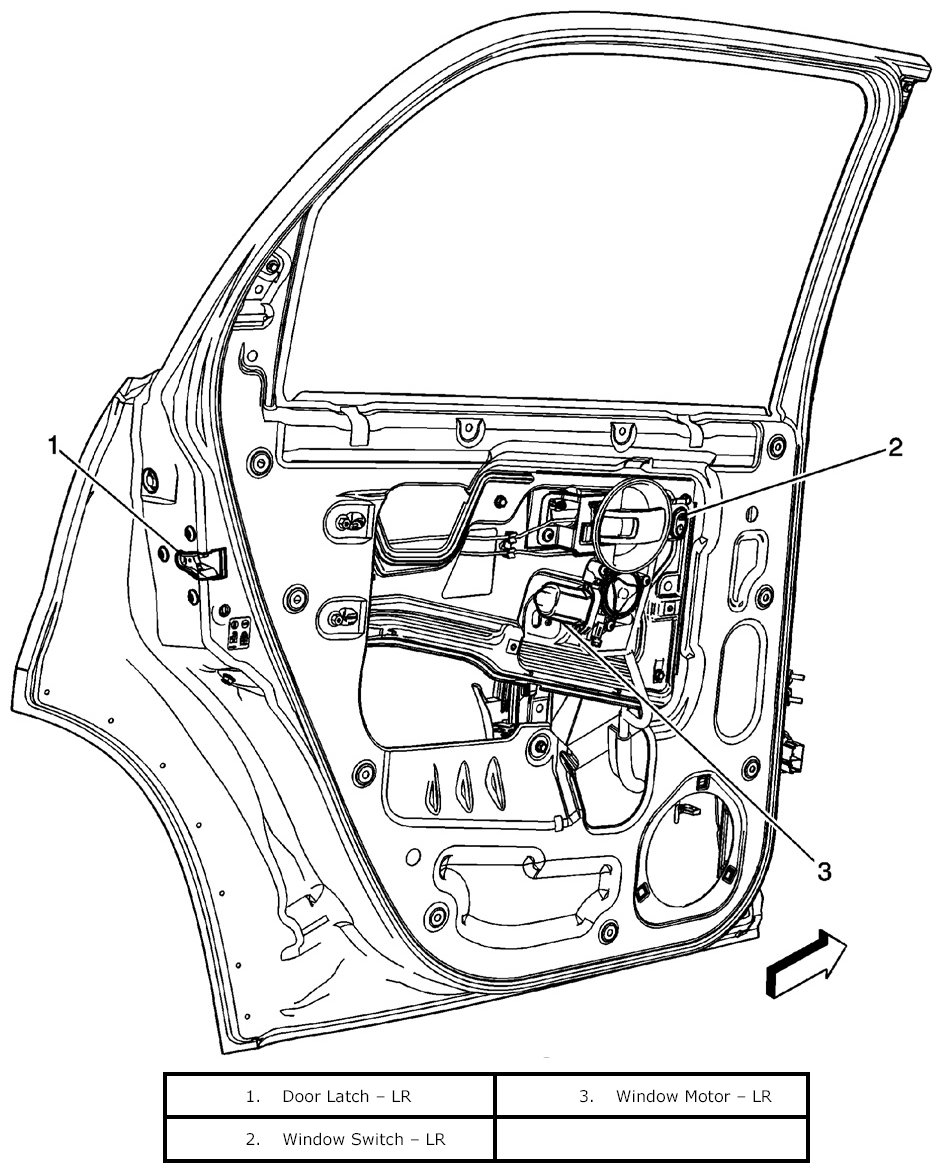

LR Door:

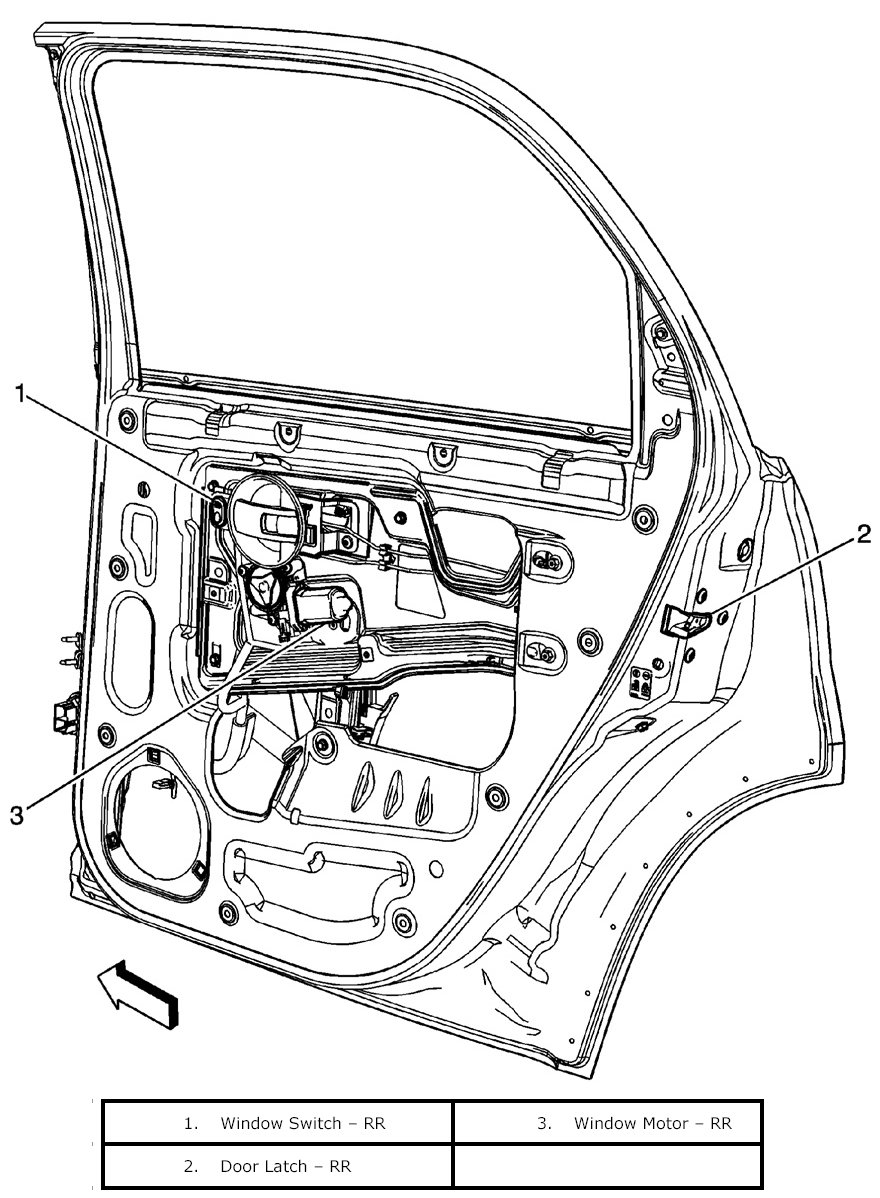

RR Door:

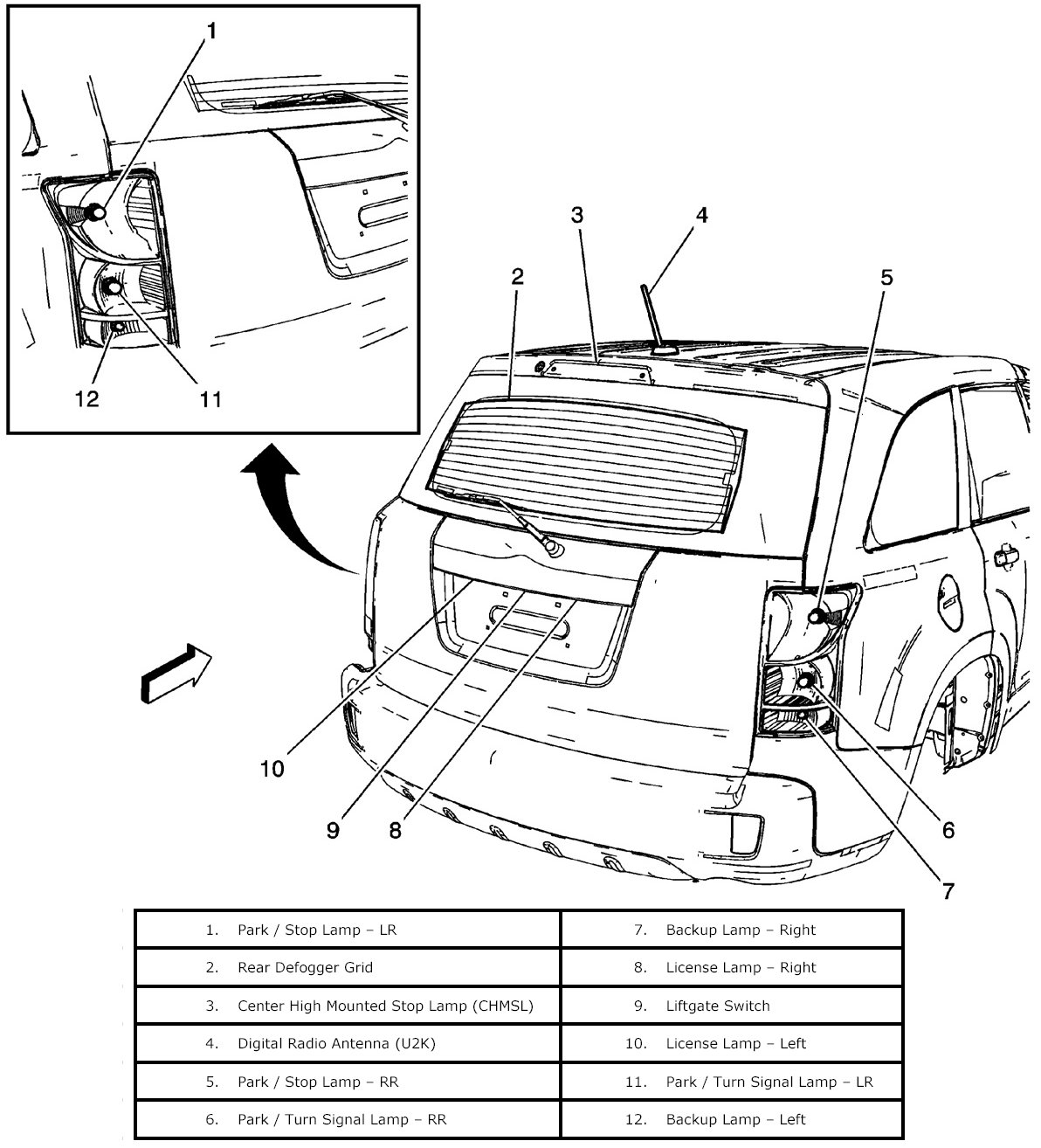

Rear of the Vehicle:

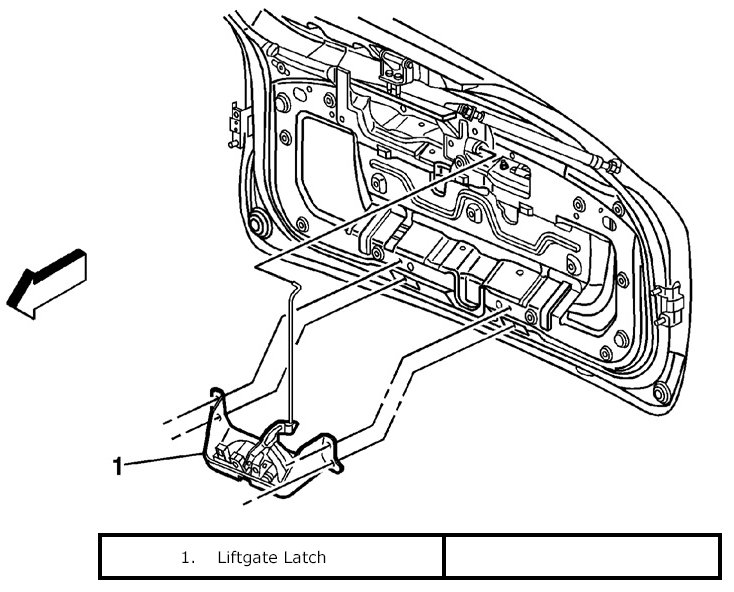

Liftgate Latch Location:
