Access Cover: Service and Repair

Fuel Injector Sight Shield Replacement

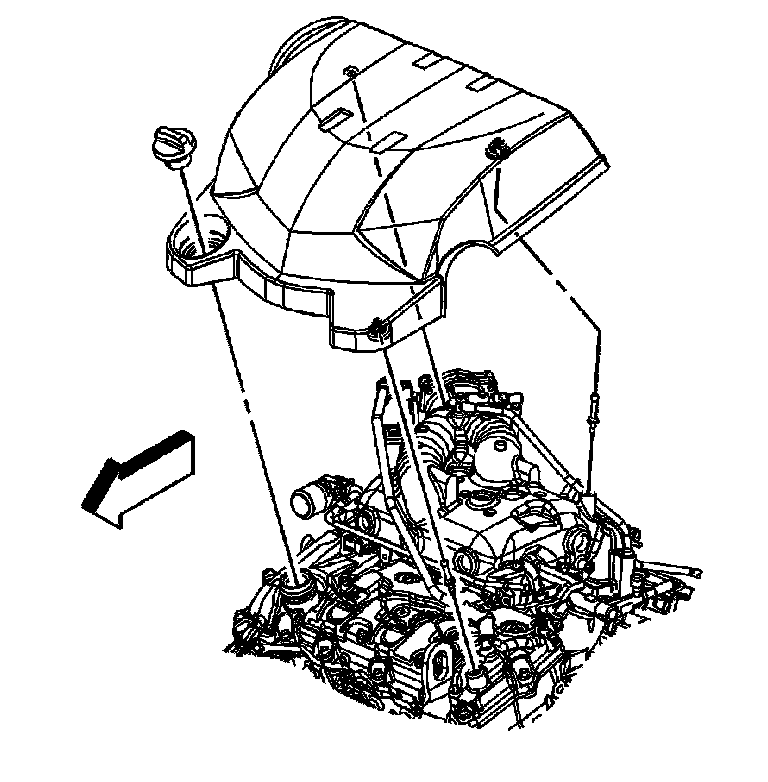

Removal Procedure





1. Remove the oil fill cap.
2. Lift upward and remove cover from ballstuds.

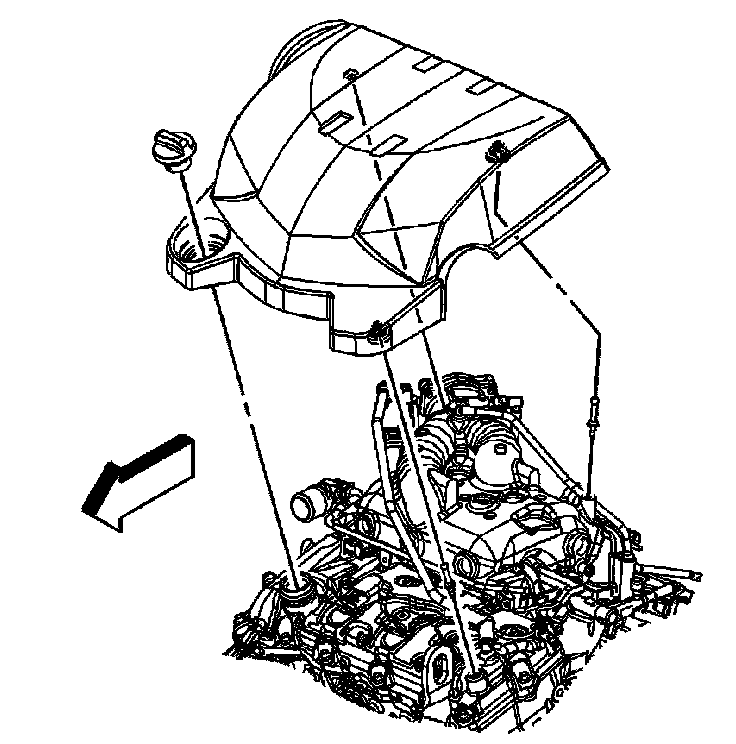

Installation Procedure





1. Push downward on cover and lock into place on ballstuds.
2. Install the oil fill cap.
