Removal Procedure

    Fig 1: Clutch Release Arm, Retaining Bolt & Nut
    GM1375131Courtesy of GENERAL MOTORS CORP.
  1. Remove the transaxle from the vehicle. Refer to Transmission Replacement for the D16 transaxle or Transmission Replacement for the Y4M transaxle.
  2. Remove the release arm (2). Refer to Clutch Release Arm Replacement .

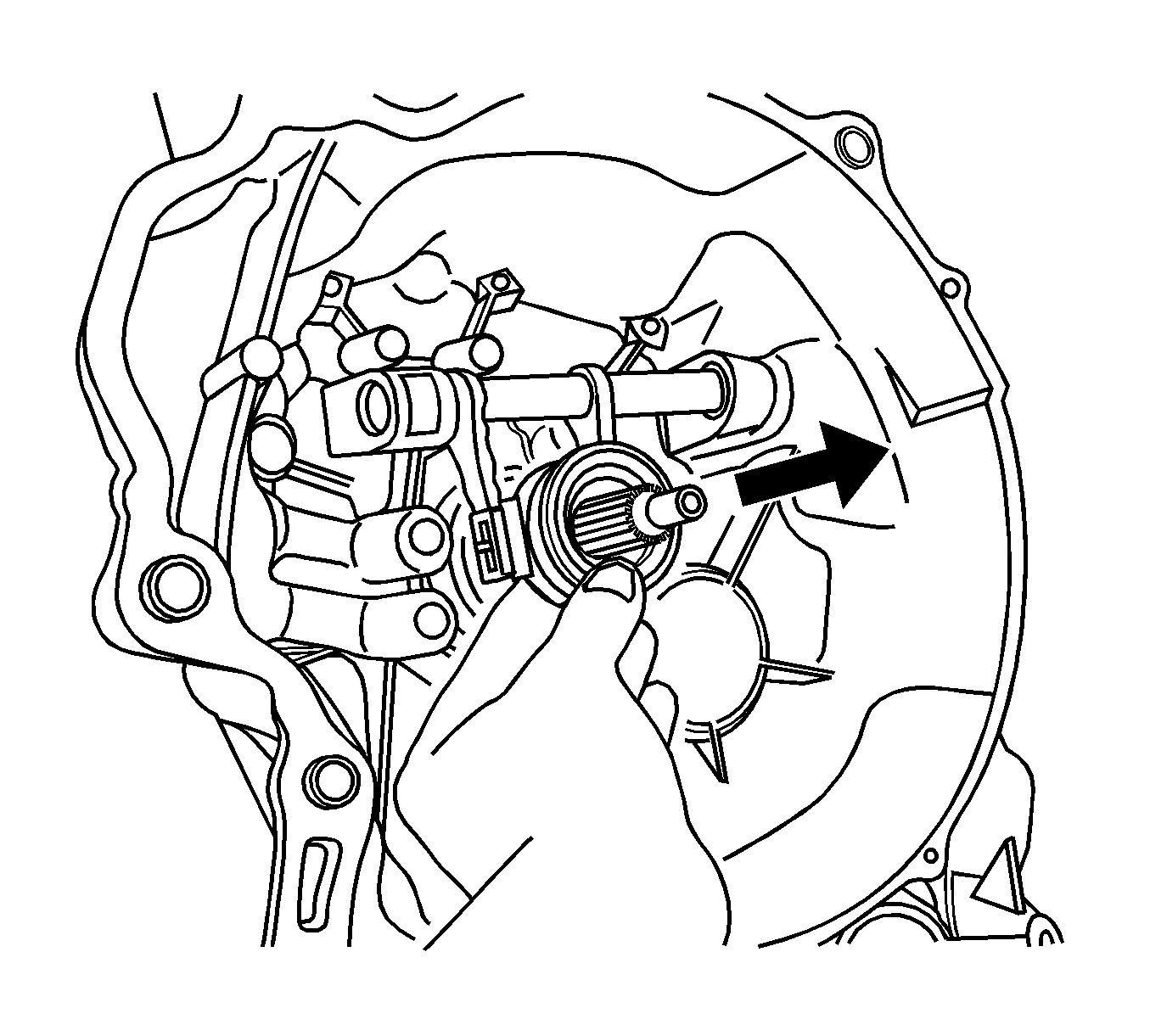

    3. Fig 2: Release Bearing
    GM1375133Courtesy of GENERAL MOTORS CORP.
  3. Remove the release bearing.

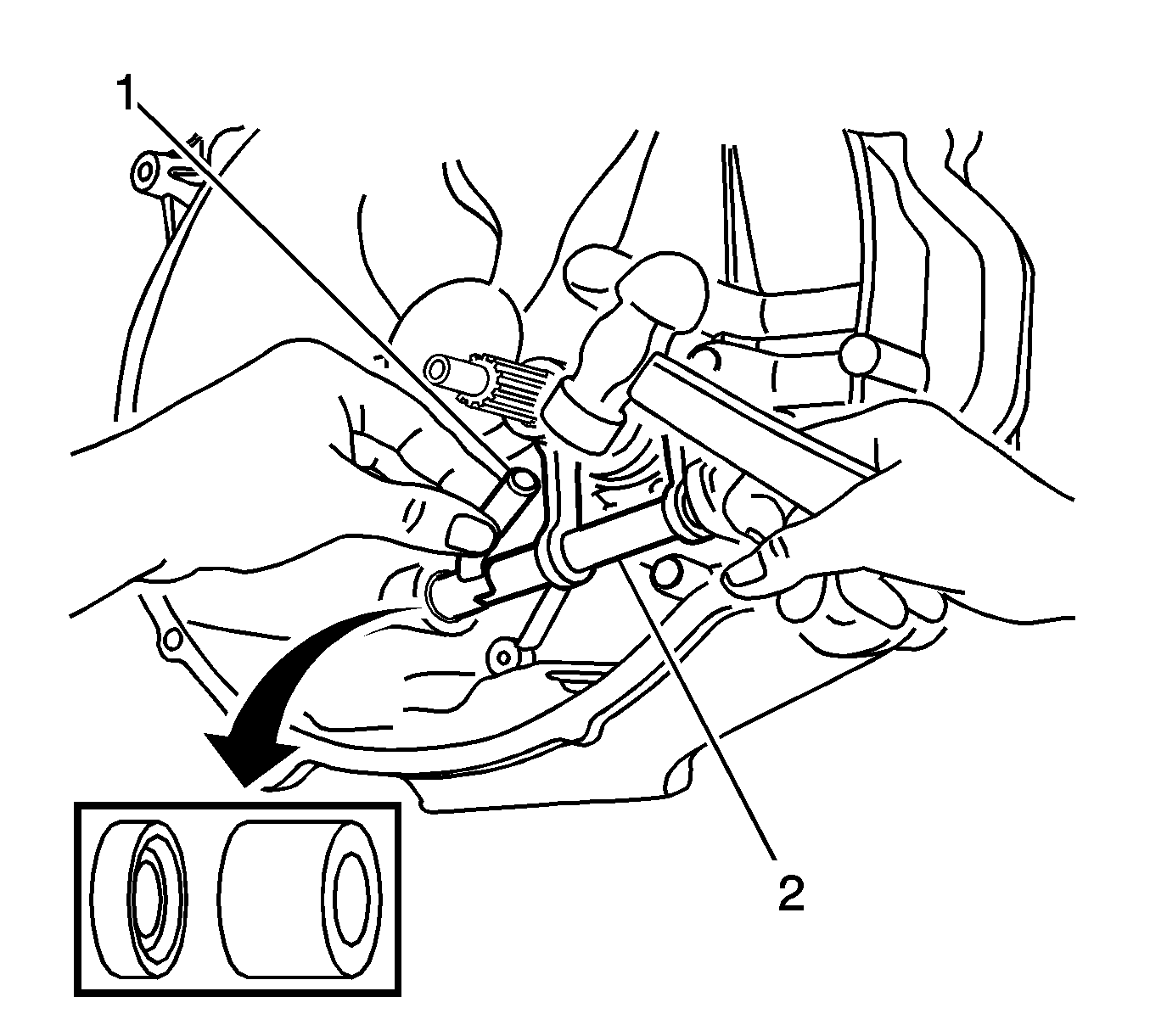

    4. Fig 3: Removing The No. 2 Bushing & Seal Using DT 47514 & A Hammer
    GM1375135Courtesy of GENERAL MOTORS CORP.
  4. Remove the release shaft and bushing.
  5. Remove the No. 2 bushing and the seal using DT 47514  (1) and a hammer. See Special Tools .
  6. Remove the release shaft (2).

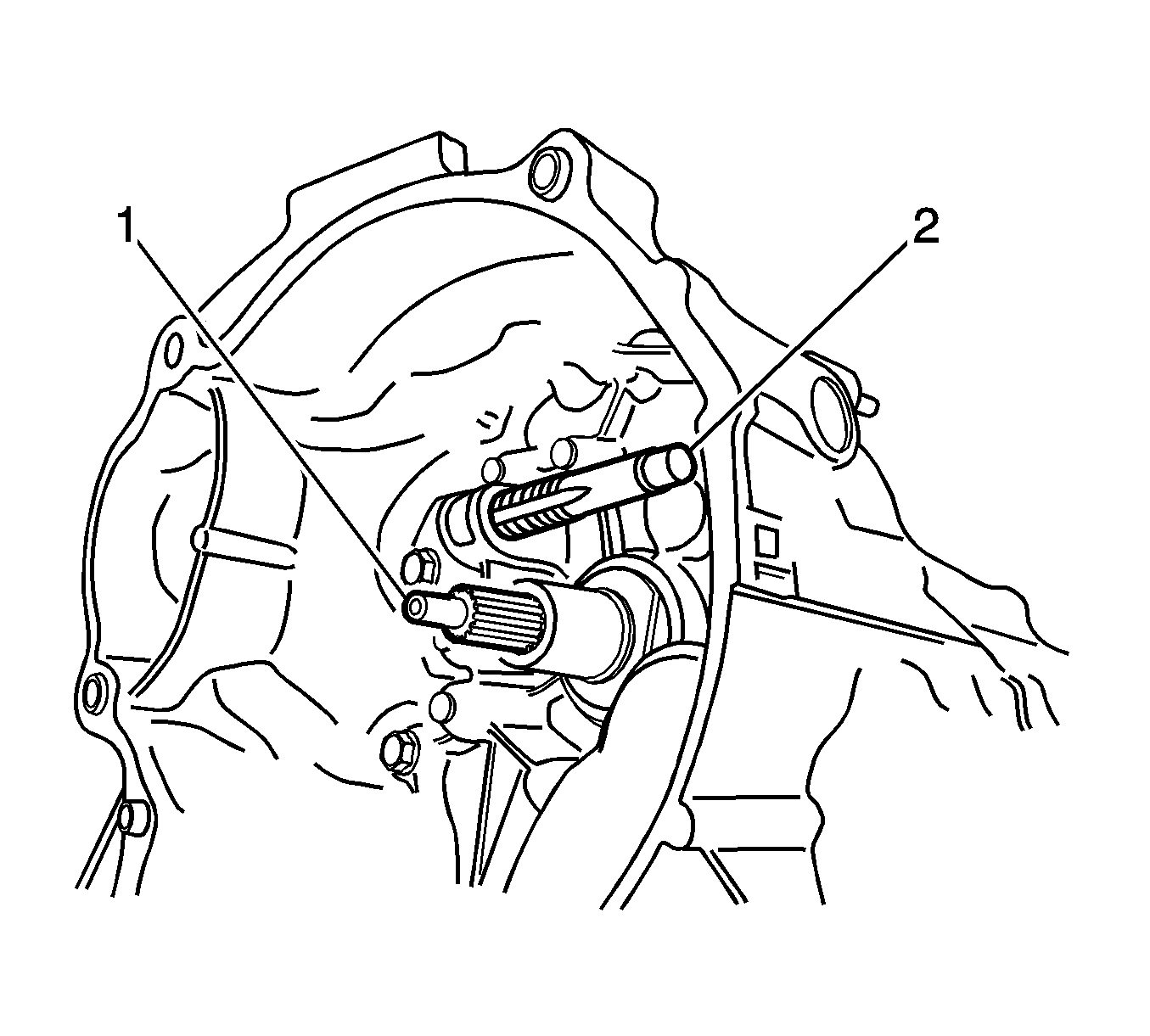

    7. Fig 4: Threading Tap Into Bushing
    GM1375136Courtesy of GENERAL MOTORS CORP.
  7. Thread the tap (M16 x 1.51) (2) into the bushing.

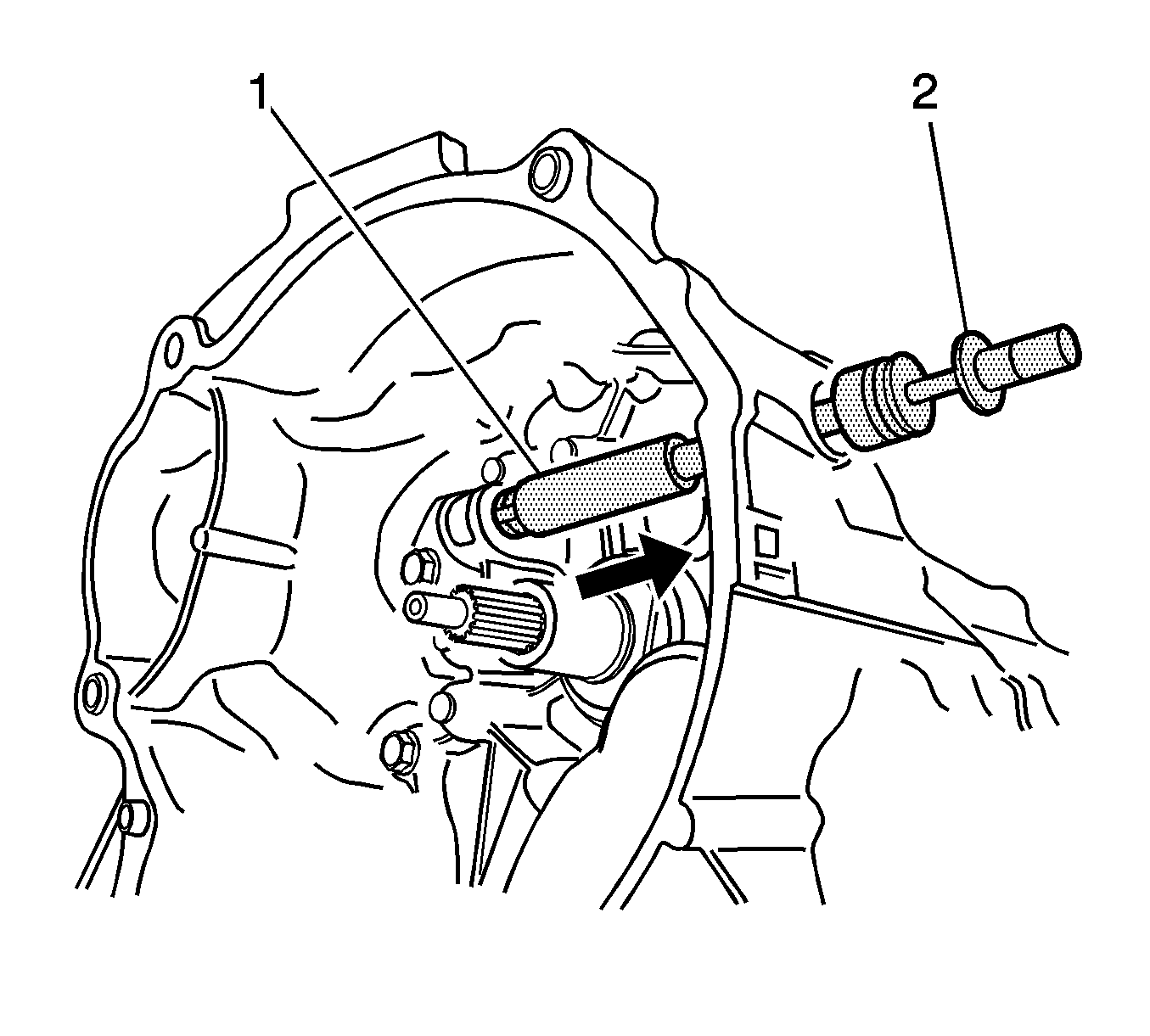

    8. Fig 5: J 26419-01 & DT 47513
    GM1375138Courtesy of GENERAL MOTORS CORP.
  8. Connect J 2619-01  (2) to the end of DT 47513  (1). See Special Tools .
  9. Remove the bushing by pulling.
