Installation Procedure

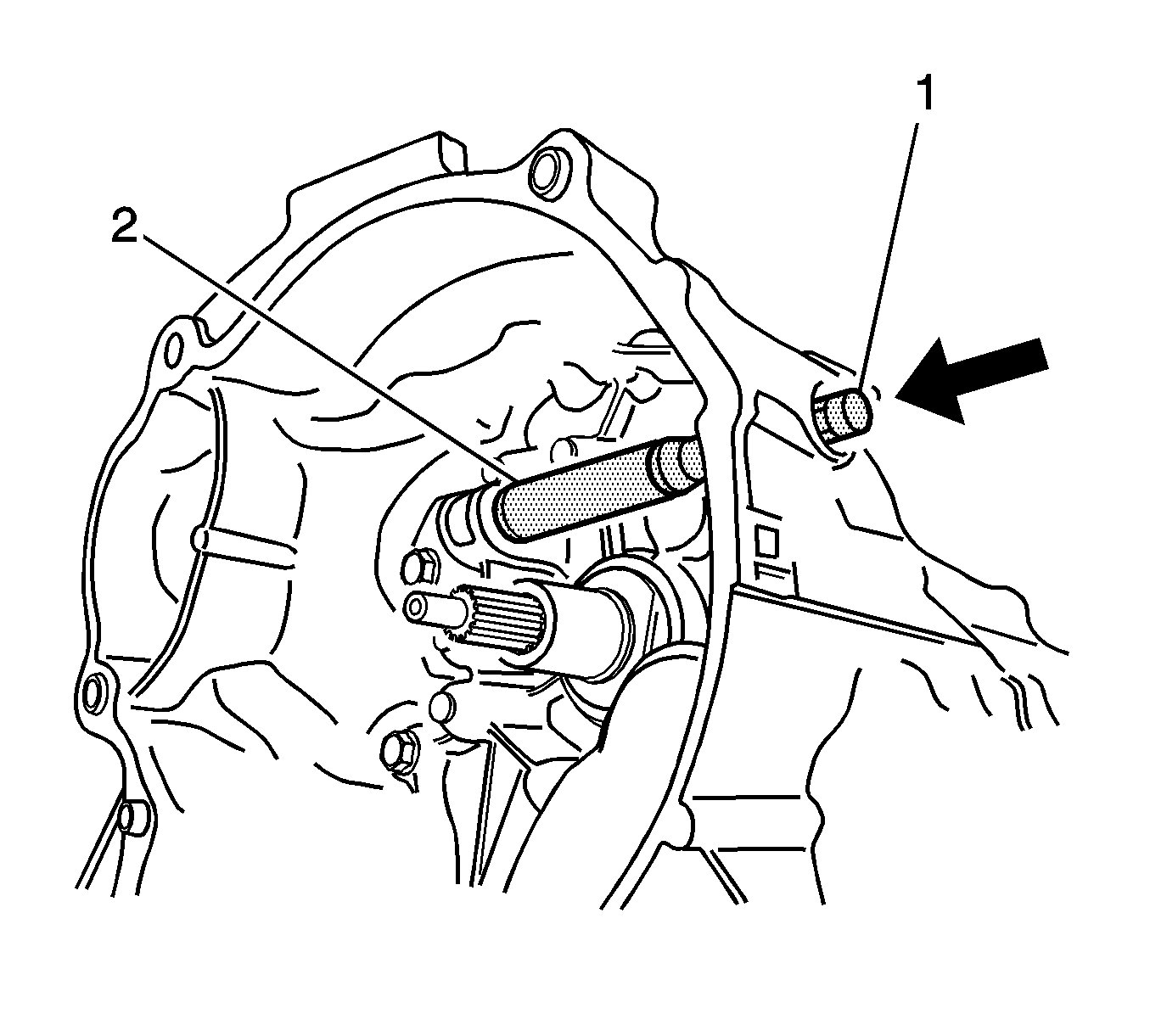

    Fig 1: Release Shaft No. 1 Bushing, DT 47513 & 09941-88211
    GM1375144Courtesy of GENERAL MOTORS CORP.
  1. Install the release shaft No. 1 bushing using DT 47513  (2). See Special Tools .09943-88211  (1) and a hammer. See Special Tools .

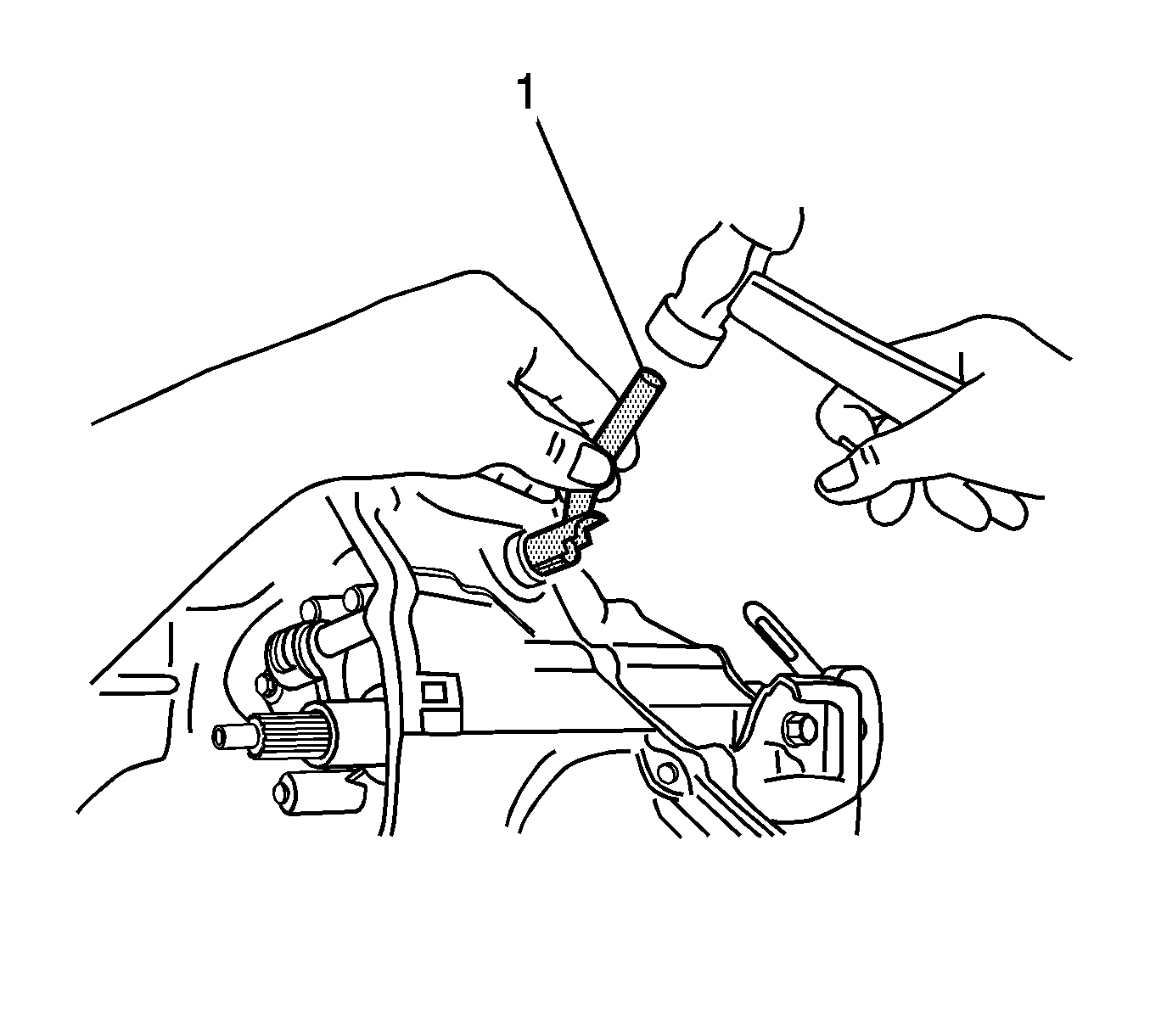

    2. Fig 2: Release Shaft No. 1 Bushing & Seal Using DT 47513 & A Hammer
    GM1375146Courtesy of GENERAL MOTORS CORP.
  2. Install the release shaft.
  3. Coat the release shaft and bushing with grease.
  4. Install the release shaft No. 2 bushing and seal using DT 47514  (1) and a hammer. See Special Tools .

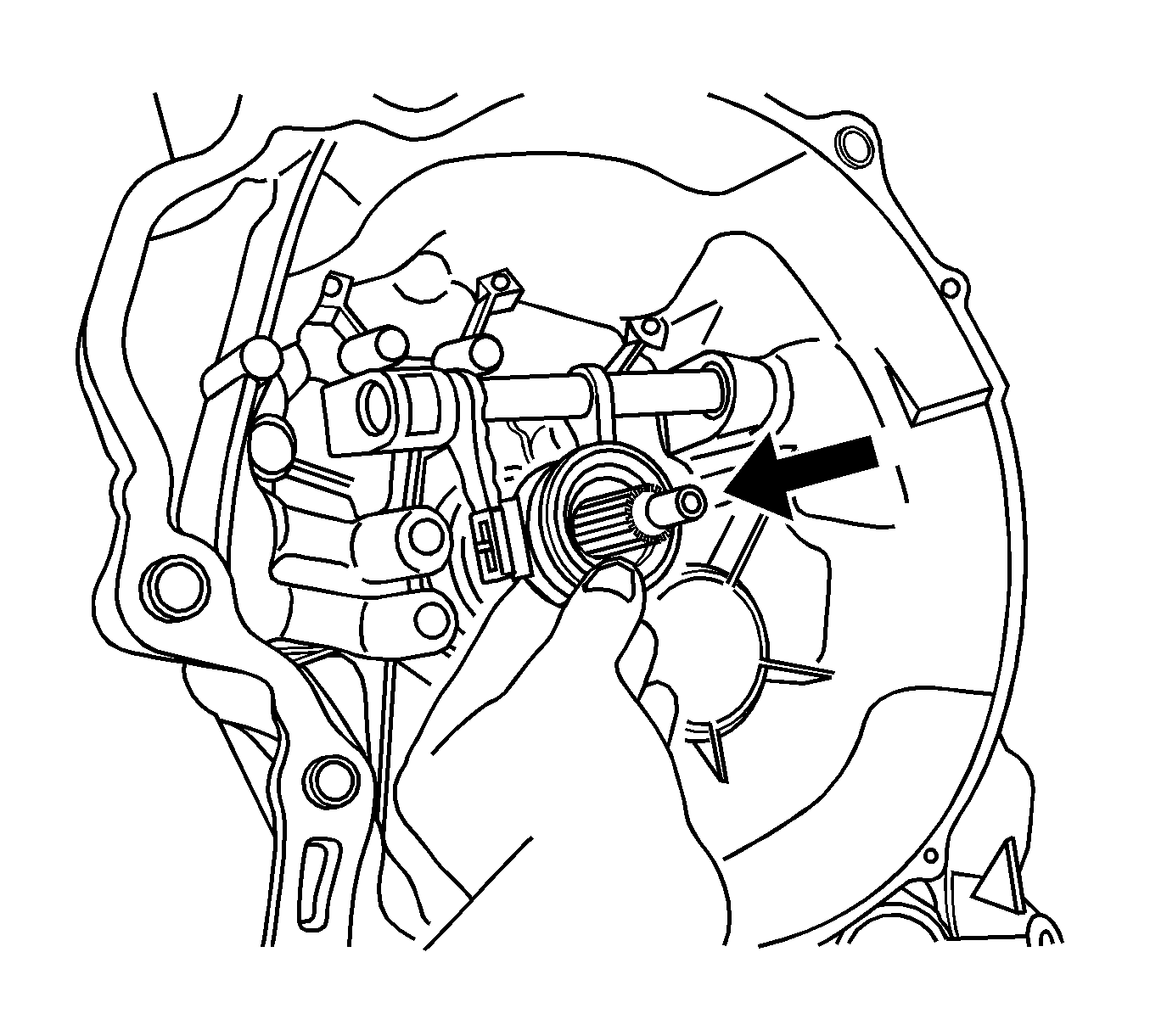

    5. Fig 3: Release Bearing Bore & Release Shaft
    GM1375148Courtesy of GENERAL MOTORS CORP.
  5. Coat the spline of transaxle input shaft with multipurpose grease.
  6. Coat the release bearing bore and the connecting of release shaft multi-purpose grease.
  7. Install the release bearing.

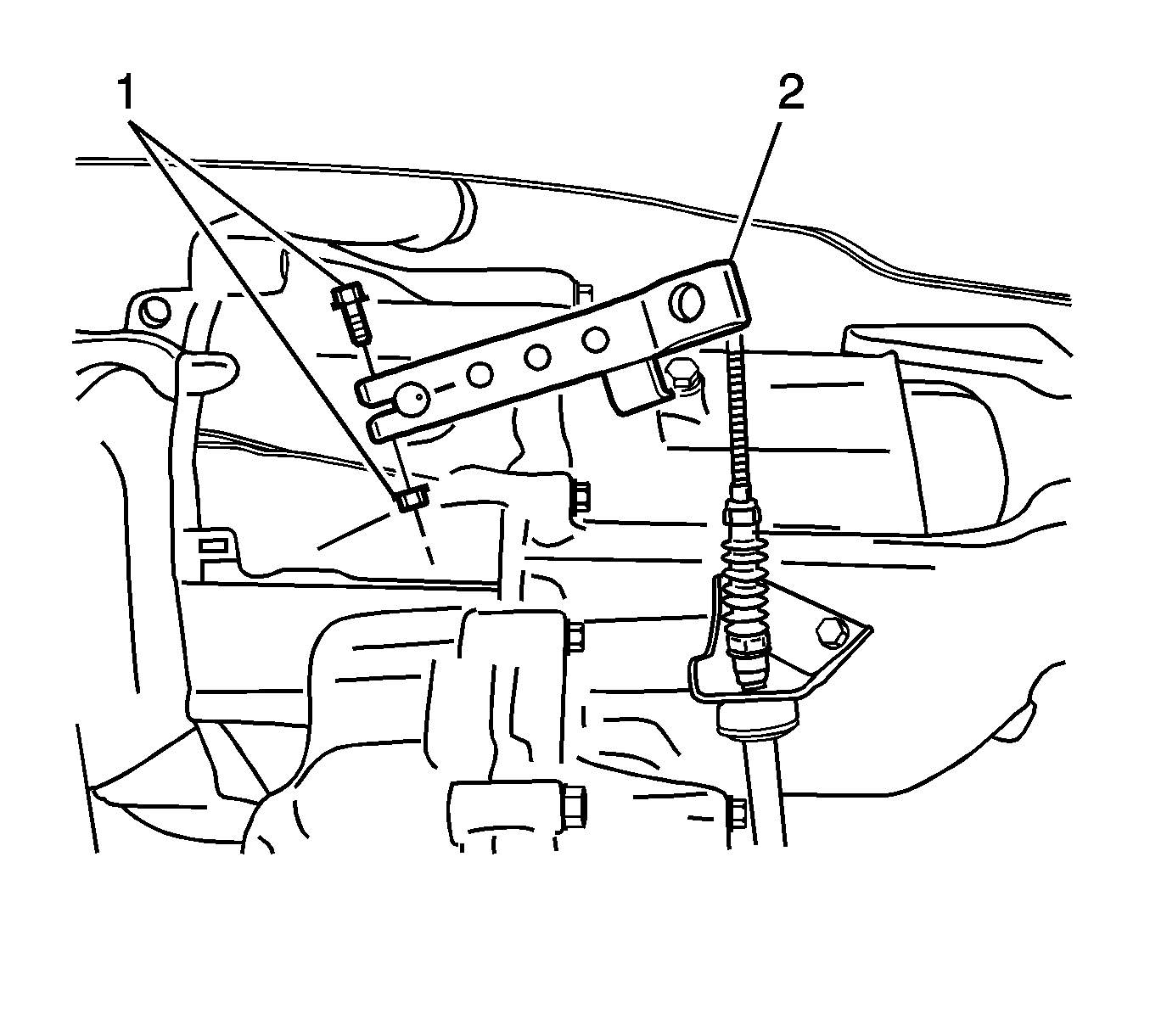

    8. Fig 4: Clutch Release Arm, Retaining Bolt & Nut
    GM1375131Courtesy of GENERAL MOTORS CORP.
  8. Install the release arm (2). Refer to Clutch Release Arm Replacement
  9. Install the transaxle to the vehicle. Refer to Transmission Replacement for the D16 transaxle or Transmission Replacement for the Y4M transaxle.
