Installation Procedure

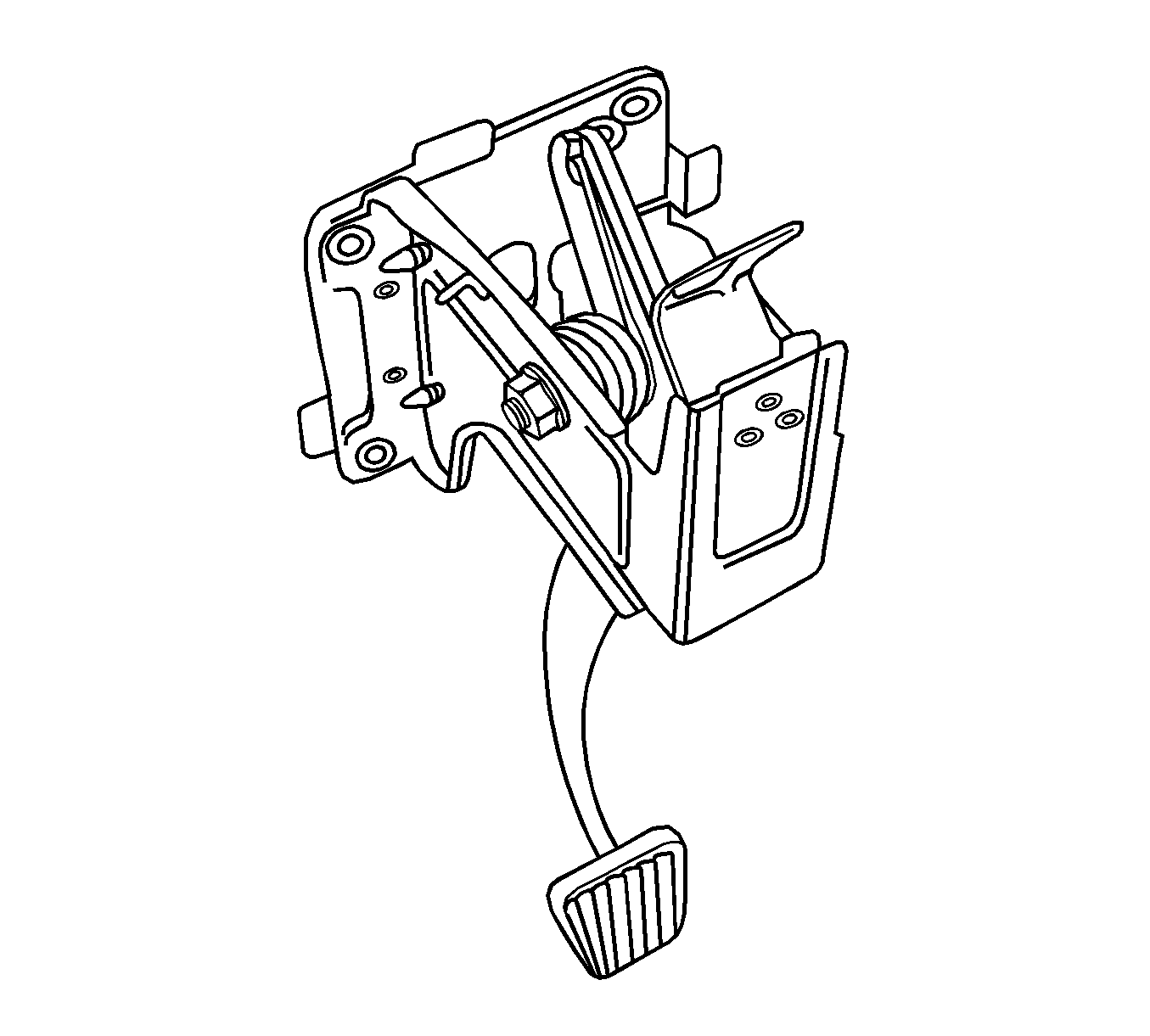

    Fig 1: Clutch Pedal Shaft & Bracket
    GM1375130Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Be sure to coat the clutch pedal shaft, the bushings and the spring with grease.
  1. Install the clutch pedal return spring.
  2. Install the clutch pedal mounting shaft bushings.
  3. Install the clutch pedal to the mounting bracket.
  4. Install the clutch pedal shaft.
    NOTE: Refer to Fastener Notice .
  5. Install the clutch pedal shaft nut.

    Tighten:  Tighten the clutch pedal mounting shaft nut to 20 N.m (15lb ft).

  6. Re-attach the clutch pedal return spring to the clutch pedal.
  7. Install the clutch cable. Refer to Clutch Cable Replacement .
  8. Adjust the clutch cable. Refer to Clutch Assembly Adjustment .
