Removal Procedure

Before disconnecting the reservoir tank hose, remove the clutch/brake fluid from the reservoir tank.

Fig 1: Push Rod & Clutch Pedal
Courtesy of GENERAL MOTORS CORP.
1. Remove the locking clip.
2. Remove the push rod fixing pin and push rod.
Fig 2: Master Cylinder Hose
Courtesy of GENERAL MOTORS CORP.
3. Disconnect the hose clamp on the master cylinder.
4. Disconnect the master cylinder hose.
Fig 3: Master Cylinder Pipe
Courtesy of GENERAL MOTORS CORP.
5. Remove the master cylinder pipe.

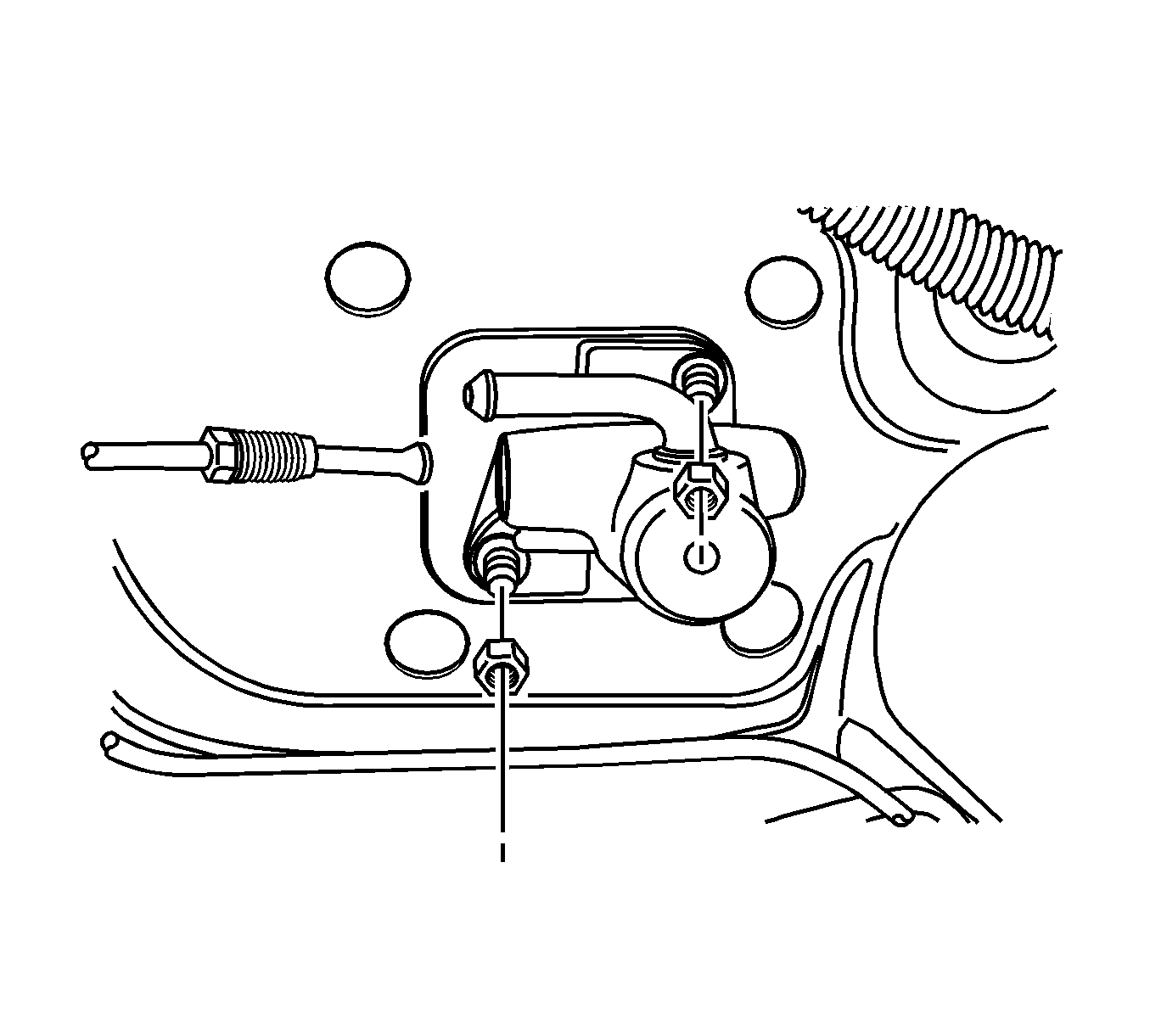

Fig 4: Removing Clutch Master Cylinder
Courtesy of GENERAL MOTORS CORP.
6. Remove the clutch master cylinder nuts.
7. Remove the clutch master cylinder.
