Installation Procedure

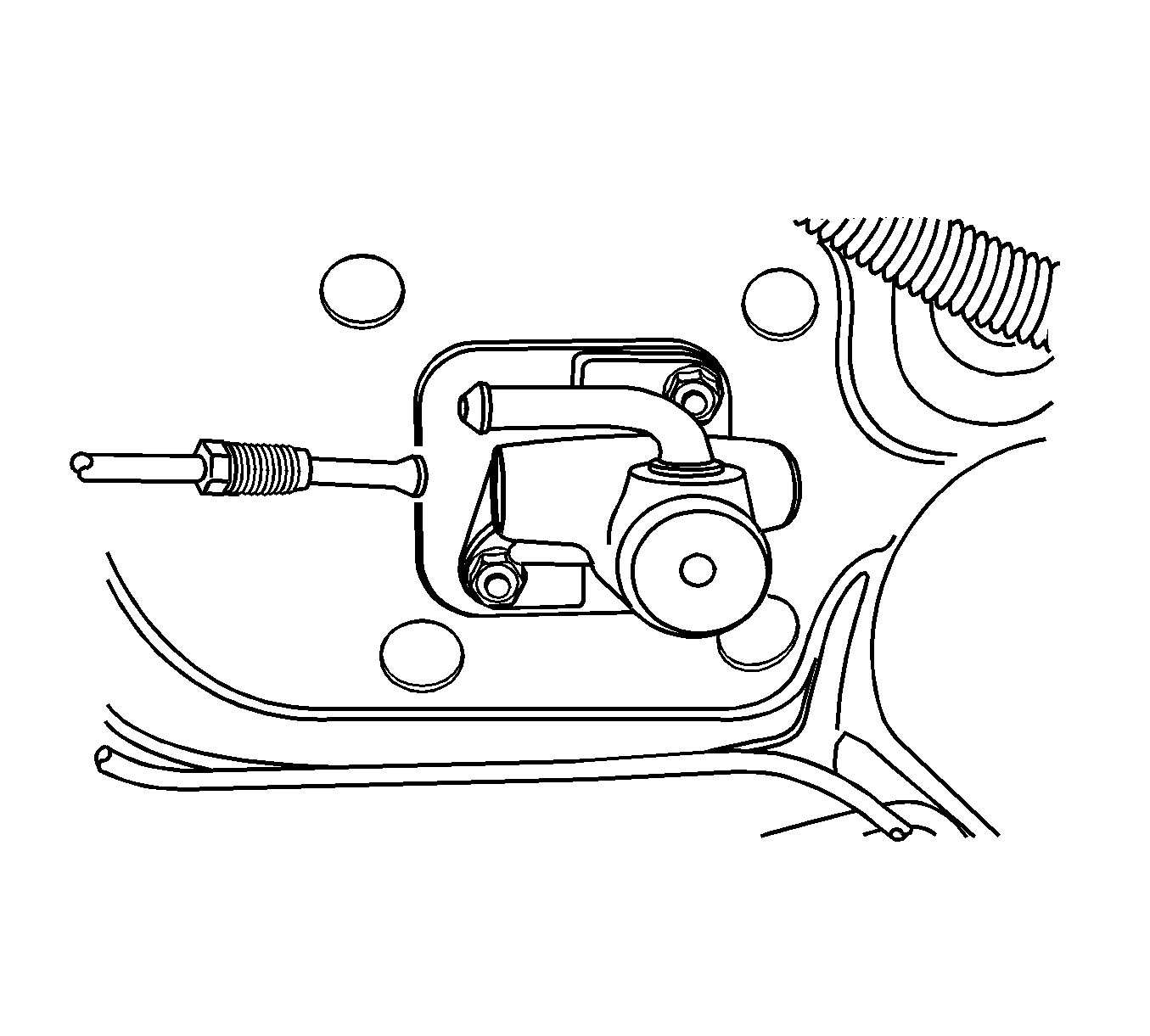

Fig 1: Installing Clutch Master Cylinder

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the clutch master cylinder and clutch master cylinder nuts.
Tighten: Tighten the clutch master cylinder nuts to 22 N.m (16 lb ft).

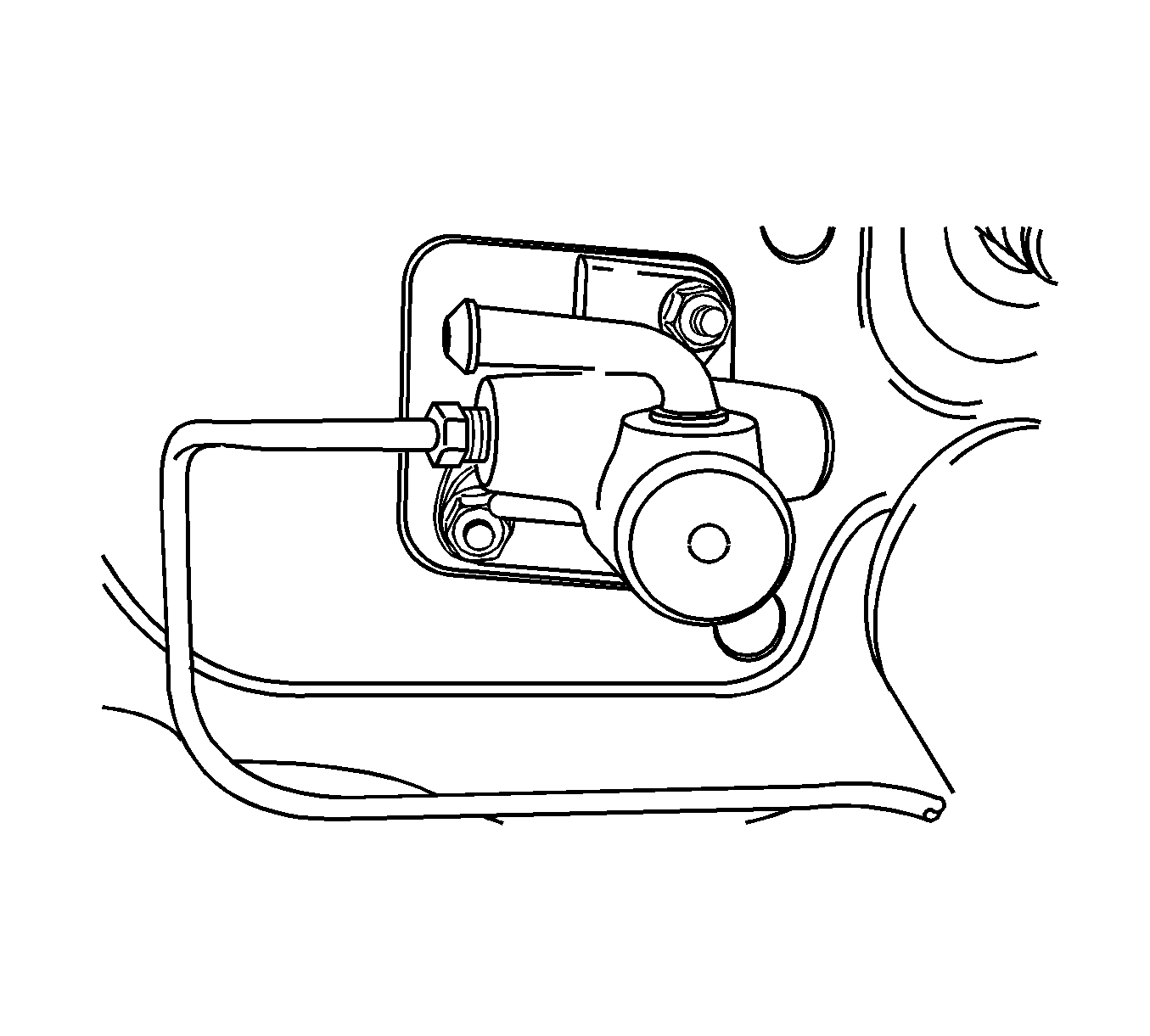

Fig 2: Master Cylinder Pipe

Courtesy of GENERAL MOTORS CORP.

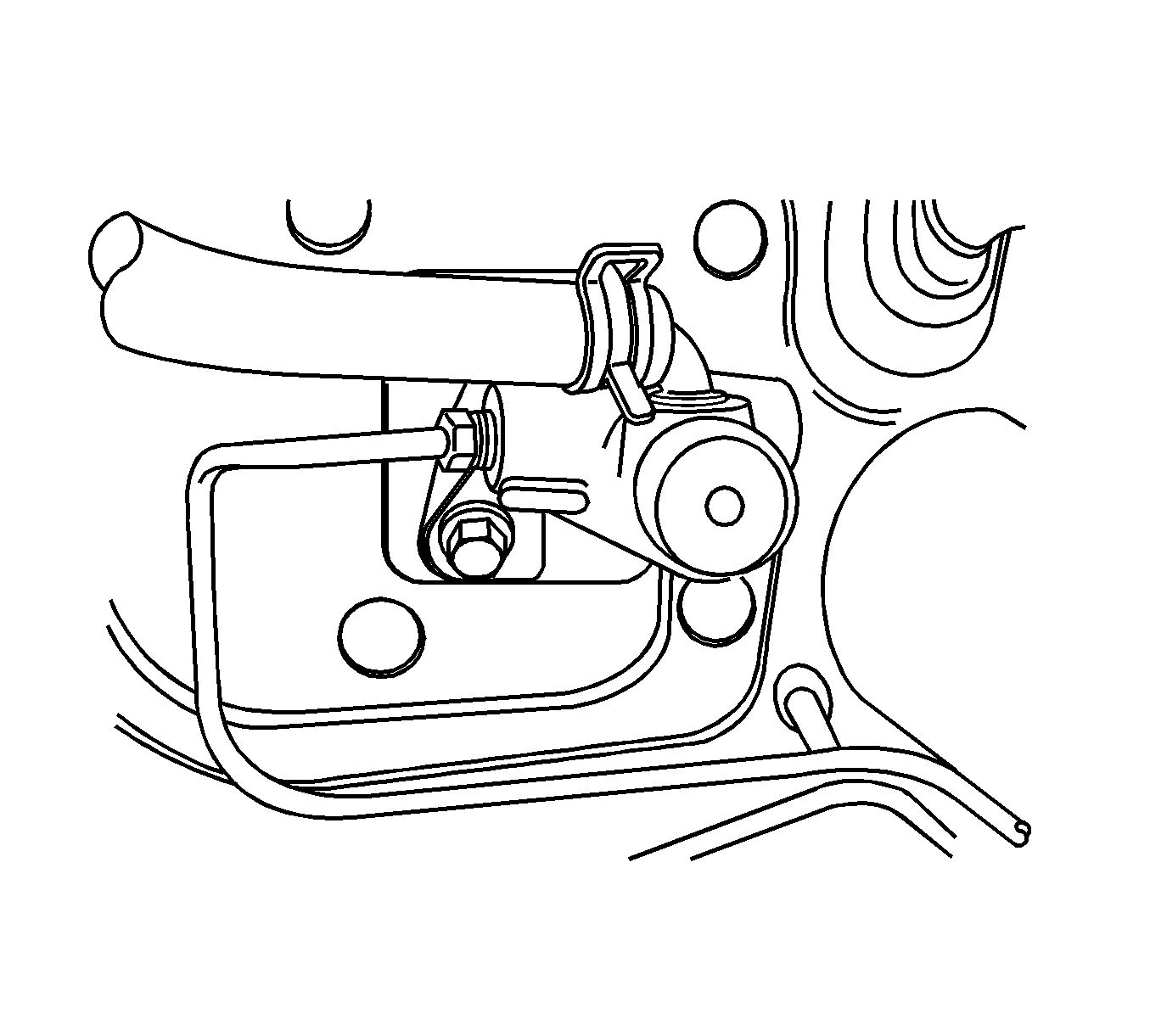

Fig 3: Master Cylinder Hose

Courtesy of GENERAL MOTORS CORP.

Fig 4: Push Rod & Clutch Pedal

Courtesy of GENERAL MOTORS CORP.

Install the push rod fixing pin and push rod.
Install the locking clip.
Bleed the air.
Adjust the clutch pedal. Refer to Clutch Pedal Free Travel Adjustment (Cable) or Clutch Pedal Free Travel Adjustment (Hydraulic) .
Fill the reservoir with clutch/brake fluid up to the MAX level.
