Removal Procedure

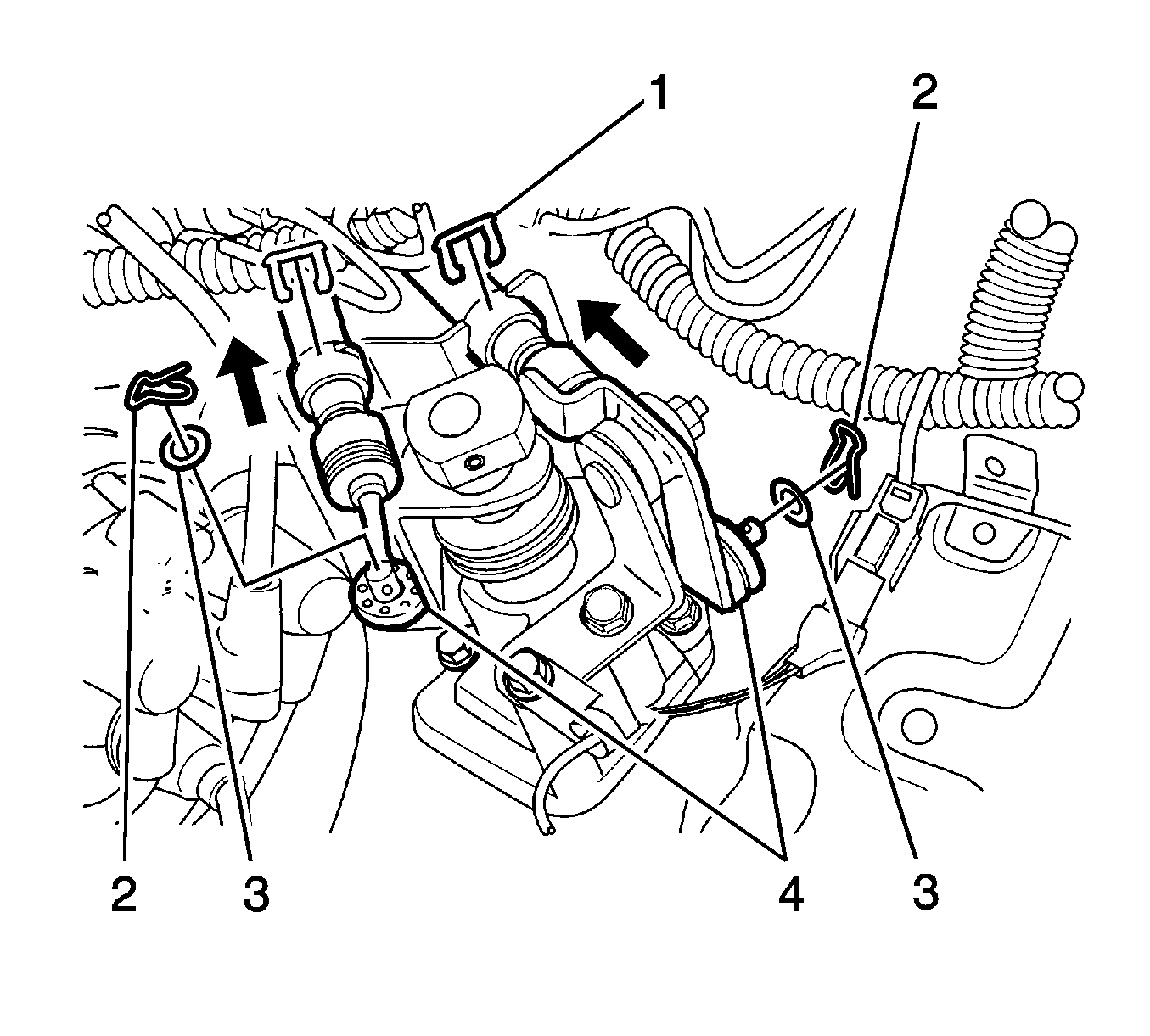

    Fig 1: Select And Shift Cable Pin
    GM1224503Courtesy of GENERAL MOTORS CORP.
  1. Remove the air hose, air cleaner to throttle body.
    2. CAUTION: Refer to Batteries Produce Explosive Gases Caution .
  2. Remove the battery.
  3. Remove the transaxle side select and shift control cable pins (1) and the washers (2).
  4. Disconnect the select and shift control cable (3).
  5. Remove the cable E-rings (4).
  6. Disconnect the cables from the cable bracket.

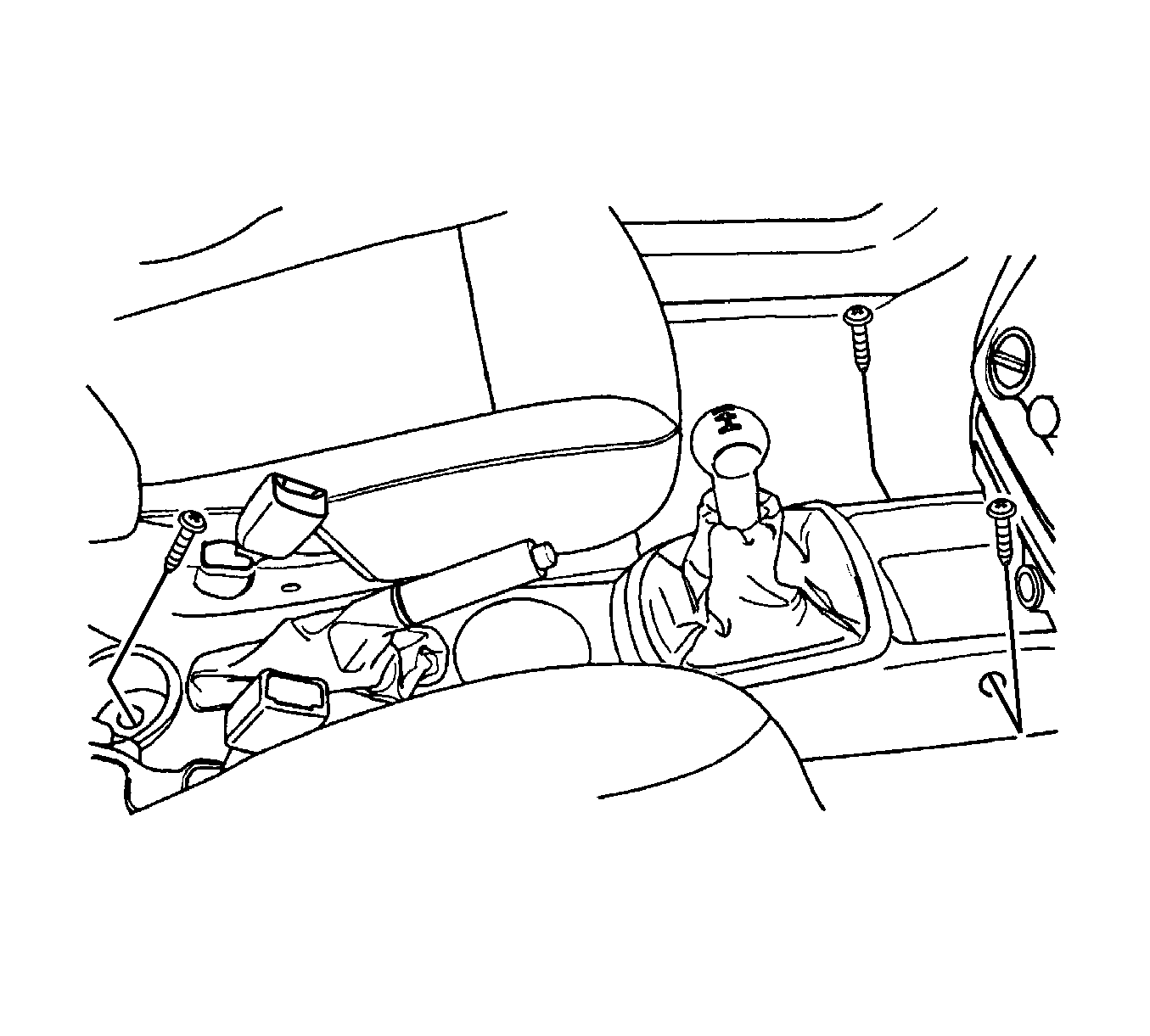

    7. Fig 2: Floor Carpet & Gear Shift Cable
    GM1291928Courtesy of GENERAL MOTORS CORP.
  7. Remove the floor console. Refer to Front Floor Console Replacement .
  8. Move the floor carpet in order to gain access to the gear shift cable.

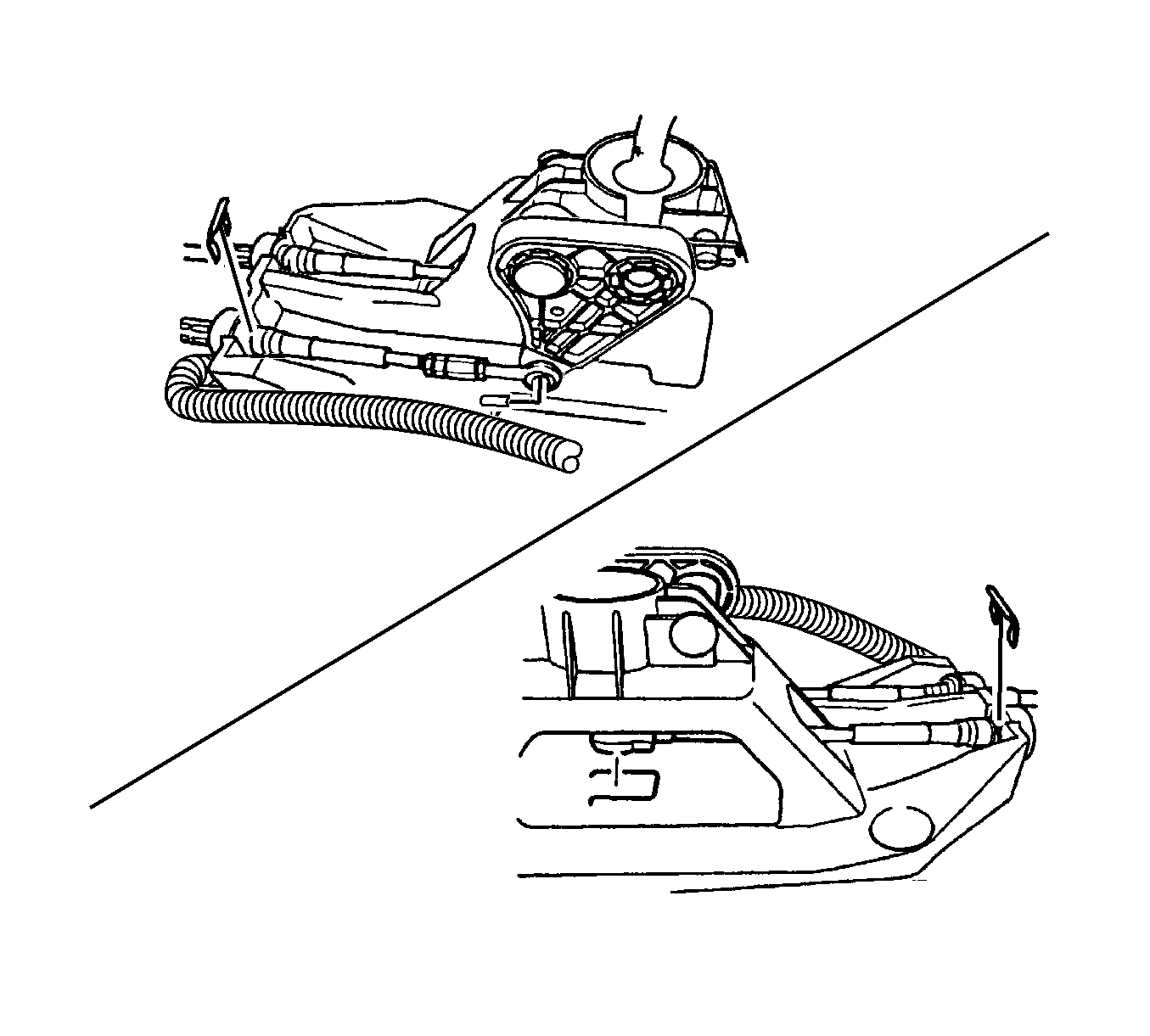

    9. Fig 3: Gear Shift Lever Side Select & Shift Control Cable U-Clip
    GM1291929Courtesy of GENERAL MOTORS CORP.
  9. Remove the gear shift lever side select and shift control cable U-clip.
  10. Remove the eye ring.
  11. Remove the select control cable E-ring.
  12. Disconnect the select control cable.
  13. Remove the shift control cable pin and cable E-ring.
  14. Remove the shift control cable.

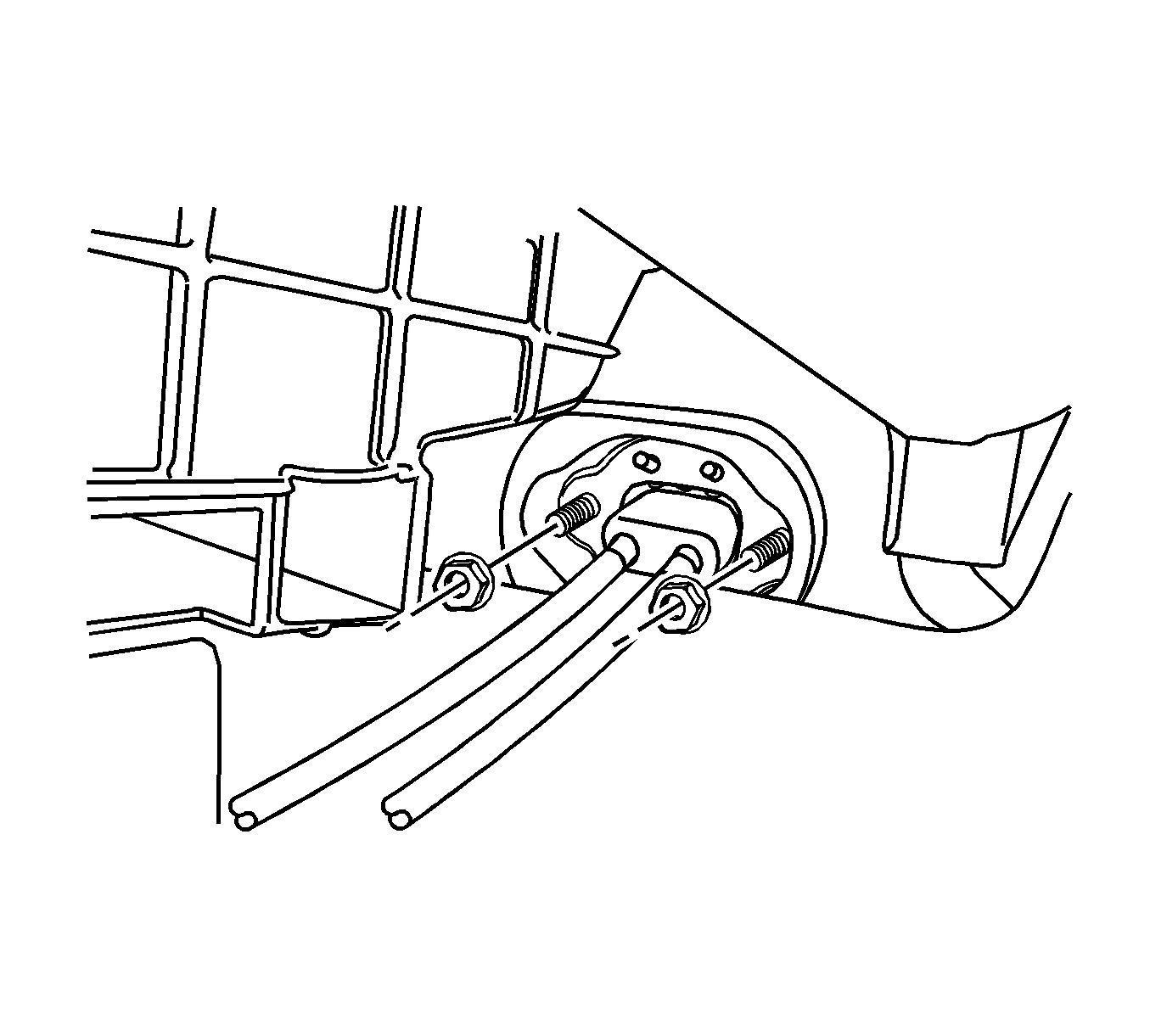

    15. Fig 4: Select & Shift Control Cable Nuts
    GM1291930Courtesy of GENERAL MOTORS CORP.
  15. Remove the select and shift control cable nuts and pull the cables out in the passenger room.
