Installation Procedure

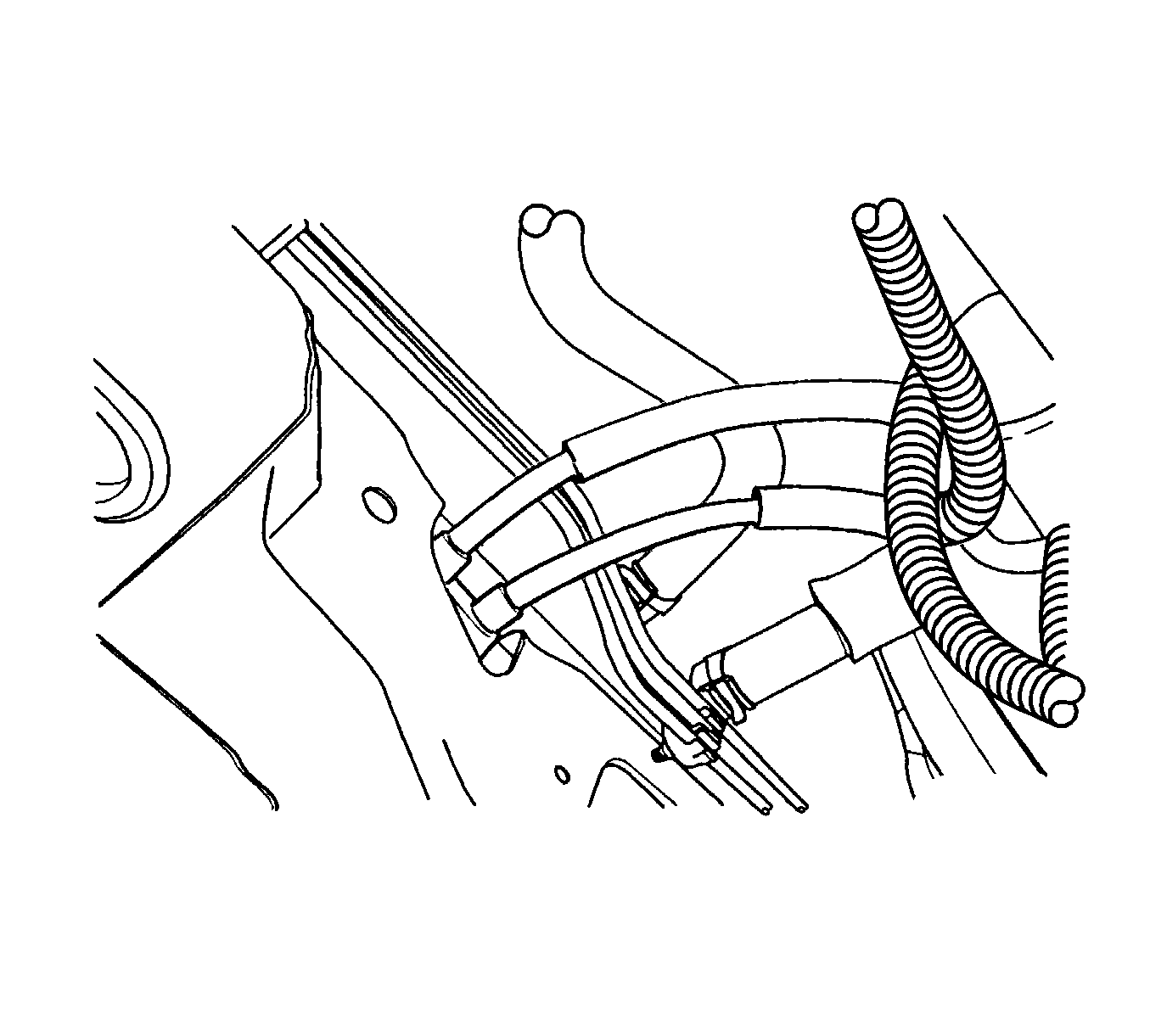

    Fig 1: Cables, Engine Compartment & Dash Panel
    GM1291931Courtesy of GENERAL MOTORS CORP.
  1. Install the cables toward the engine compartment through the dash panel.
  2. Position the cables on the select and the shift lever.
    3. Fig 2: Select And Shift Cable Pin
    GM1224503Courtesy of GENERAL MOTORS CORP.
  3. Connect the transaxle side select and shift control cables (4).
  4. Connect the gear shift lever side shift control cable.
    5. Fig 3: Gear Shift Lever Side Select & Shift Control Cable U-Clip
    GM1291929Courtesy of GENERAL MOTORS CORP.
  5. Insert the gear shift select control cable eye ring to the select arm pin.
  6. Install the gear shift selector lever control cable clip.
  7. Install the gear shift select control cable to the gear shift lever bracket with the E-ring.
  8. Insert a screwdriver to the select arm adjustment hole to prevent the movement of the gear shift lever in NEUTRAL.
  9. Connect the gear shift lever side select control cable.
    10. Fig 4: Floor Carpet & Gear Shift Cable
    GM1291928Courtesy of GENERAL MOTORS CORP.
  10. Install the floor console. Refer to Front Floor Console Replacement .
    11. NOTE: Refer to Fastener Notice .
  11. Install the gear cable adjust nut.

    Tighten:  Tighten the gear shift select cable adjust nut to 8-12 N.m (71-106 lb in).

  12. Install the battery.
  13. Install the air hose.
