Manual Transmission Component Views

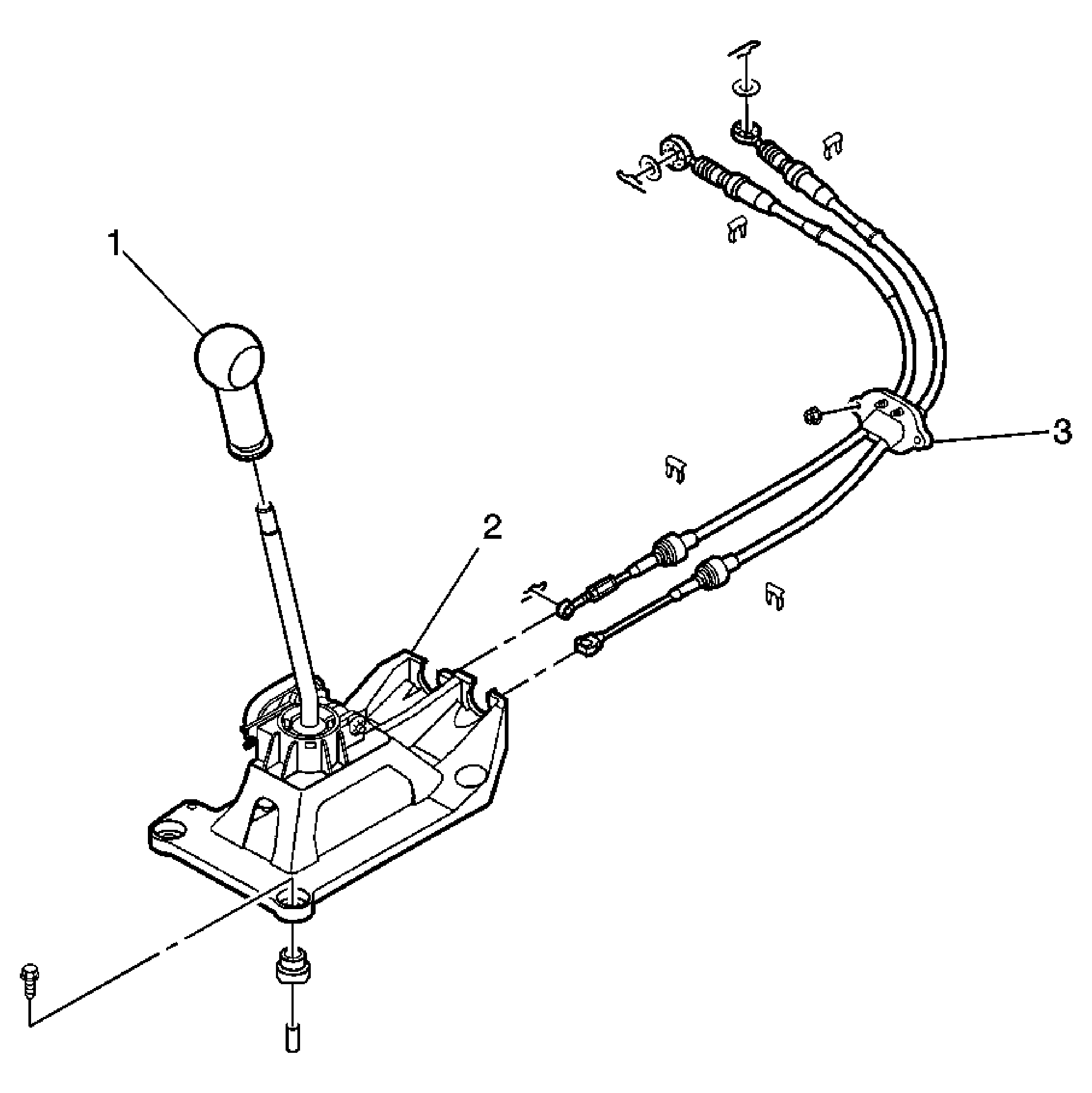

Fig 1: Gear Shift Control Component View
GM1291845Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Gear Shift Control Lever Knob
2 Gear Shift Control Lever Assembly
3 Select and Shift Cable

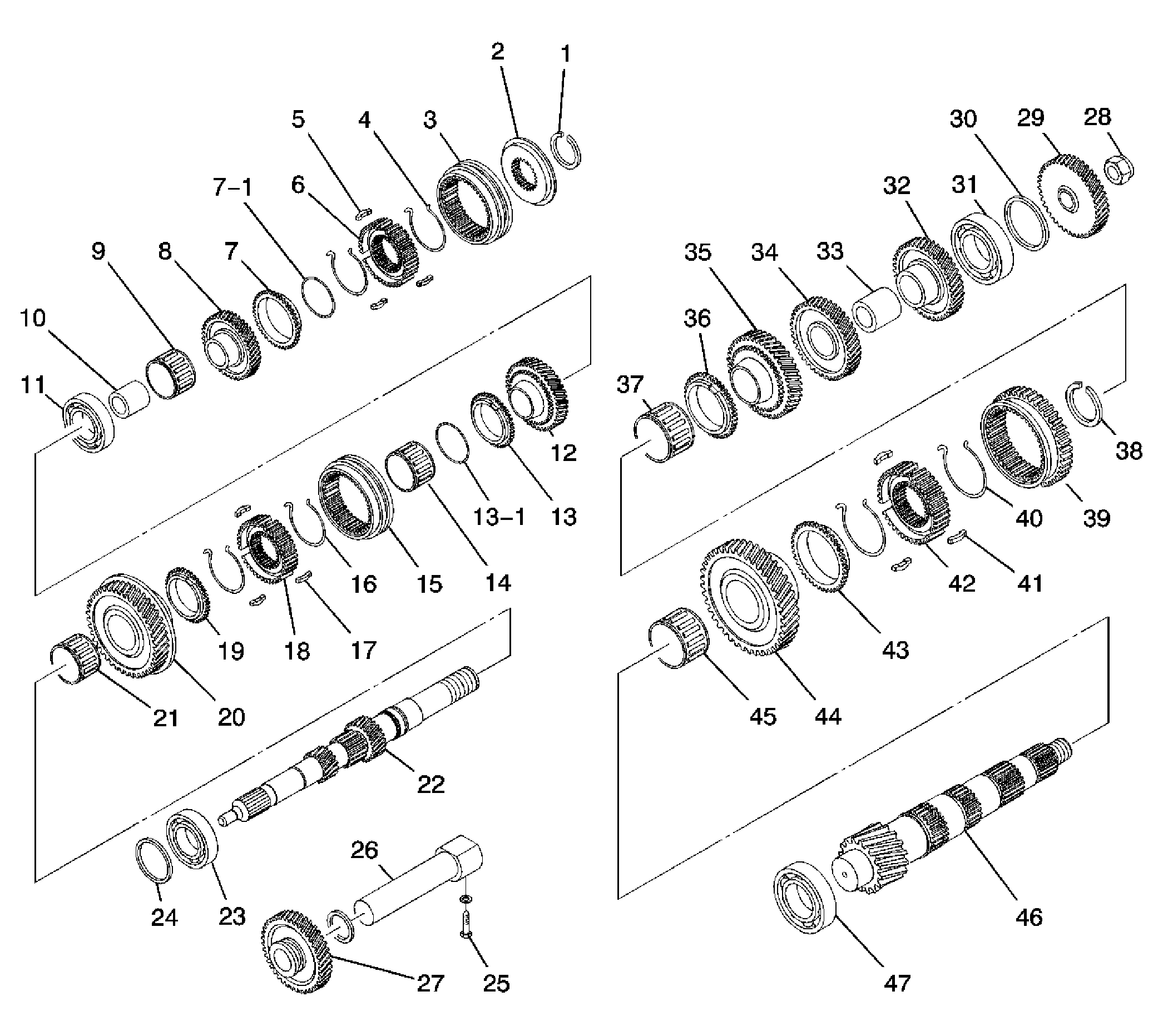

Fig 2: Input Shaft And Counter Shaft Gear Component View
GM1225502Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Input Shaft Circlip
2 5th Gear Synchronizer Plate
3 5th Gear Synchronizer Sleeve
4 5th Gear Synchronizer Spring
5 5th Gear Synchronizer Key
6 5th Gear Synchronizer Hub
7 5th Gear Synchronizer Ring
7-1 Wave Spring
8 Input Shaft 5th Gear
9 Input Shaft 5th Gear Bearing
10 Input Shaft 5th Gear Spacer
11 Input Shaft Bearing - Left
12 Input Shaft 4th Gear
13 4th Gear Synchronizer Ring
13-1 Wave Spring
14 Input Shaft 4th Gear Bearing
15 3rd-4th Gear Synchronizer Sleeve
16 3rd-4th Gear Synchronizer Spring
17 3rd-4th Gear Synchronizer Key
18 3rd-4th Gear Synchronizer Hub
19 3rd Gear Synchronizer Ring
20 Input Shaft 3rd Gear
21 Input Shaft 3rd Gear Bearing
22 Input Shaft
23 Input Shaft Bearing - Right
24 Input Shaft Oil Seal
25 Reverse Gear Shaft Bolt
26 Reverse Gear Shaft
27 Reverse Idle Gear
28 Counter Shaft Nut
29 Counter Shaft 5th Gear
30 Counter Shaft Bearing Shim
31 Counter Shaft Bearing - Left
32 Counter Shaft 4th Gear
33 Counter Shaft 3rd-4th Gear Spacer
34 Counter Shaft 3rd Gear
35 Counter Shaft 2nd Gear
36 2nd Gear Synchronizer Ring
37 Counter Shaft 2nd Gear Bearing
38 1st-2nd Gear Synchronizer Circlip
39 1st-2nd Gear Synchronizer Sleeve
40 1st-2nd Gear Synchronizer Spring
41 1st-2nd Gear Synchronizer Key
42 1st-2nd Gear Synchronizer Hub
43 1st Gear Synchronizer Ring
44 Counter Shaft 1st Gear
45 Counter Shaft 1st Gear Bearing
46 Counter Shaft
47 Counter Shaft Bearing - Right

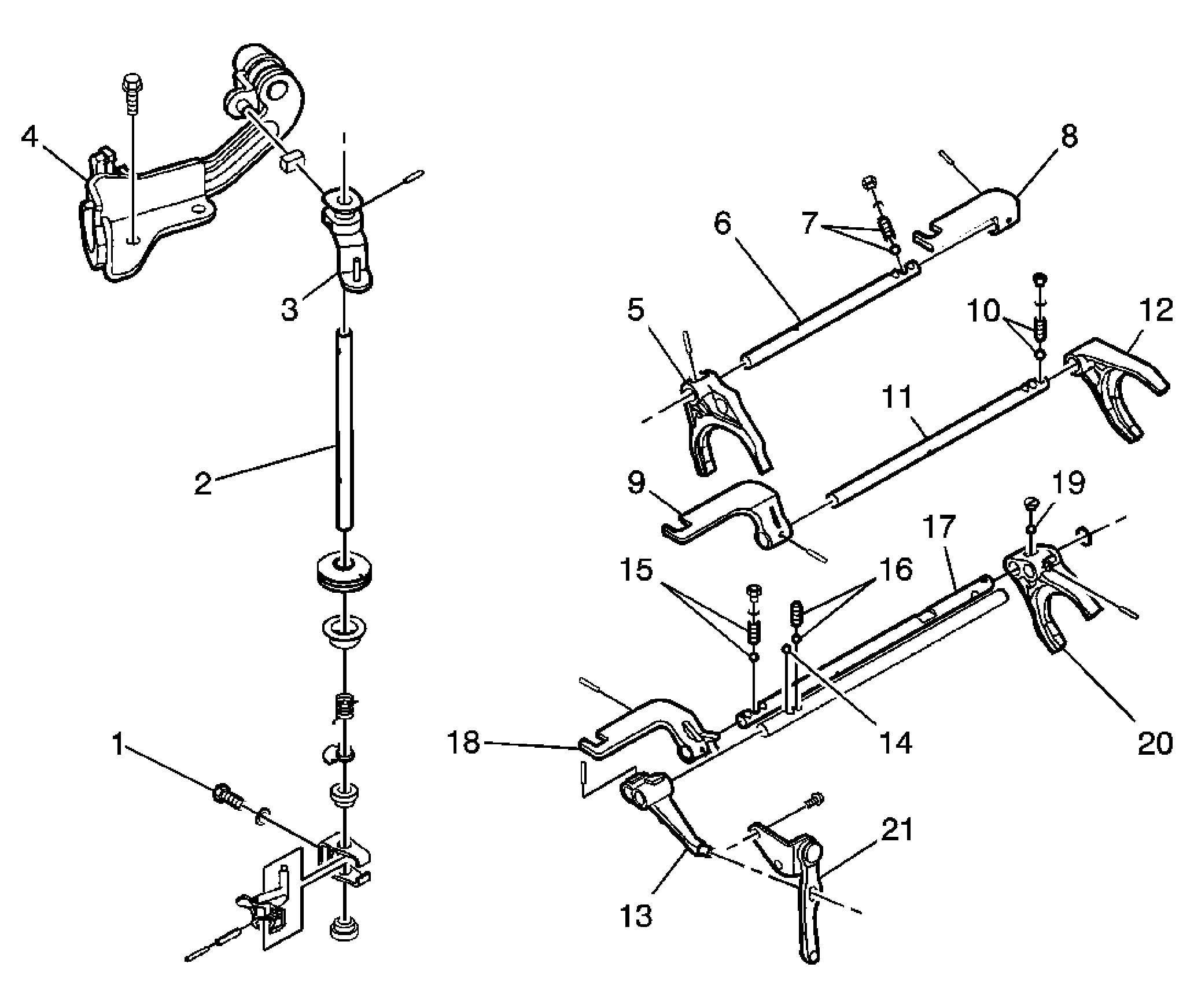

Fig 3: Gear Shift Fork Component View
GM1291846Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Shift Interlock Bolt
2 Shift and Select Shaft
3 Shift Lever
4 Bracket
5 Low Speed Shift Fork
6 Low Speed Shift Shaft
7 Low Speed Shift Shaft Spring/Ball
8 Low Speed Shift York
9 High Speed Shift York
10 High Speed Shaft Spring/Ball
11 High Speed Shift Shaft
12 High Speed Shift Fork
13 Reverse Shift Arm
14 5th/Reverse Shift Ball
15 5th/Reverse Shift Shaft Spring/Ball
16 Reverse Shift Shaft Guide Spring/Ball
17 5th/Reverse Shift Shaft
18 5th/Reverse Shift York
19 5th/Shift Fork Guide Ball
20 5th/Shift Fork
21 Reverse Shift Lever

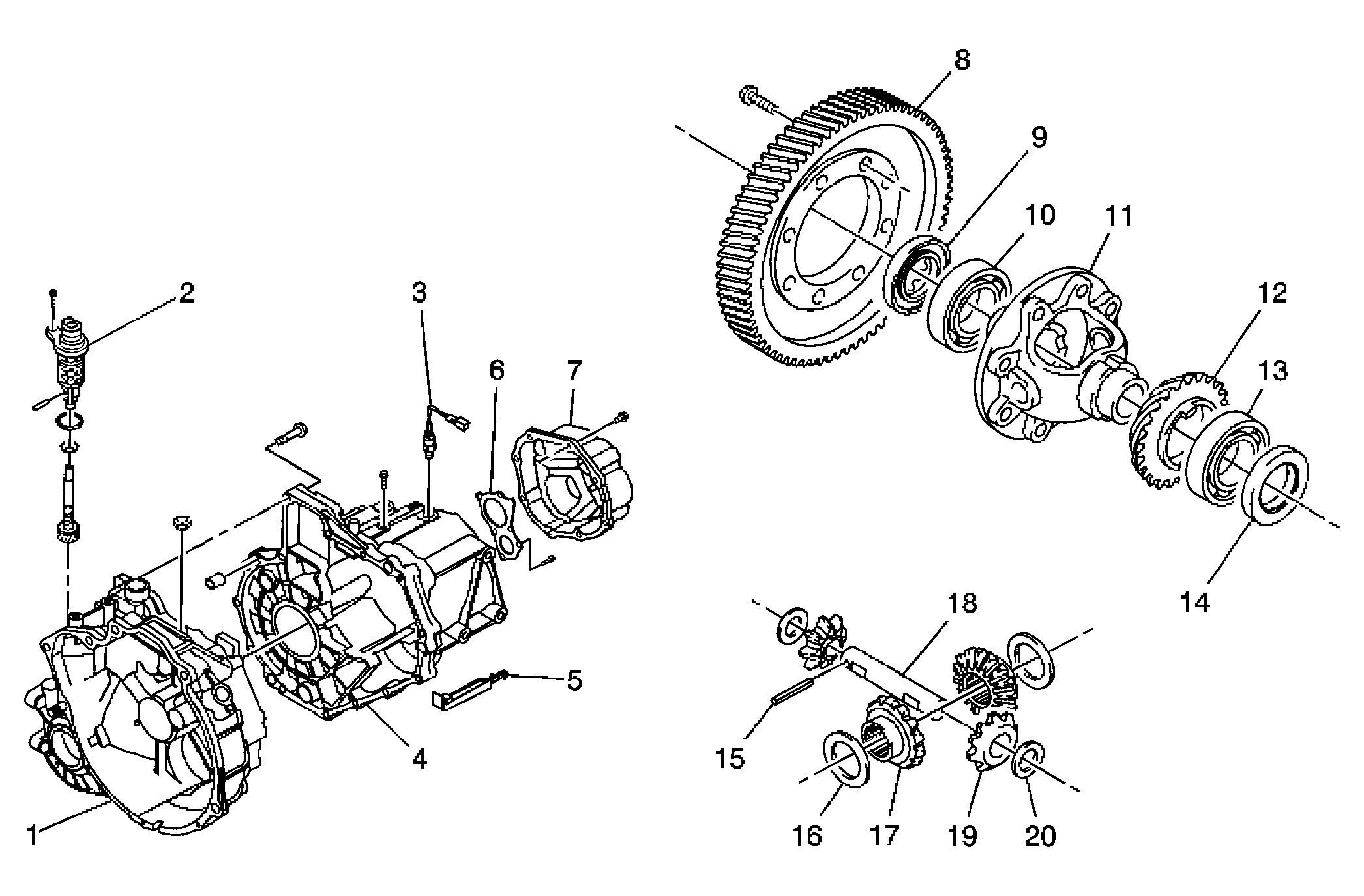

Fig 4: Differential And Case Component View
GM1291847Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Transaxle Case - Right
2 Speedometer Driven Gear (Vehicle Speed Sensor)
3 Back Up Light Switch
4 Transaxle Case - Left
5 Oil Gutter
6 Left Case Plate
7 Side Cover
8 Differential Ring Gear
9 Differential Oil Seal - Left
10 Differential Bearing - Left
11 Differential Case
12 Speedometer Drive Gear
13 Differential Bearing - Right
14 Differential Oil Seal - Right
15 Differential Pinion Gear Shaft Pin
16 Differential Side Gear Adjust Shim
17 Differential Side Gear
18 Differential Pinion Gear Shaft
19 Differential Pinion Gear
20 Differential Pinion Gear Washer
