Removal Procedure

    Fig 1: Speedometer Speed Sensor Electrical Connector
    GM1248174Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the speedometer speed sensor electrical connector.

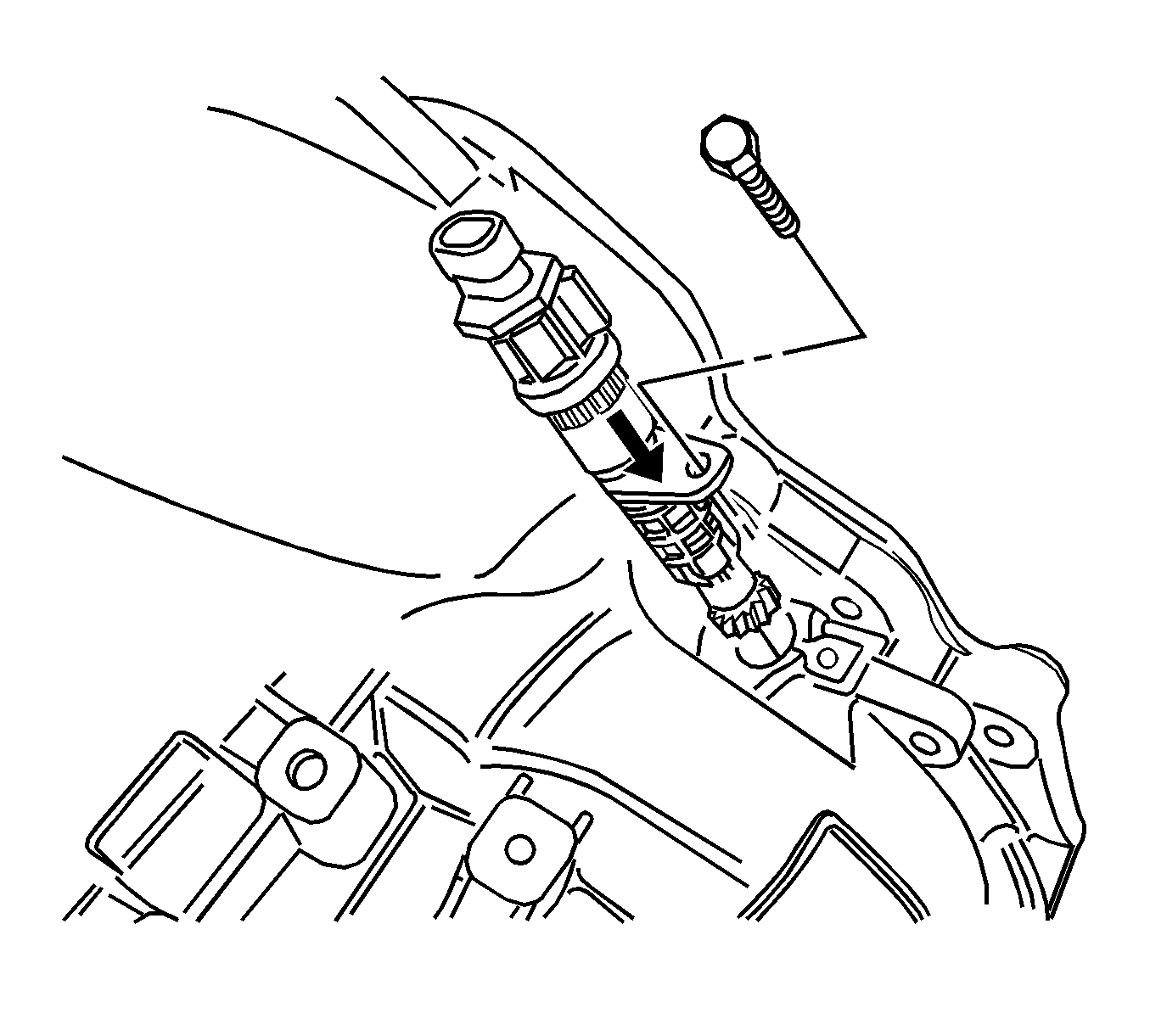

    2. Fig 2: Speedometer Housing & Retaining Bolt
    GM1248175Courtesy of GENERAL MOTORS CORP.
  2. Remove the speedometer housing retaining bolt.
  3. Remove the speedometer-driven gear and the speedometer housing.
