Main Shaft Assemble

    Fig 1: Mainshaft Bearing
    GM1251739Courtesy of GENERAL MOTORS CORP.
  1. Install the mainshaft bearing
    2. Fig 2: 4th Gear Needle Bearing, Ring & Thrust Washer
    GM1251737Courtesy of GENERAL MOTORS CORP.
  2. Install the ring, the thrust washer, and the 4th gear needle bearing.
    3. Fig 3: Synchronizer Blocking Ring & 4th Gear
    GM1251736Courtesy of GENERAL MOTORS CORP.
  3. Attach the synchronizer blocking ring to the 4th gear.
    4. Fig 4: 4th Gear Assembly
    GM1251733Courtesy of GENERAL MOTORS CORP.
  4. Install the 4th gear assembly.
    5. Fig 5: 3rd-4th Synchronizer Gear & Synchronizer Spring
    GM1251724Courtesy of GENERAL MOTORS CORP.
  5. Install the 3rd-4th gear synchronizer containing the synchronizer spring.
    6. Fig 6: Snap Ring, Washer & Mainshaft
    GM1251720Courtesy of GENERAL MOTORS CORP.
  6. Install the snap ring and the washer around the mainshaft.
    7. Fig 7: Synchronizer Sleeve, Keys & Spring
    GM1251718Courtesy of GENERAL MOTORS CORP.
  7. Install the synchronizer sleeve containing the keys and the spring.
    8. Fig 8: 3rd Gear Needle Bearing & Mainshaft
    GM1251717Courtesy of GENERAL MOTORS CORP.
  8. Install the 3rd gear needle bearing.
    9. Fig 9: Synchronizer Blocking Ring
    GM1251716Courtesy of GENERAL MOTORS CORP.
  9. Attach the synchronizer blocking ring to the 3rd gear.
    10. Fig 10: 3rd Gear & Synchronizer Blocking Ring
    GM1251714Courtesy of GENERAL MOTORS CORP.
  10. Install the 3rd gear assembly.
    11. Fig 11: Ring & Thrust Washer
    GM1251713Courtesy of GENERAL MOTORS CORP.
  11. Install the thrust washer and the ring.
    12. Fig 12: 2nd Gear Needle Bearing
    GM1251711Courtesy of GENERAL MOTORS CORP.
  12. Install the 2nd gear needle bearing.
    13. Fig 13: 2nd Gear
    GM1251742Courtesy of GENERAL MOTORS CORP.
  13. Install the 2nd gear.
    14. Fig 14: 1st-2nd Gear Blocking Ring
    GM1251709Courtesy of GENERAL MOTORS CORP.
  14. Install the 1st-2nd gear blocking ring.
    15. Fig 15: 1st-2nd Synchronizer Gear & Mainshaft
    GM1251707Courtesy of GENERAL MOTORS CORP.
  15. Install the 1st-2nd synchronizer gear.
    16. Fig 16: Snap Ring & Washer
    GM1251705Courtesy of GENERAL MOTORS CORP.
  16. Install the washer and the snap ring.
    17. Fig 17: Barrel-Type 1st Gear Needle Bearing
    GM1251704Courtesy of GENERAL MOTORS CORP.
  17. Install the 1st gear needle bearing.
    18. Fig 18: 1st-2nd Synchronizer Gear
    GM1251703Courtesy of GENERAL MOTORS CORP.
  18. Install the keys onto the 1st-2nd synchronizer gear.
    19. Fig 19: Synchronizer Hub Sleeve & Synchronizer Spring
    GM1251702Courtesy of GENERAL MOTORS CORP.
  19. Install the synchronizer hub sleeve containing the synchronizer spring.
    20. Fig 20: 1st Gear, 1st Gear Needle Bearing & Mainshaft Wear Plate
    GM1251701Courtesy of GENERAL MOTORS CORP.
  20. Install the outer blocking ring.
  21. Install the mainshaft wear plate, the flat-type 1st gear needle bearing, and the 1st gear.
    22. Fig 21: Mainshaft Snap Ring
    GM1251699Courtesy of GENERAL MOTORS CORP.
  22. Install the snap ring.

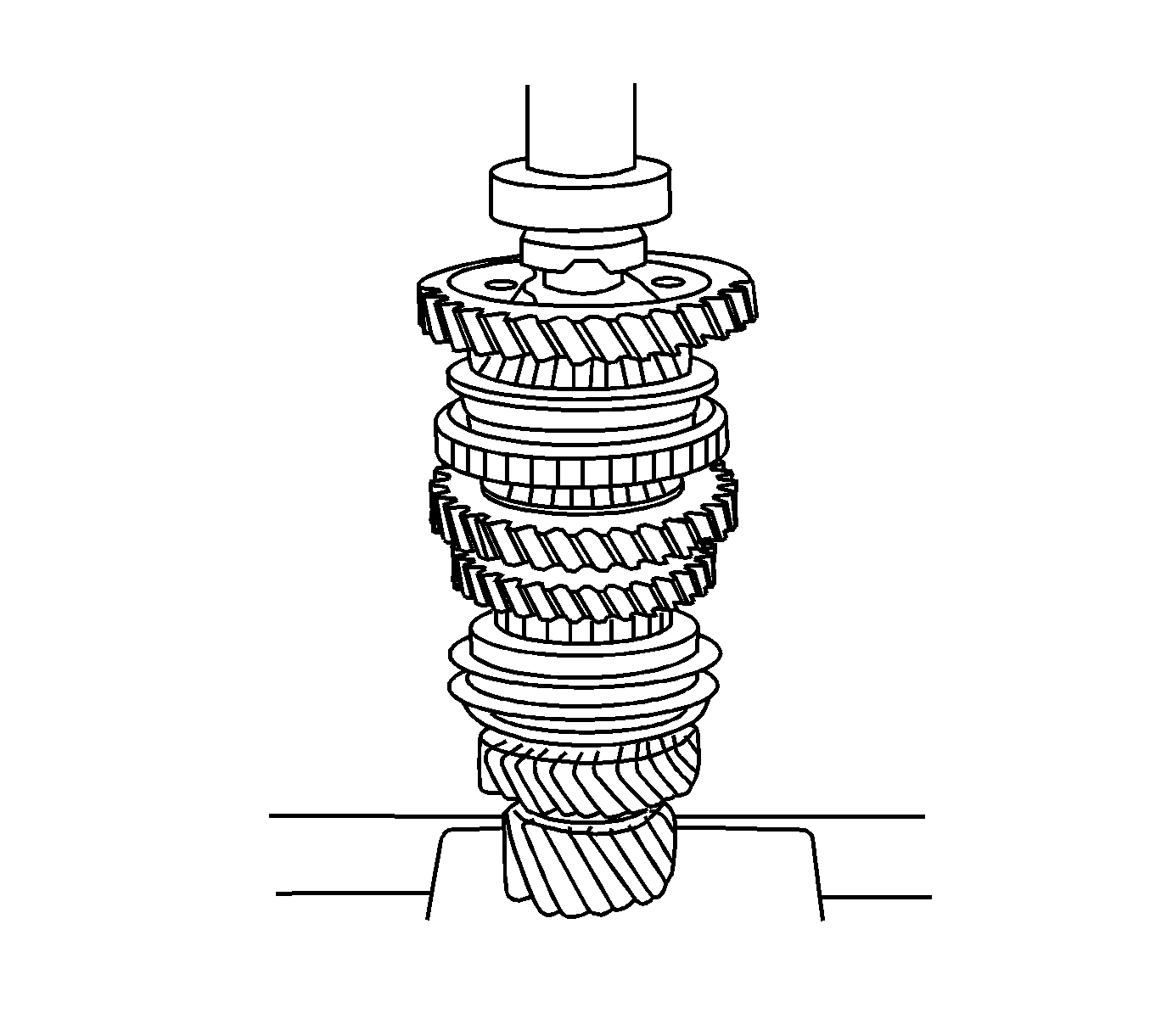

    23. Fig 22: Mainshaft Bearing
    GM1251743Courtesy of GENERAL MOTORS CORP.
  23. Press on the mainshaft bearing.
