Removal Procedure

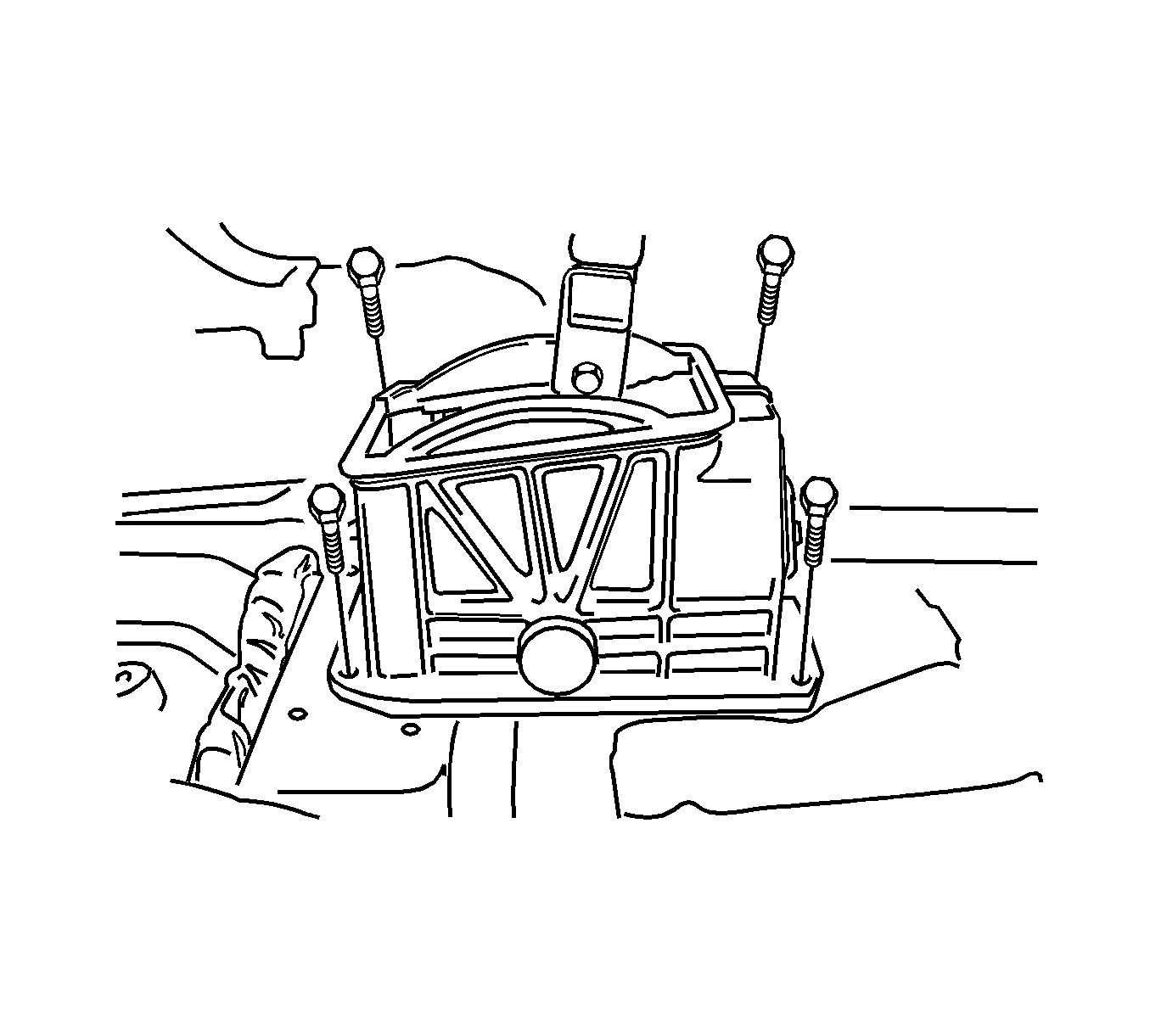

    Fig 1: Gearshift Lever Housing & Bolts
    GM1248172Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the rod clamp. Refer to Shift Linkage Adjustment .
  3. Remove the console.
  4. Remove the gearshift lever housing bolts and the gearshift lever housing.
