Installation Procedure

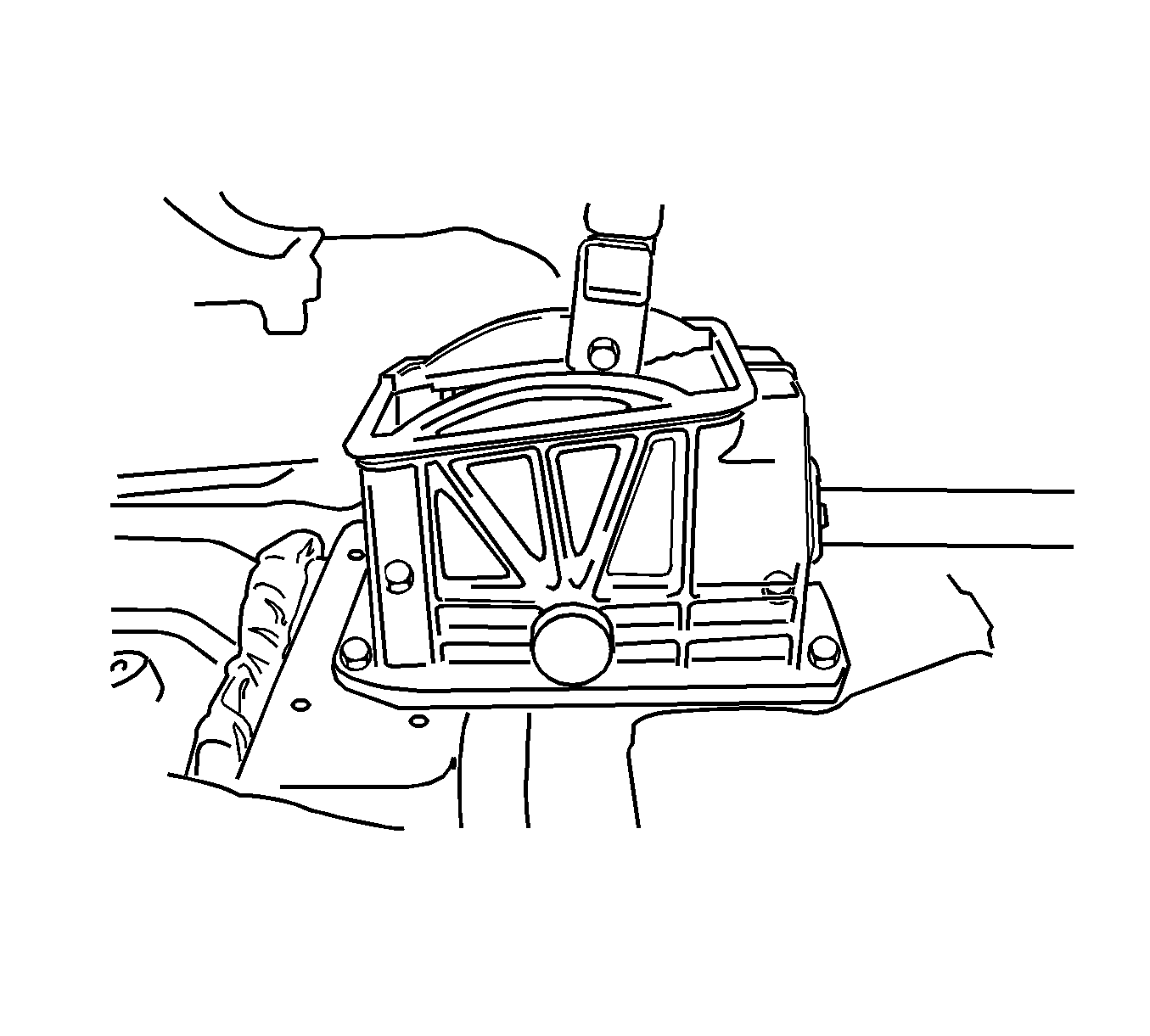

    Fig 1: Gearshift Lever Housing
    GM1248173Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the gearshift lever housing and the gearshift lever housing bolts.

    Tighten:  Tighten the gearshift housing bolts to 7 N.m (62 lb in).

  2. Adjust the shift linkage. Refer to Shift Linkage Adjustment .
  3. Install the console.
  4. Connect the negative battery cable.
