Shift Lock Control Schematics (Hatchback - North American)

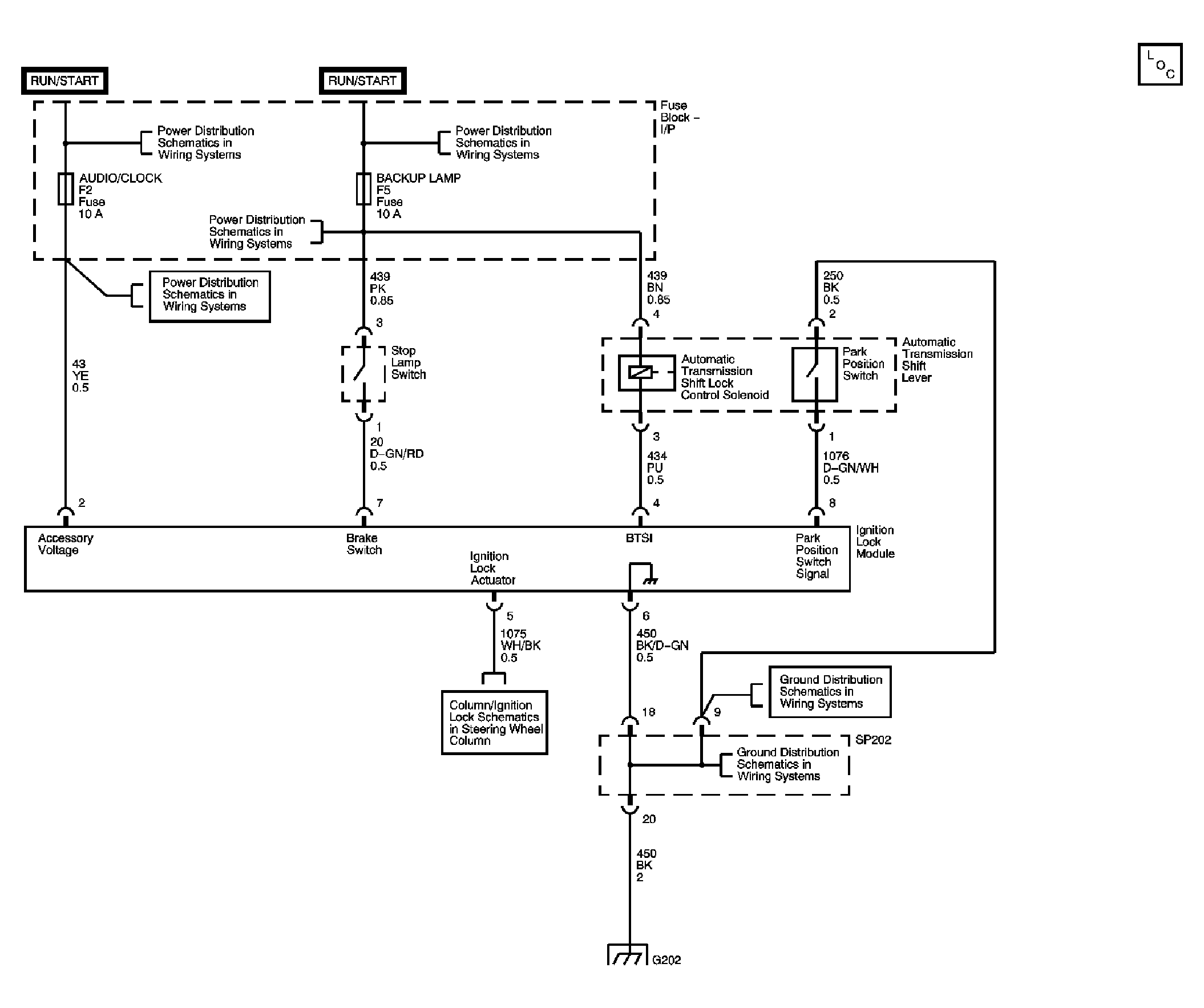

Fig 1: Shift Lock Control Schematics (Hatchback - North American)
GM1680285Courtesy of GENERAL MOTORS CORP.
