Special Tools

Special Tools

Illustration Tool Number/Description
GM1282443Courtesy of GENERAL MOTORS CORP.
 DT 46450 (DW 240-010)
Auto Transaxle Pressure Gage Set
GM1256970Courtesy of GENERAL MOTORS CORP.
 DT 46451 (DW 240-020)
Brake/Clutch Spring Compressor
GM1256966Courtesy of GENERAL MOTORS CORP.
 DT 46452 (DW 240-030)
Forward Clutch Adapter

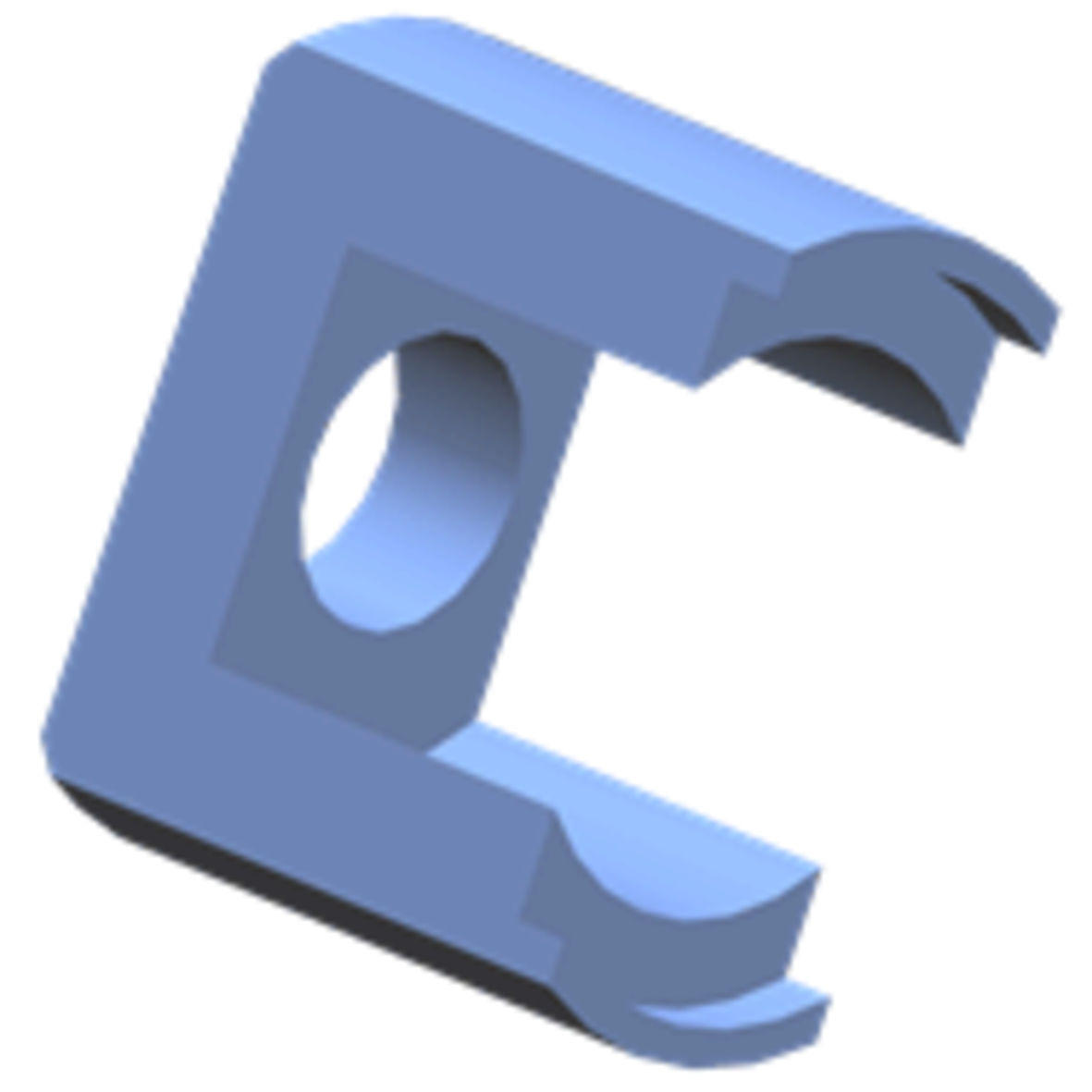

GM1256968Courtesy of GENERAL MOTORS CORP.
 DT 46453 (DW 240-040)
Direct Clutch Adapter
GM1256987Courtesy of GENERAL MOTORS CORP.
 DT 46454 (DW 240-050)
Overdrive Brake Adapter

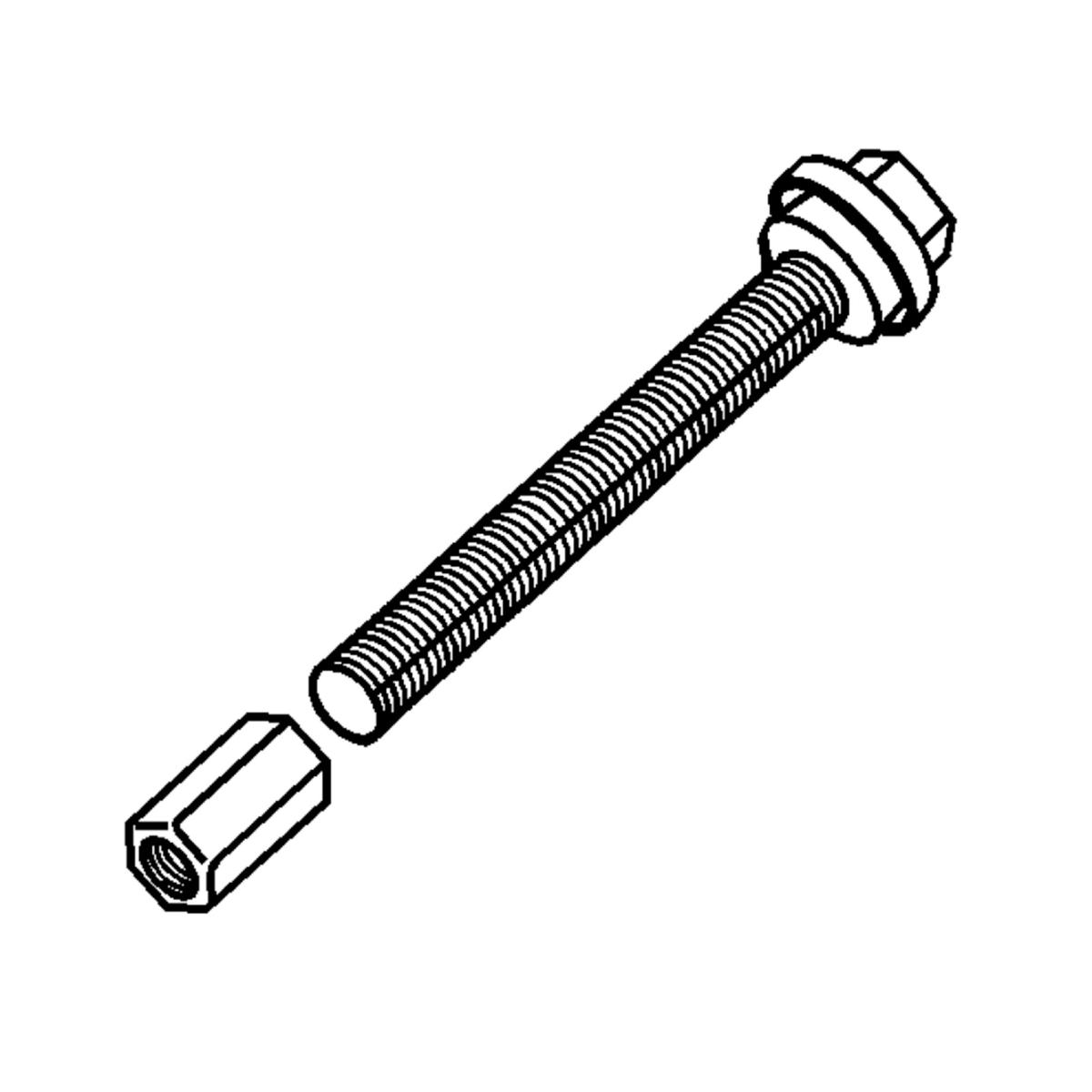

GM1256985Courtesy of GENERAL MOTORS CORP.
 DT 46455 (DW 240-060-01)
Brake Spring Compressor Bolt/Nut

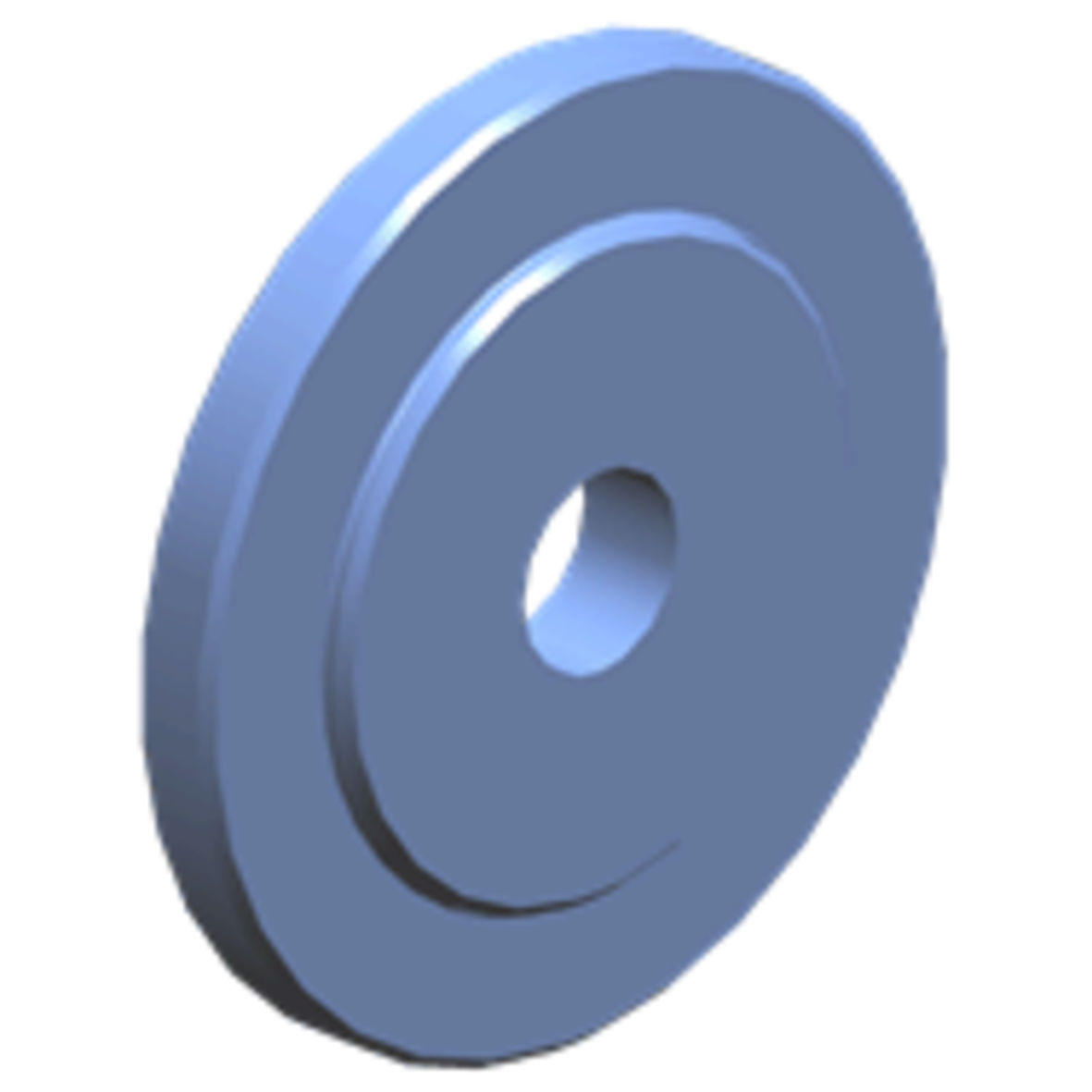

GM1256983Courtesy of GENERAL MOTORS CORP.
 DT 46456 (DW 240-060-02)
Brake Spring Compressor Plate

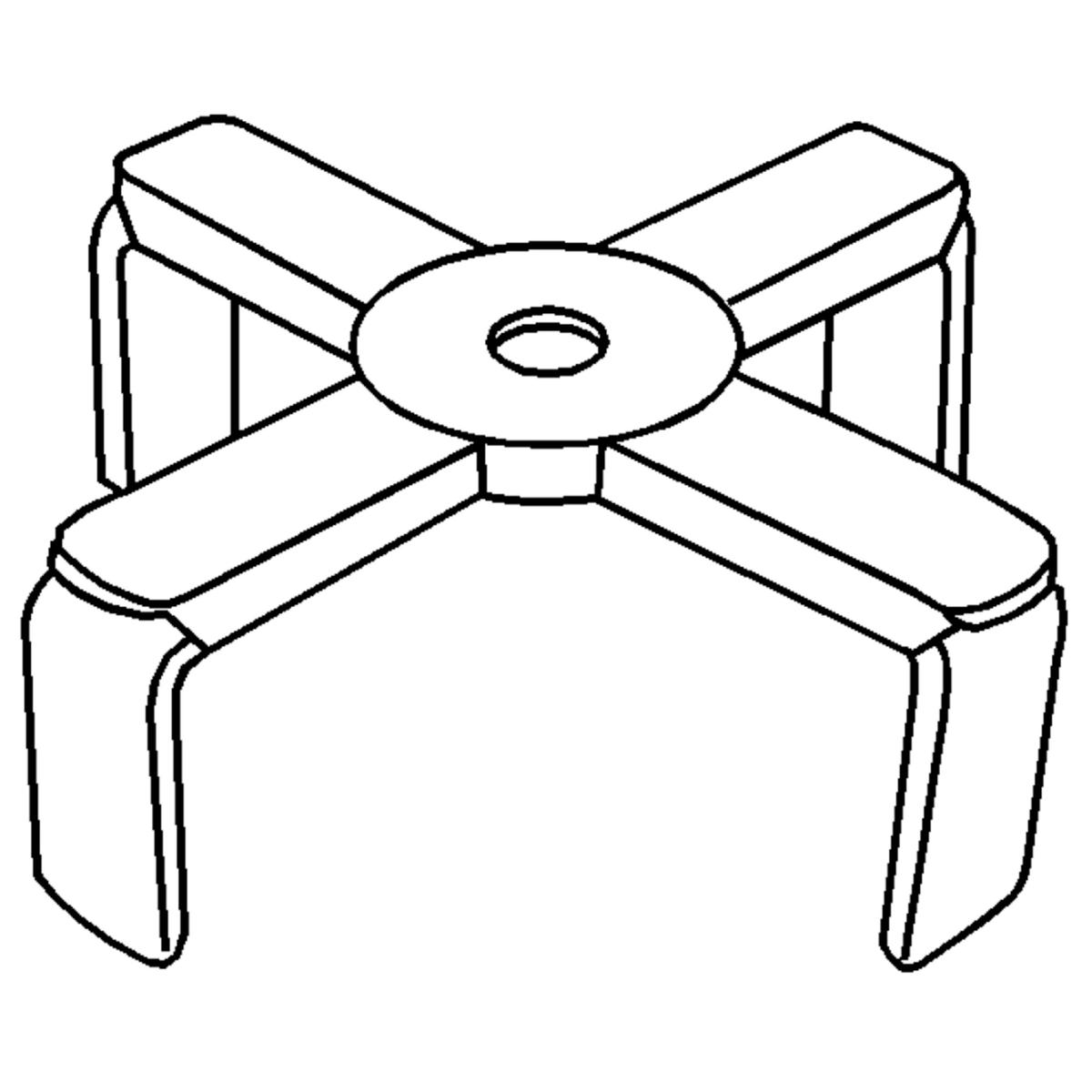

GM1256992Courtesy of GENERAL MOTORS CORP.
 DT 46457 (DW 240-070)
1st/Reverse Brake Adapter
GM1256962Courtesy of GENERAL MOTORS CORP.
 DT 46458 (DW 240-080)
2nd Brake Adapter
GM1256969Courtesy of GENERAL MOTORS CORP.
 DT 46459 (DW 240-090)
Planetary Ring Gear Remover

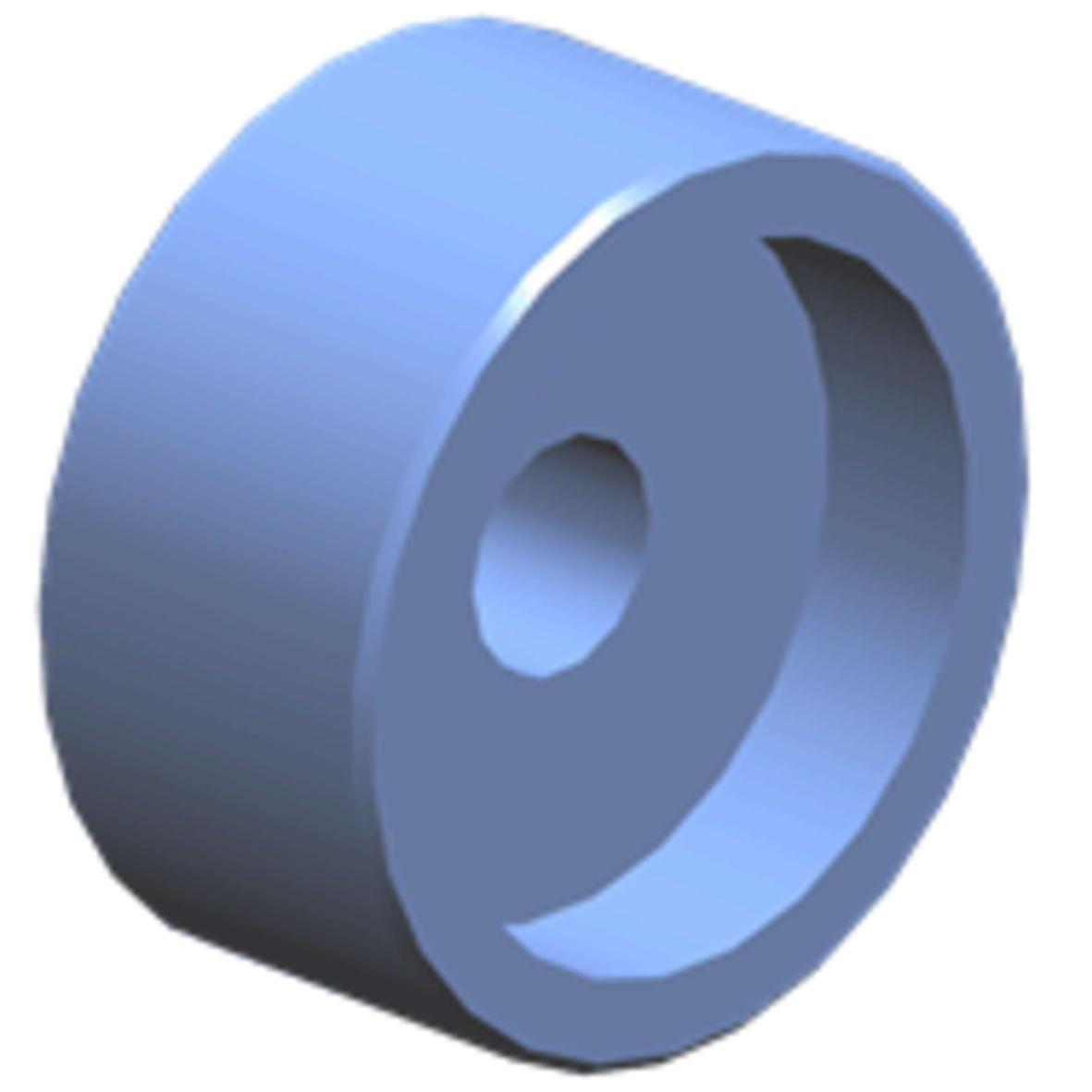

GM1256964Courtesy of GENERAL MOTORS CORP.
 DT 46460 (DW 240-100)
Counter Drive Gear Installation Adapter

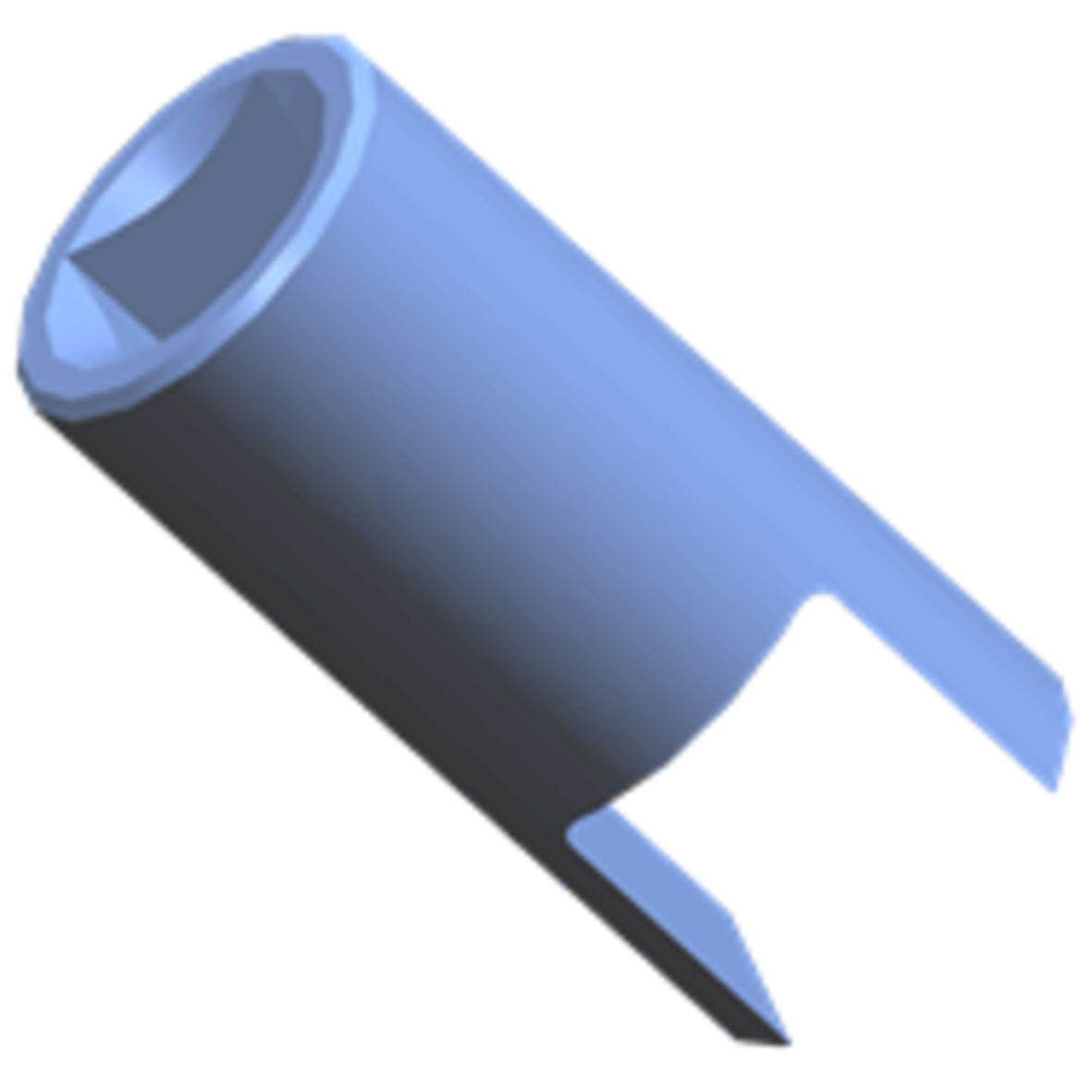

GM1282397Courtesy of GENERAL MOTORS CORP.
 DT 46461 (DW 240-130)
Differential Preload Adapter
GM1256974Courtesy of GENERAL MOTORS CORP.
 DT 46462 (DW 240-140)
Transaxle Housing Side Bearing Outer Race Adapter
GM1256979Courtesy of GENERAL MOTORS CORP.
 DT 46463 (DW 240-150)
Transaxle Case Side Bearing Outer Race Adapter
GM1256989Courtesy of GENERAL MOTORS CORP.
 DT 46464 (DW 240-160)
Transaxle Case Outer Tapered Roller Bearing Race Adapter
GM1256986Courtesy of GENERAL MOTORS CORP.
 DT 46465 (DW 240-170)
Adapter Handle
GM1256963Courtesy of GENERAL MOTORS CORP.
 DT 46469-2 (DW 260-021)
Automatic Transaxle Overhaul Fixture
GM1256976Courtesy of GENERAL MOTORS CORP.
 DT 46471 (DW 260-031-01)
Transaxle Housing Oil Seal Installer
GM1256972Courtesy of GENERAL MOTORS CORP.
 DT 46472 (DW 260-041)
Planetary Ring Gear Nut Removal/Installation Socket (52 mm)
GM1256984Courtesy of GENERAL MOTORS CORP.
 DT 46520 (DW 240-120)
Measuring Terminal
GM1256988Courtesy of GENERAL MOTORS CORP.
 DT 47521 (DW 260-031-02)
Transaxle Case Oil Seal Installer
GM1282399Courtesy of GENERAL MOTORS CORP.
 DW 260-120
Transaxle Support Fixture
GM190562Courtesy of GENERAL MOTORS CORP.
 J 28467-B (DW 117, DW 110-060) Universal Engine Support Fixture
GM15015Courtesy of GENERAL MOTORS CORP.
 J 35944-22
Cooler Flushing Fluid
GM1215917Courtesy of GENERAL MOTORS CORP.
 J 45096
Transmission Oil Cooling System Flush and Flow Test Tool
