Automatic Transmission Controls Schematics (Notchback)

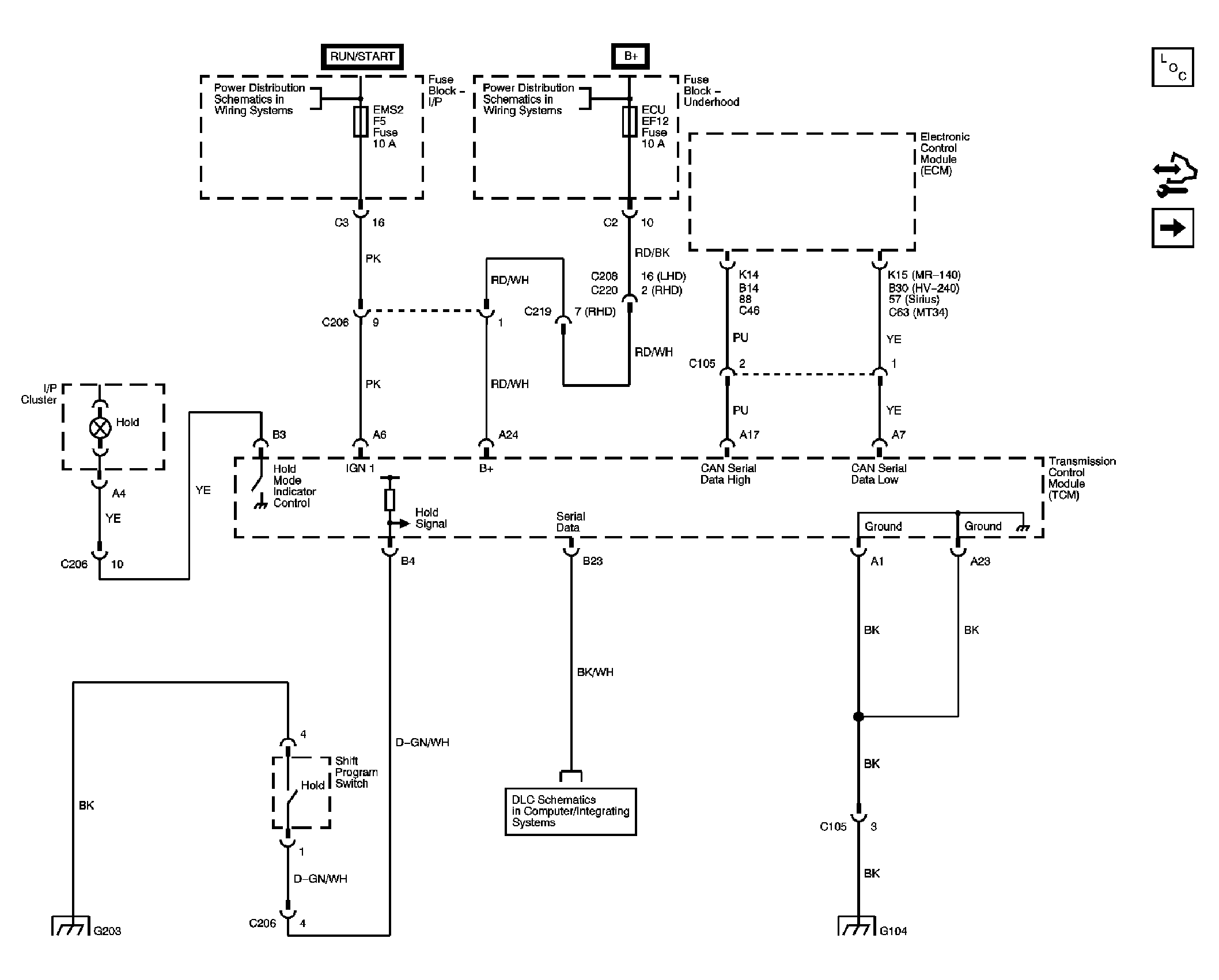

Fig 1: Transmission Control Module (TCM) Power and Ground Distribution, Serial Data and Shift Program Switch

Courtesy of GENERAL MOTORS CORP.

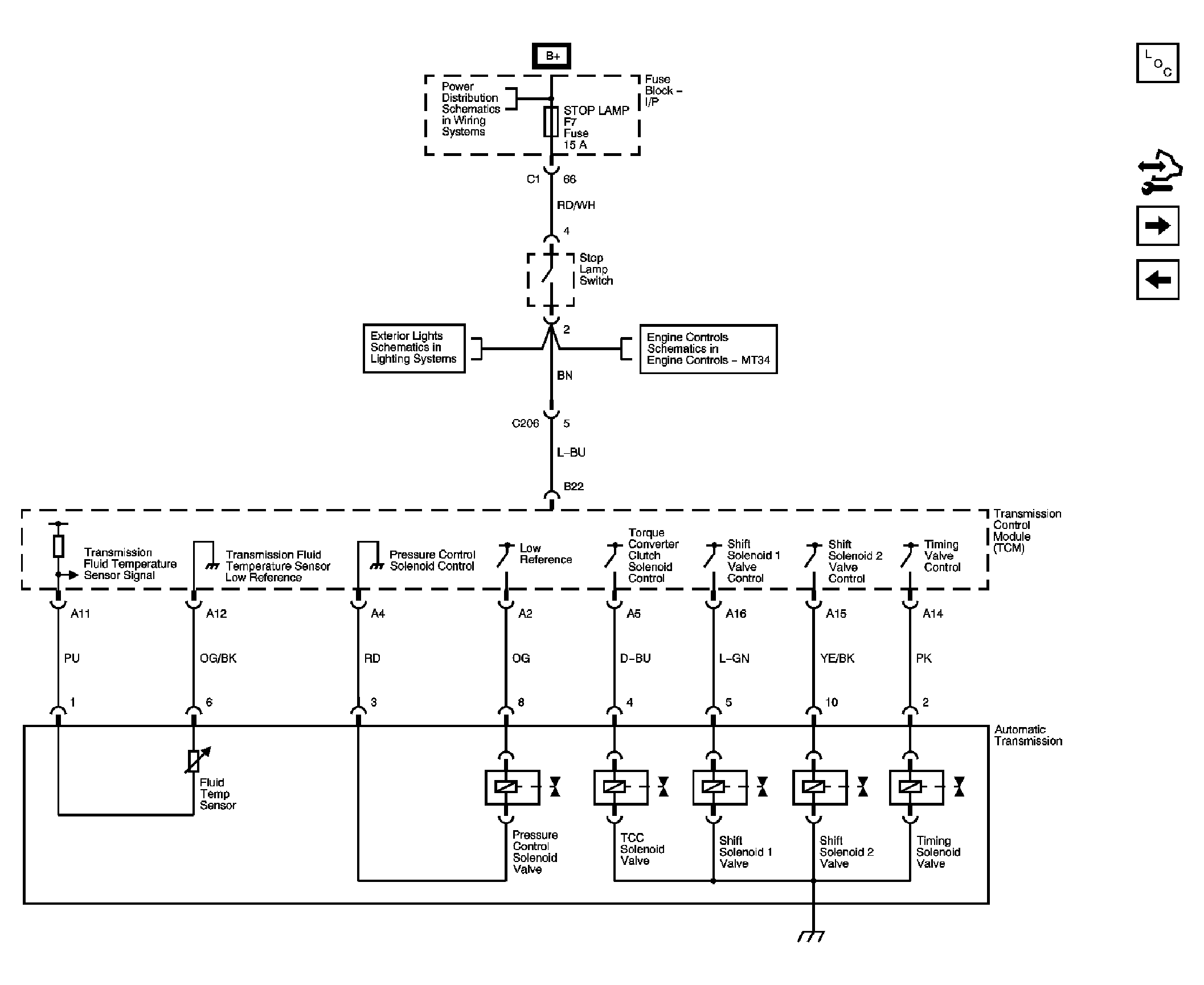

Fig 2: Pressure, TCC, Shift, Timing Solenoid Valves and TFT Sensor

Courtesy of GENERAL MOTORS CORP.

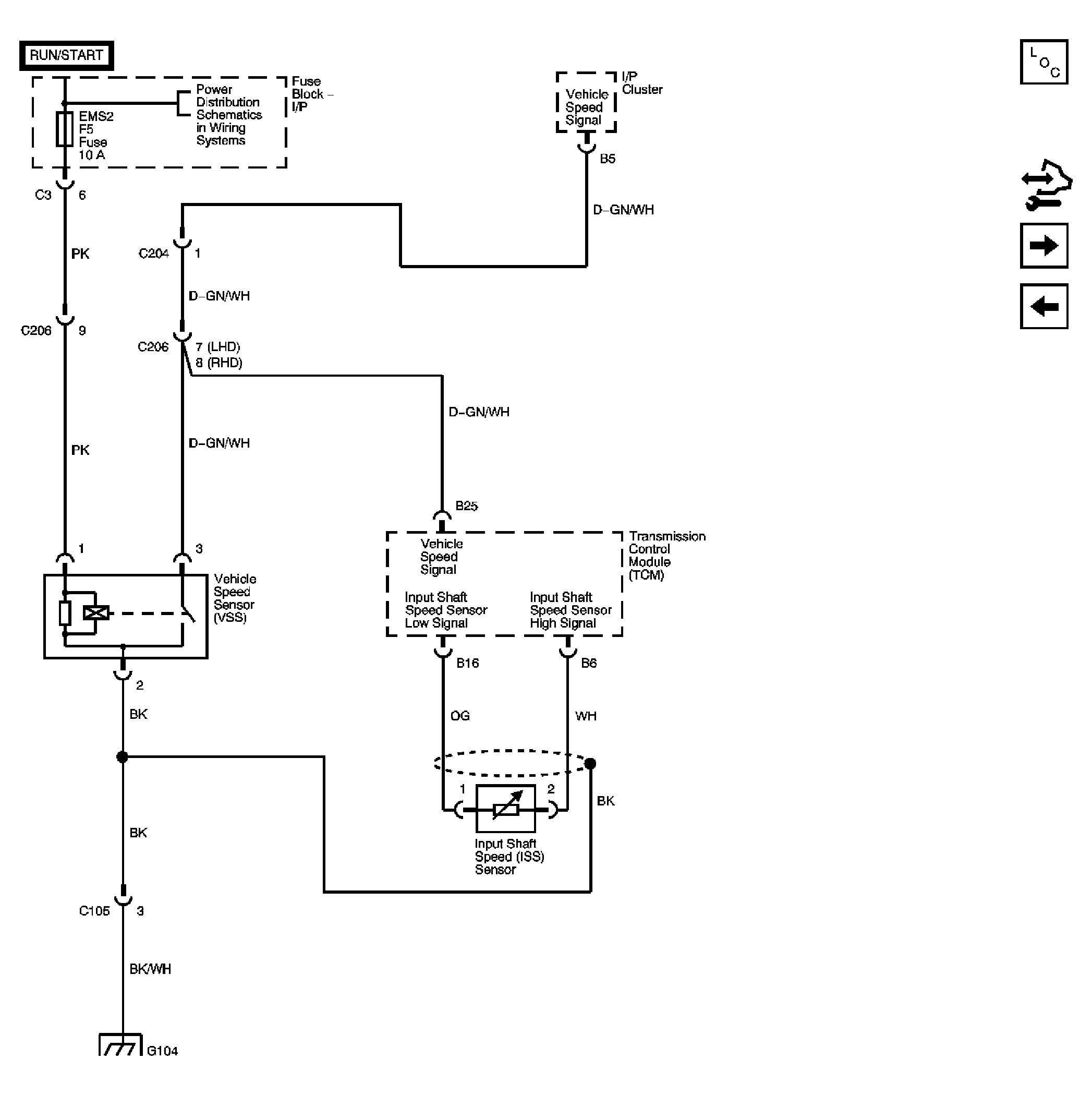

Fig 3: Vehicle and Input Shaft Speed Sensors

Courtesy of GENERAL MOTORS CORP.

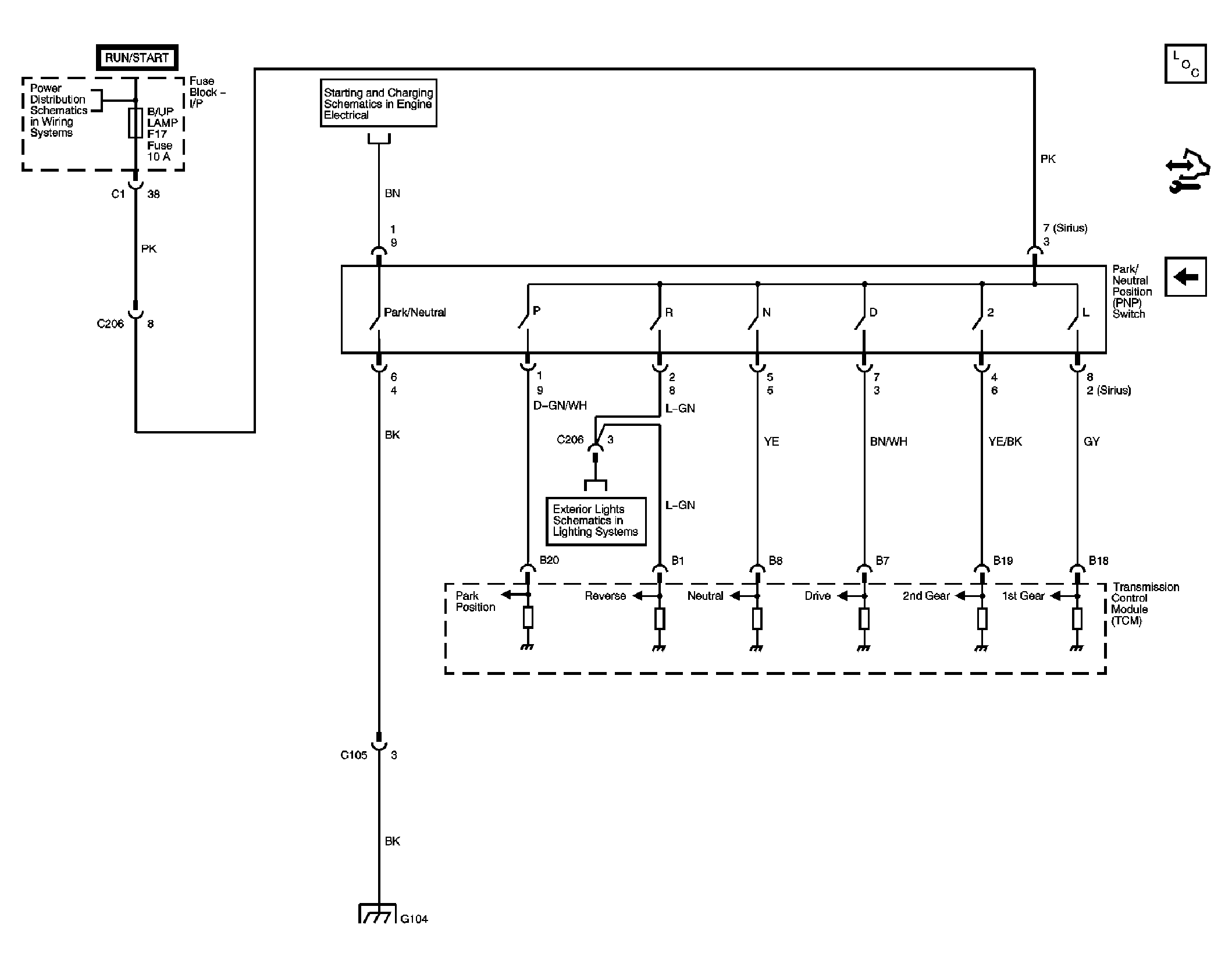

Fig 4: Park Neutral Position (PNP)

Courtesy of GENERAL MOTORS CORP.
