Automatic Transmission Controls Schematics (Hatchback)

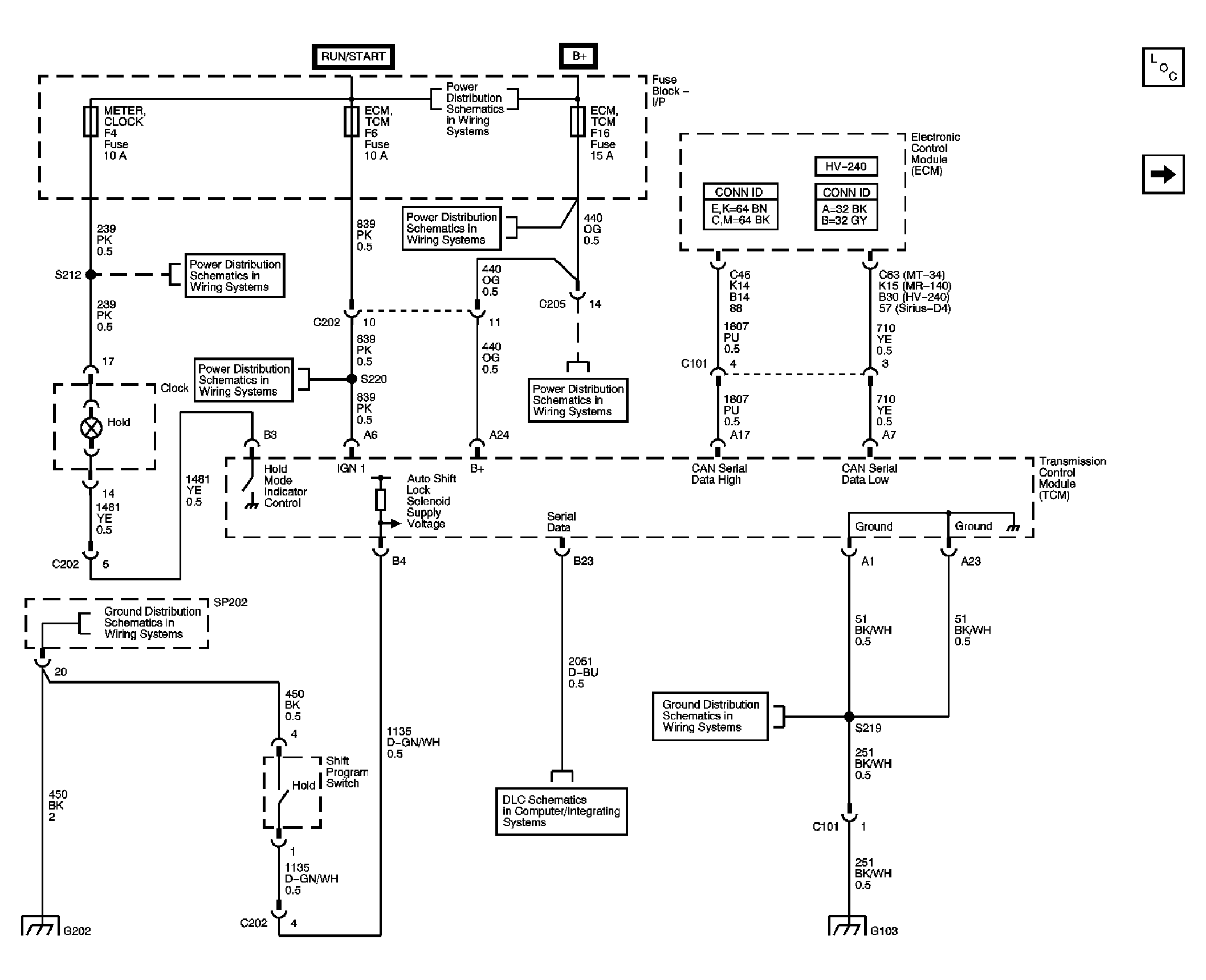

Fig 1: Power and Ground

Courtesy of GENERAL MOTORS CORP.

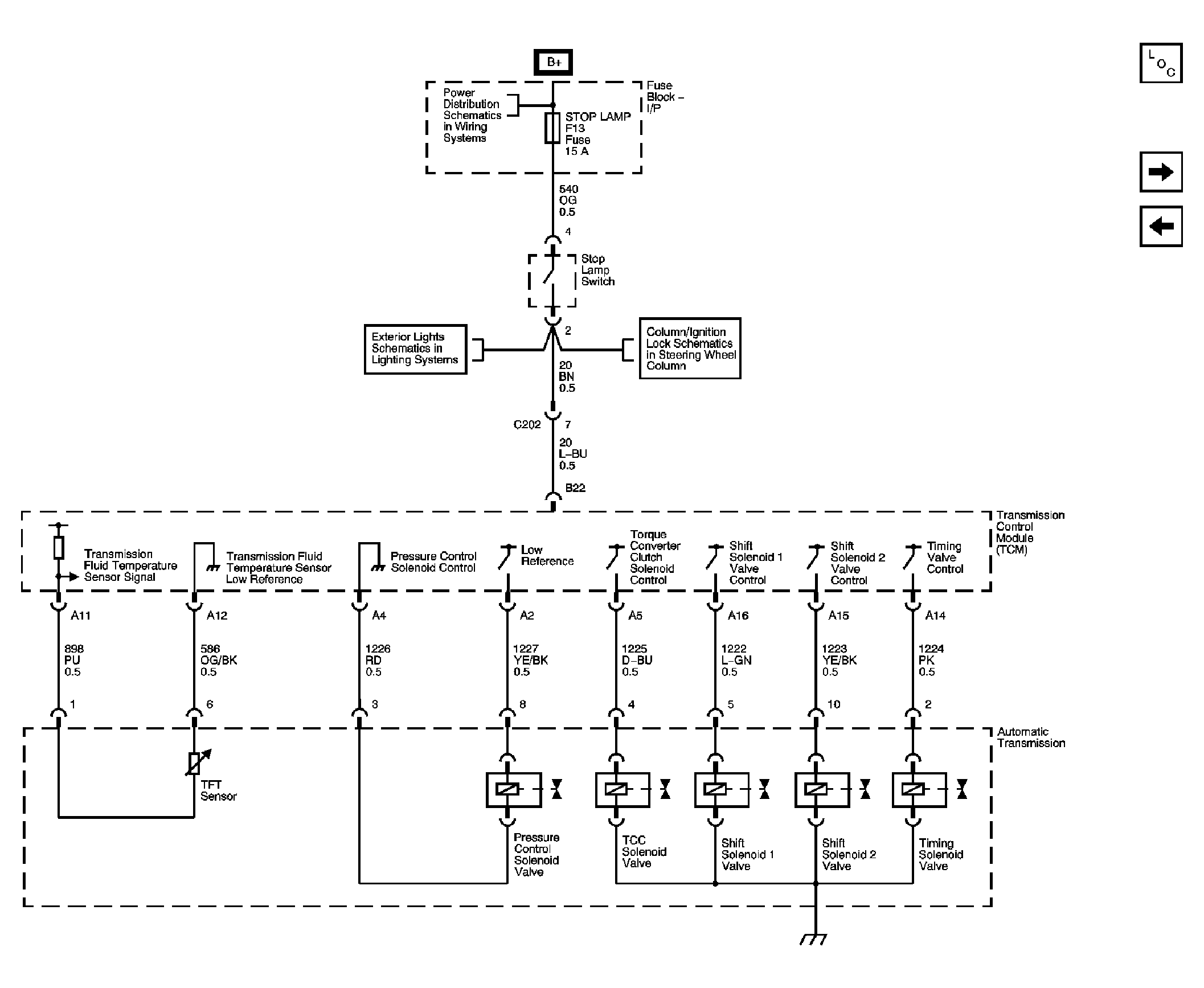

Fig 2: Stop Lamp Switch And Transaxle Valves

Courtesy of GENERAL MOTORS CORP.

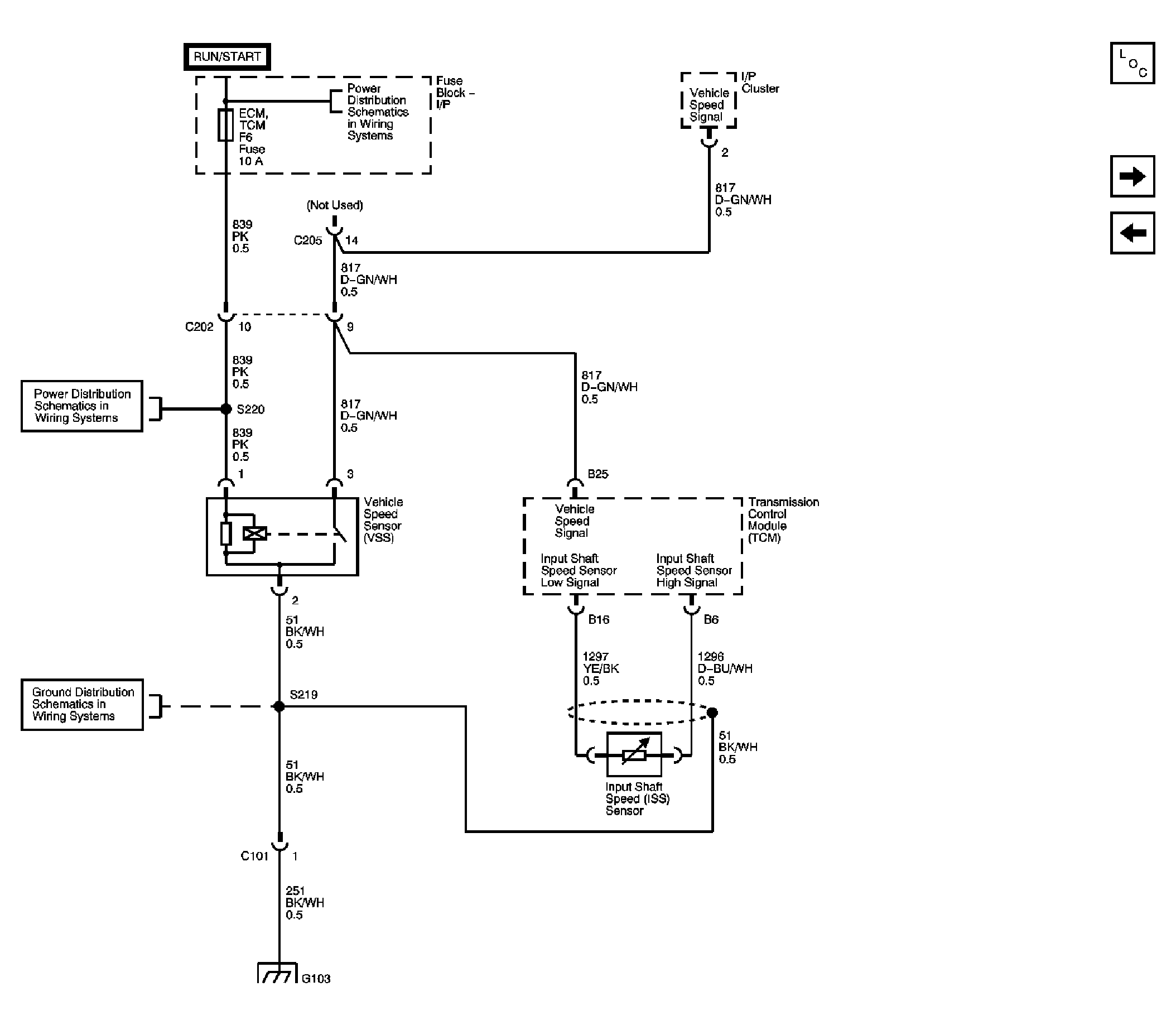

Fig 3: Vehicle Speed And Input Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

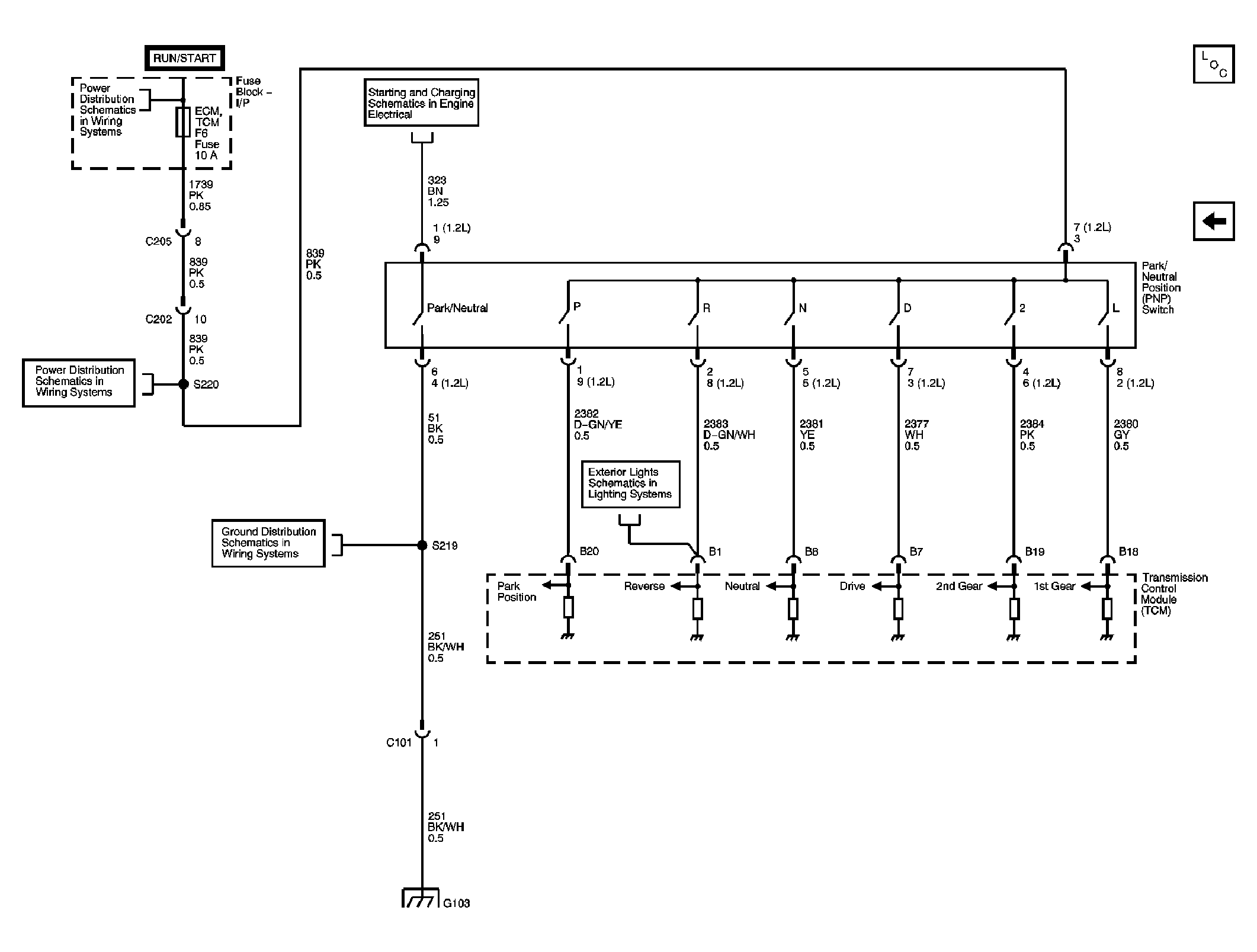

Fig 4: PNP Switch

Courtesy of GENERAL MOTORS CORP.
