Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.

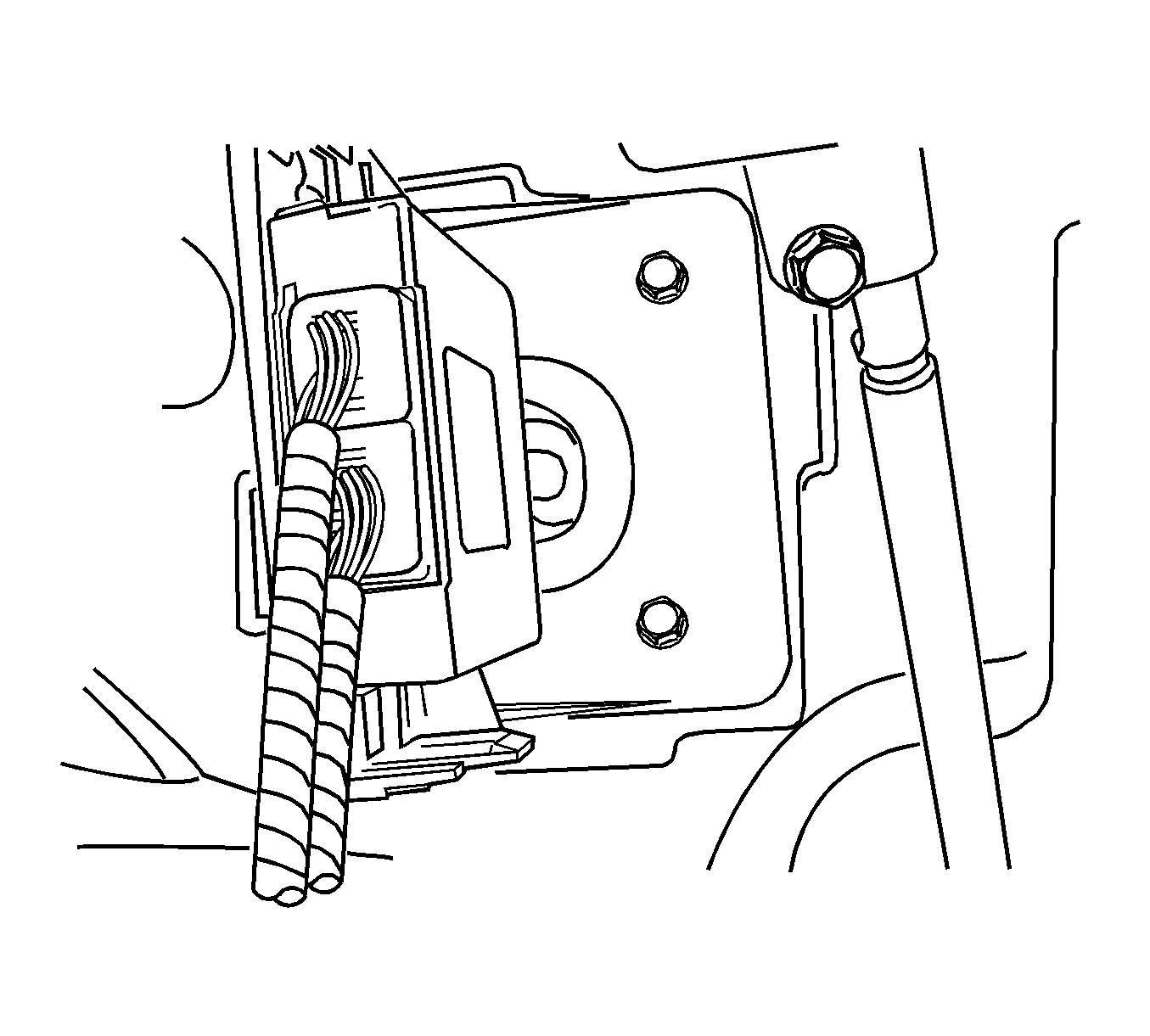

    2. Fig 1: TCM Electrical Connector
    GM1245836Courtesy of GENERAL MOTORS CORP.
  2. Locate the transmission control module (TCM) electrical connector next to the brake pedal assembly.
  3. Disconnect the TCM electrical connector.

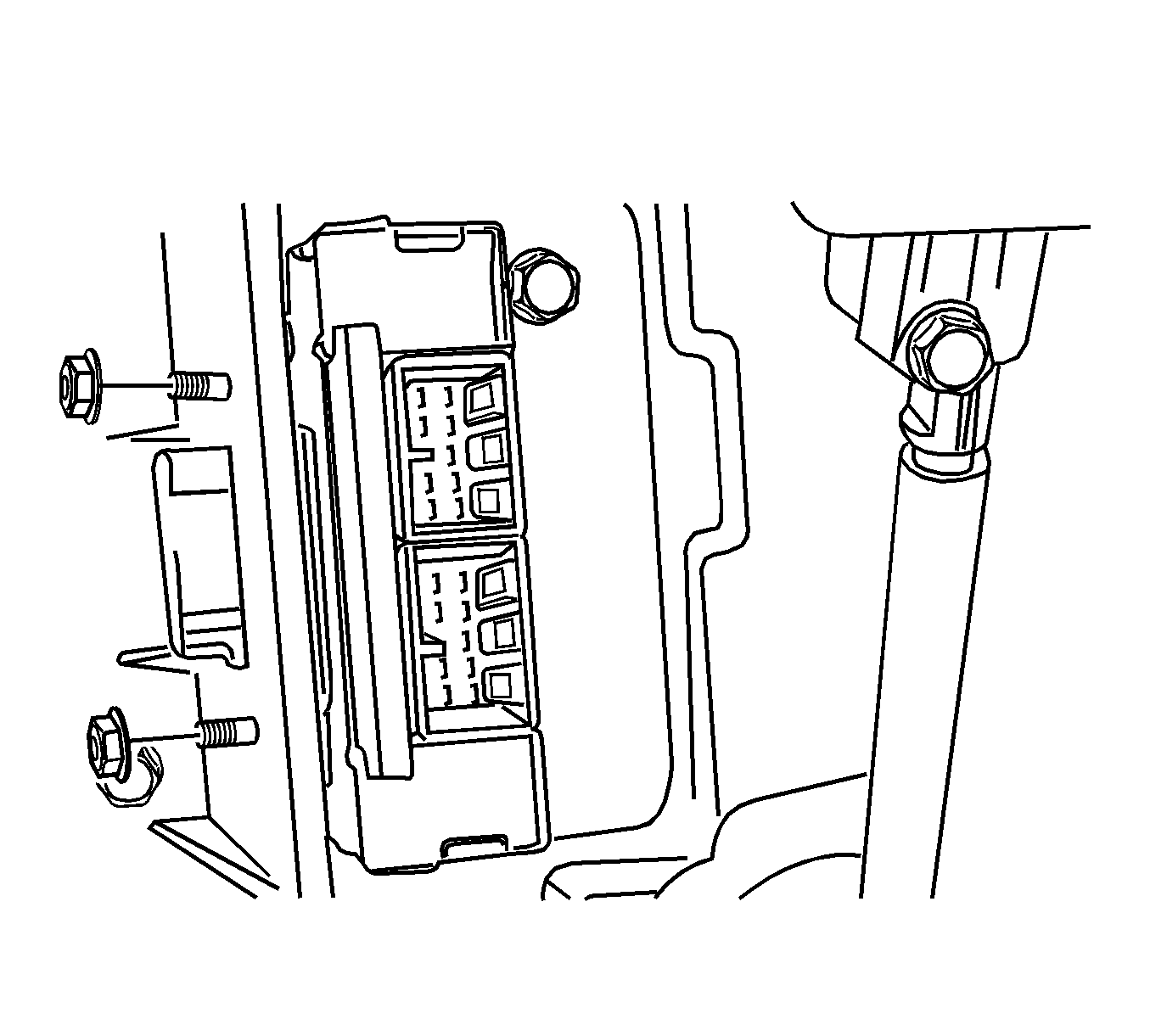

    4. Fig 2: TCM Retaining Bolts
    GM1245837Courtesy of GENERAL MOTORS CORP.
  4. Remove the TCM retaining bolts.
  5. Remove the TCM.
