Function of Components
Function of Components

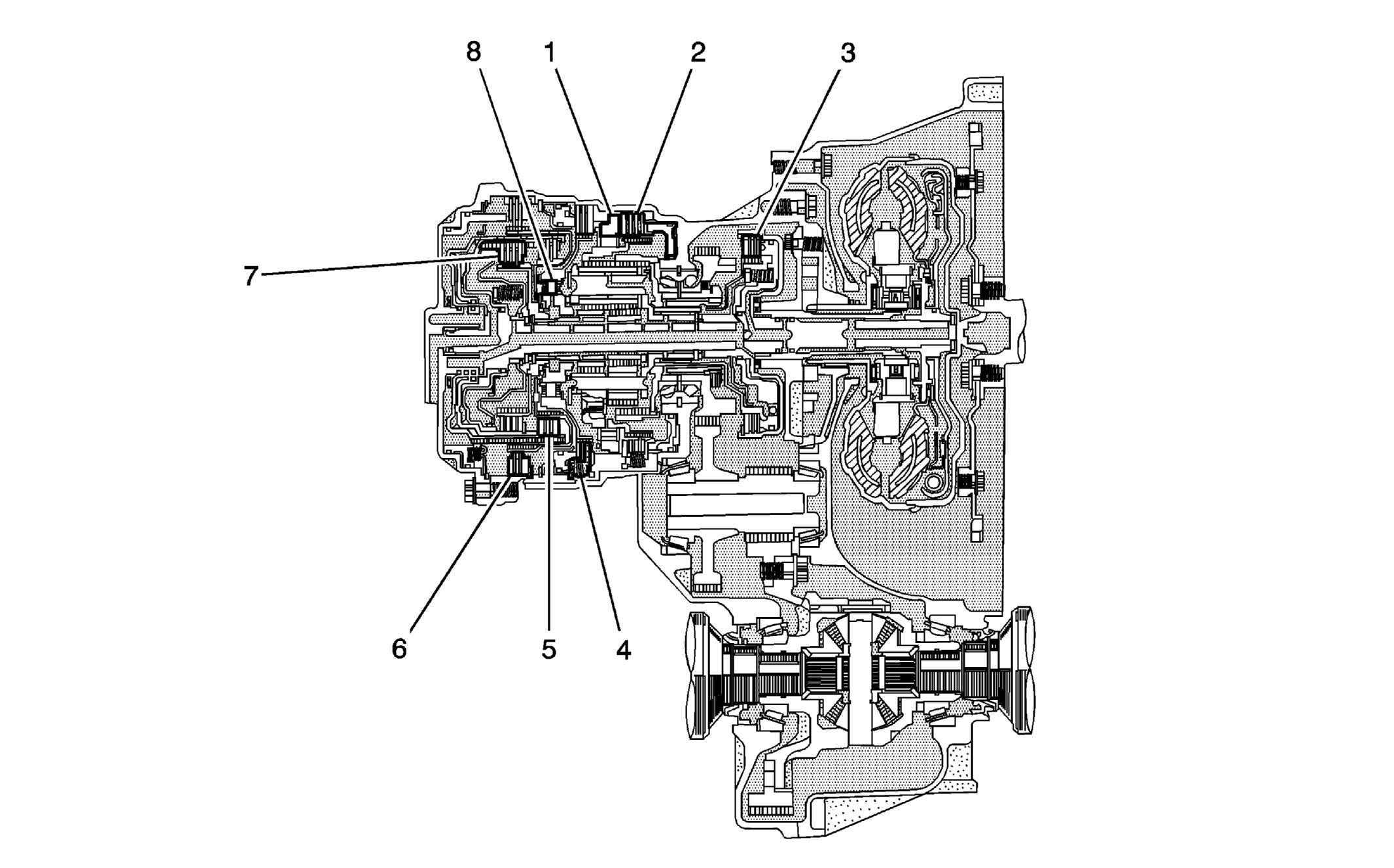

| Component | Function | |
|---|---|---|
| 7 | Forward Clutch | Connects the input shaft and front sun gear. |
| 3 | Direct Clutch | Connects the input shaft and planetary carrier. |
| 5 | Reverse Clutch | Connects the input shaft and rear sun gear. |
| 6 | O/D and 2nd Brake | Prevents rear planetary sun gear from turning either clockwise or counterclockwise. |
| 4 | 2nd Brake | Prevents outer race of 8 from turning either clockwise or counterclockwise, thus preventing the rear sun gear turning counterclockwise. |
| 2 | 1st and Reverse Brake | Prevents the planetary carrier from turning either clockwise or counterclockwise. |
| 8 | No. 1 One-Way Clutch | When 4 is operating, this clutch prevents rear sun gear from turning counterclockwise. |
| 1 | No. 2 One-Way Clutch | Prevents the planetary carrier from turning counterclockwise. |
| Planetary Gear | These gears change the route through which driving force is transmitted, in accordance with the operation of each clutch and brake, in order to increase or reduce the input and output speed. | |
