Transmission Fluid Temperature (TFT) Sensor

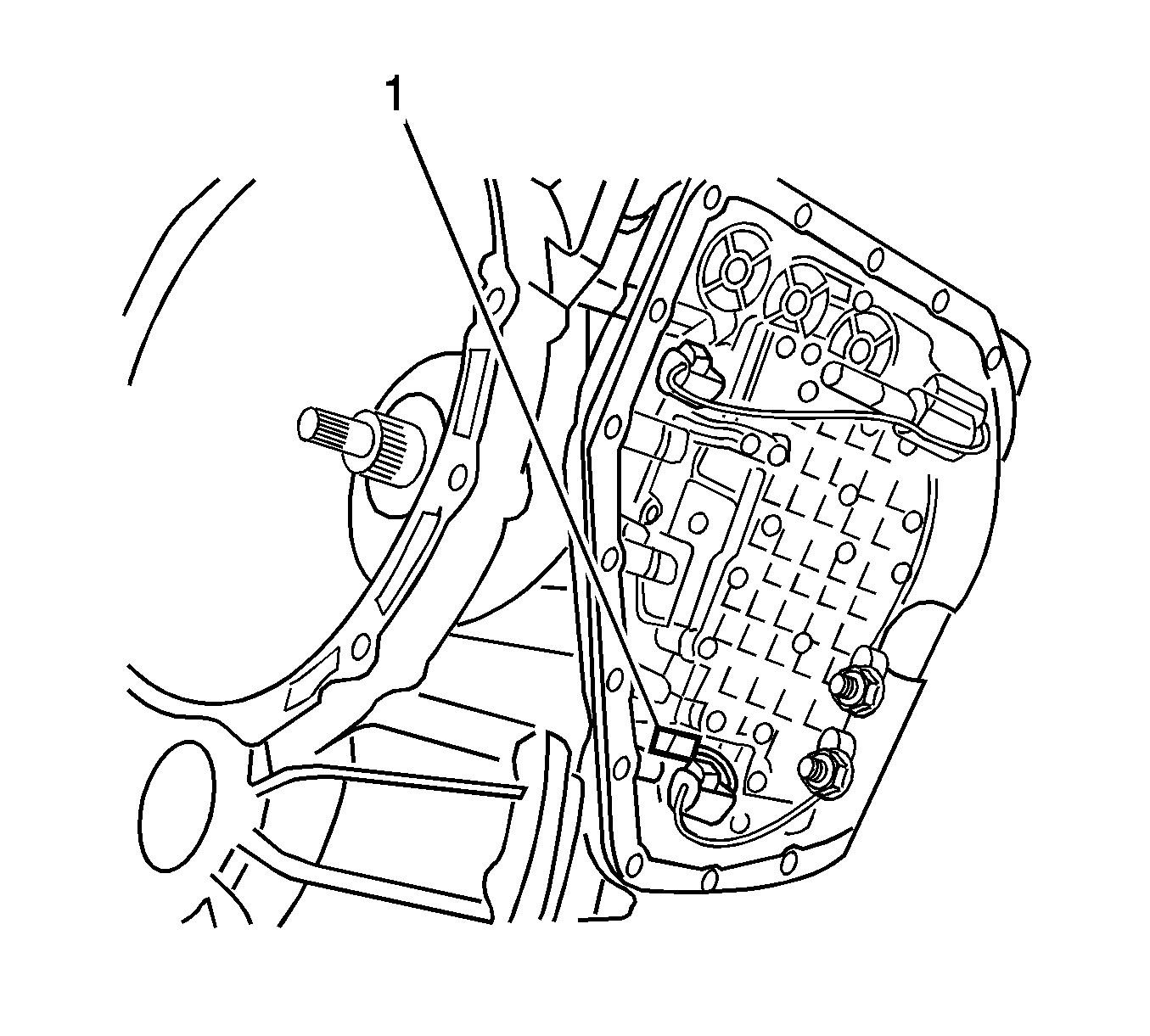

The transmission fluid temperature (TFT) sensor (1) provides the transmission control module (TCM) with information on the transmission fluid temperature.
The TCM uses information from the TFT sensor to calculate the gear shift points and to engage the torque converter lock-up function.
