Pressure Control Solenoid (PCS)

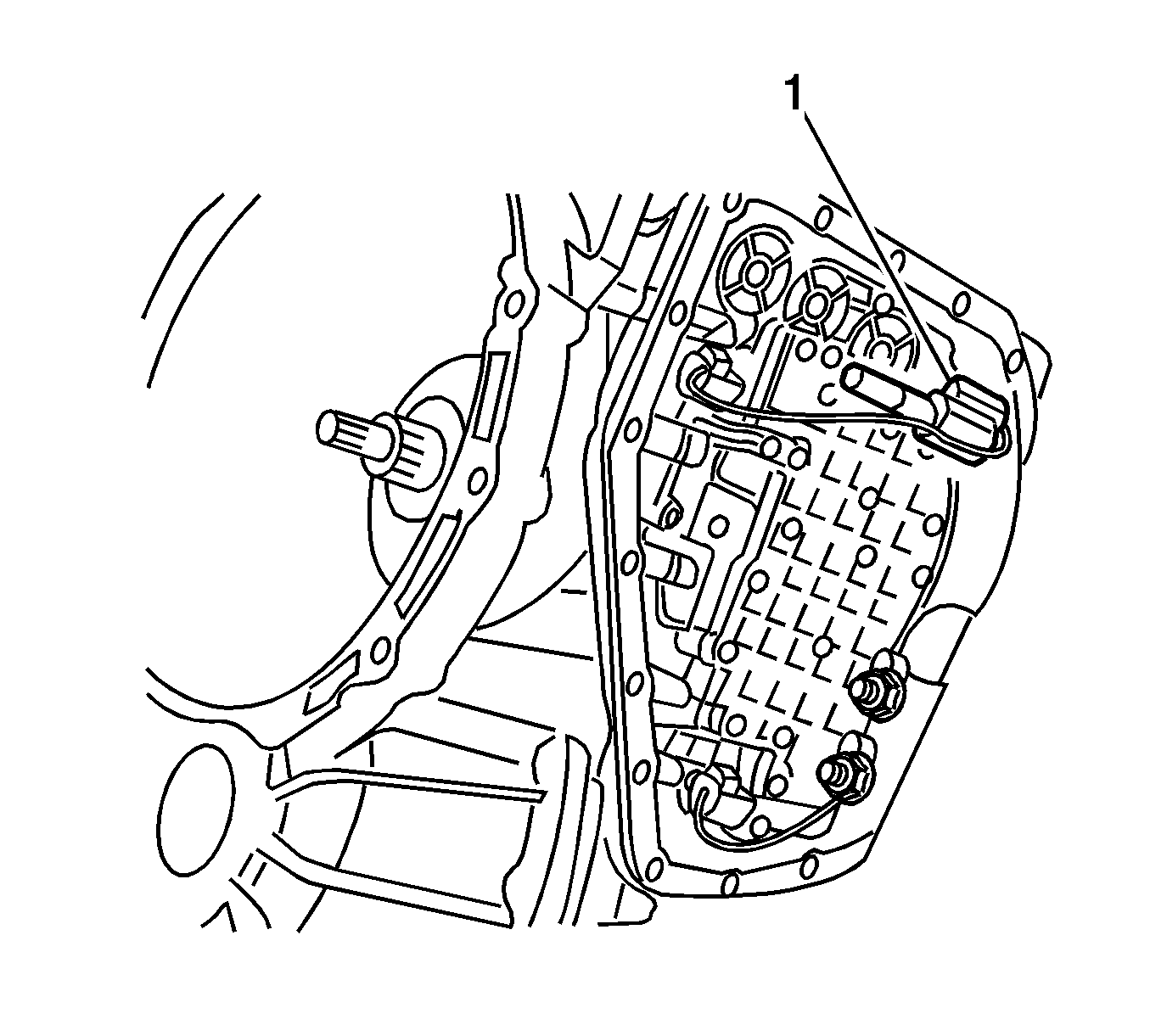

The pressure control solenoid (PCS) (1) is located inside the valve body and regulates the transmission's fluid pressure system. It is internally grounded in the transmission control module (TCM) and operates when it is supplied with battery voltage from the TCM, through the PCS and back to the TCM.
The battery voltage is controlled by a varying current from the TCM.
The strength of the current is a function of the throttle position.
