Shift Select Control

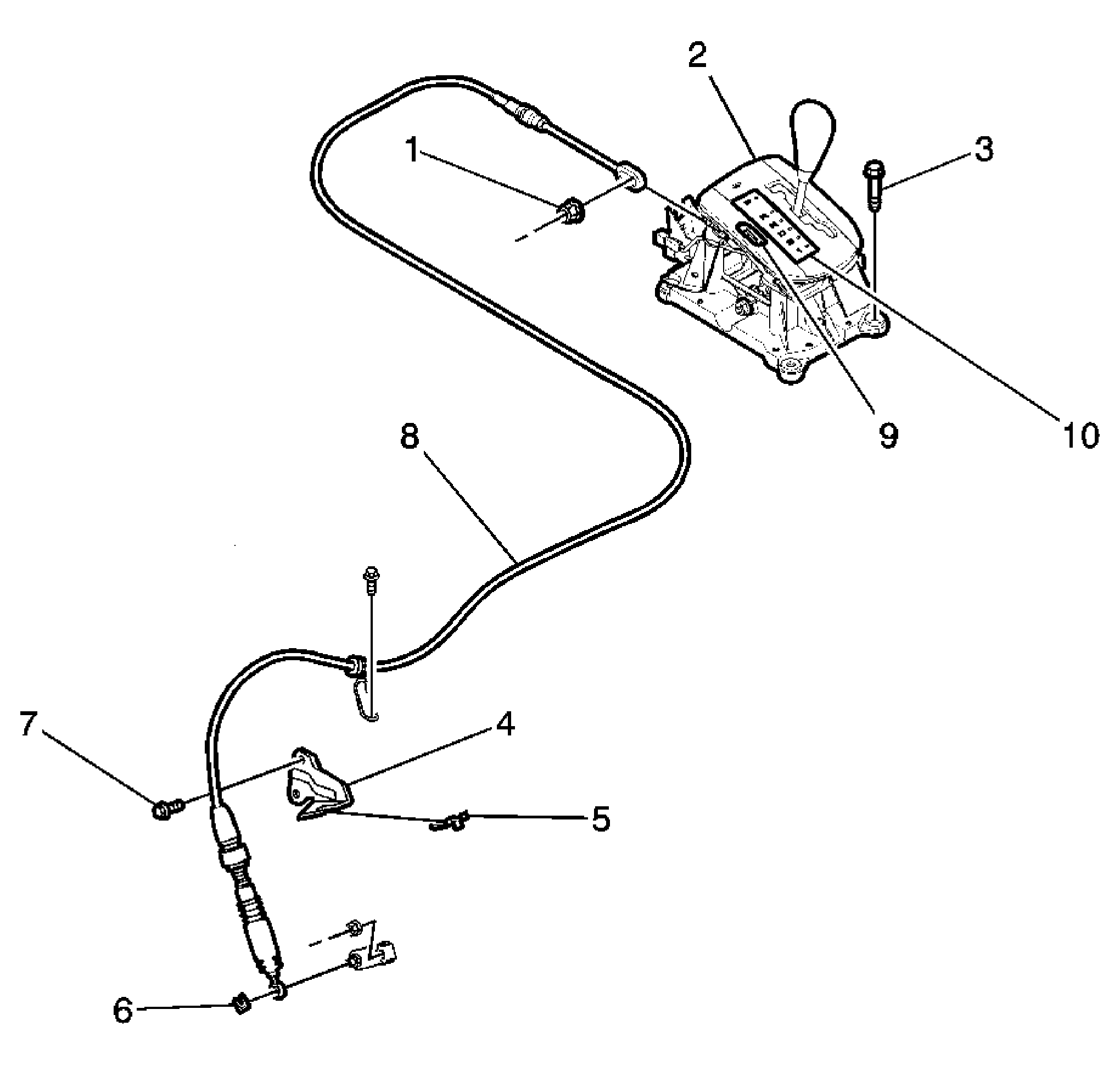

Fig 1: Shift Select Control
GM1248533Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Nut
2 Select Control Lever Assembly
3 Bolt
4 Cable Fastener
5 Clamp
6 E-Ring
7 Bolt
8 Select Control Cable
9 Shift Program Switch
10 Shift Indicator Lamp
