Removal Procedure

    Fig 1: Steering Wheel Components
    GM1716003Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable.
  2. Remove the SIR module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
  3. Place match marks on the steering wheel and on the steering column shaft.
  4. Disconnect the horn connector.
  5. Remove the steering wheel nut (4) and the retaining clip.

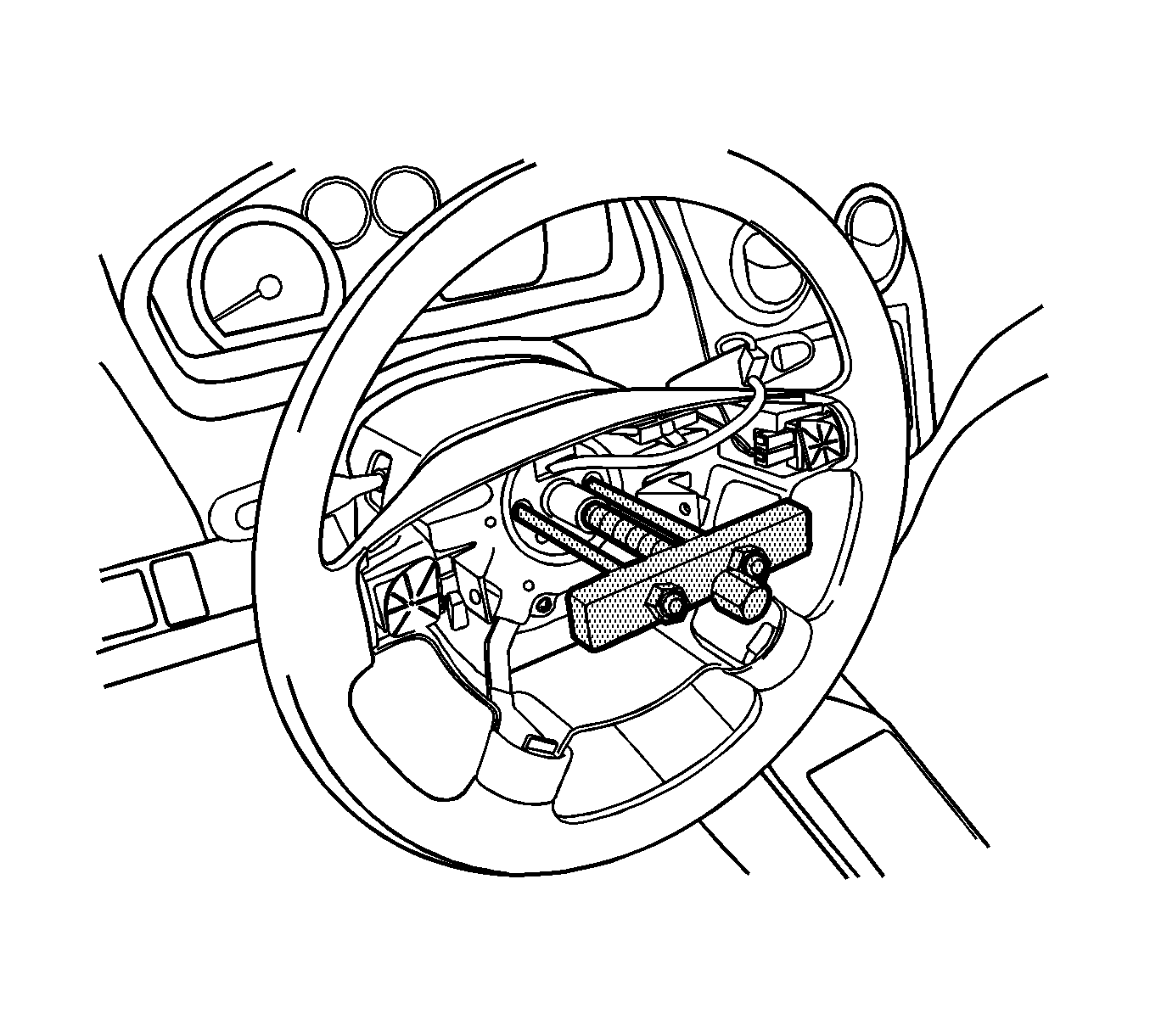

    6. Fig 2: Steering Wheel With KM-210-A Installed
    GM1716008Courtesy of GENERAL MOTORS CORP.
  6. Remove the steering wheel using the KM-210-A  . See Special Tools .
  7. Unclip the contact ring from the steering wheel, if necessary.
