Installation Procedure

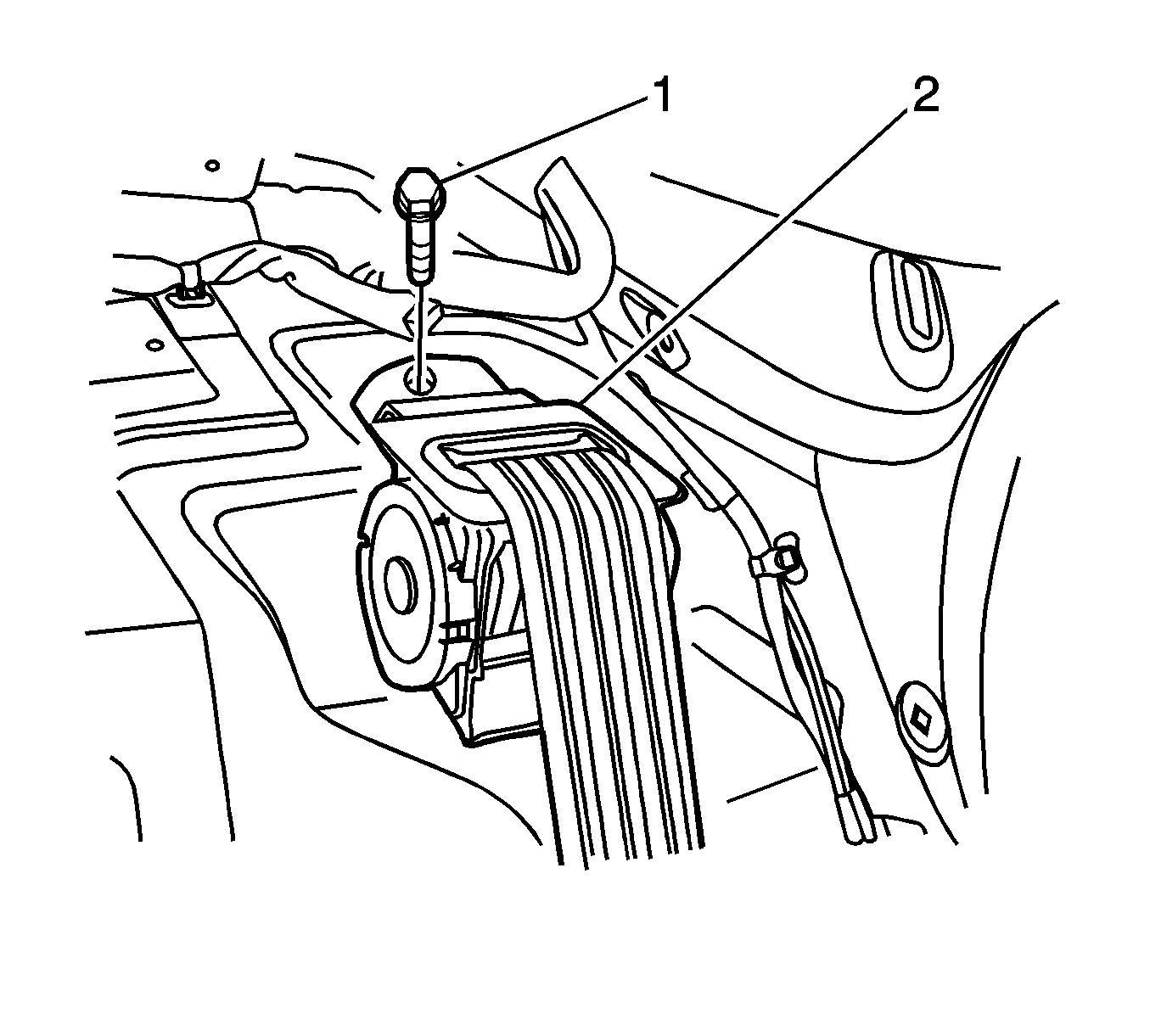

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the seat belt retractor (2) with the bolt (1).
Tighten: Tighten the seat belt retractor bolt to 38 N.m (28 lb ft).
Install the upper back panel shelf.

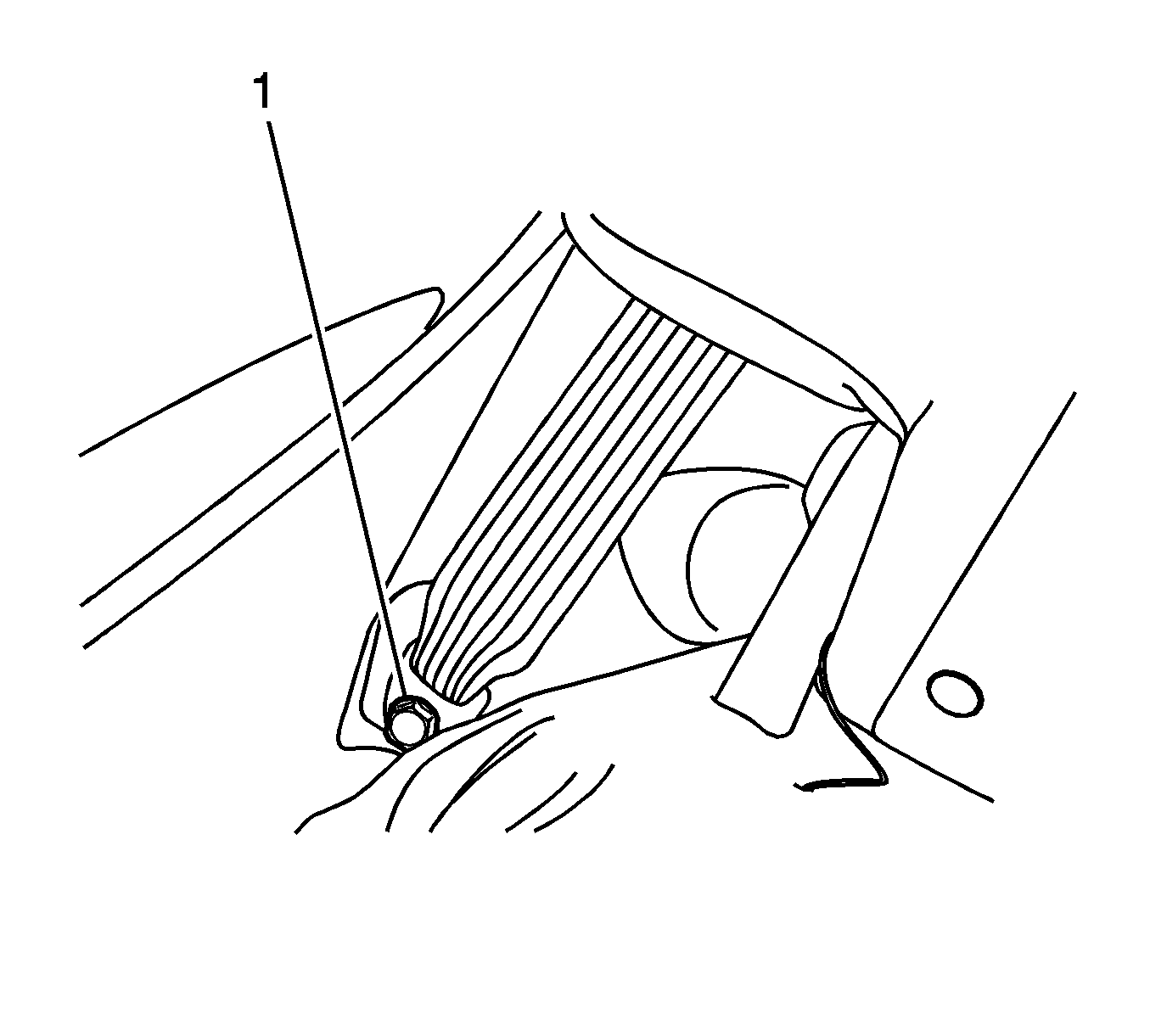

Fig 2: Rear Seat Belt Anchor Bolt

Courtesy of GENERAL MOTORS CORP.

Install the seat belt anchor to the upper wheelhouse trim panel with the bolt (1).
Tighten: Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
