Repair Procedure

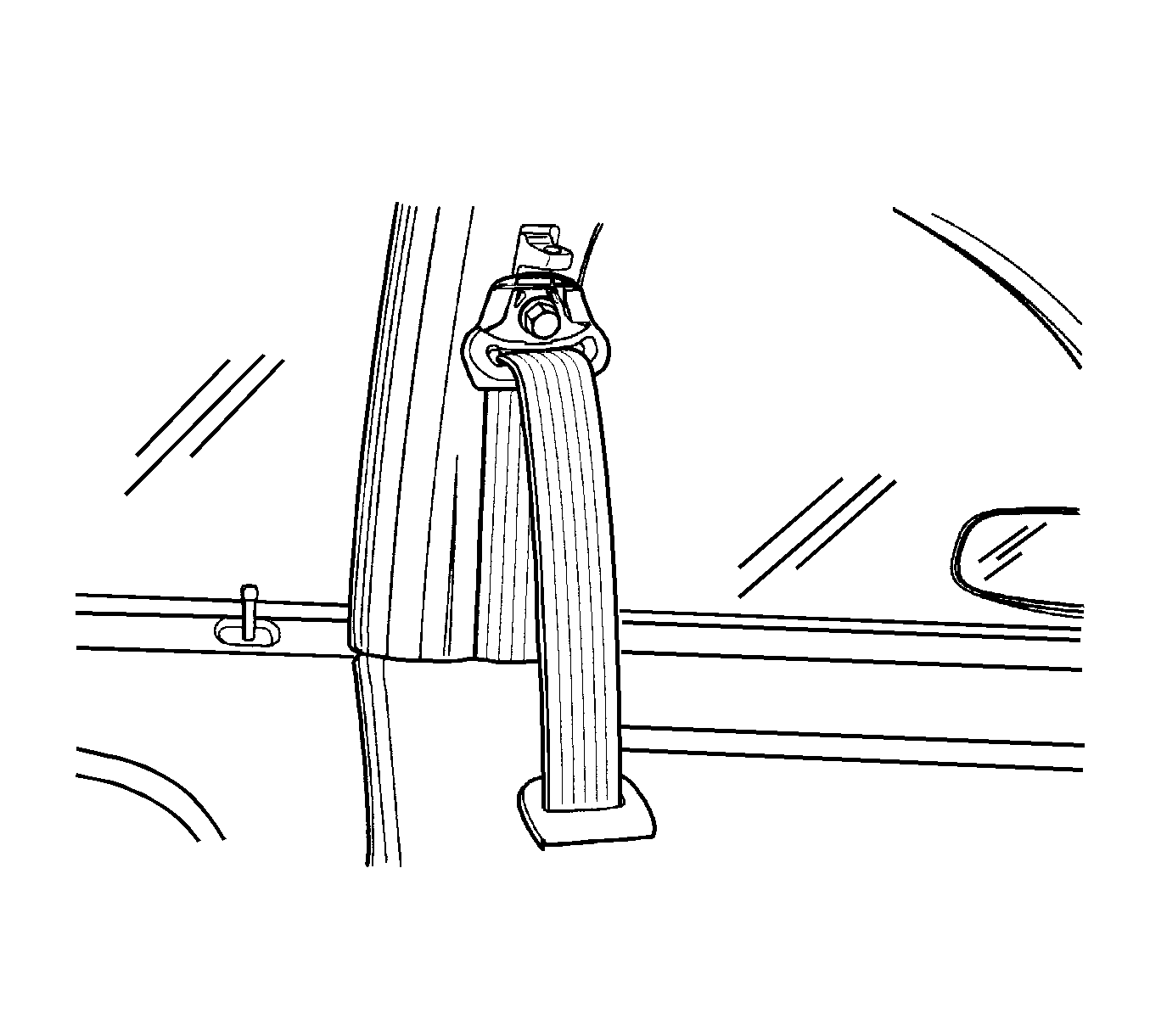

    Fig 1: Seat Belt Anchor & Upper Center Pillar
    GM1248398Courtesy of GENERAL MOTORS CORP.
  1. Remove the bolt and the seat belt anchor on the upper center pillar.
    2. Fig 2: Seat Belt Anchor, Lower Center Pillar & Bolt
    GM1248399Courtesy of GENERAL MOTORS CORP.
  2. Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
  3. Remove the bolt and the seat belt anchor on the lower center pillar.

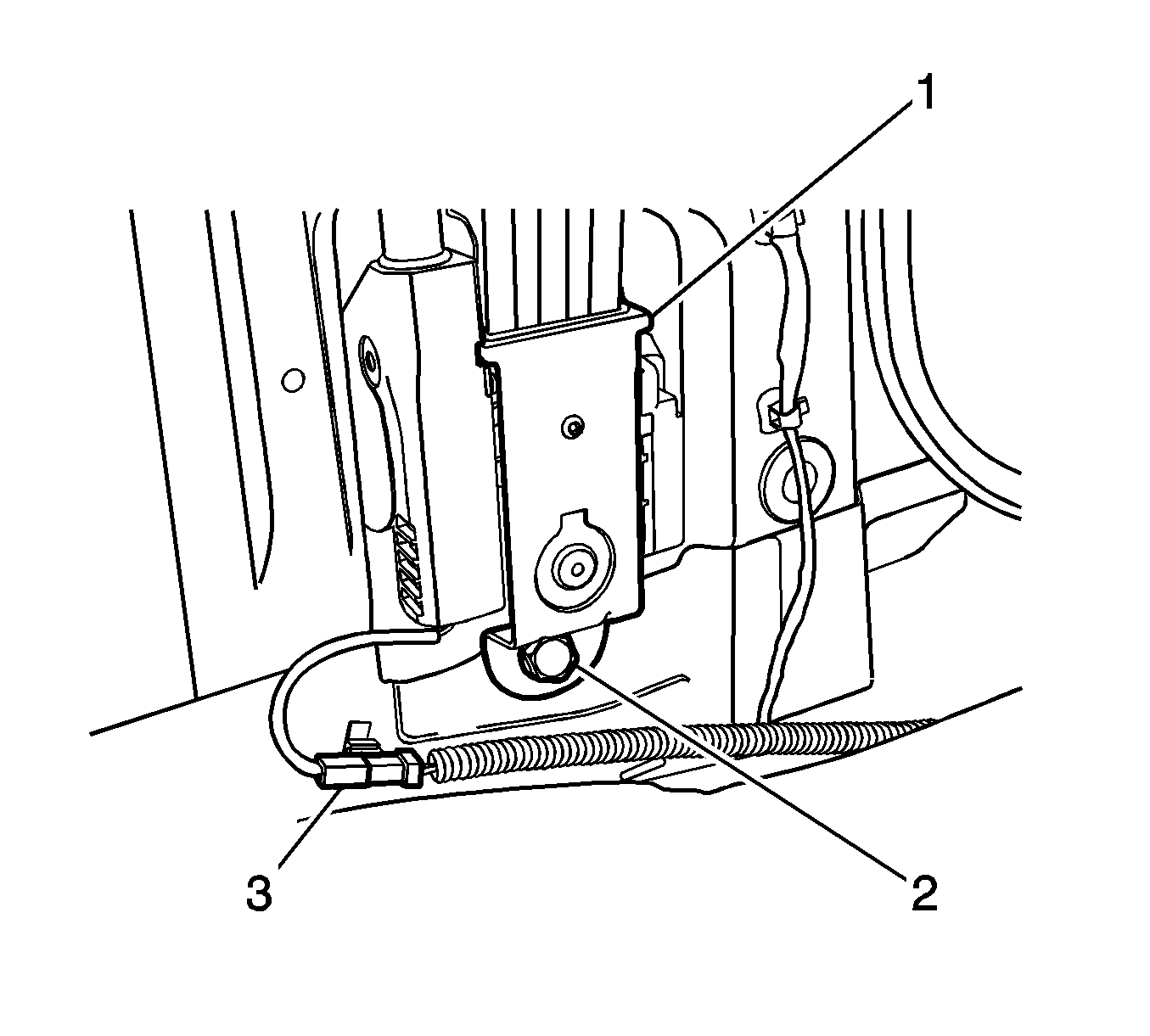

    4. Fig 3: Seat Belt Retractor & Pretensioner
    GM1734130Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the pretensioner connector (3).
  5. Remove the bolt (2) and the seat belt retractor (1).
