Removal Procedure

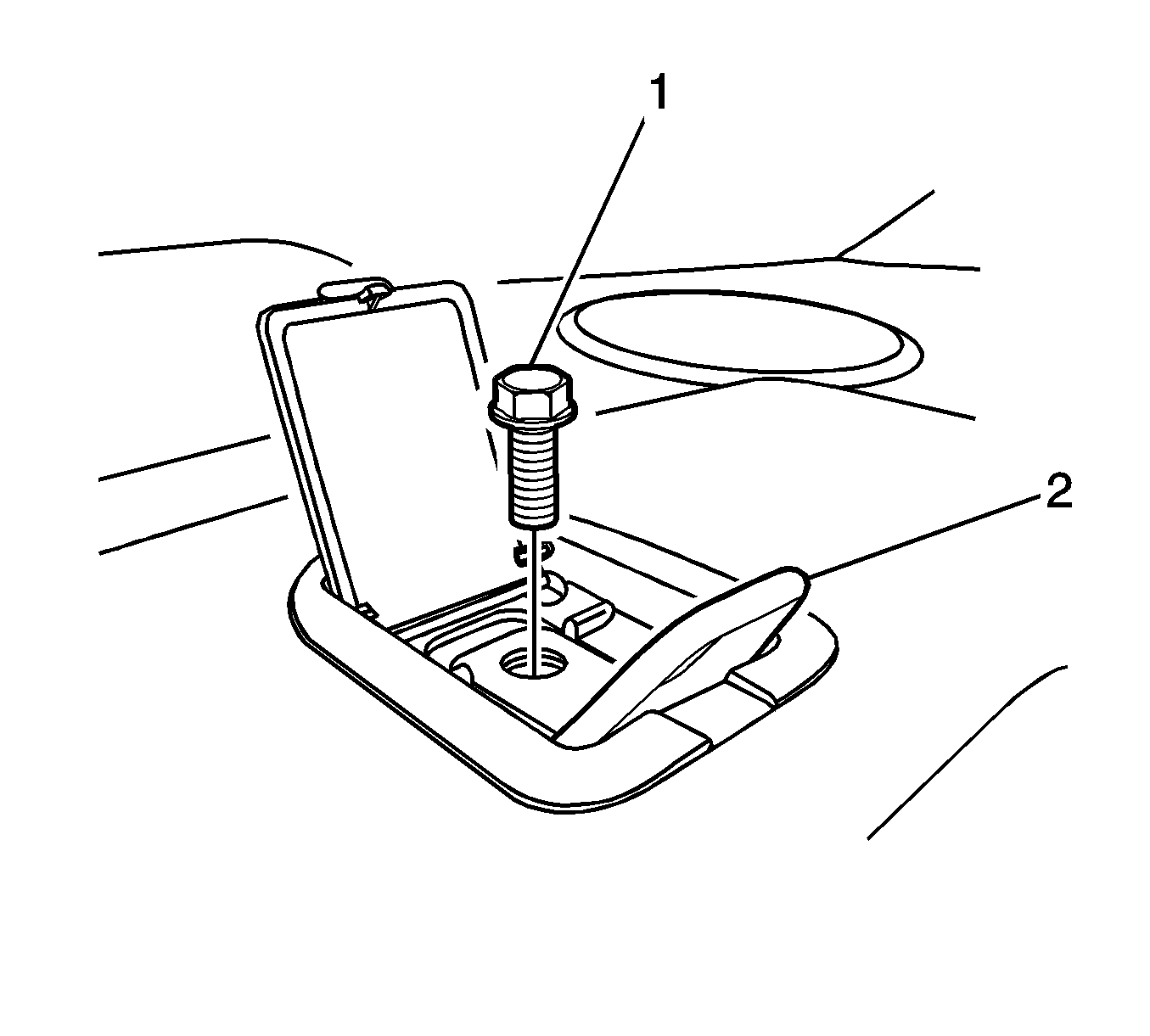

    Fig 1: Child Restraint Tether Anchor
    GM1787716Courtesy of GENERAL MOTORS CORP.
  1. Open the tether anchor cover.
  2. Remove the bolt (1) and the tether anchor (2).
