Roof Harness Connector End View

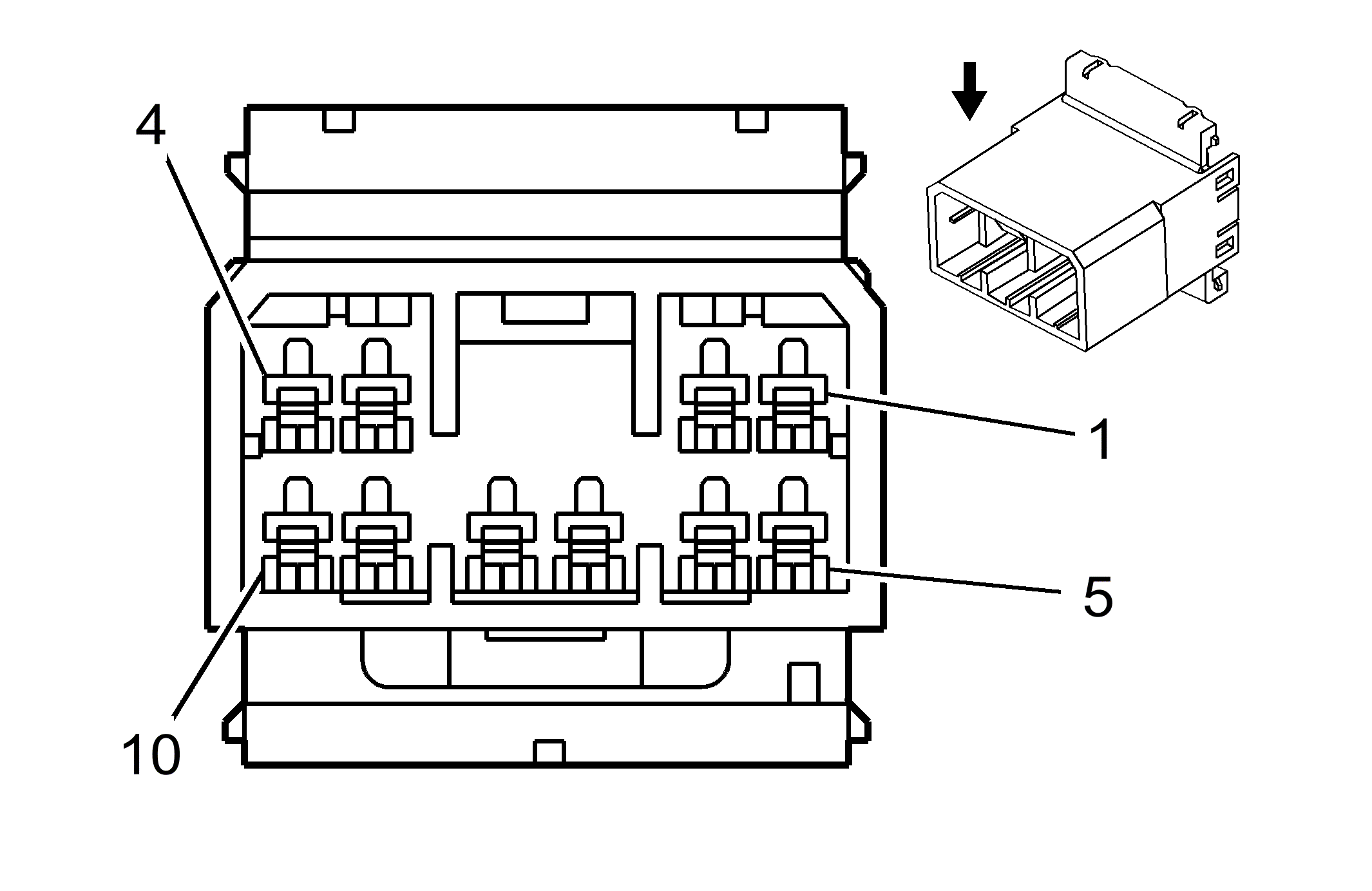

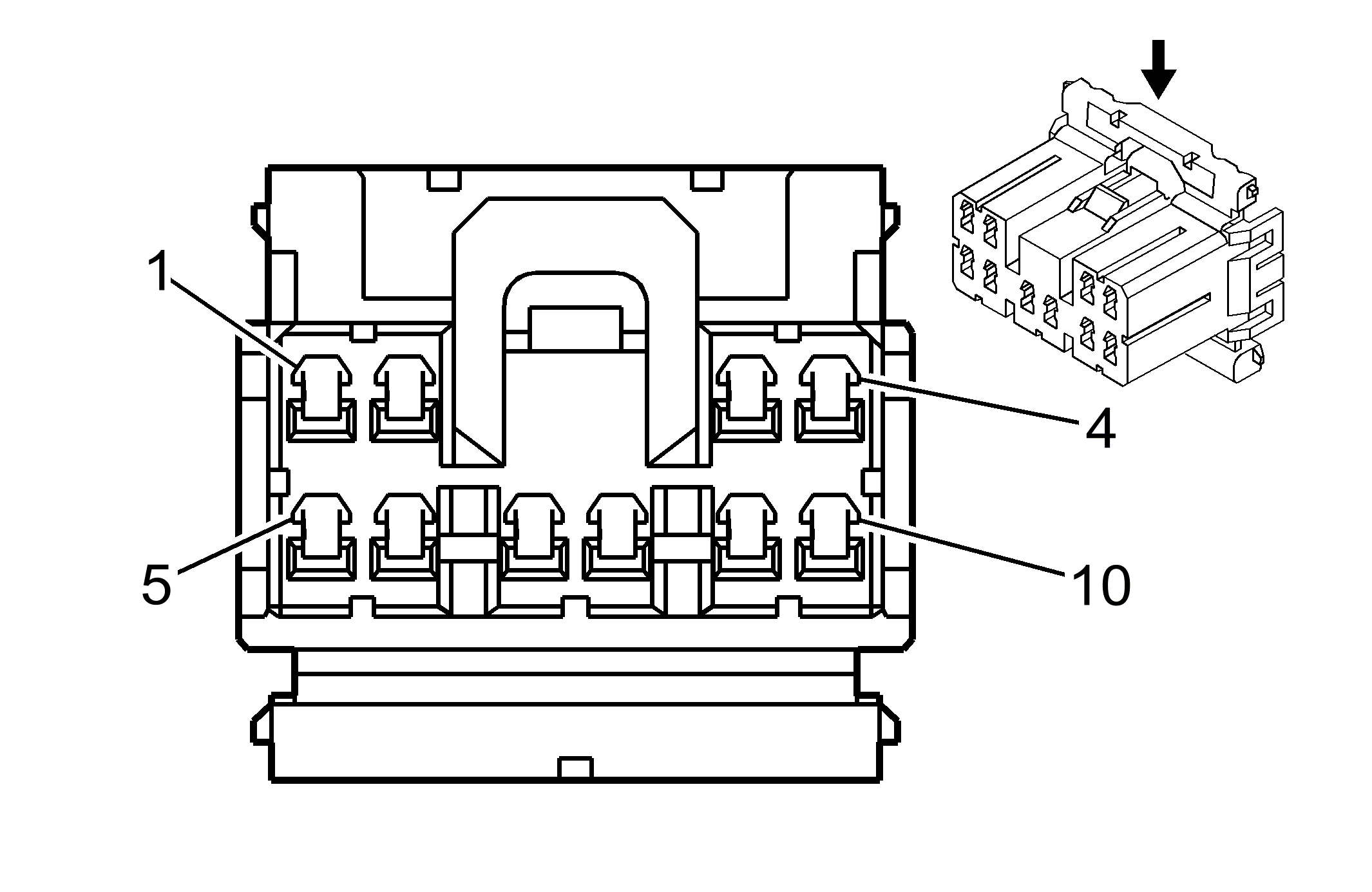

C210 Roof Harness to I/P Harness Connector End View/Part Information/Terminal Identification
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| 1 | BK | - | Ground | 1 | BK | - | Ground |
| 2 | BN | - | Ignition 3 | 2 | BN | - | Ignition 3 |
| 3 | RD/WH | - | Fuse Output | 3 | RD/WH | - | Fuse Output |
| 4 | GY | - | Speaker Return - Left Front | 4 | GY | - | Speaker Return - Left Front |
| 5 | - | - | Not Used | 5 | - | - | Not Used |
| 6 | GY | - | Interior Lamp Control | 6 | GY | - | Interior Lamp Control |
| 7 | RD/WH | - | Battery Positive Voltage | 7 | RD/WH | - | Battery Positive Voltage |
| 8 | BN | - | Speaker Feed - Left Front | 8 | BN | - | Speaker Feed - Left Front |
| 9 | PU/WH | - | Overspeed Signal (LHD) | 9 | PU/WH | - | Overspeed Signal (LHD) |
| 10 | PU/WH | - | Overspeed Signal (LHD) | 10 | PU/WH | - | Overspeed Signal (LHD) |
