A/C Compressor Clutch Connector End View

A/C Compressor Clutch (1.2L)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610041 1-Way F 250 Series
Pin	Wire Color	Circuit No.	Function
1	OG/BK	-	A/C Compressor Clutch Supply Voltage

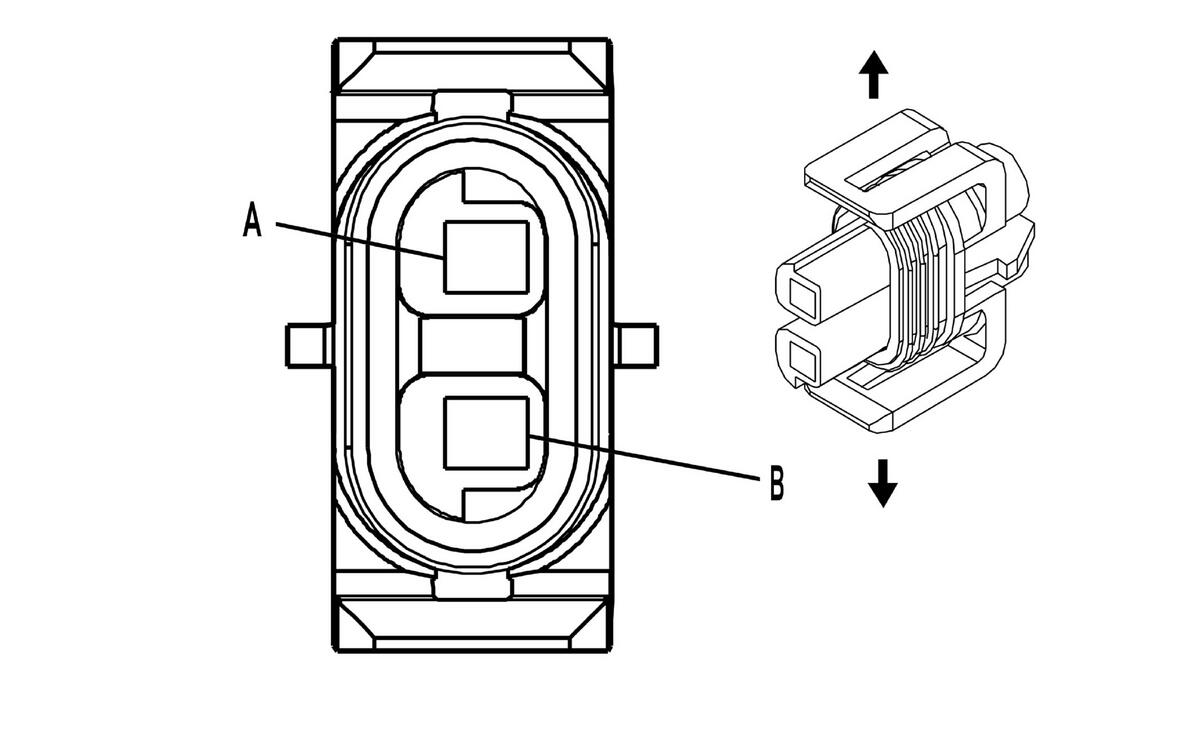

A/C Compressor Clutch (1.4L/1.5L/1.6L)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		PED 12162017 2-Way F Metri-Pack 150 Series, Sealed (M-GY)
Pin	Wire Color	Circuit No.	Function
A	OG/BK	-	A/C Compressor Clutch Supply Voltage
B	BK	-	Ground
