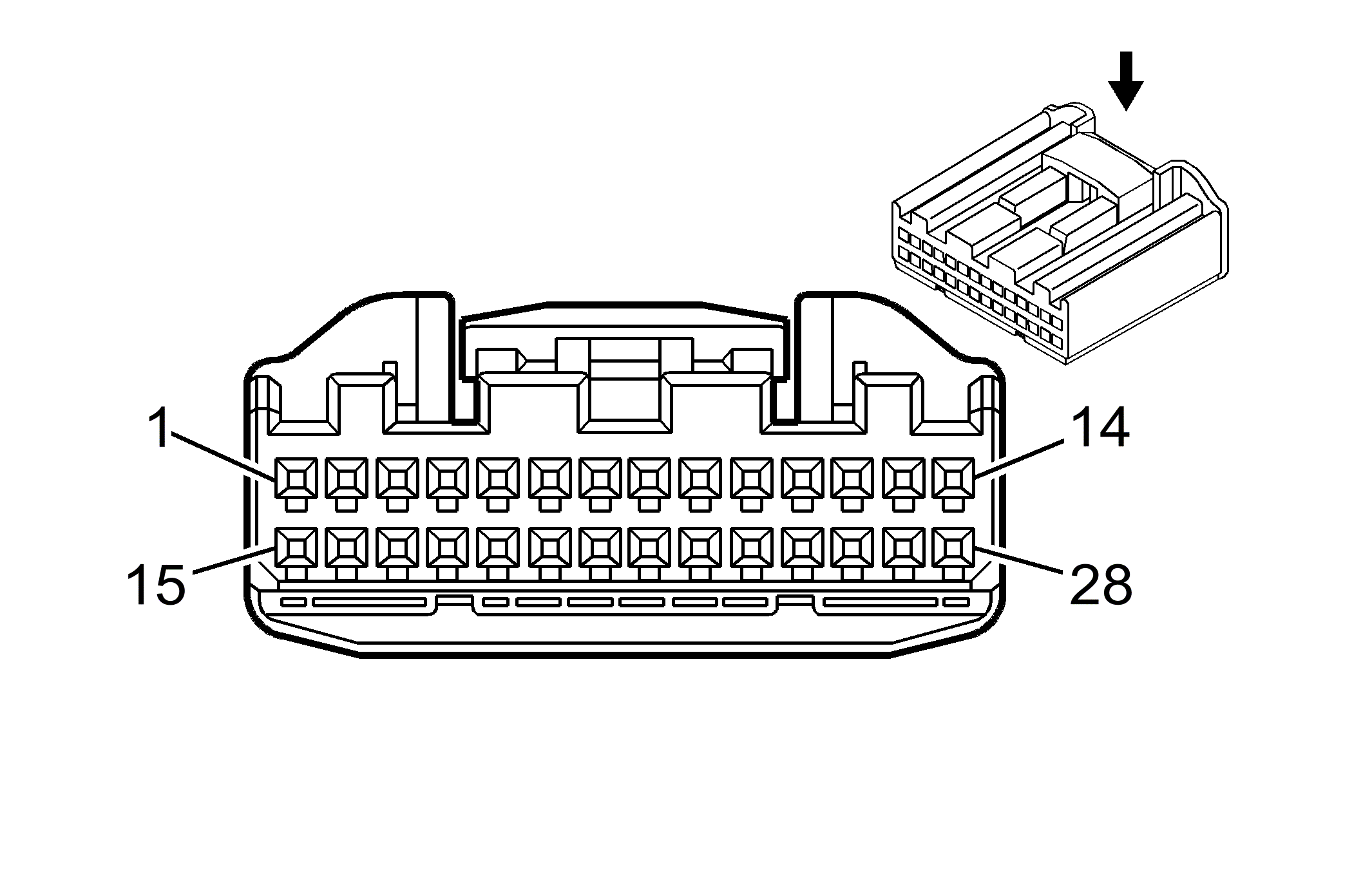

Instrument Cluster Connector End View
Instrument Cluster A Connector End View/Part Information/Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | YE | - | Front Fog Lamp Indicator Supply Voltage |
| 2 | L-GN | - | ABS Indicator Control |
| 3 | - | - | No Used |
| 4 | YE | - | Transmission Hold Mode Indicator Control |
| 5 | PK | - | Ignition 1 Voltage |
| 6 | BK | - | Ground |
| 7-9 | - | - | Not Used |
| 10 | YE | - | Ambient Temperature Sensor Signal |
| 11 | BN/WH | - | Instrument Illumination Supply Voltage |
| 12 | L-GN/WH | - | Instrument Illumination Control/Ground |
| 13 | BN | - | Oil Pressure Indicator Control |
| 14 | BN/WH | - | Malfunction Indicator Control |
| 15 | - | - | Not Used |
| 16 | WH | - | Engine Speed Signal |
| 17 | D-BU | - | Charge Indicator Control |
| 18 | - | - | Not Used |
| 19 | RD/WH | - | Battery Positive Voltage |
| 20 | YE | - | High Beam Indicator Supply Voltage |
| 21 | YE | - | Low Fuel Indicator Control |
| 22 | GY | - | Door Open Indicator Control |
| 23 | D-GN | - | Engine Coolant Temperature Gage Signal |
| 24 | L-BU | - | Left Turn Signal Indicator Signal |
| 25-28 | - | - | Not Used |
Instrument Cluster B Connector End View/Part Information/Terminal Identification
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | D-BU | - | Left Turn Signal Indicator Signal |
| 2 | PU | - | Fuel Level Sensor Signal |
| 3-4 | L-BU | - | RPM Signal Output |
| 4 | - | - | Not Used |
| 5 | D-GN/WH | - | Vehicle Speed Signal |
| 6 | PU/WH | - | Multifunction Module |
| 7 | YE | - | Seat Belt Indicator Control |
| 8 | - | - | Not Used |
| 9 | BN/WH | - | Brake Warning Indicator Control |
| 10-12 | - | - | Not Used |
| 13 | BN | - | SIR Indicator Control |
| 14 | OG | - | Rear Fog Lamp Indicator Supply Voltage |
| 15 | PK | - | Ignition Voltage |
| 16 | BK | - | Ground |
