Installation Procedure

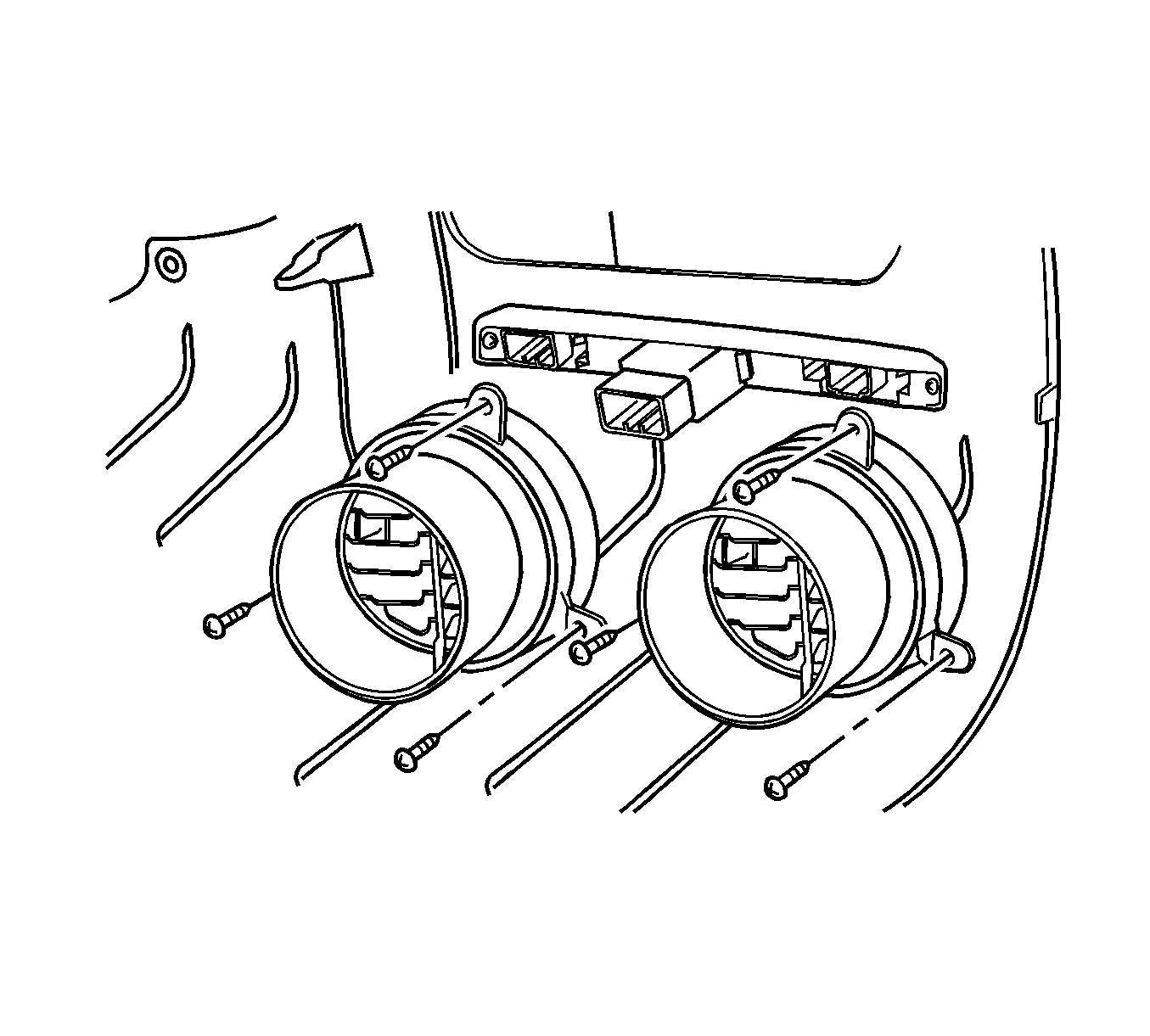

Fig 1: Air Deflectors & Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the air deflectors with the screws.
Tighten: Tighten the air deflector screws to 2 N.m (18 lb in).
Install the instrument panel center upper cover. Refer to Instrument Panel Center Trim Panel Replacement .
Connect the negative battery cable.
