HVAC Schematics (Hatchback)

Fig 1: HVAC Manual - Blower Controls Schematic

Courtesy of GENERAL MOTORS CORP.

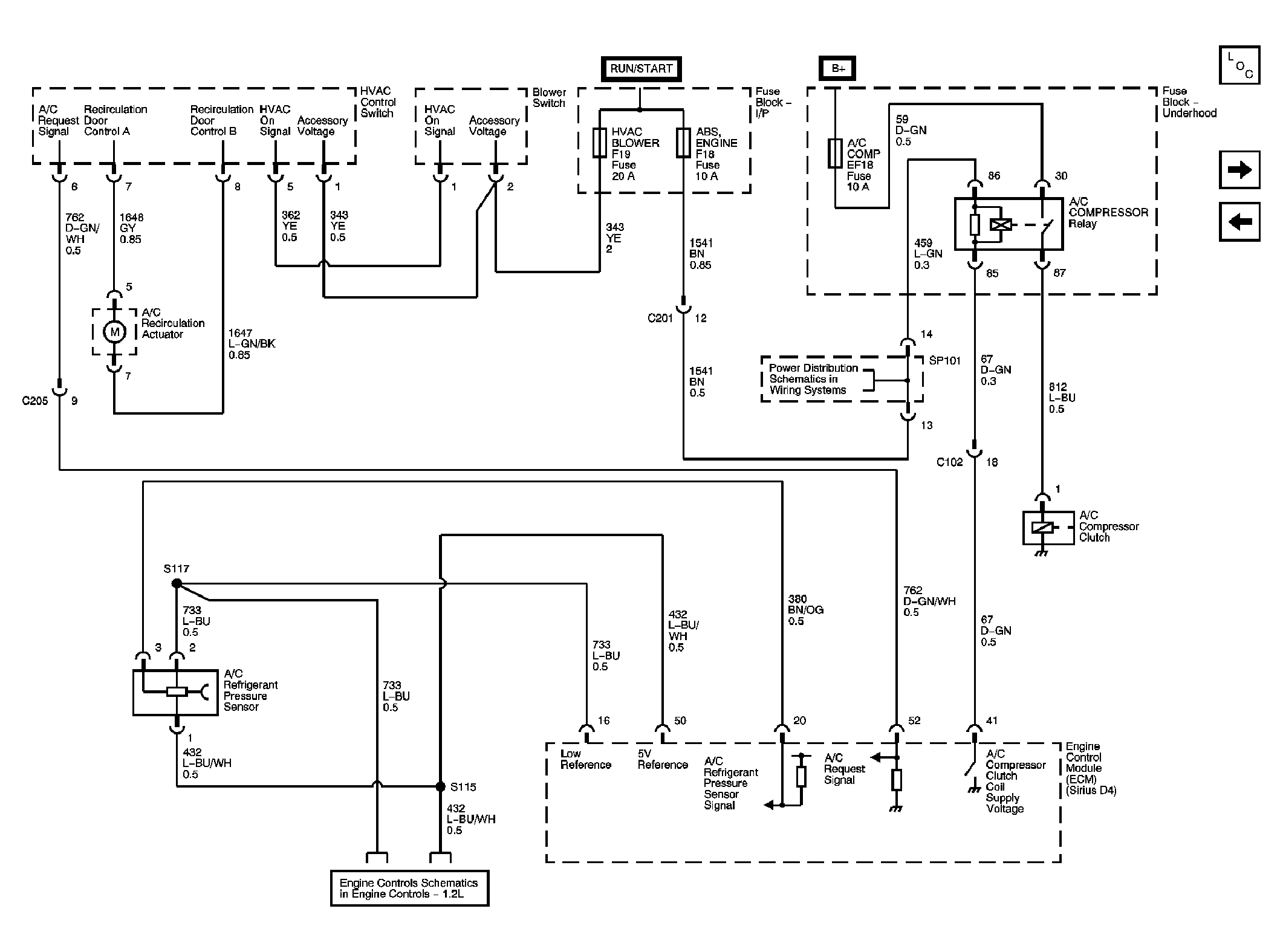

Fig 2: Manual - Compressor Controls (1.2L)

Courtesy of GENERAL MOTORS CORP.

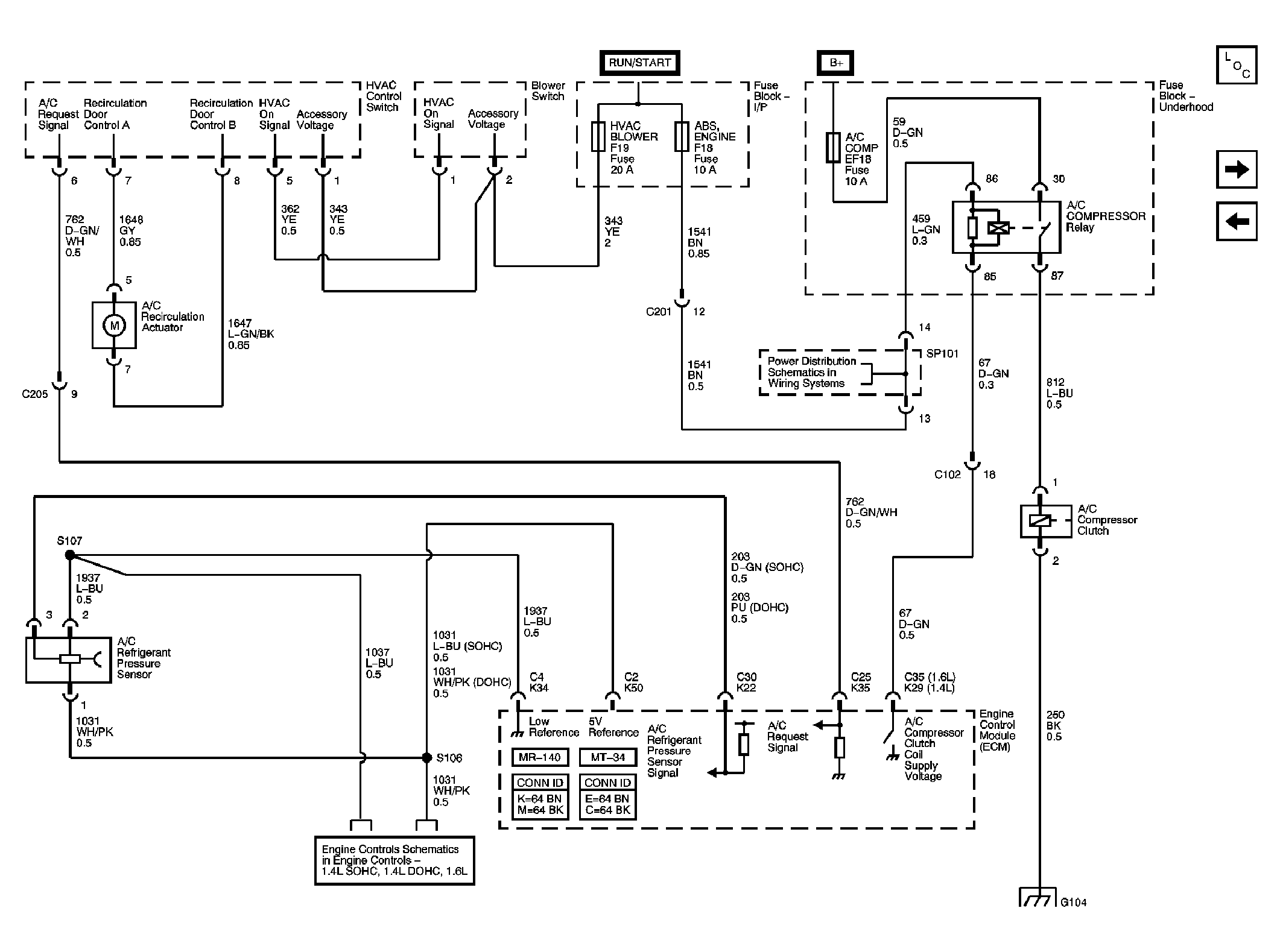

Fig 3: Manual - Compressor Controls (1.4L, 1.6L)

Courtesy of GENERAL MOTORS CORP.

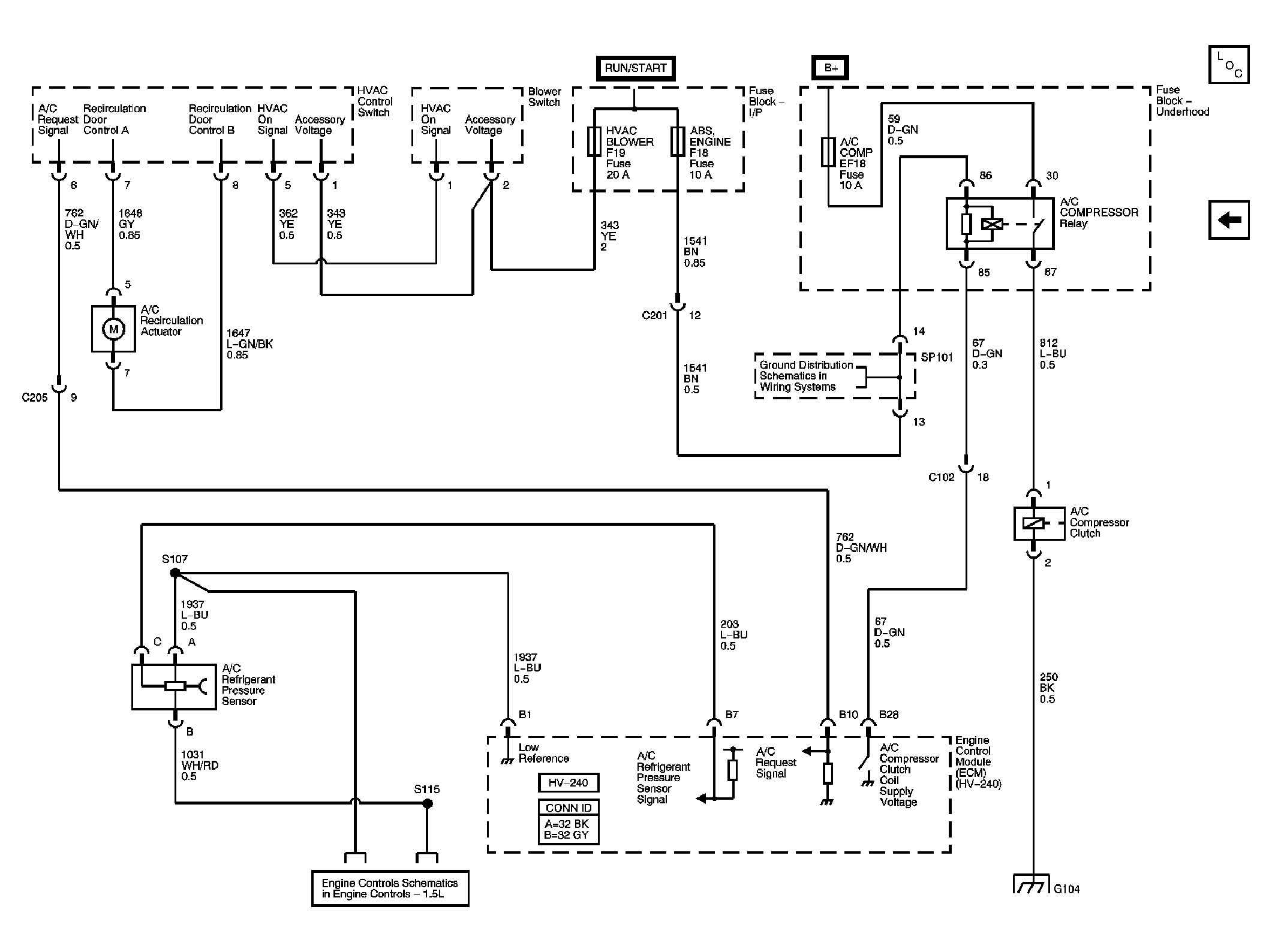

Fig 4: Manual - Compressor Controls (1.5L)

Courtesy of GENERAL MOTORS CORP.
