Exterior Lights Schematics (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

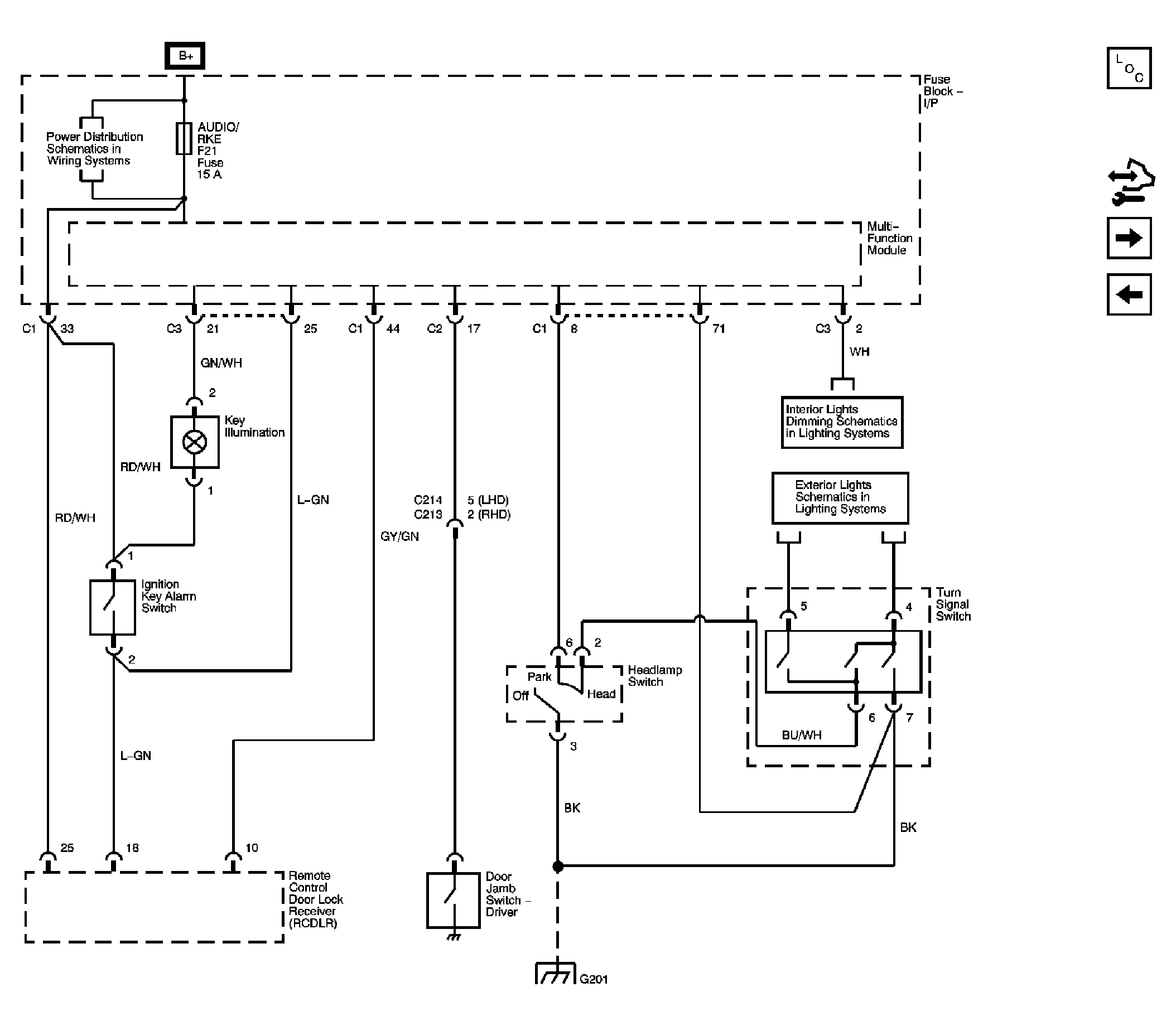

Fig 1: Park and Turn Indicator Lamps

Courtesy of GENERAL MOTORS CORP.

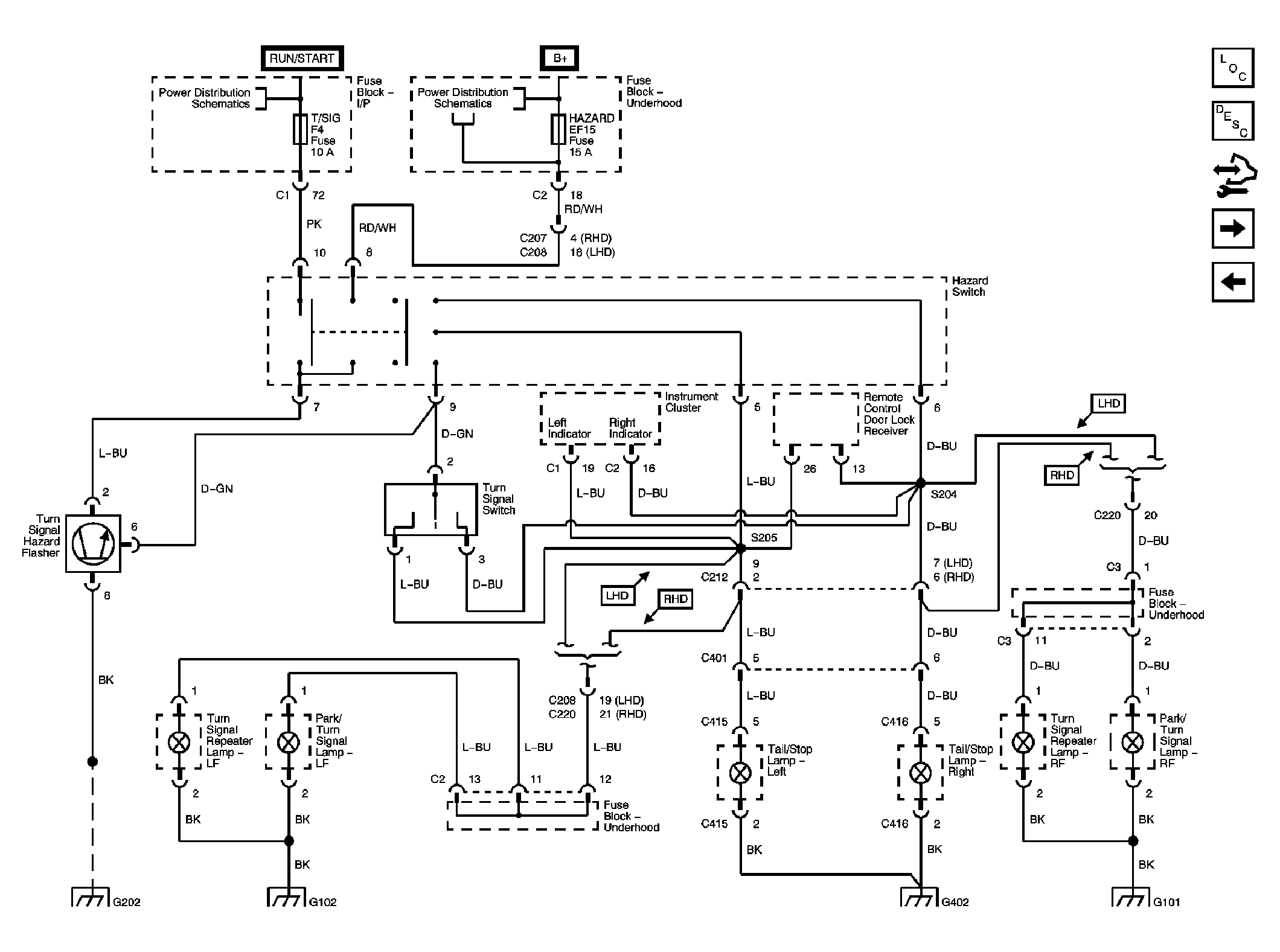

Fig 2: Tail Lamp Assembly and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

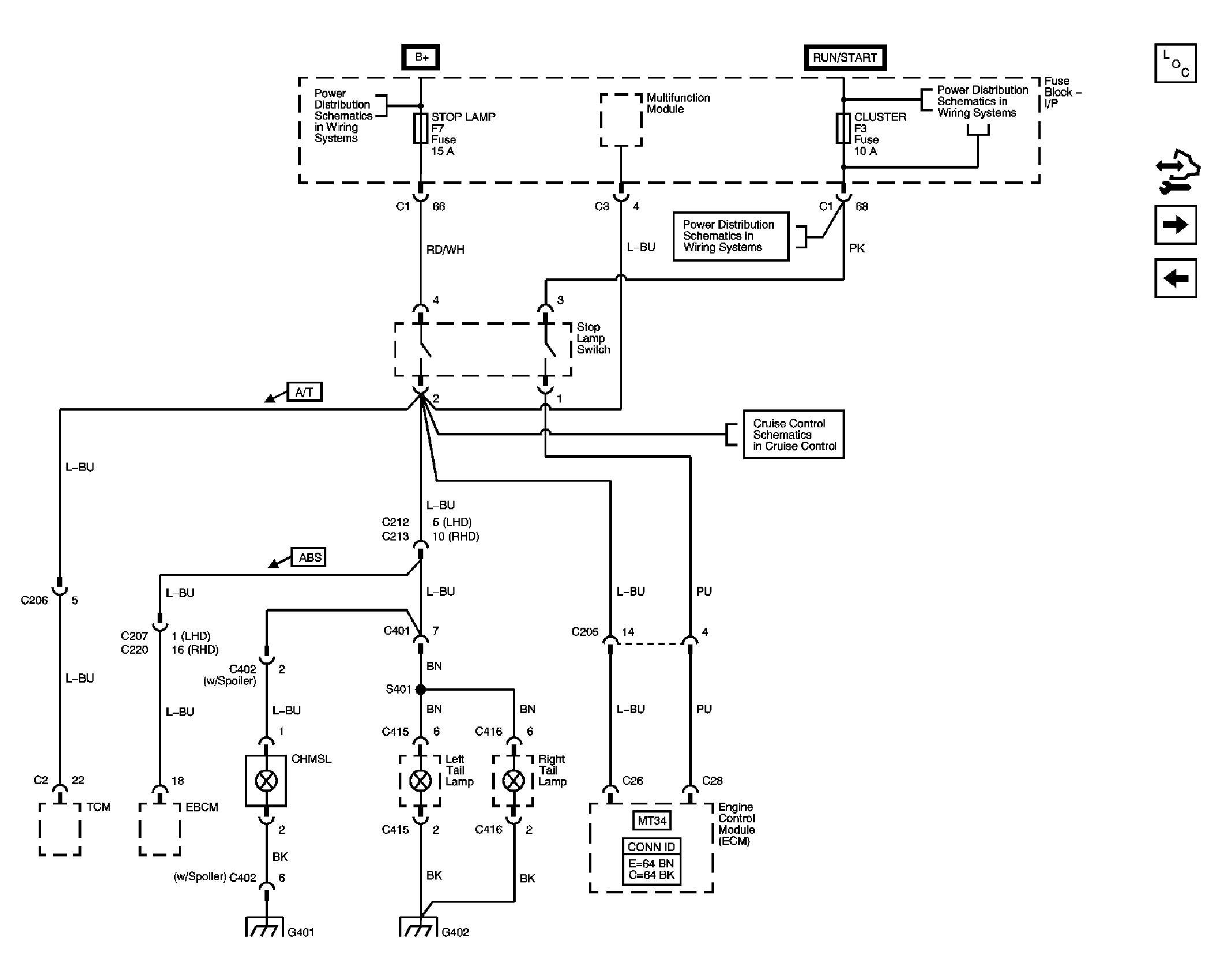

Fig 3: Turn Signals

Courtesy of GENERAL MOTORS CORP.

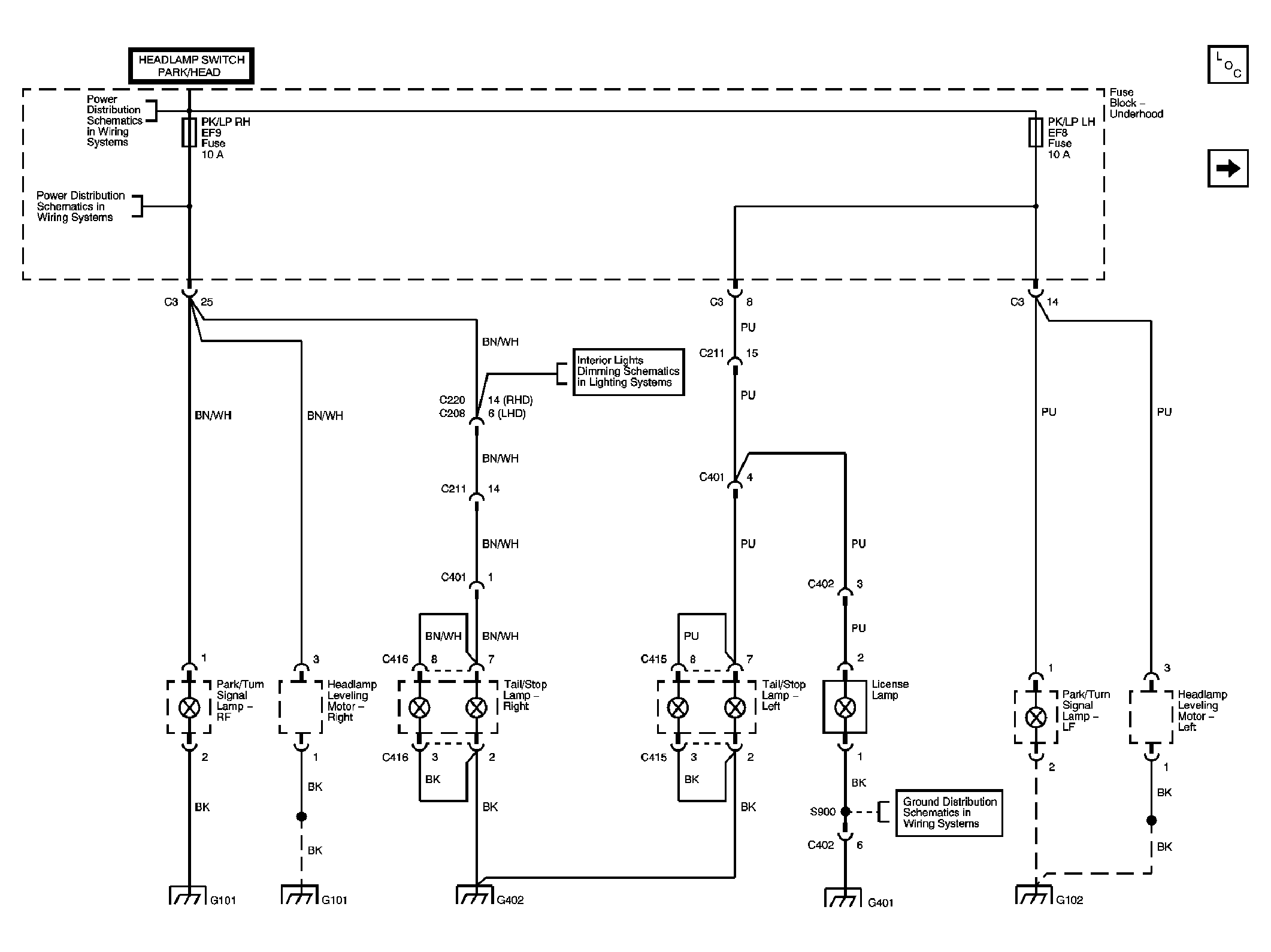

Fig 4: Battery Saver

Courtesy of GENERAL MOTORS CORP.

Fig 5: Tail Lamp Assembly and Backup Lamp Switch

Courtesy of GENERAL MOTORS CORP.
