Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

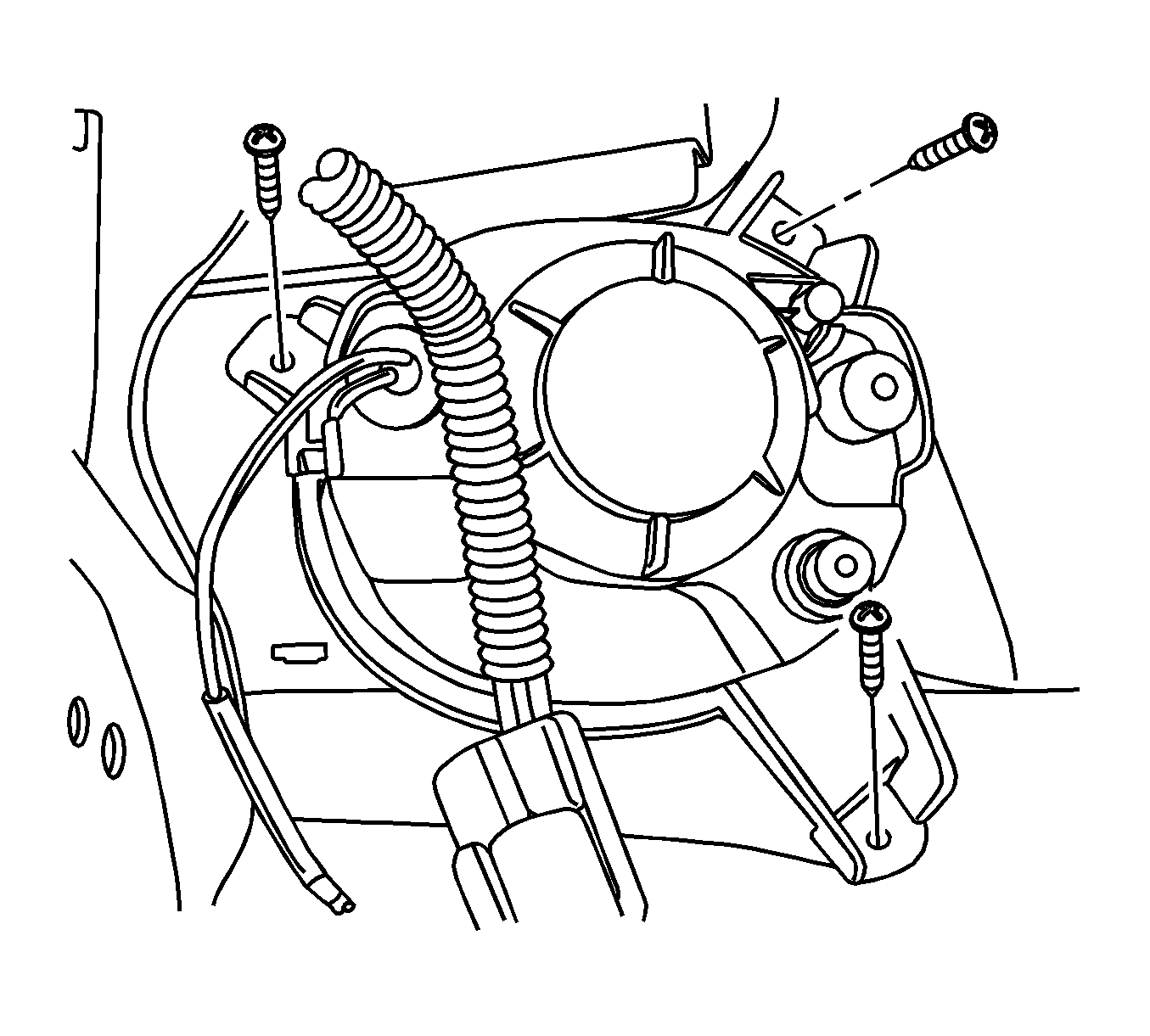

    Fig 1: Fog Lamp Assembly
    GM1722994Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb.
  2. Connect the electrical connector.
    3. NOTE: Refer to Fastener Notice .
  3. Install the fog lamp with the screws.

    Tighten:  Tighten the fog lamp screws to 5 N.m (44 lb in).

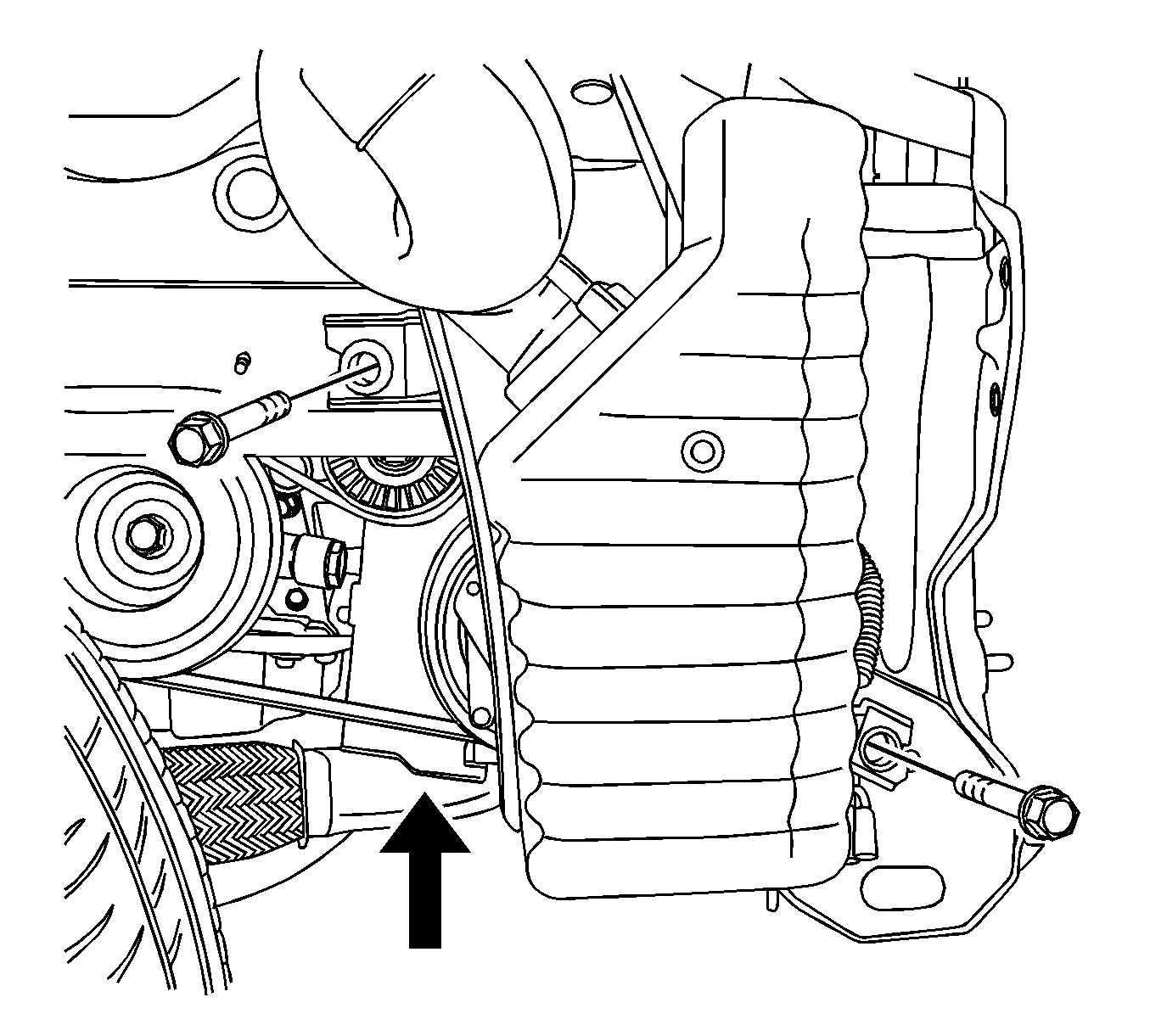

    4. Fig 2: Resonator
    GM1722990Courtesy of GENERAL MOTORS CORP.
  4. Install the resonator with the bolts.

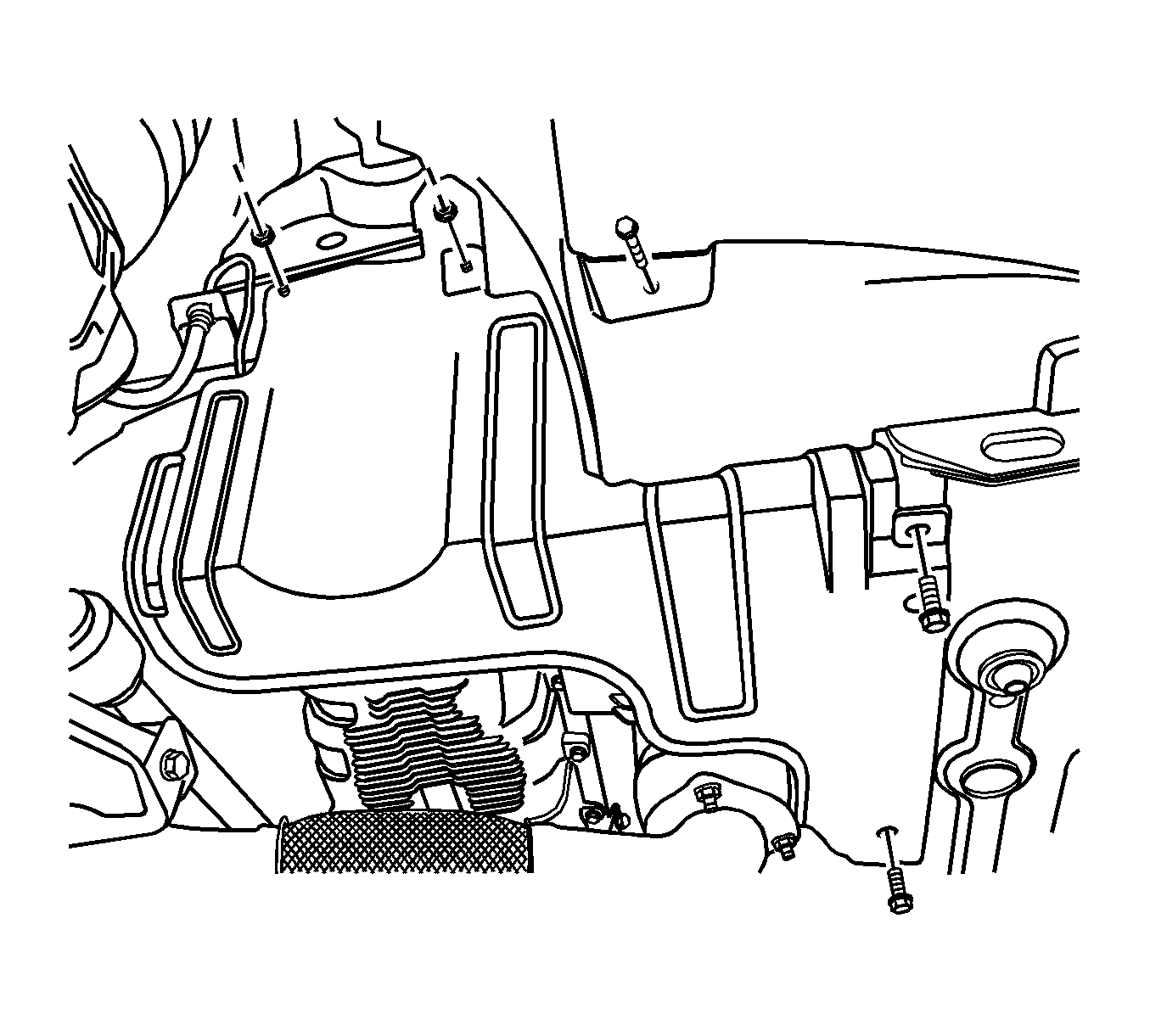

    5. Fig 3: Engine Undercover
    GM1722986Courtesy of GENERAL MOTORS CORP.
  5. Install the engine under cover with the bolts.
  6. Connect the negative battery cable.
