Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

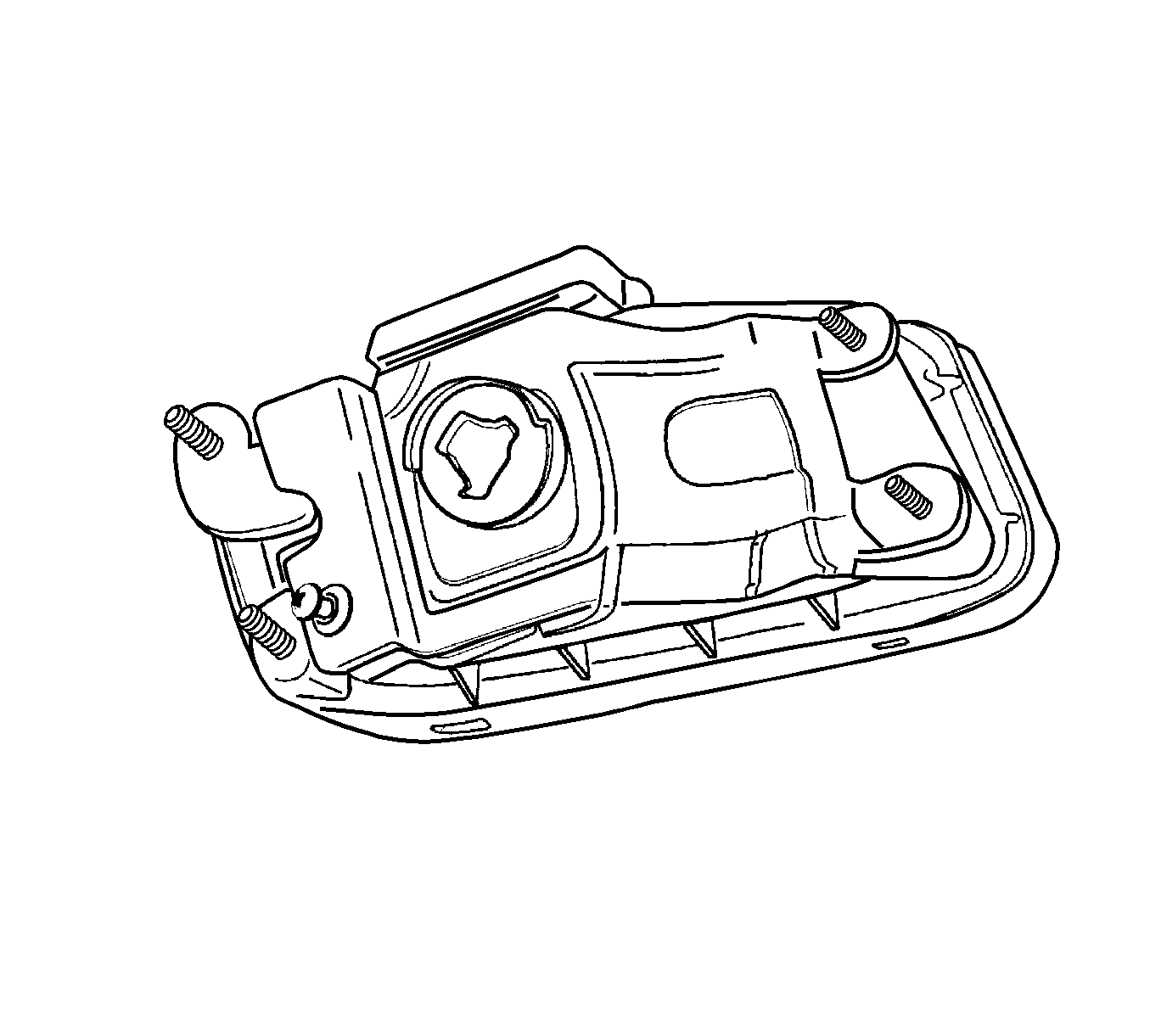

    Fig 1: View of Fog Lamp Bulb
    GM1248425Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb.
  2. Connect the electrical connector.

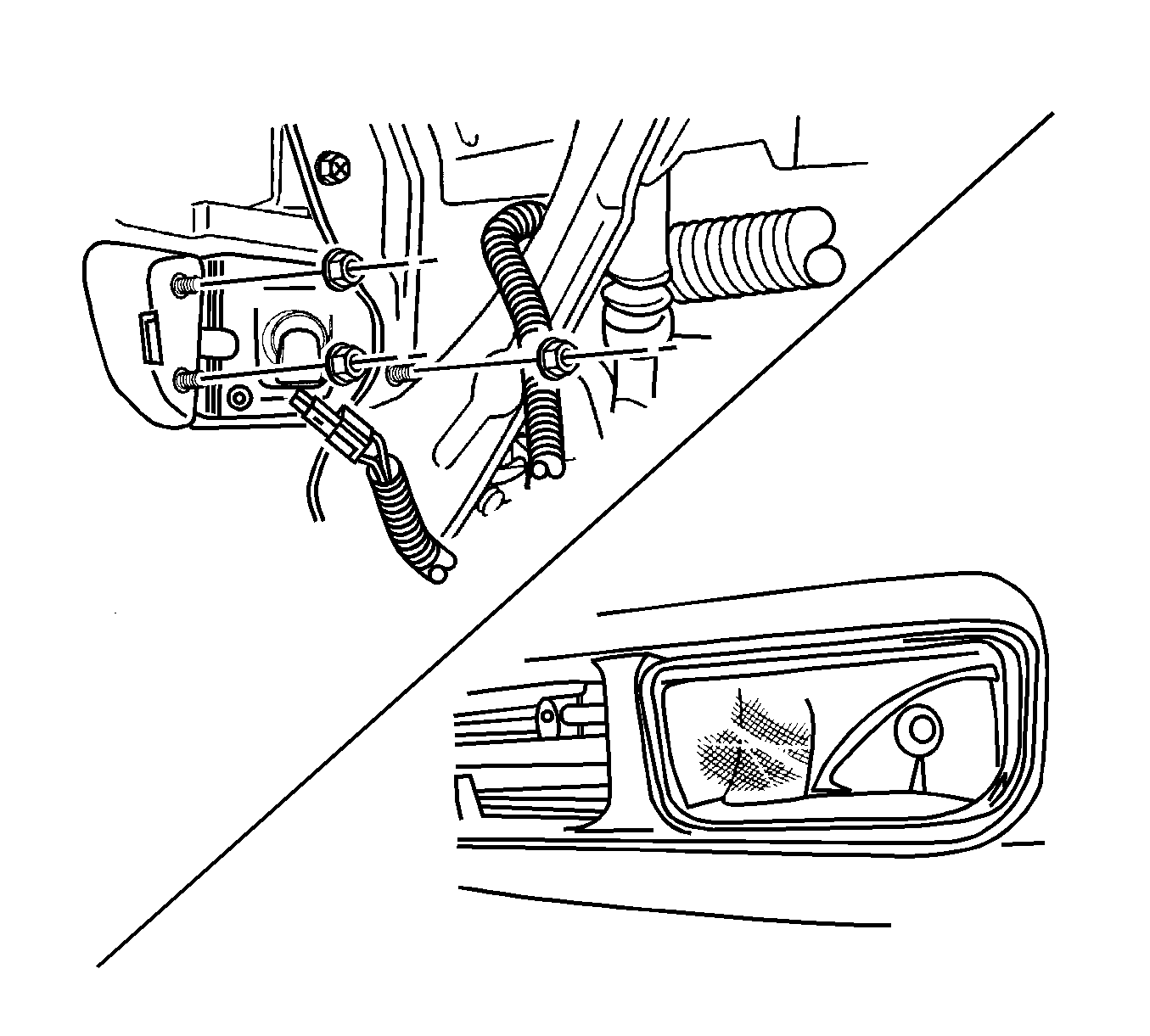

    3. Fig 2: View of Fog Lamp Assembly
    GM1248423Courtesy of GENERAL MOTORS CORP.
  3. Install the fog lamp assembly.
  4. Secure the fog lamp assembly with the nuts.
  5. Connect the negative battery cable.
