Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

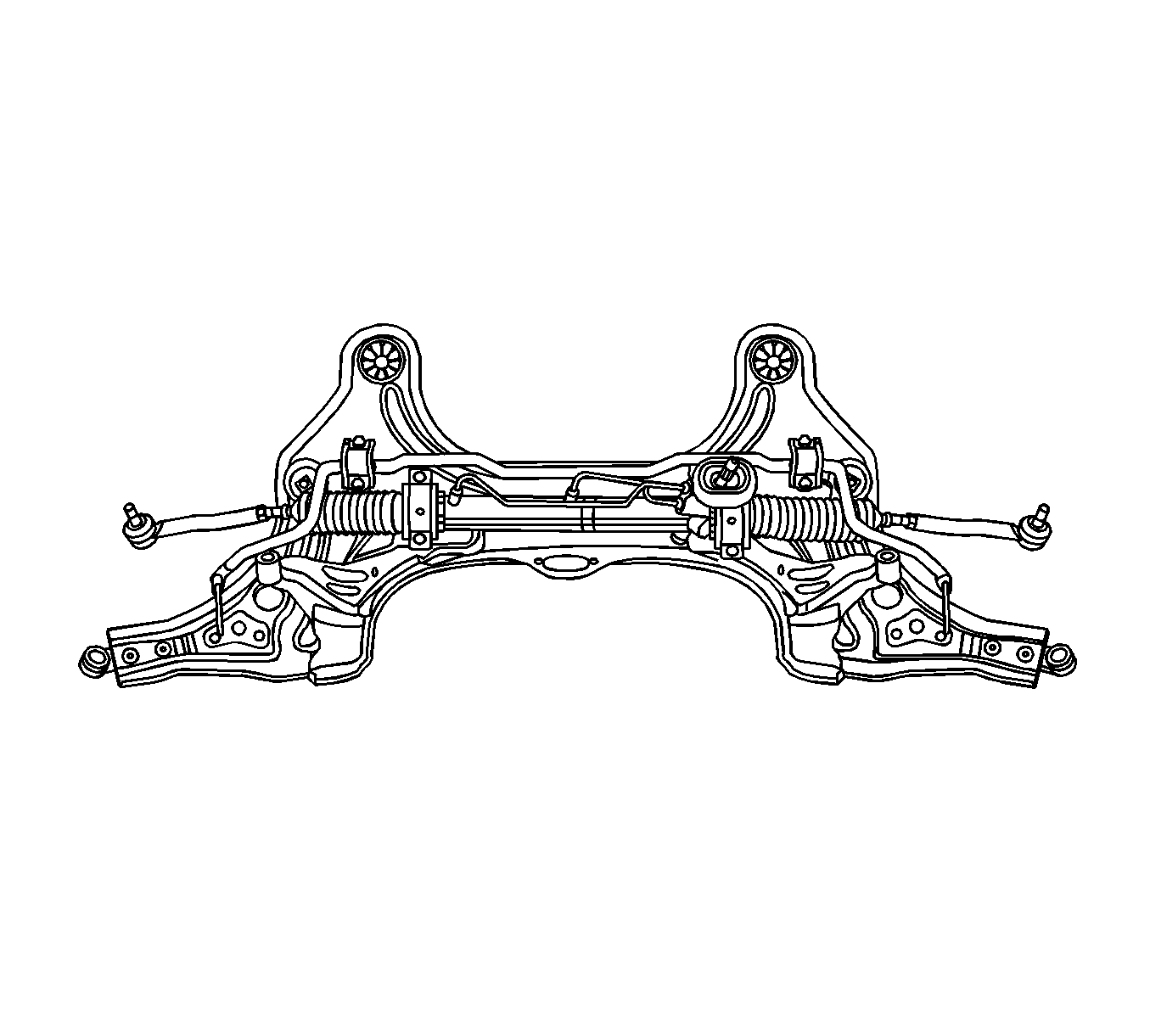

    Fig 1: U-Clamp Bolts & Stabilizer Bar
    GM1241980Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the U-clamps and the stabilizer bar to the crossmember.

    Tighten:  Tighten the U-clamp bolts to the crossmember assembly to 25 N.m (18 lb ft).

  2. Install the crossmember assembly. Refer to Front Suspension Crossmember Replacement .
