Assembly Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

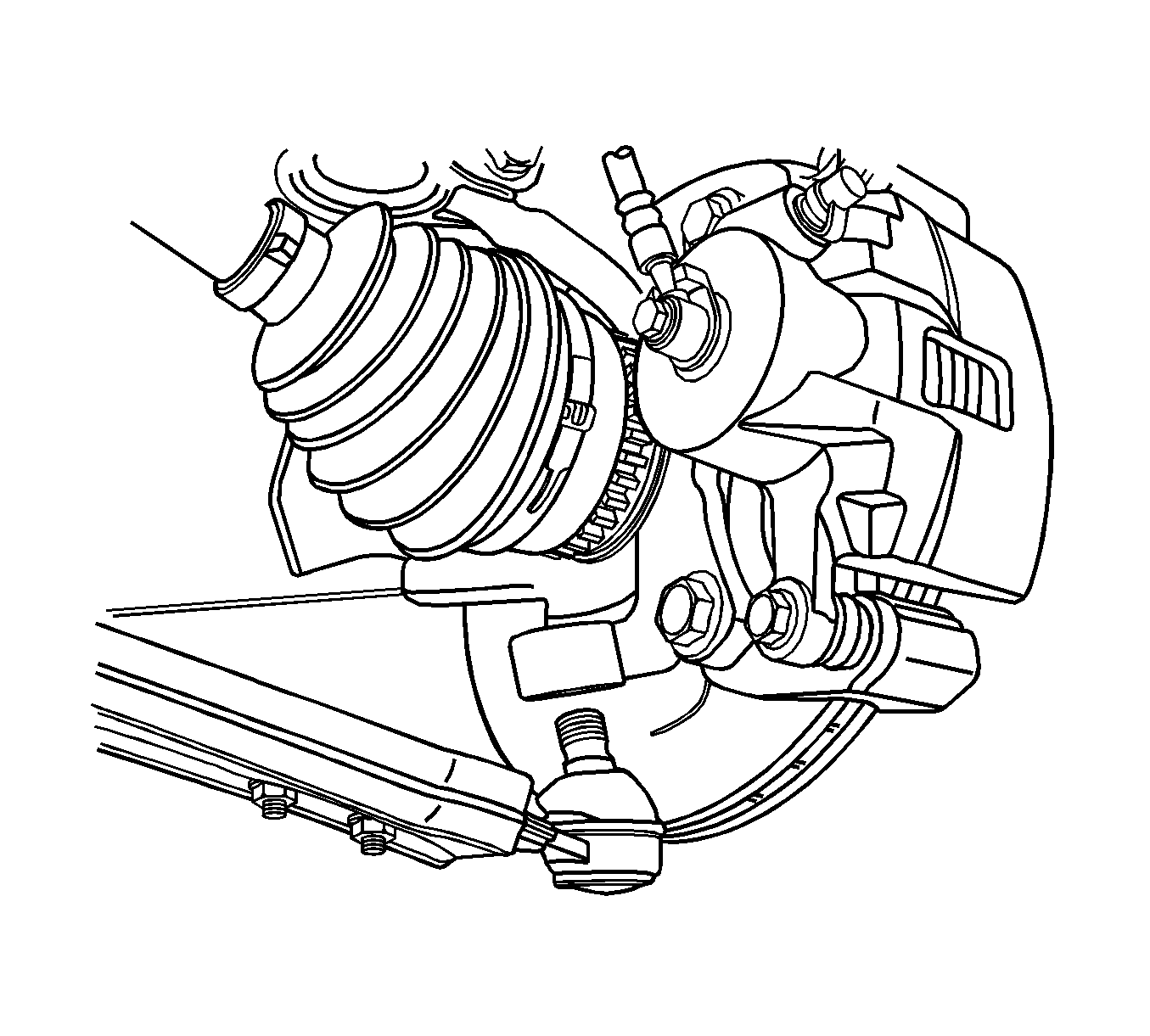

    Fig 1: Mounting Steering Knuckle Onto Lower Ball Joint
    GM1241982Courtesy of GENERAL MOTORS CORP.
  1. Connect the ball joint to the control arm with the mounting bolts.
    2. NOTE: Refer to Fastener Notice .
  2. Install the nuts to secure the bolts from below the control arm.

    Tighten:  Tighten the ball joint-to-control arm nuts to 150 N.m (111 lb ft).

  3. Install the control arm. Refer to Control Arm Replacement .
  4. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  5. Remove the jackstands.
  6. Lower the vehicle.
