Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: Engine Mounting Reaction Rod & Bolts
    GM1241972Courtesy of GENERAL MOTORS CORP.
  2. Remove the front tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  3. Remove the control arm ball joint and stabilizer shaft link nut, lower.
  4. Remove the tie rod end ball joint.
  5. Remove the engine mounting reaction rod bolts.
    6. Fig 2: Power Steering Pipe Fittings
    GM1241974Courtesy of GENERAL MOTORS CORP.
  6. Drain the power steering fluid.
  7. Remove the power steering pipe fittings.
  8. Remove the intermediate shaft lower joint.

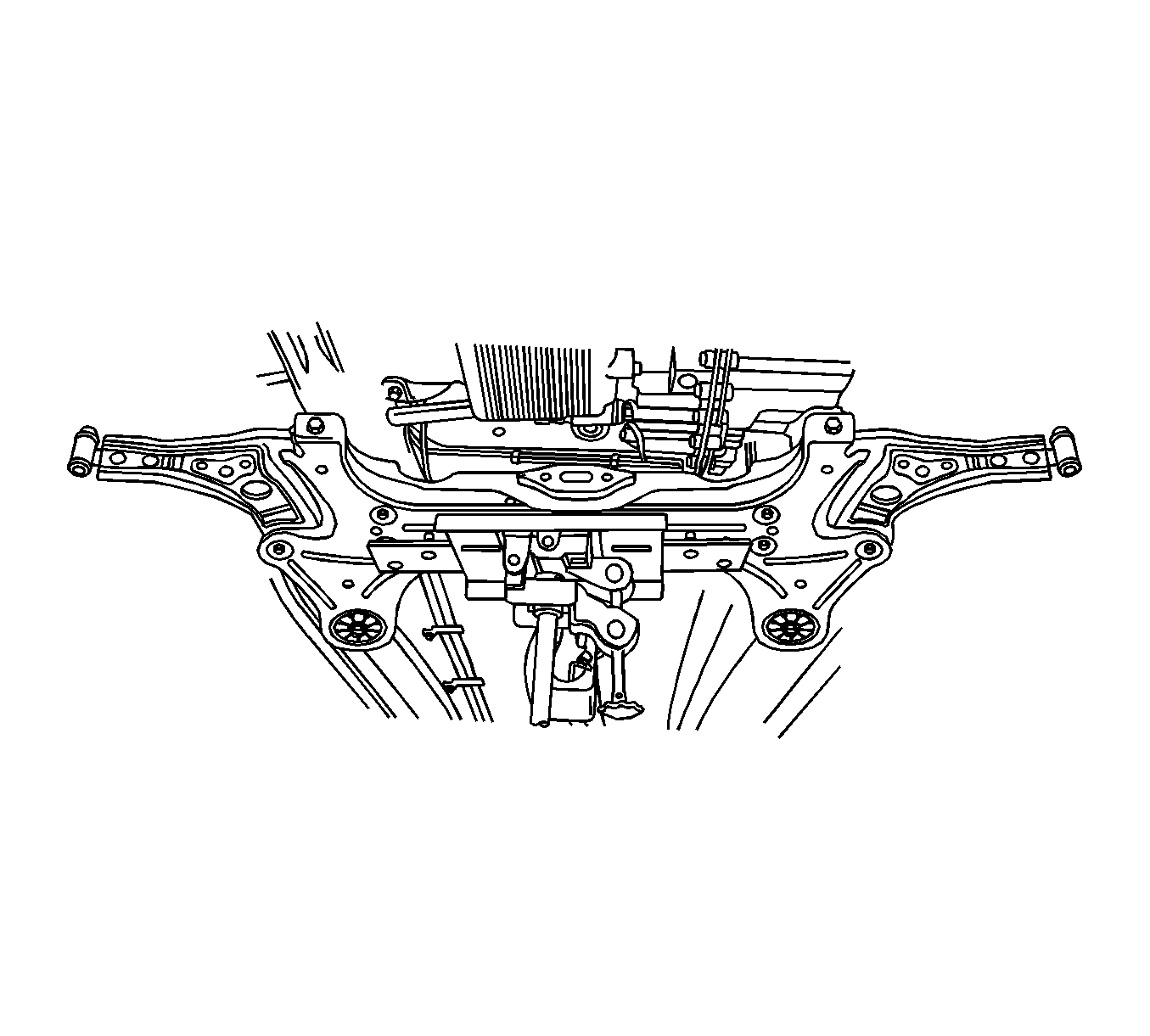

    9. Fig 3: Crossmember Assembly
    GM1241975Courtesy of GENERAL MOTORS CORP.
    CAUTION: Failure to support crossmember can cause crossmember to drop to the ground when crossmember mounting bolts are removed.
  9. Remove the crossmember assembly.

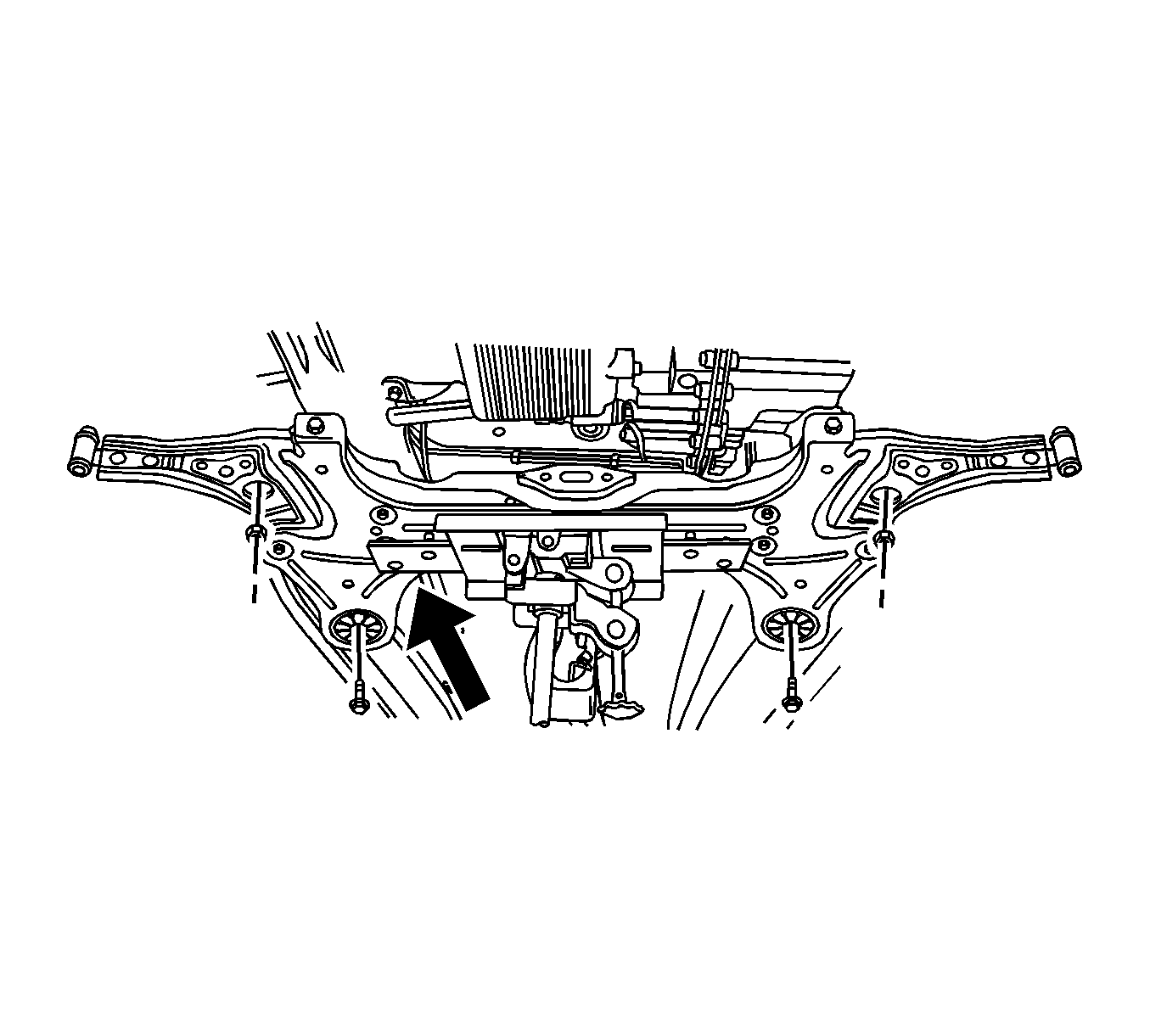

    10. Fig 4: Crossmember Assembly Mounting
    GM1241976Courtesy of GENERAL MOTORS CORP.
  10. Remove the stabilizer bar, power steering gear set, and control arm from the crossmember.
