Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

While depressing the lock, remove the connector from the component.

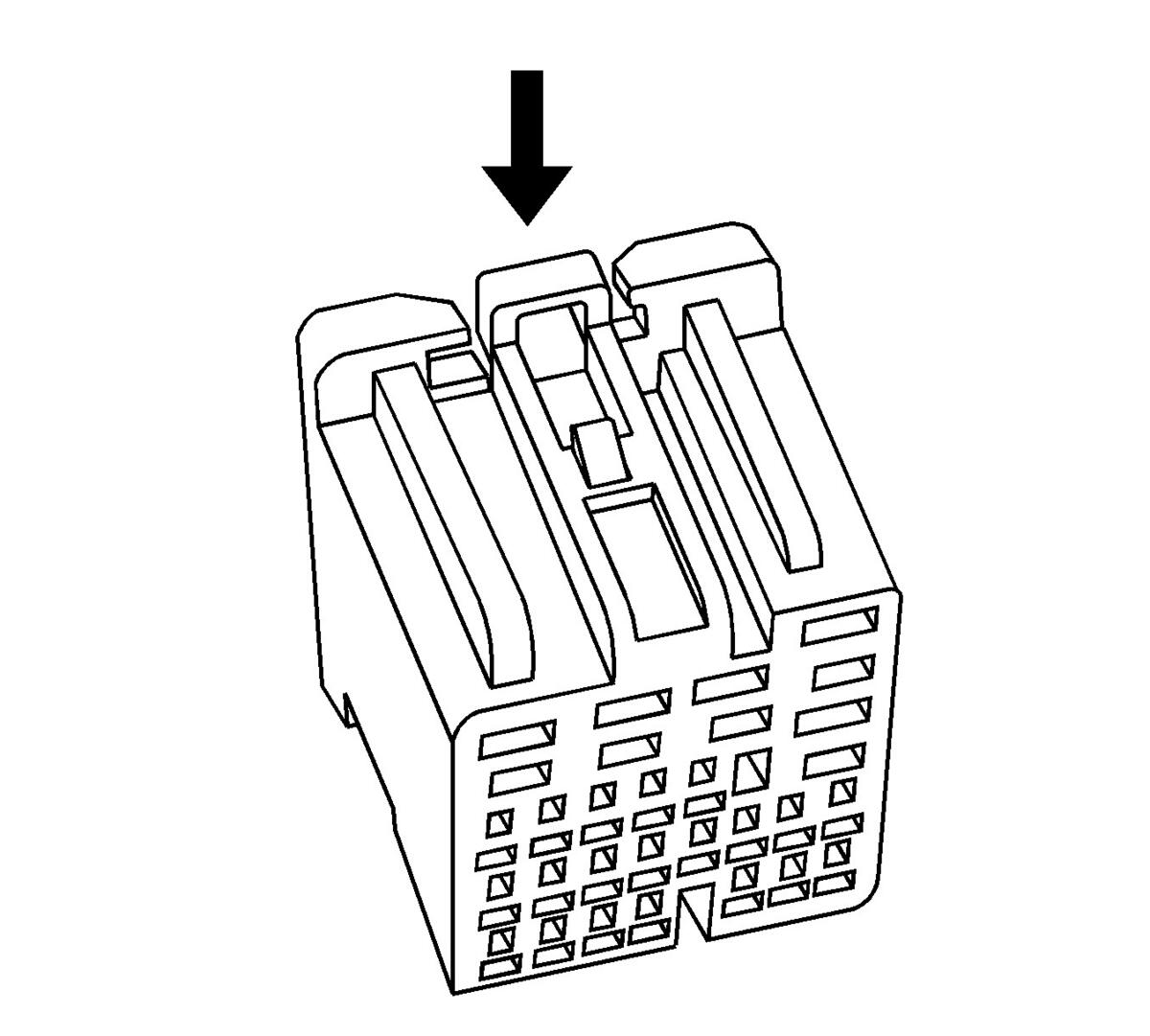

Fig 1: Locating Connector Lock
Courtesy of GENERAL MOTORS CORP.
Locate the two indents of the terminal position assurance (TPA) located on the bottom of the connector body.

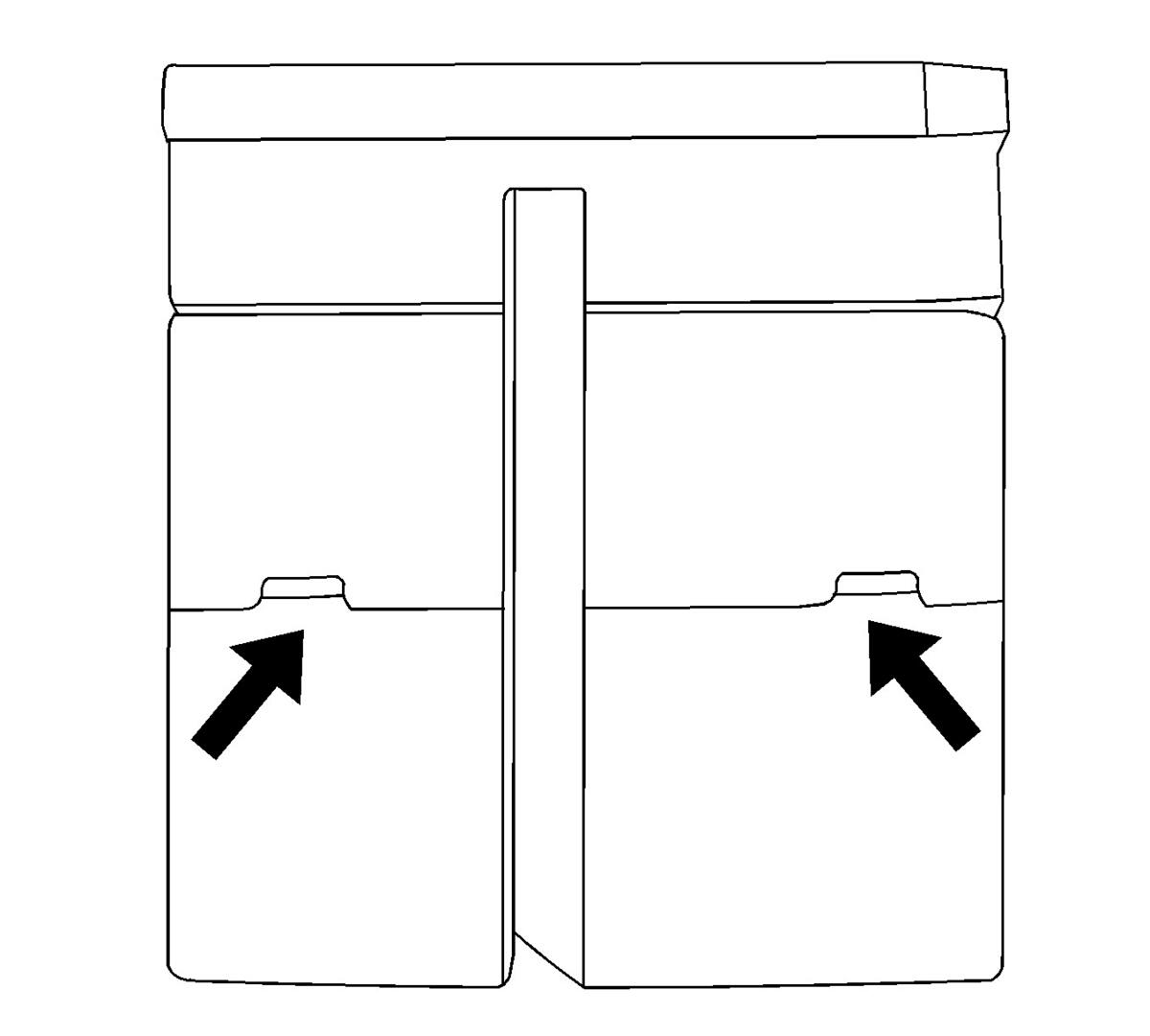

Fig 2: Locating Two Indents
Courtesy of GENERAL MOTORS CORP.
Use a small flat-blade tool to very carefully raise the TPA on both sides of the connector.

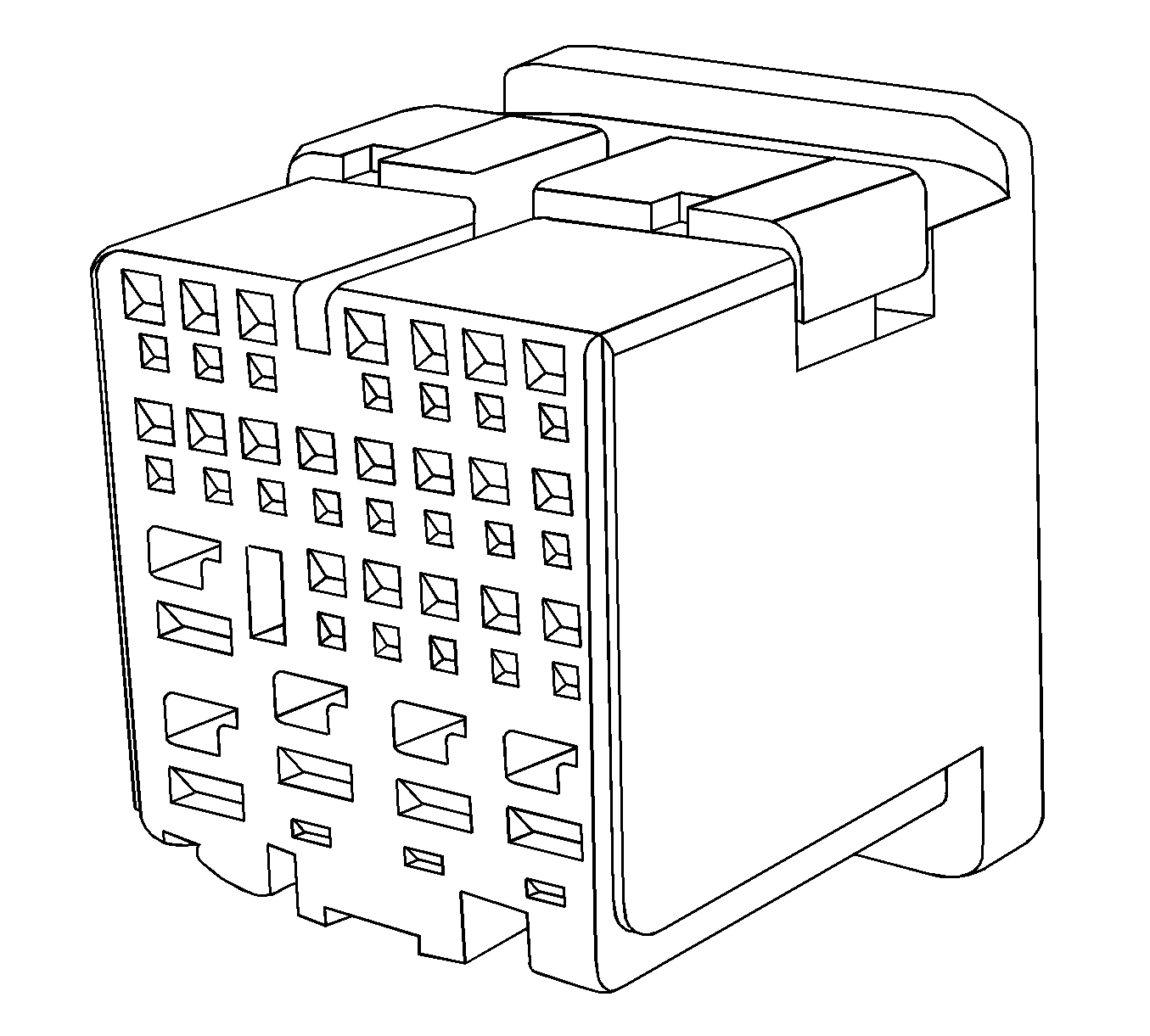

Fig 3: Raising TPA On Both Sides Of The Connector
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The TPA cannot be removed from the connector while there are terminals present in the connector body.

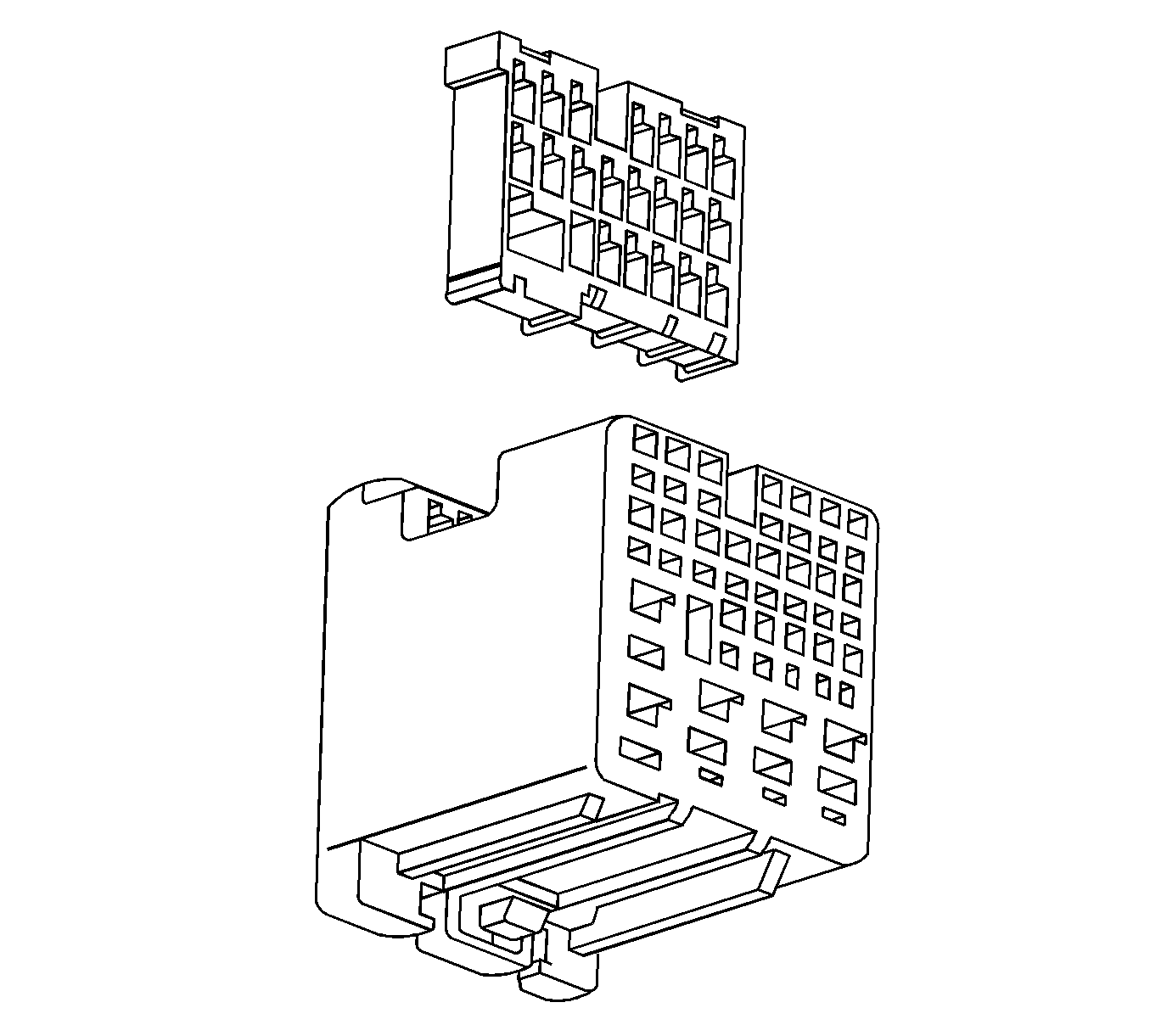

Fig 4: View Of TPA Removed From Connector Body
Courtesy of GENERAL MOTORS CORP.

View of the TPA when removed from the connector body.
Use the J 38125-12A tool to release the terminals by inserting the tool into the left side of the terminal release cavity as shown in the graphic. Use the tool to move the terminal release to the right with a gentle prying motion. See the release tool cross reference in the Reference Guide of the J-38125 to ensure that the correct release tool is used. See Special Tools .

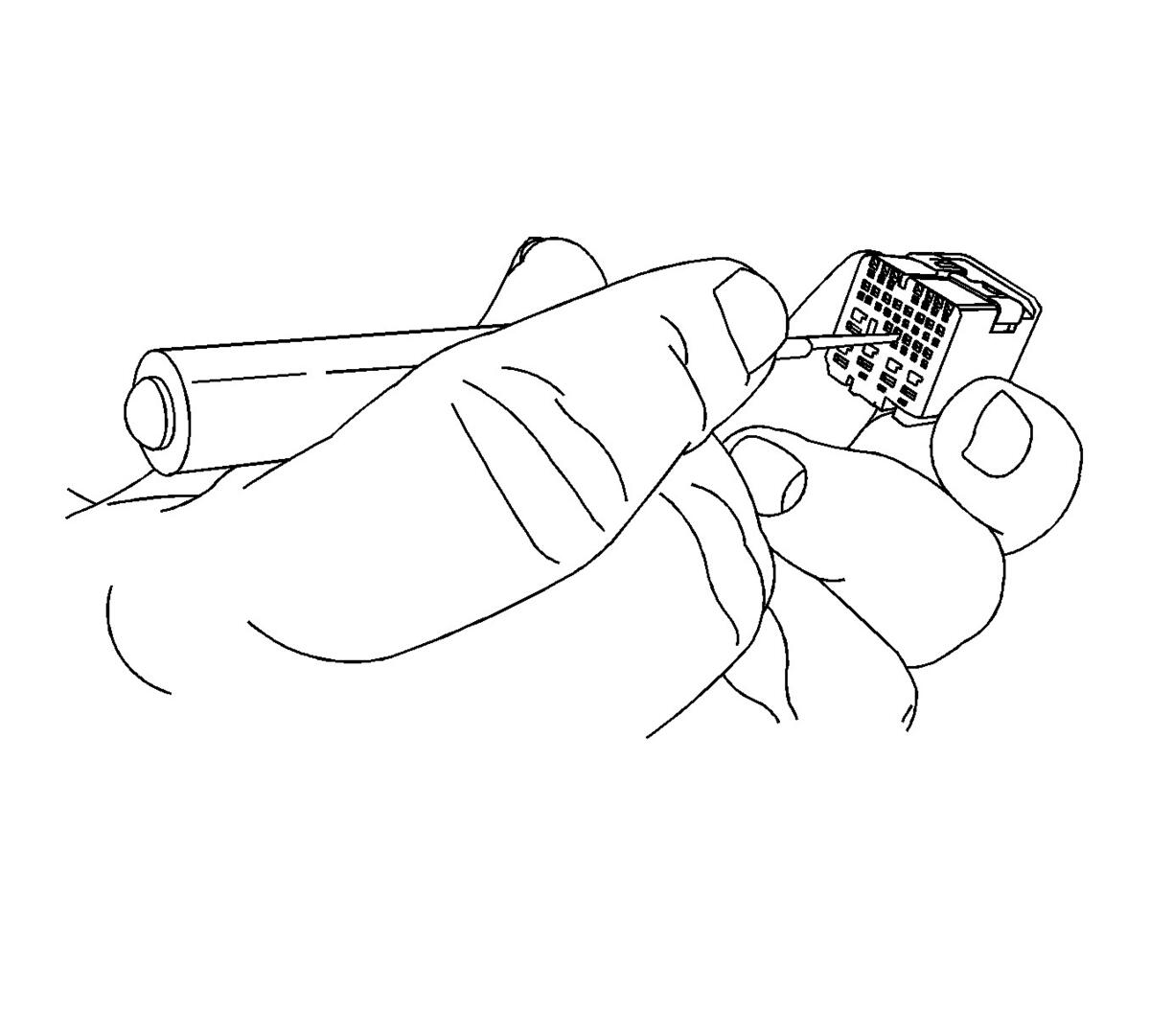

Fig 5: Gently Pulling Wire Out Of Back Of Connector
Courtesy of GENERAL MOTORS CORP.
While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
