Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Follow the steps below in order to remove terminals from the connector.

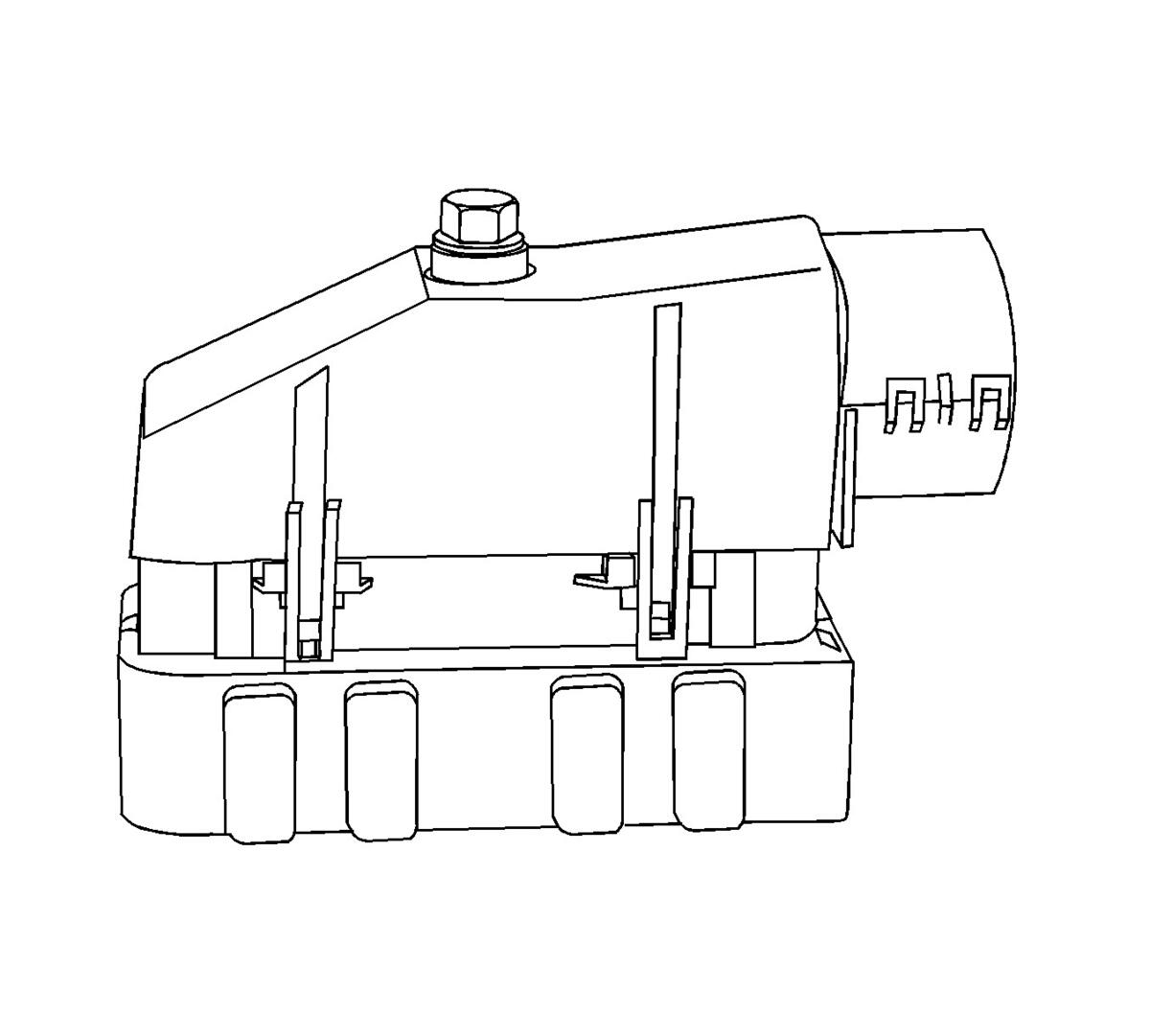

Fig 1: Identifying Connectors With Bolt In Dress Cover

Courtesy of GENERAL MOTORS CORP.

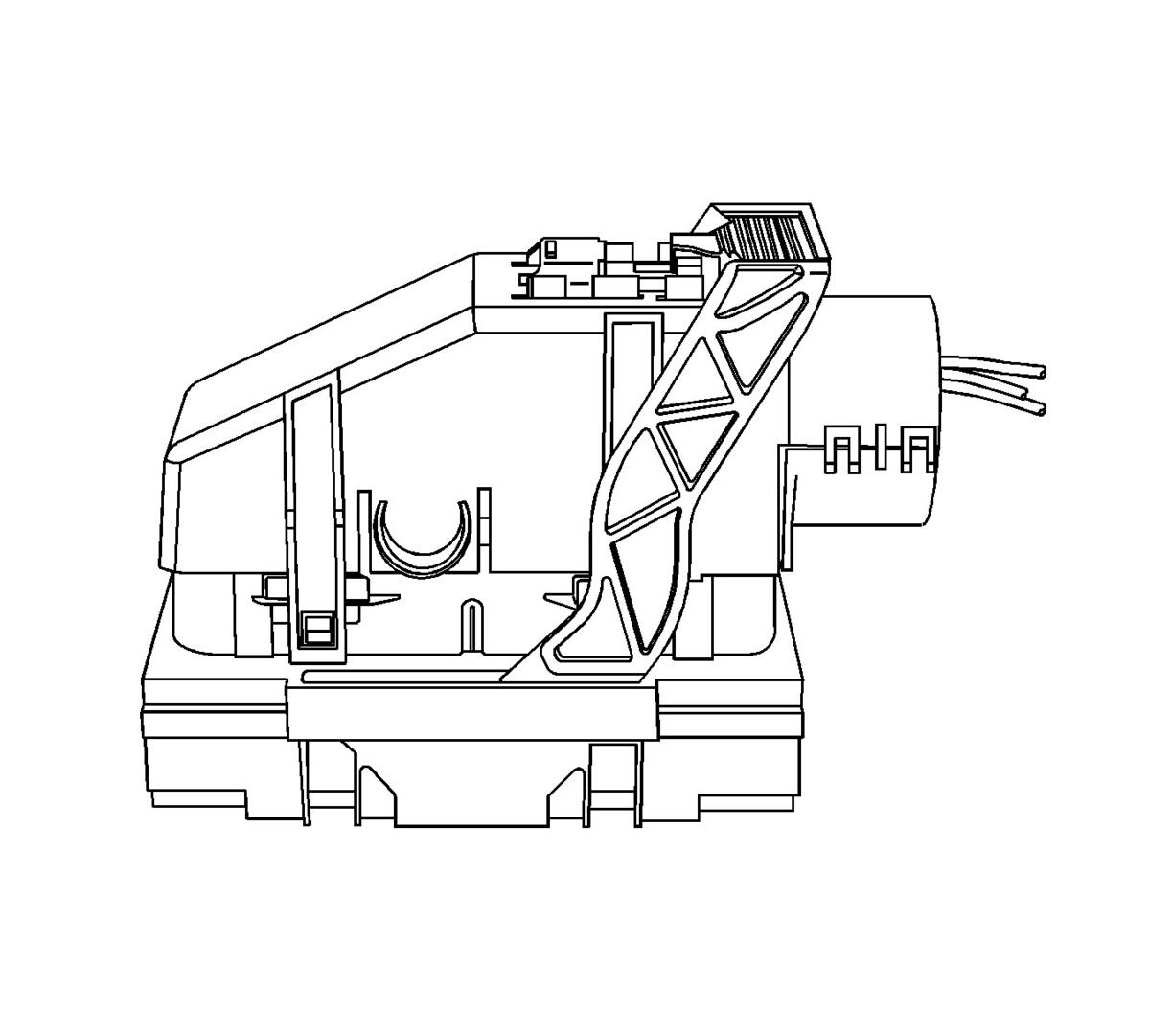

Fig 2: Identifying Connector Position Assurance (CPA)

Courtesy of GENERAL MOTORS CORP.

For connectors with a bolt in the dress cover, turn the bolt counterclockwise to remove the connector from the component.
Locate the connector position assurance (CPA) on the top of the wire dress cover. Slide the CPA forward.

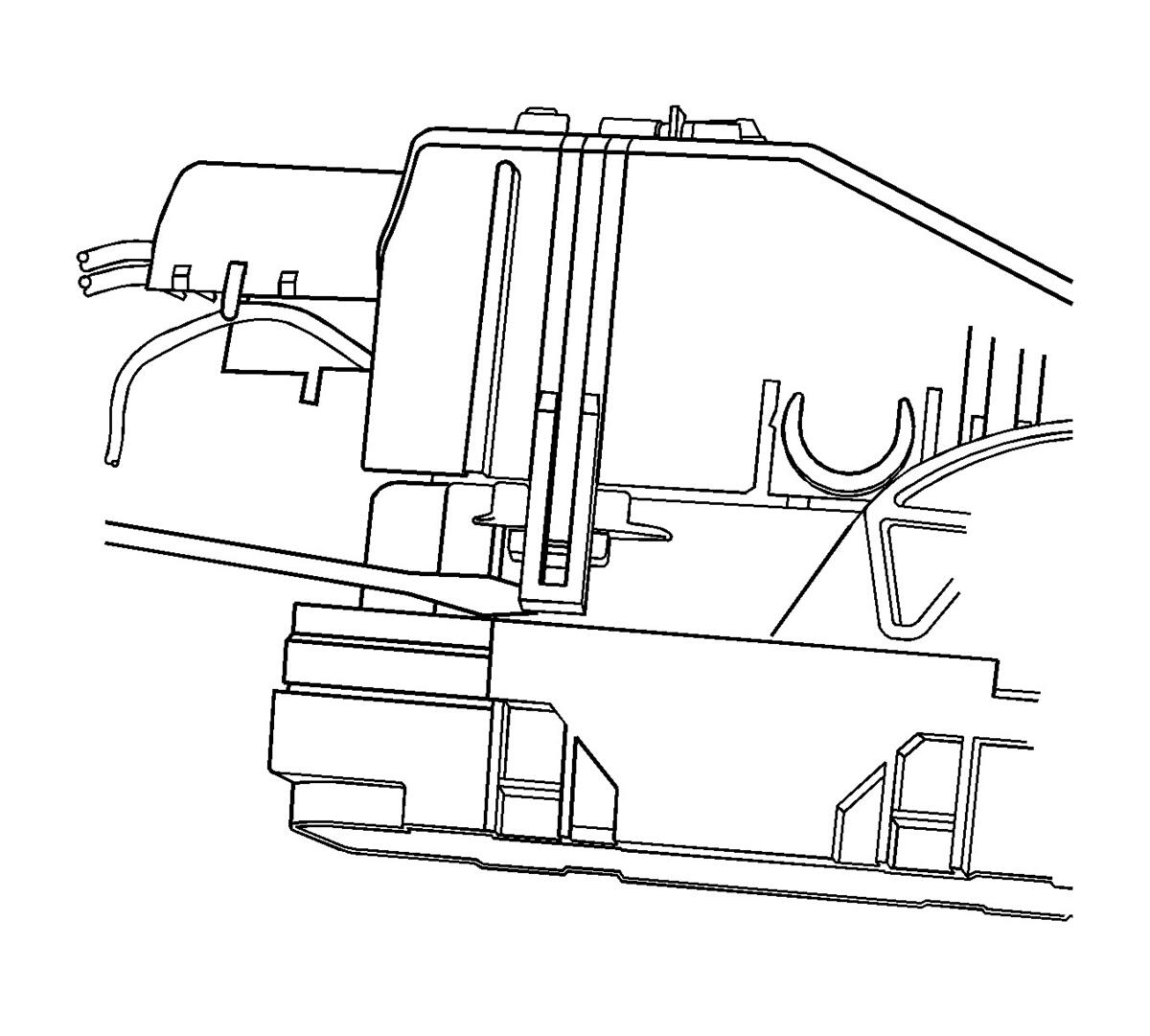

Fig 3: Identifying Lever Lock & Lever Lock Release Tab
Courtesy of GENERAL MOTORS CORP.
Slide the lever lock forward while pressing down on the lever lock release tab.

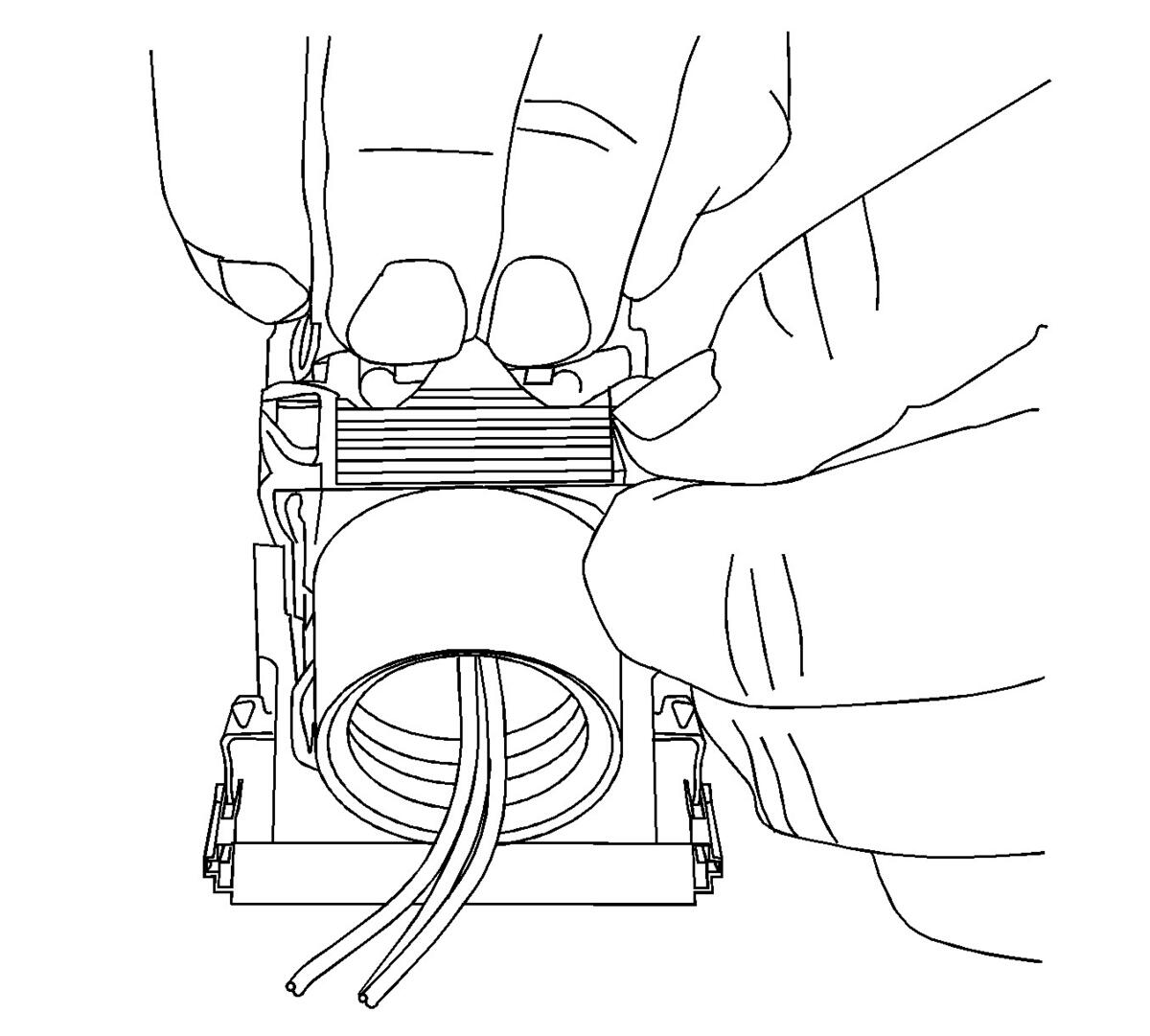

Fig 4: View Showing Depressing Of Lever Lock Release Tab
Courtesy of GENERAL MOTORS CORP.

View showing depressing of the lever lock release tab.

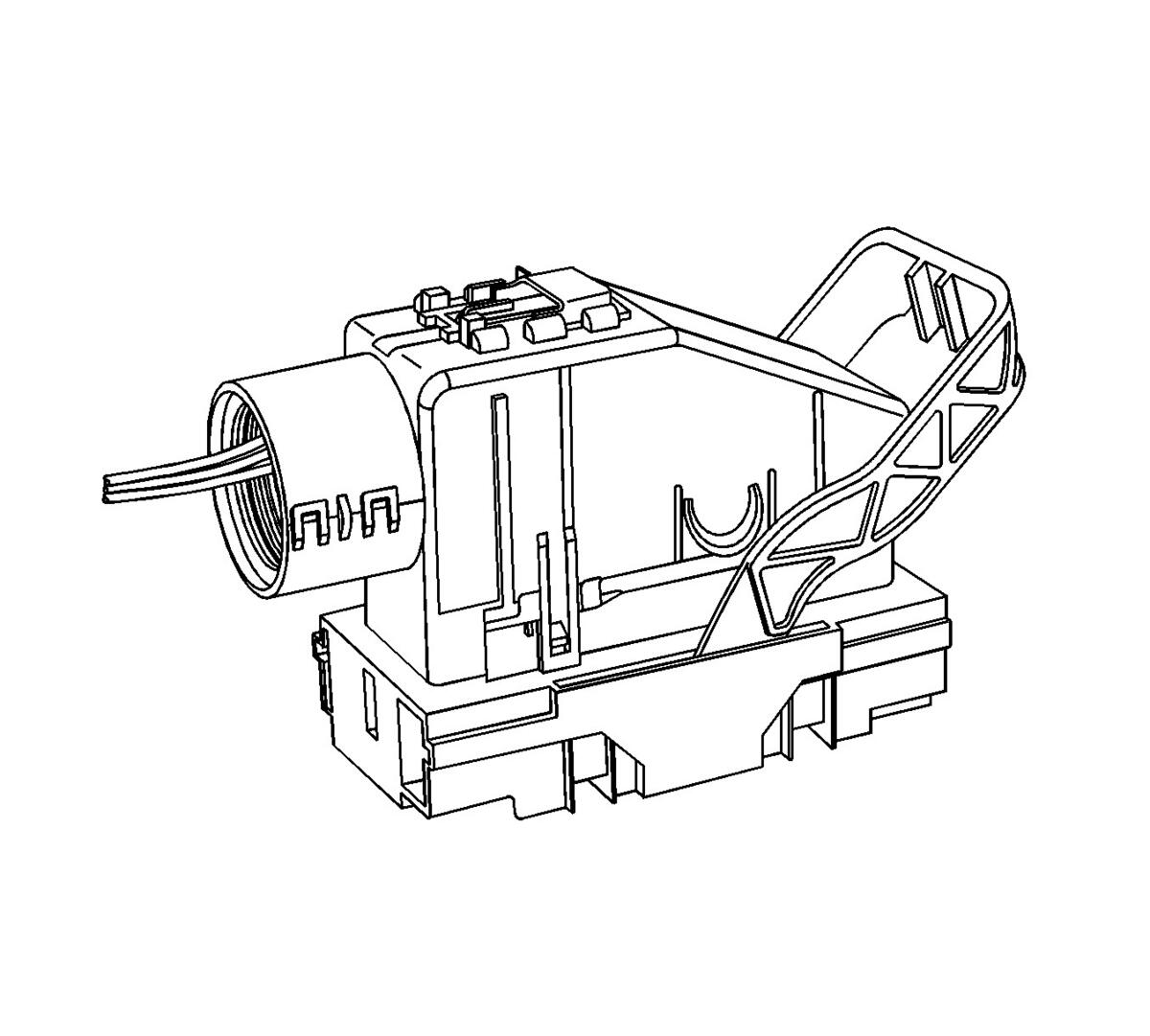

Fig 5: View Of Connector In Released Position
Courtesy of GENERAL MOTORS CORP.

View of connector in released position.
Disconnect the connector from the component.
Locate the dress cover locking tabs at the corners of the dress cover. Use a small flat-blade tool to release the locking tabs and remove the dress cover.

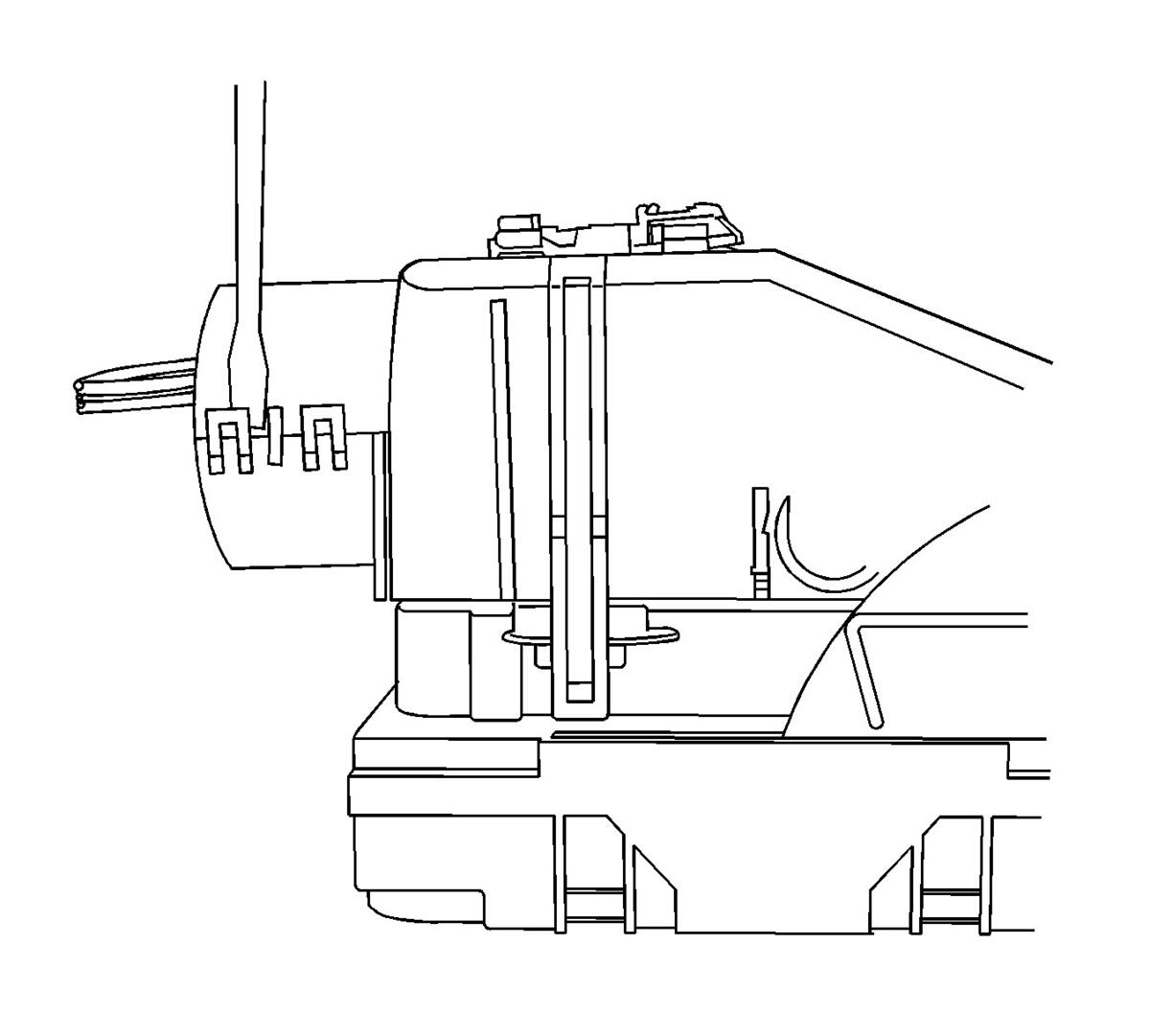

Fig 6: View Of Connector In Released Position

Courtesy of GENERAL MOTORS CORP.

Release the rear lower half of the wiredress cover.

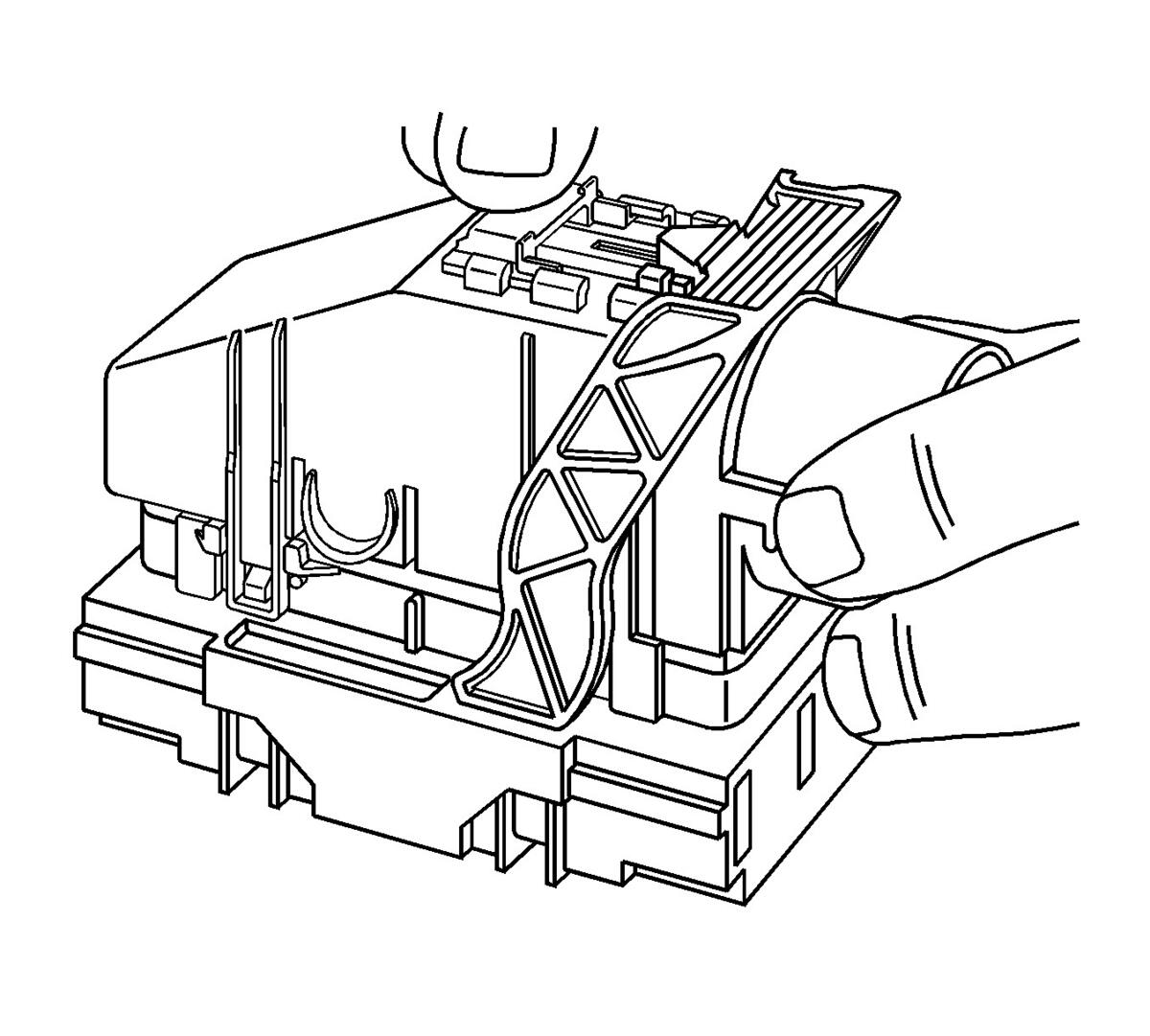

Fig 7: Identifying Tabs Holding Wiredress Cover

Courtesy of GENERAL MOTORS CORP.

Release the tabs that are holding the wiredress cover to the connector body.
Remove the nose piece by inserting a small flat-blade tool into the slots on both ends of the connector body. Gently pry the nose piece out of the connector. J 38125-216 can also be used to remove the nose piece.

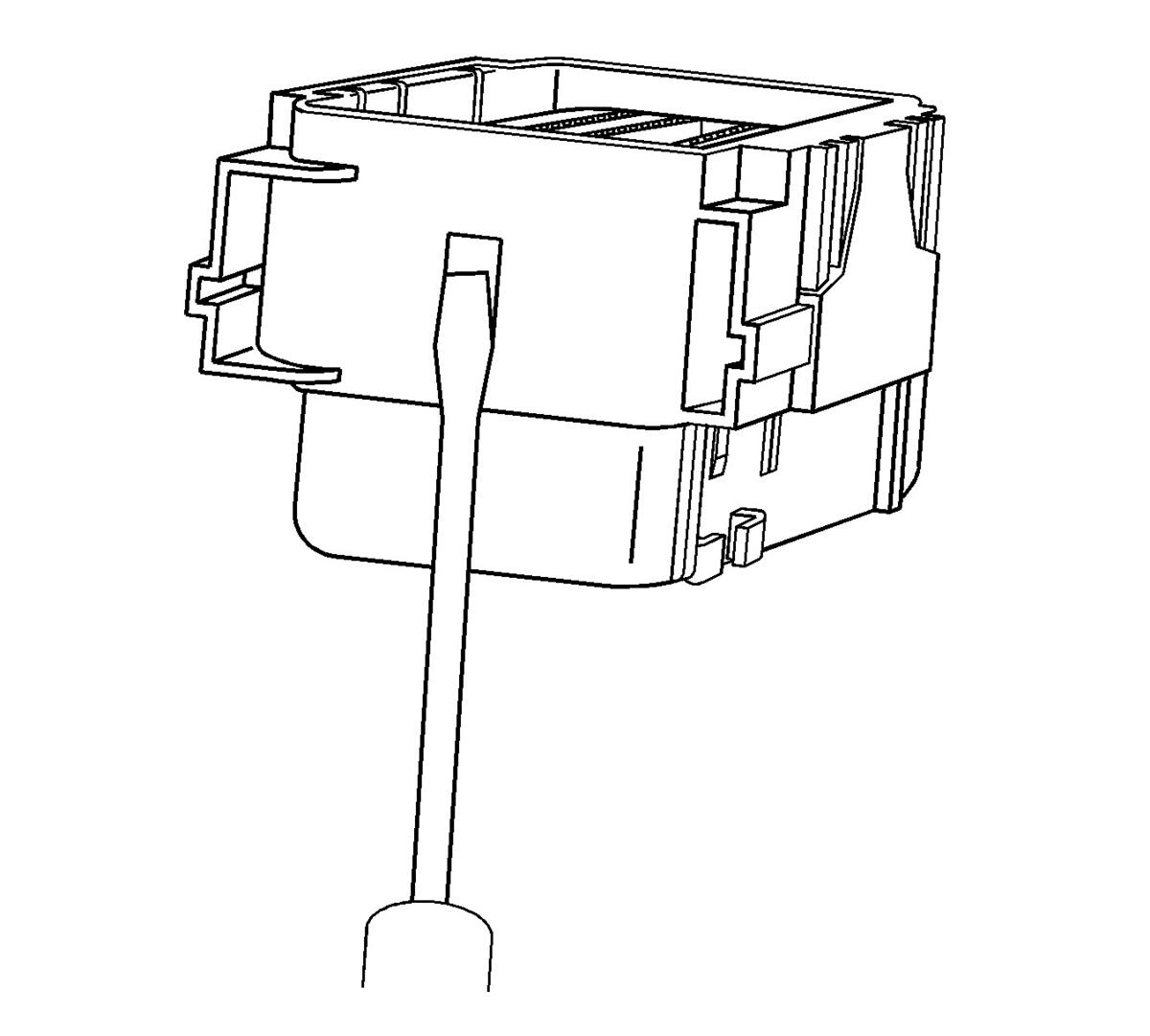

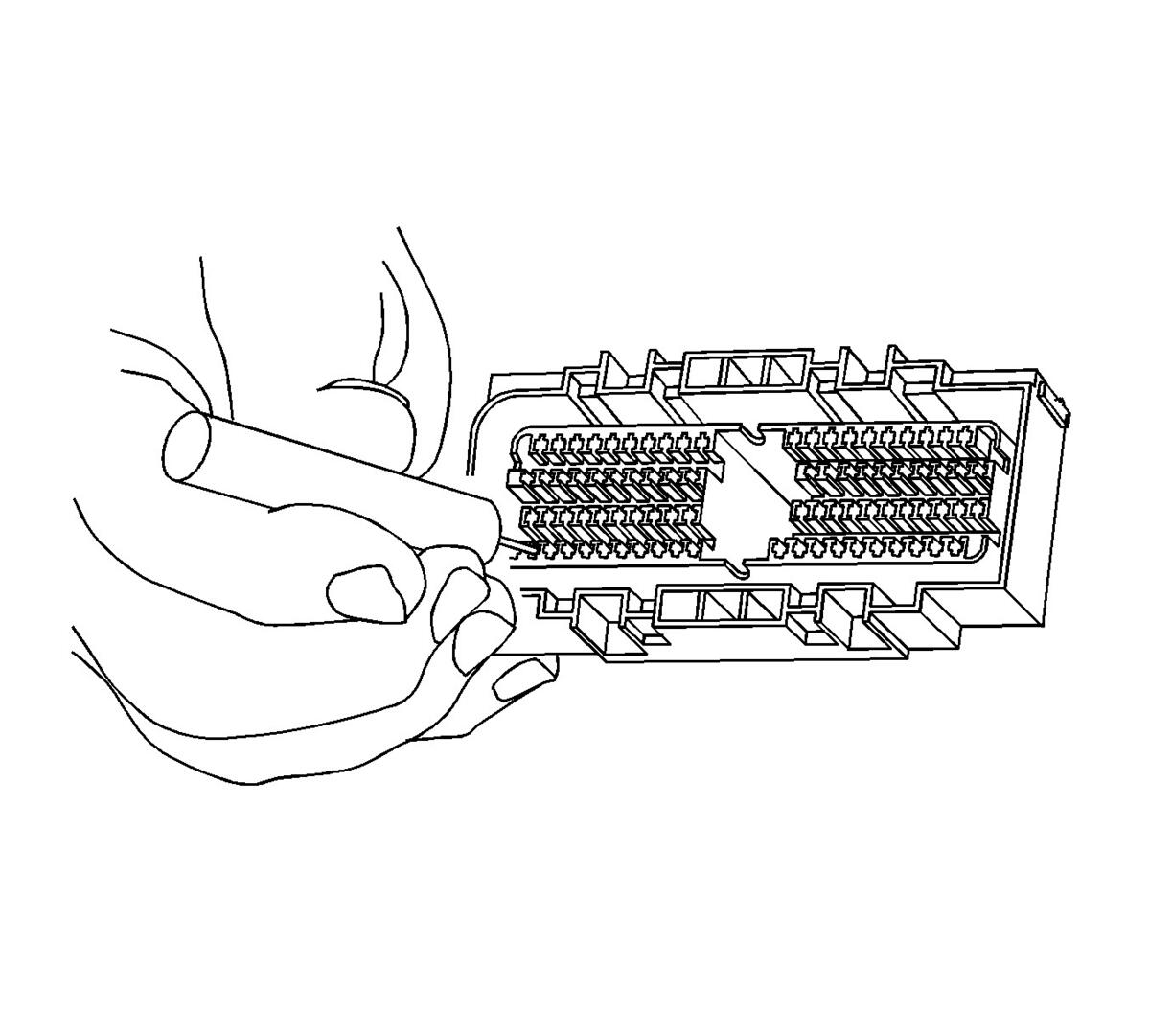

Fig 8: Removing Nose Piece Using Flat-Blade Tool
Courtesy of GENERAL MOTORS CORP.
Use the J 38125-12A (GM P/N 12094429) tool to release the terminals by lifting the terminal retaining tabs on the inside of the connector. See the release tool cross reference in the Reference Guide of the J-38125 to ensure that the correct release tool is used. See Special Tools .

Fig 9: J-38125-12A Removal Tool
Courtesy of GENERAL MOTORS CORP.
While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
