Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

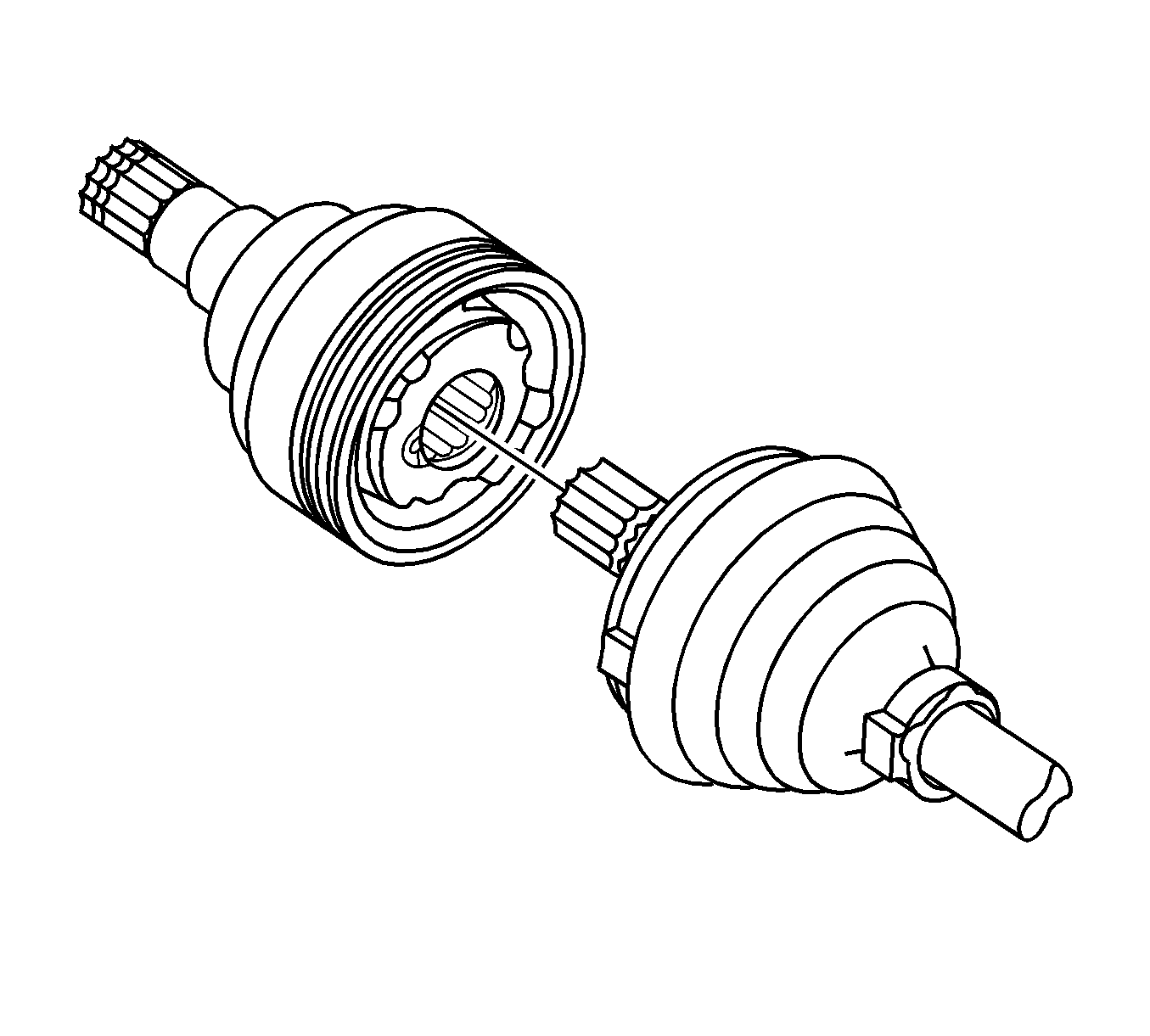

    Fig 1: View Of Axle Shaft And Joint Assembly
    GM1242031Courtesy of GENERAL MOTORS CORP.
  1. Install a new small seal retaining clamp onto the seal. Do not crimp.
  2. Install the seal onto the axle shaft.
  3. Install the joint assembly onto the axle shaft.

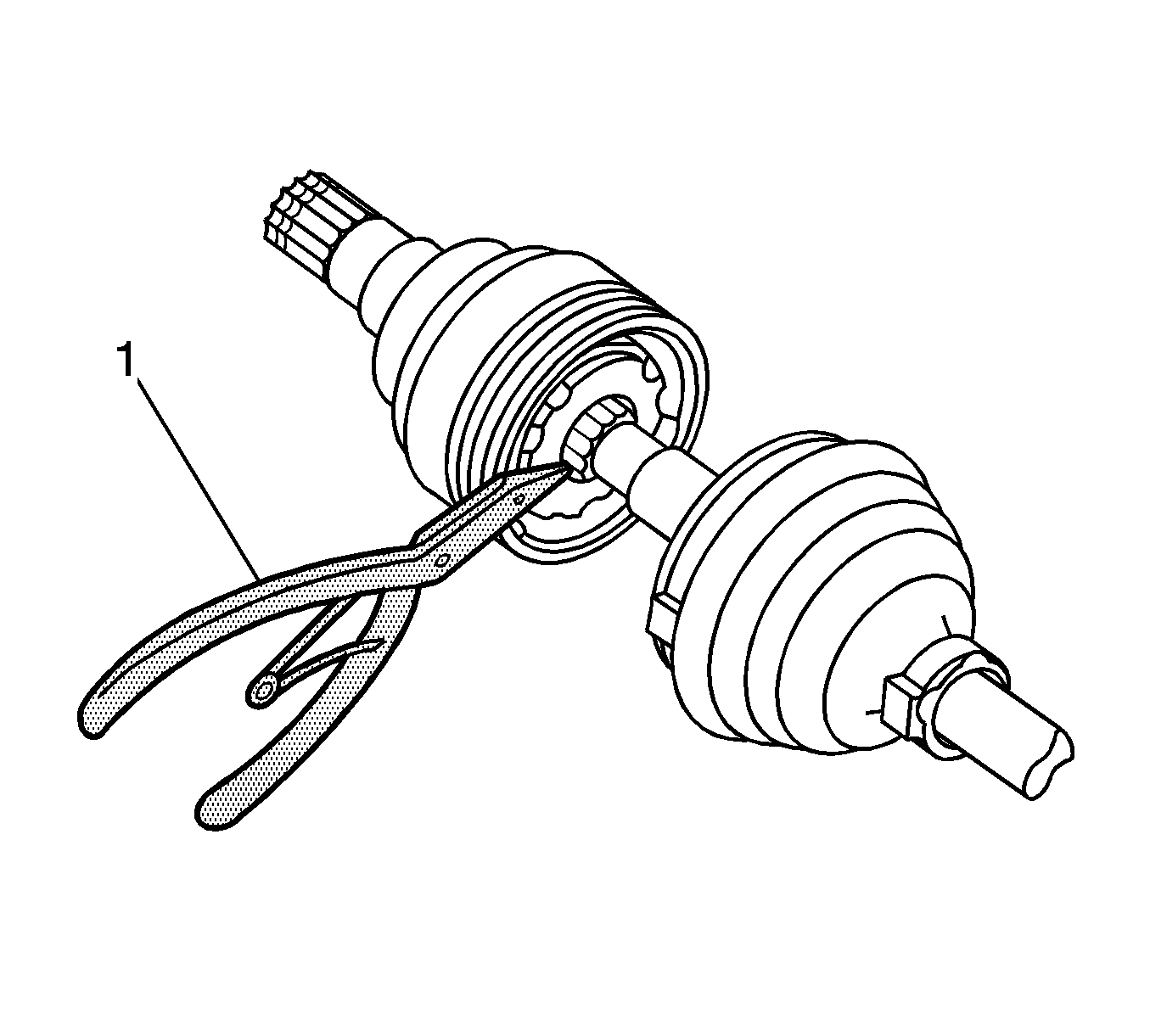

    4. Fig 2: View Of Shaft Retaining Ring With J 8059
    GM1242032Courtesy of GENERAL MOTORS CORP.
  4. Install the shaft retaining ring using the J 8059  (1). See Special Tools .

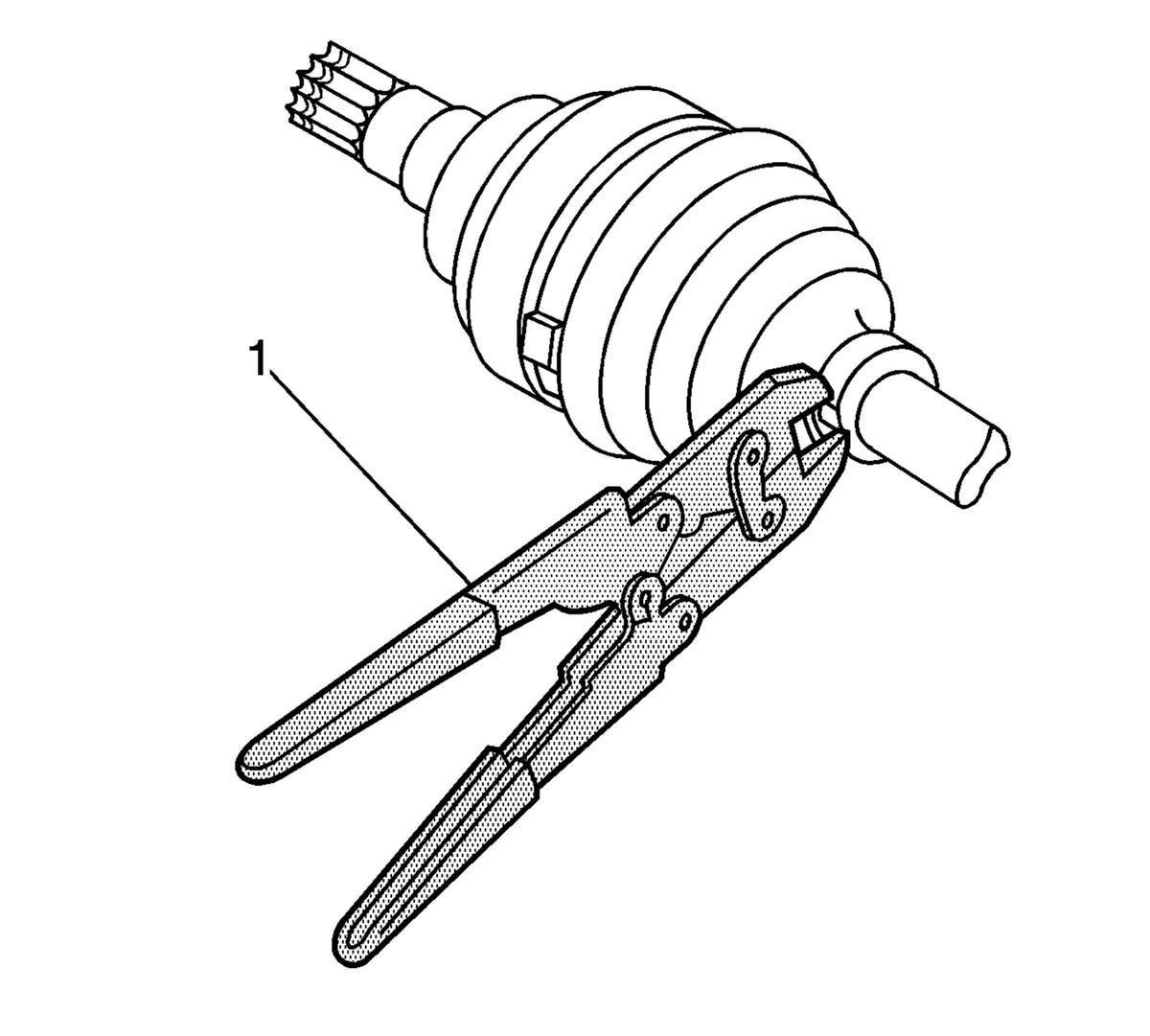

    5. Fig 3: Crimping New Large Seal Retaining Clamp With J 35566
    GM1242038Courtesy of GENERAL MOTORS CORP.
  5. Fill the joint assembly with 120-140 grams (4.2-4.9 ounces) of the recommended grease. Repack the tripot with 120-140 grams (4.2-4.9 ounces) of the recommended grease.
  6. Install the new large seal retaining clamp.
  7. Crimp the new large seal retaining clamp using the J 35566  (1). See Special Tools .
  8. Crimp the new small retaining clamp using the J 35566  (1). See Special Tools .
