Front Drive Axle Disassembled Views (Manual)
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.

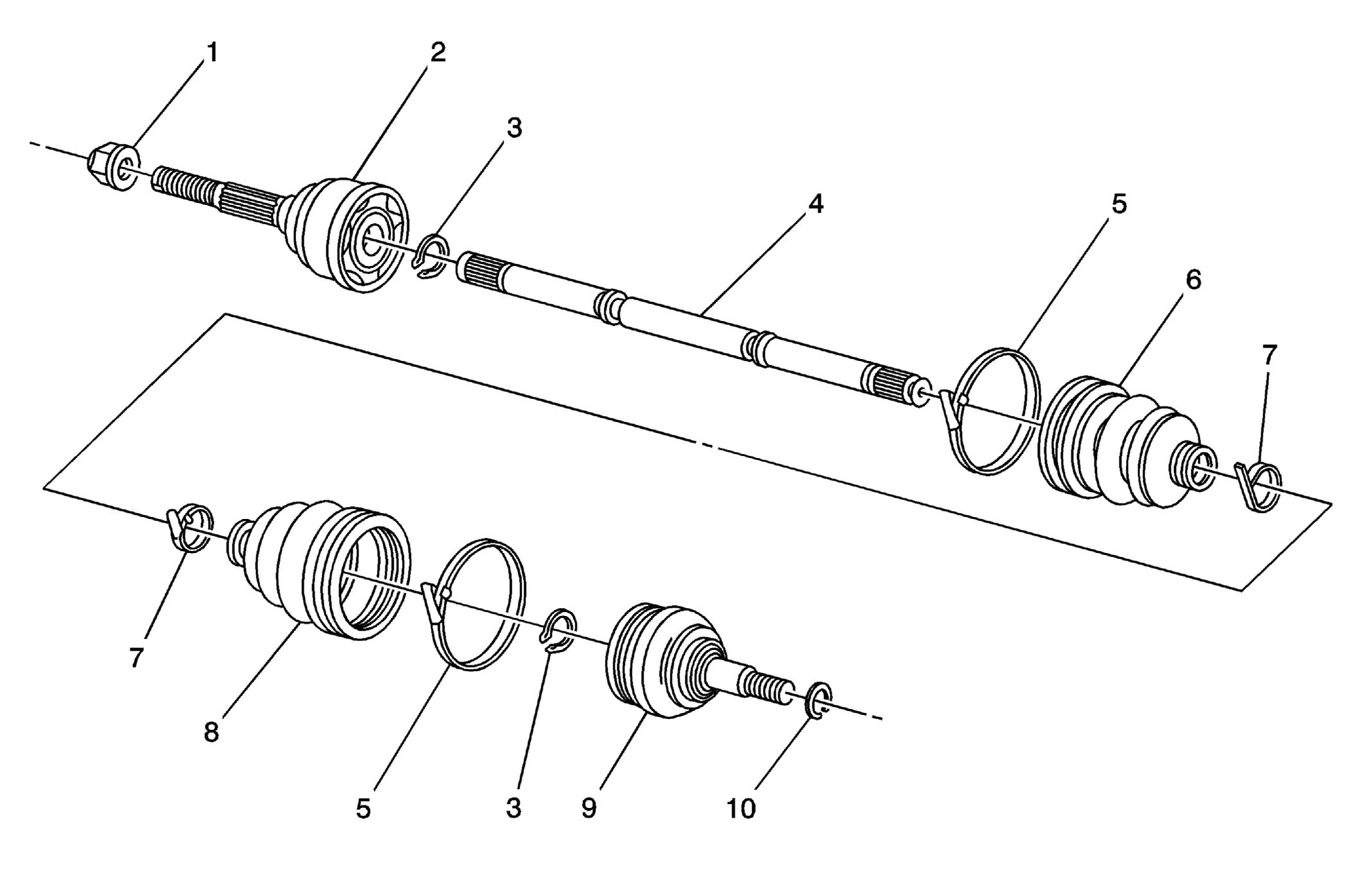

| Callout |
Component Name |
| 1 |
Caulking Nut |
| 2 |
C/V Joint |
| 3 |
Race Retaining Ring |
| 4 |
Axle Shaft |
| 5 |
Seal Retaining Clamp |
| 6 |
Drive Axle Outboard Seal |
| 7 |
Seal Retaining Clamp |
| 8 |
Drive Axle Inboard Seal |
| 9 |
Cross Groove Joint |
| 10 |
Retaining Ring |
