Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

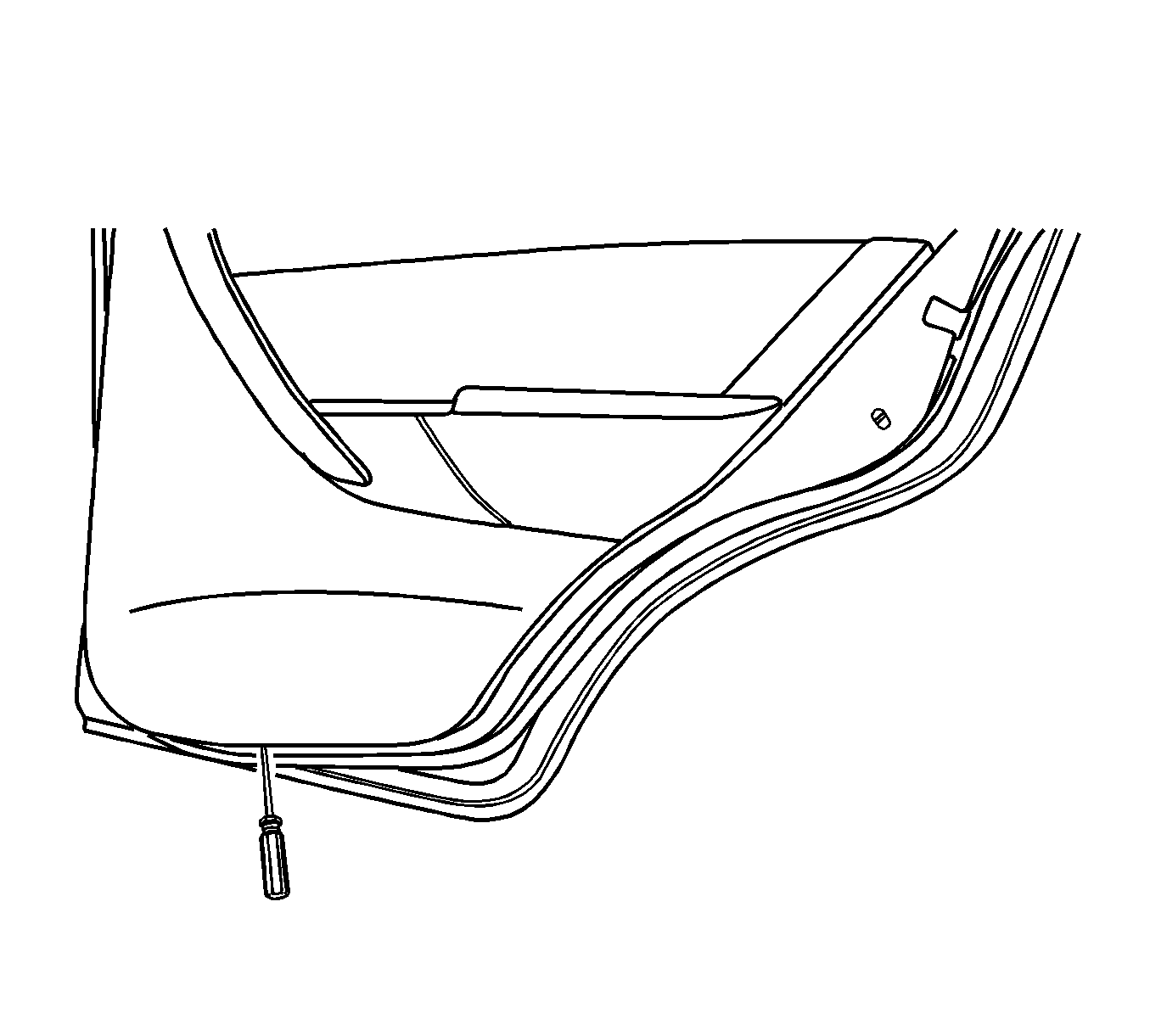

    Fig 1: Rear Door Interior Garnish Molding
    GM1721762Courtesy of GENERAL MOTORS CORP.
  1. Install the trim panel.
    2. NOTE: Refer to Fastener Notice .
  2. Install the screws at the base of the trim panel.

    Tighten:  Tighten the trim panel screws to 3.5 N.m (31 lb in).

    3. Fig 2: Channel Molding
    GM1720604Courtesy of GENERAL MOTORS CORP.
  3. Install the rear door interior garnish molding.
  4. Install the inside door handle.
  5. Install the door pull screw.

    Tighten:  Tighten the door pull screw to 3.5 N.m (31 lb in).

  6. Install the rear window regulator handle. Refer to Door Window Regulator Handle Replacement .
  7. Raise the window.
