Vehicle Access Connector End Views (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

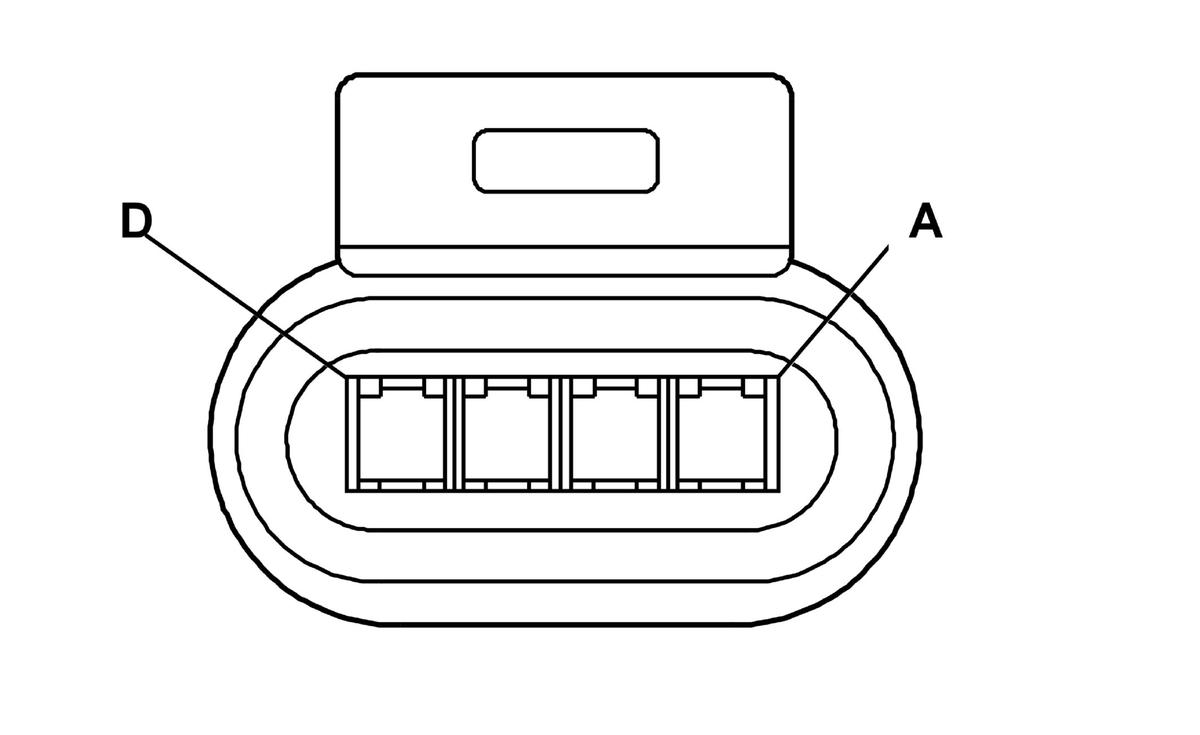

Auto Door Lock Switch (AU3)

GM1891414Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32421
  • 4-Way F (GY)
Pin Wire Color Circuit No. Function
A L-GN/RD - Door Key Lock Cylinder Switch Signal - Driver (RHD)
L-BU - Power Door Lock Relay Feed - Lock Coil (LHD)
B WH - Power Door Lock Relay Feed - Unlock Coil (RHD)
BK - Ground (LHD)
C BK - Ground (RHD)
WH - Power Door Lock Relay Feed - Unlock Coil (LHD)
D L-BU - Power Door Lock Relay Feed - Lock Coil (RHD)
L-GN/RD - Door Key Lock Cylinder Switch Signal - Driver (LHD)
Door Lock Actuator - Driver

GM1688762Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK6023
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 GY - Door Lock Actuator Lock Control
2 BN - Door Lock Actuator Unlock Control
Door Lock Actuator - Left Rear

GM1688762Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK6023
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 GY - Door Lock Actuator Lock Control
2 BN - Door Lock Actuator Unlock Control
Door Lock Actuator - Passenger

GM1688762Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK6023
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 GY - Door Lock Actuator Lock Control
2 BN - Door Lock Actuator Unlock Control
Door Lock Actuator - Right Rear

GM1688762Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK6023
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
1 GY - Door Lock Actuator Lock Control
2 BN - Door Lock Actuator Unlock Control
Rear Compartment Lid Release Actuator

GM1891376Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG651032
  • 3-Way F .090 II Series (NA)
Pin Wire Color Circuit No. Function
1 BK - Ground
2 BN - Trunk Release Actuator Control
3 GY/BK - Trunk Lamp Control
Tamper Switch - Rear

GM1467049Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 174463
  • 2-Way F 070 Multi-Lock Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU - Tamper Switch Signal
2 BK - Ground
