Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

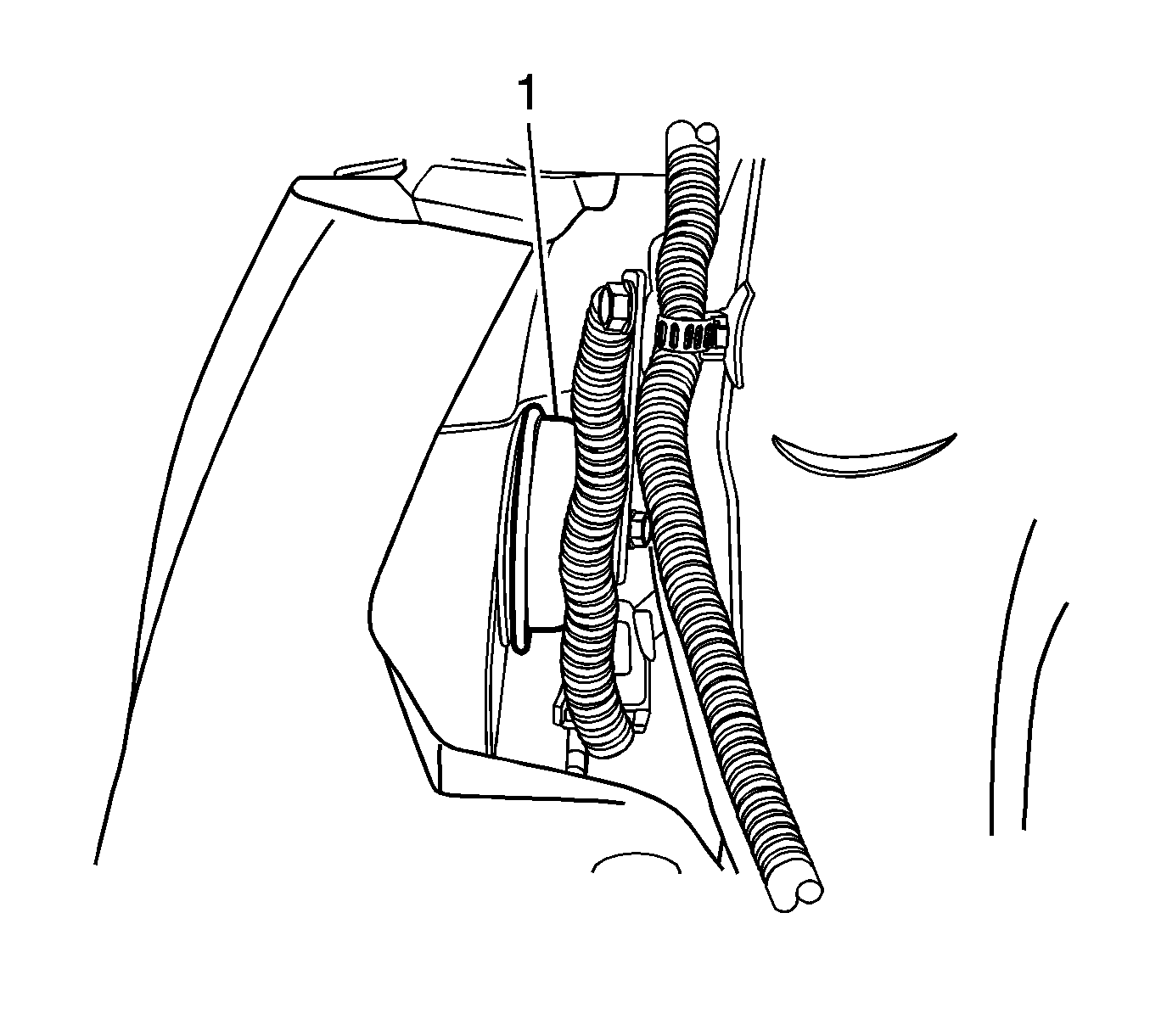

    Fig 1: Locating Horn
    GM1922904Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice .
  2. Install the horn (1) with the bolt.

    Tighten:  Tighten the horn bolt to 21 N.m (16 lb ft).

  3. Install the left headlamp assembly. Refer to Headlamp Replacement (Notchback) or Headlamp Replacement (Hatchback) .
  4. Connect the negative battery cable.
