Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

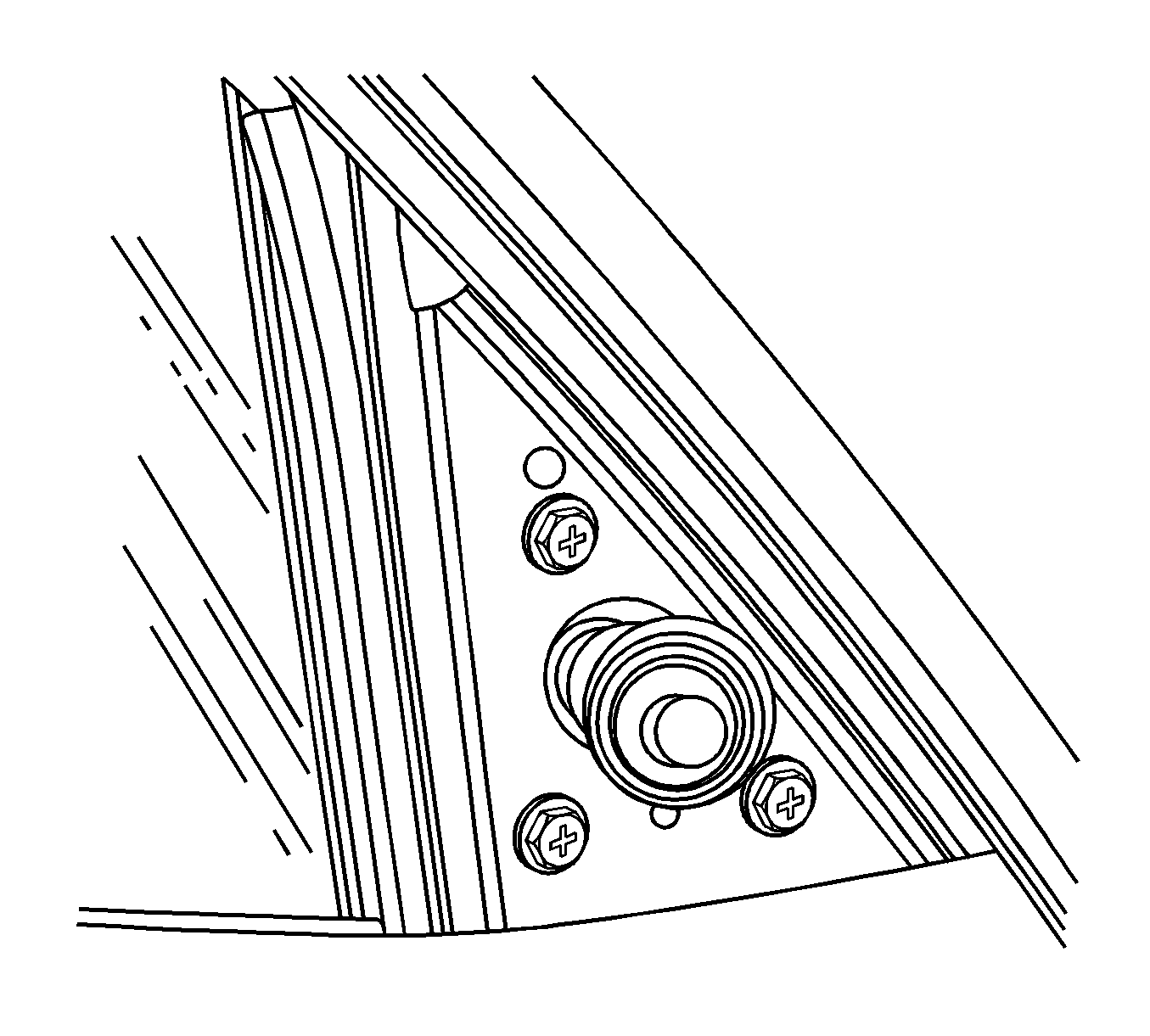

    Fig 1: Outside Rearview Mirror Assembly Screws
    GM1885680Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the outside rearview mirror assembly screws. Manual remote control mirror shown.

    Tighten:  Tighten the outside rearview mirror assembly screws to 4.5 N.m (40 lb in).

  2. Connect the electric control rearview mirror electrical connector, if equipped.
    3. Fig 2: View of Manual Remote Control Mirror and Escutcheon
    GM1248493Courtesy of GENERAL MOTORS CORP.
  3. Install the escutcheon. Manual remote control mirror shown.
