Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

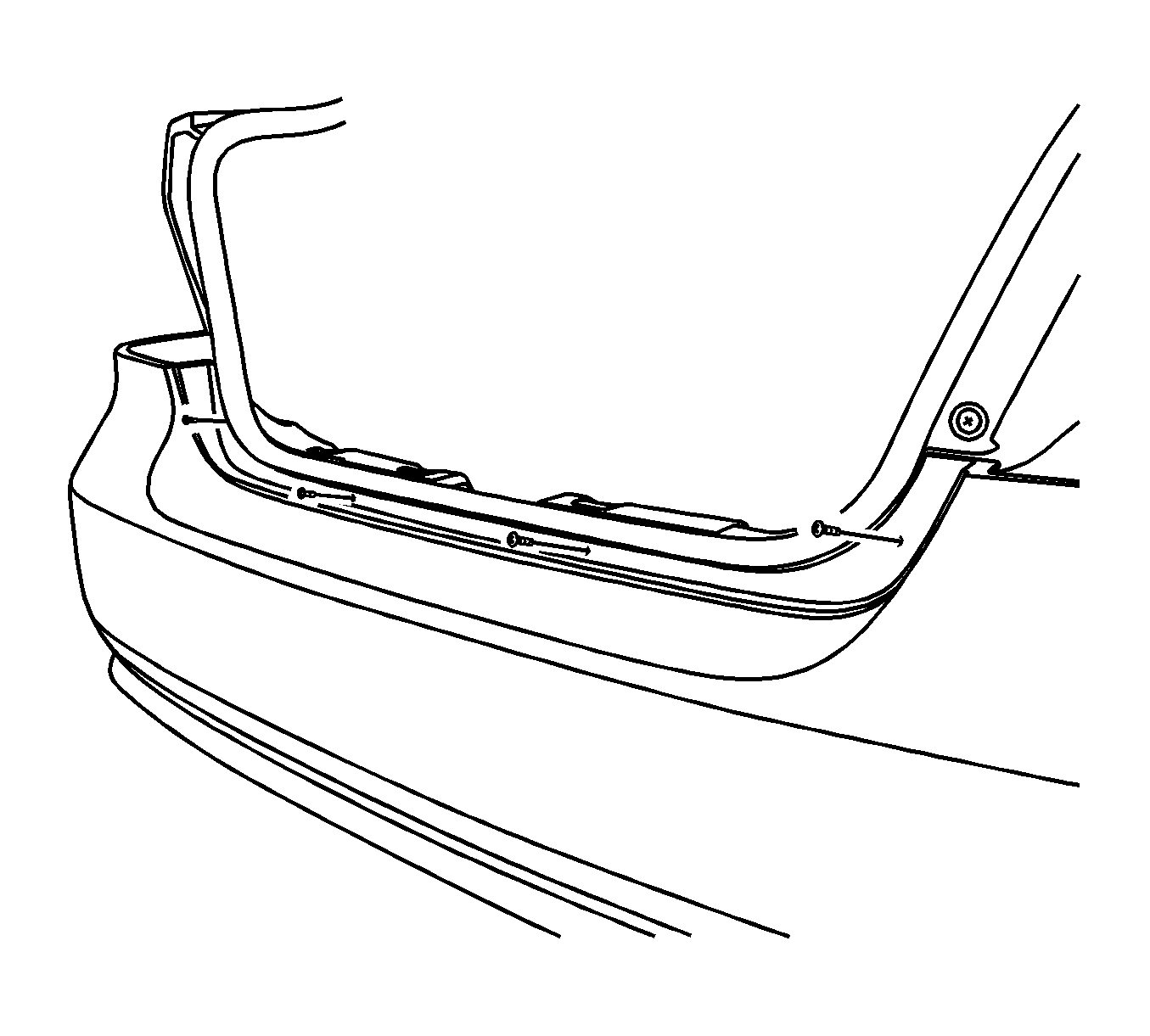

Fig 1: Rear Upper Fascia Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the fascia with the rear upper fascia screws.
Tighten: Tighten the rear upper fascia screws to 1.5 N.m (13 lb in).
Install the rear inner upper fascia retainers.
Install the tail lamps. Refer to Tail Lamp Replacement (Notchback) or Tail Lamp Replacement (Hatchback) .

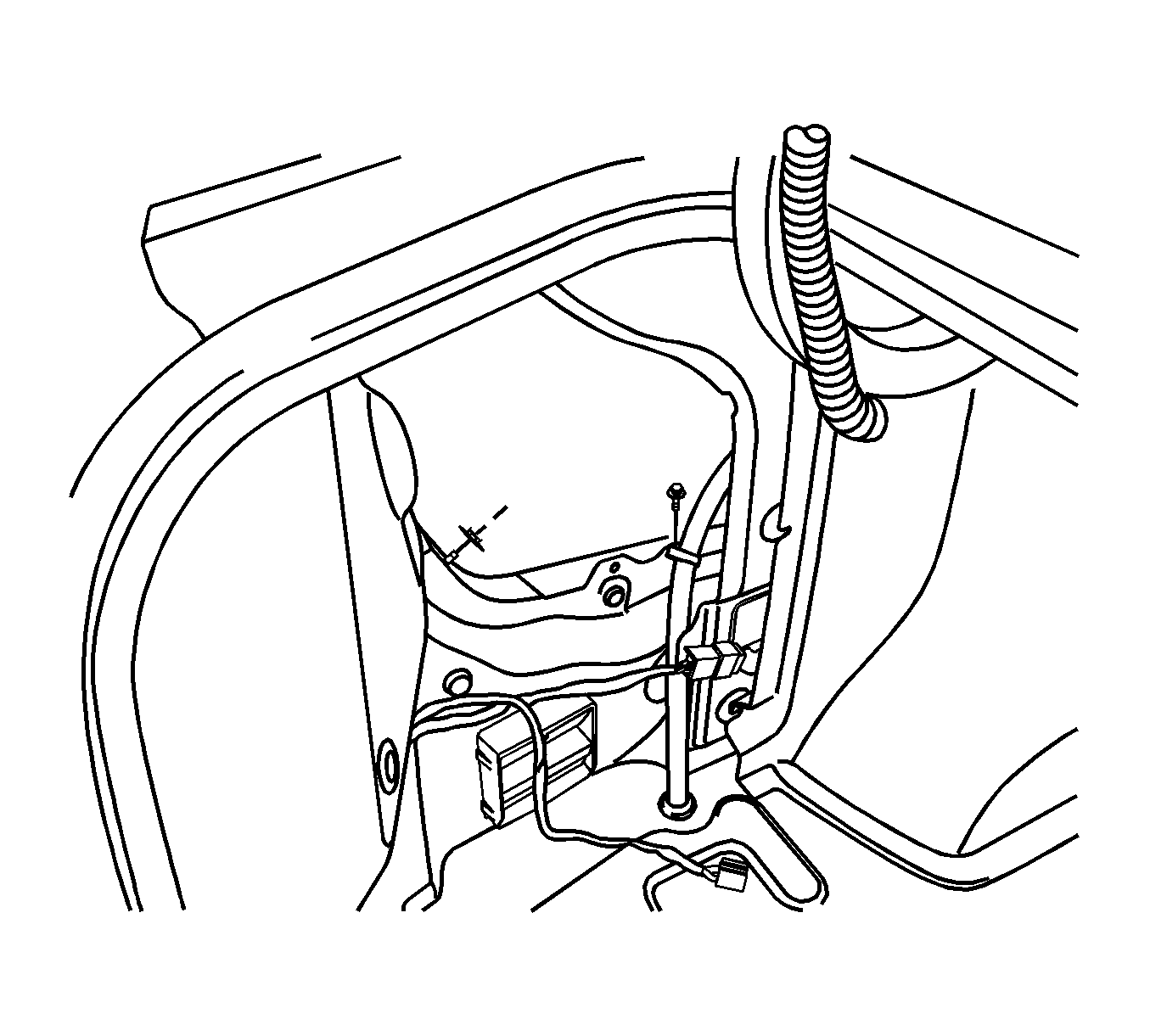

Fig 2: Luggage Compartment Bolts

Courtesy of GENERAL MOTORS CORP.

Install the bolts in the luggage compartment.
Tighten: Tighten the luggage compartment fascia bolts to 4 N.m (35 lb in).
Install the nuts in the luggage compartment.
Tighten: Tighten the luggage compartment fascia nuts to 4 N.m (35 lb in).

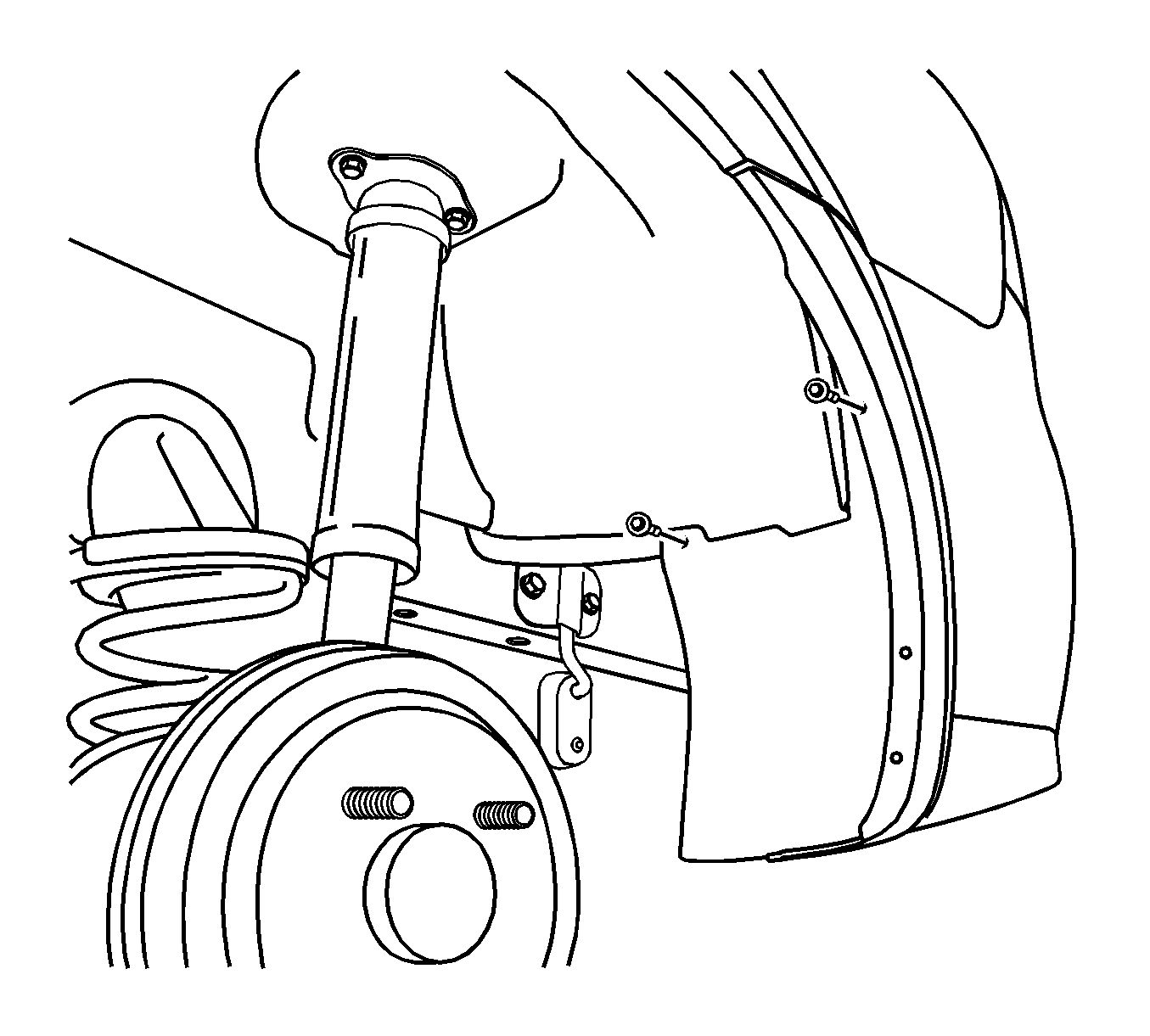

Fig 3: Rear Wheel Well Screws

Courtesy of GENERAL MOTORS CORP.

Install the splash shield screws.
Tighten: Tighten the splash shield screws to 1.5 N.m (13 lb in).
Install the lower fascia screws.
Tighten: Tighten the lower fascia screws to 1.5 N.m(13 lb in).
Install the mud guards with the screws.
Tighten: Tighten the mud guard screws to 1.5 N.m (13 lb in).
