Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

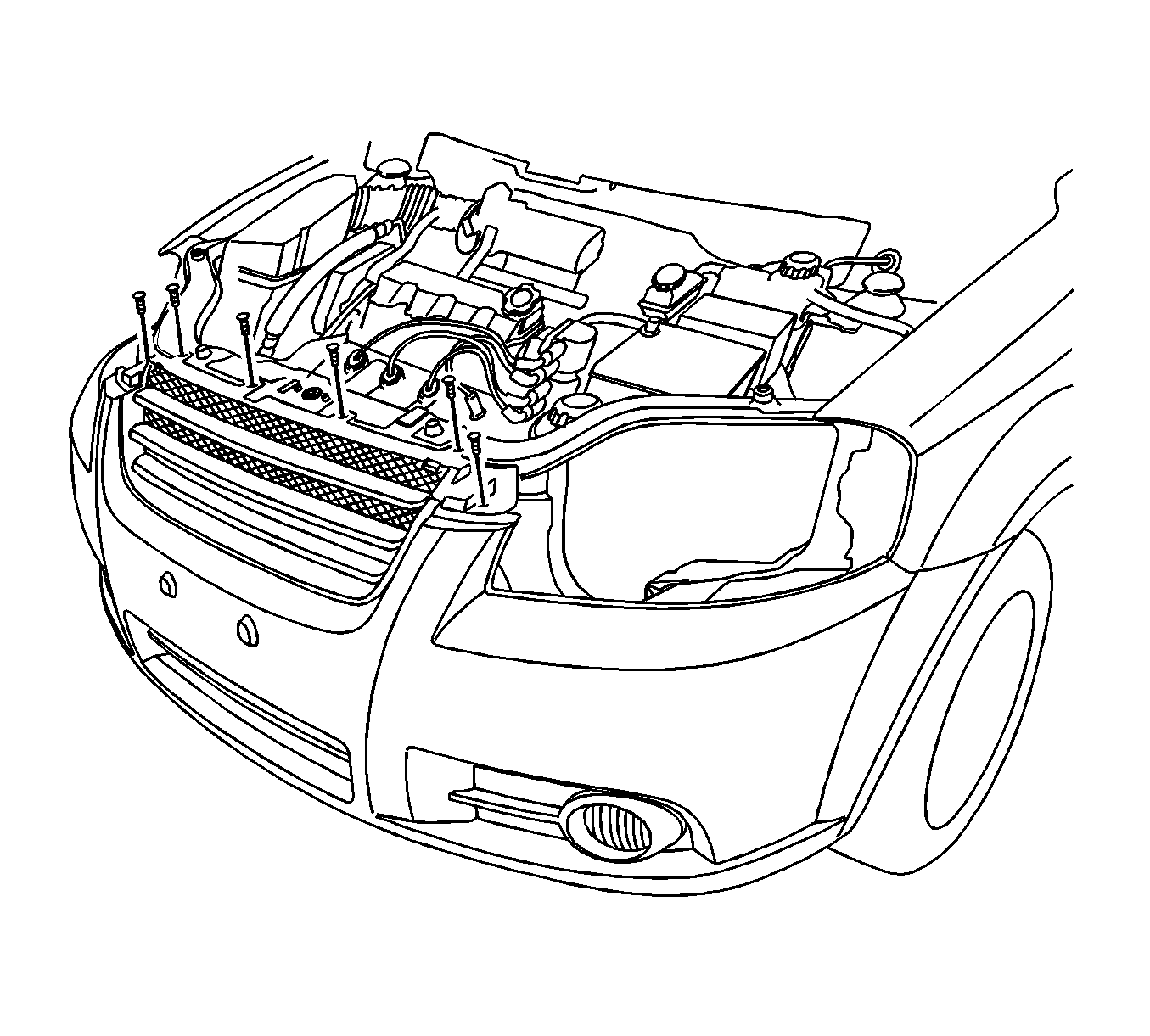

Fig 1: Screws On Top Of Front Bumper Fascia

Courtesy of GENERAL MOTORS CORP.

Install the bumper fascia.
Install the retainers on the top of the fascia.

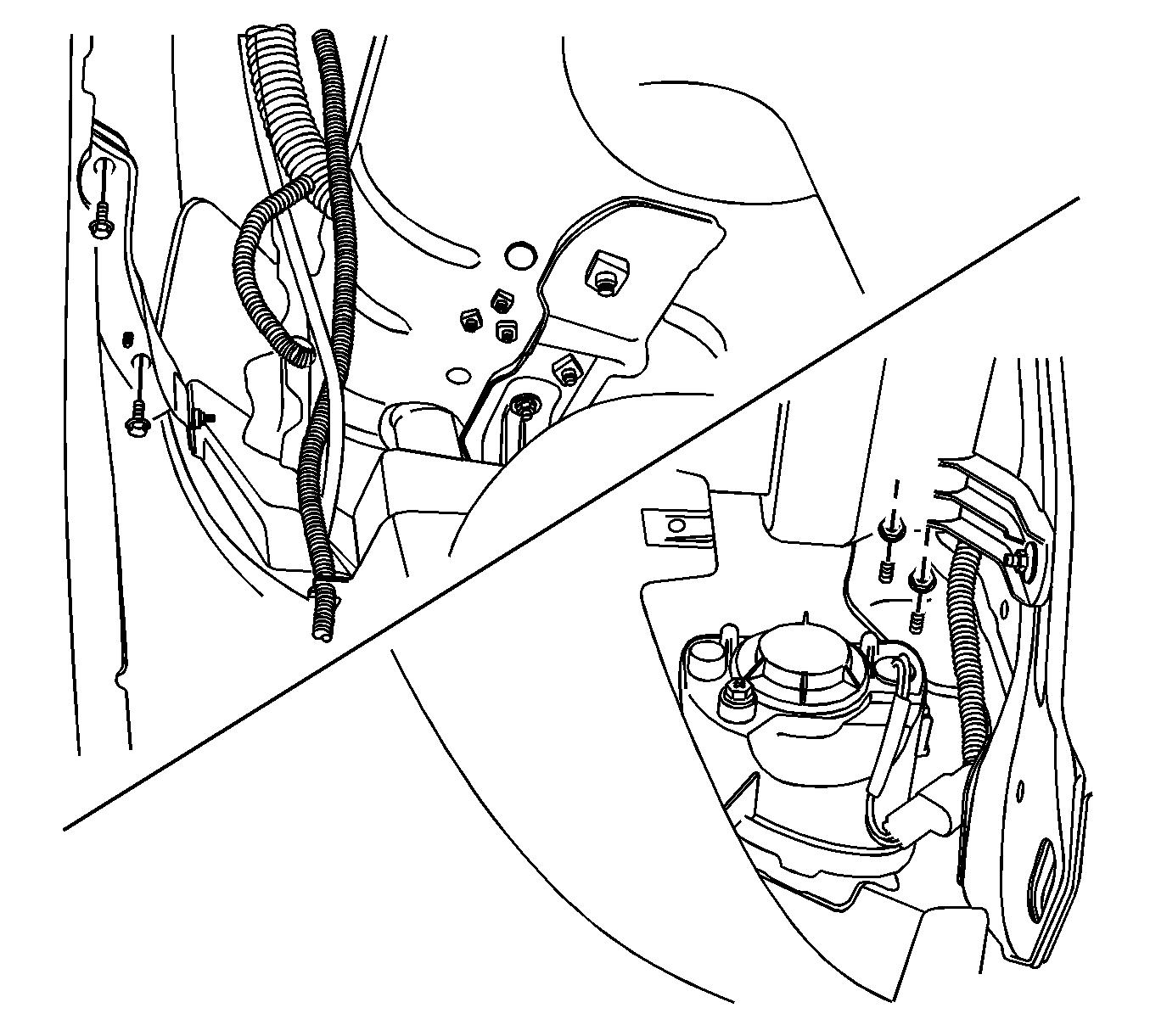

Fig 2: Front Wheel Well Screws

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the retainers underneath the fascia.
Install the screws attaching the fascia to the fender.
Tighten: Tighten the front bumper fascia to fender screws to 1.5 N.m (13 lb in).
Install the headlamps, the front side marker lamps, and the front fog lamps. Refer to Headlamp Replacement (Notchback) or Headlamp Replacement (Hatchback) , Front Side Marker Lamp Replacement and Front Fog Lamp Replacement (Notchback) or Front Fog Lamp Replacement (Hatchback) .

Fig 3: Front Wheel Well Splash Shield

Courtesy of GENERAL MOTORS CORP.

Install the screws, the retainers, and the nuts to the front wheel well splash shields.
Tighten:
- Tighten the splash shield screws to 1.5 N.m (13 lb in).
- Tighten the splash shield nuts to 1.5 N.m (13 lb in).
Connect the negative battery cable.
