HVAC Schematics (Notchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Blower Controls

Courtesy of GENERAL MOTORS CORP.

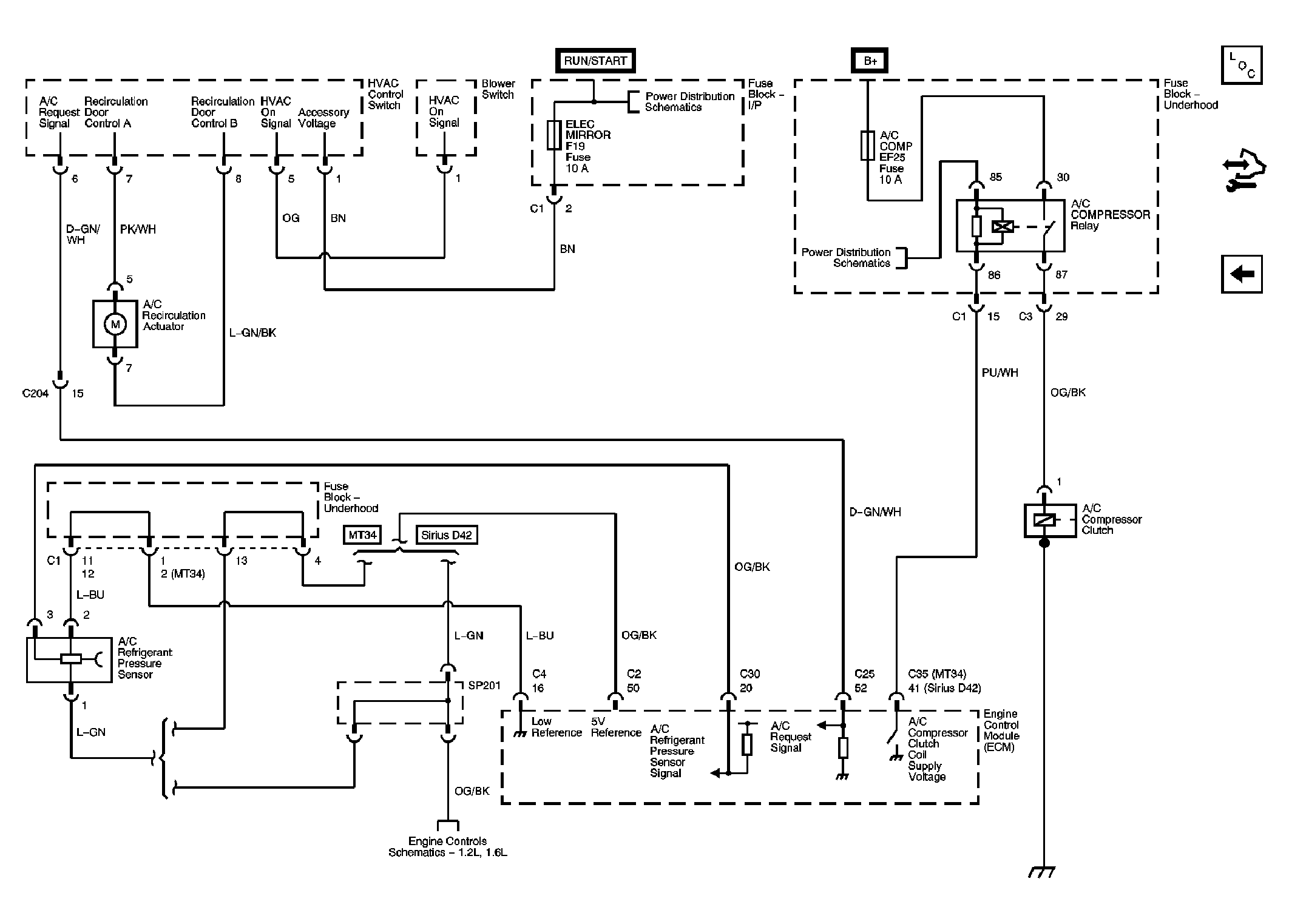

Fig 2: Compressor Controls

Courtesy of GENERAL MOTORS CORP.

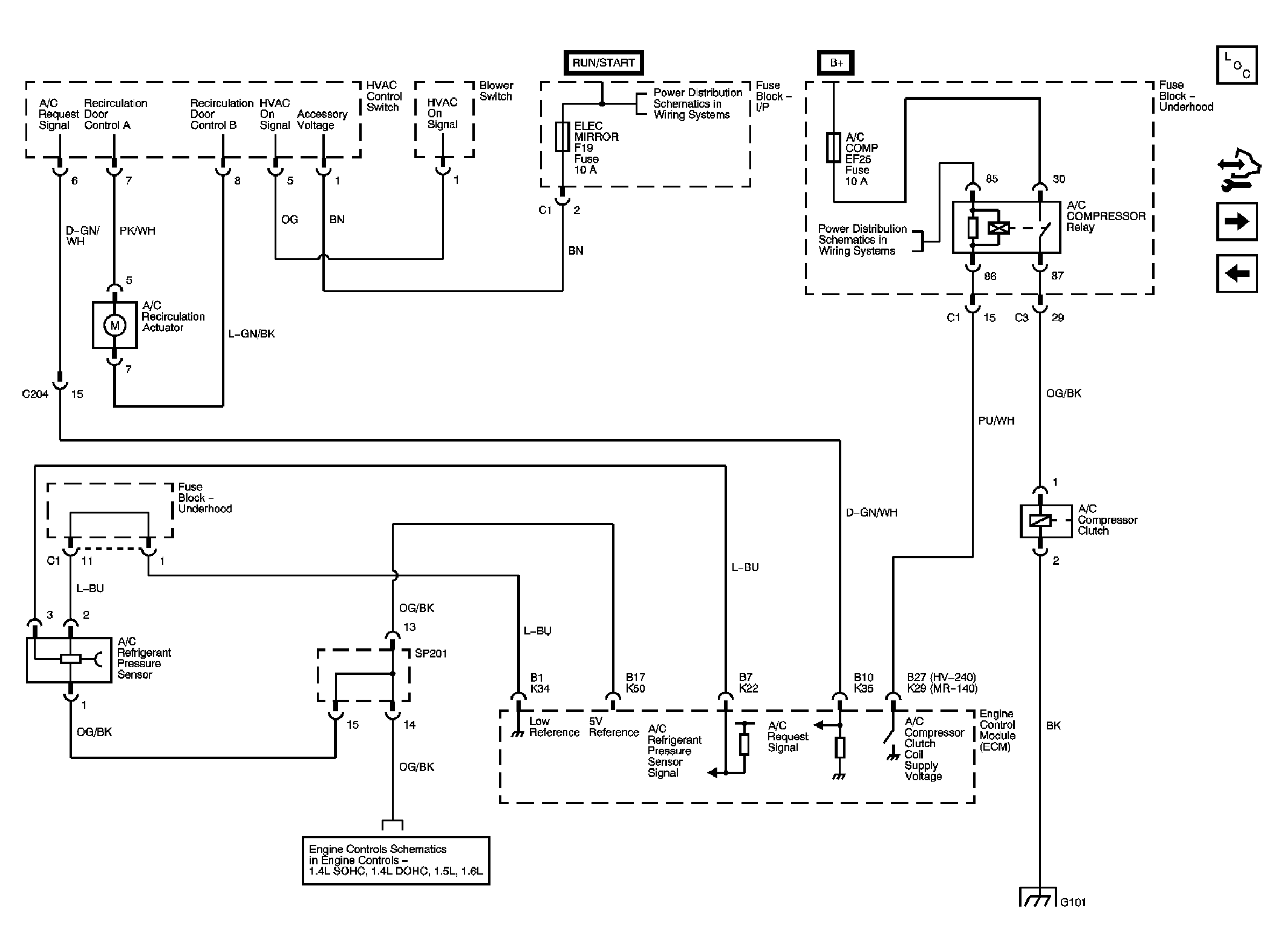

Fig 3: Compressor Controls (Sirius D42)

Courtesy of GENERAL MOTORS CORP.
