Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

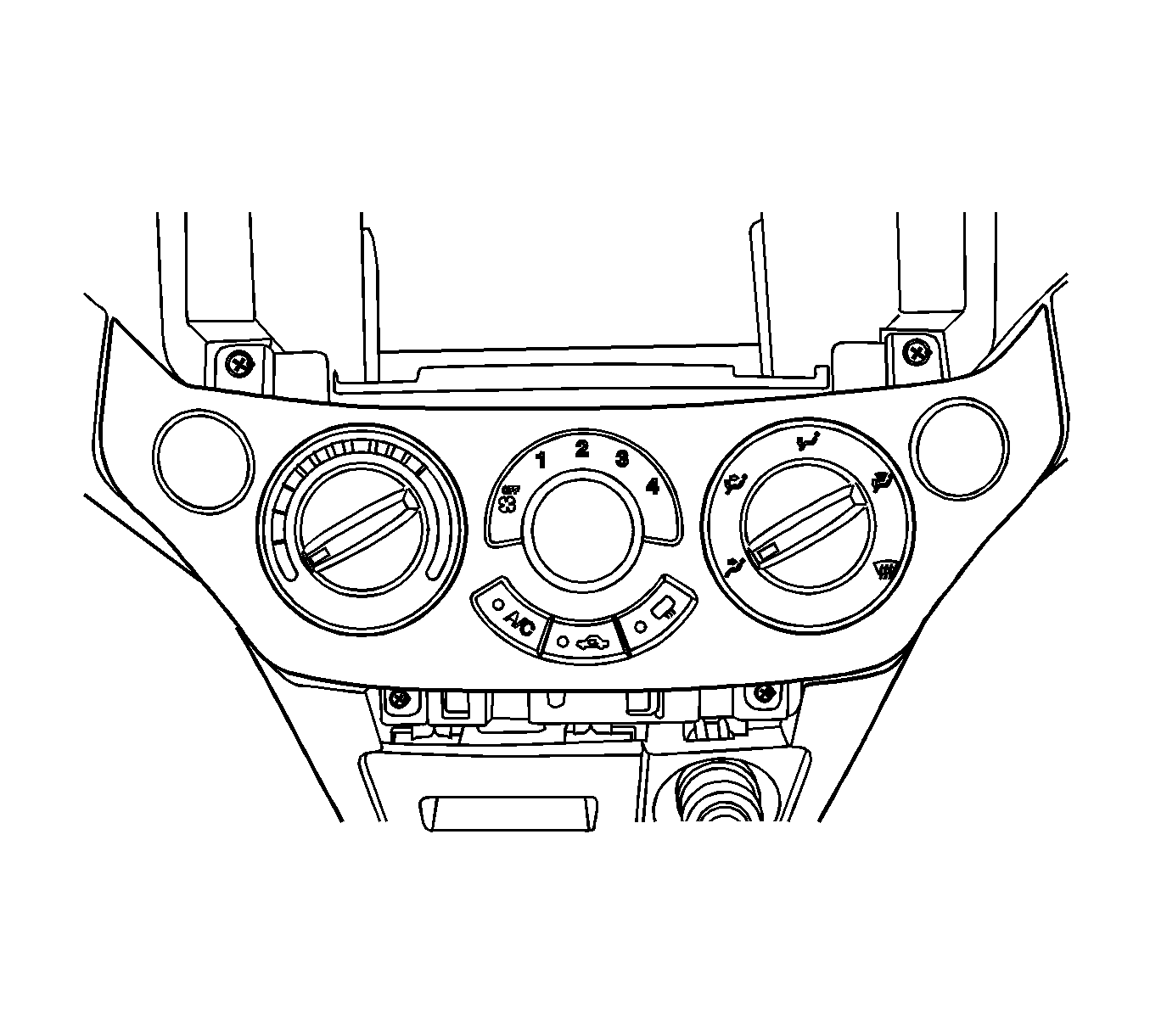

Fig 1: View Of Controller

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution .

Disconnect the negative battery cable.
Remove the audio system. Refer to Radio Replacement (Notchback) or Radio Replacement (Hatchback) .
Remove the HVAC controller. Refer to Heater and Air Conditioning Control Replacement (Hatchback) or Heater and Air Conditioning Control Replacement (Notchback) .

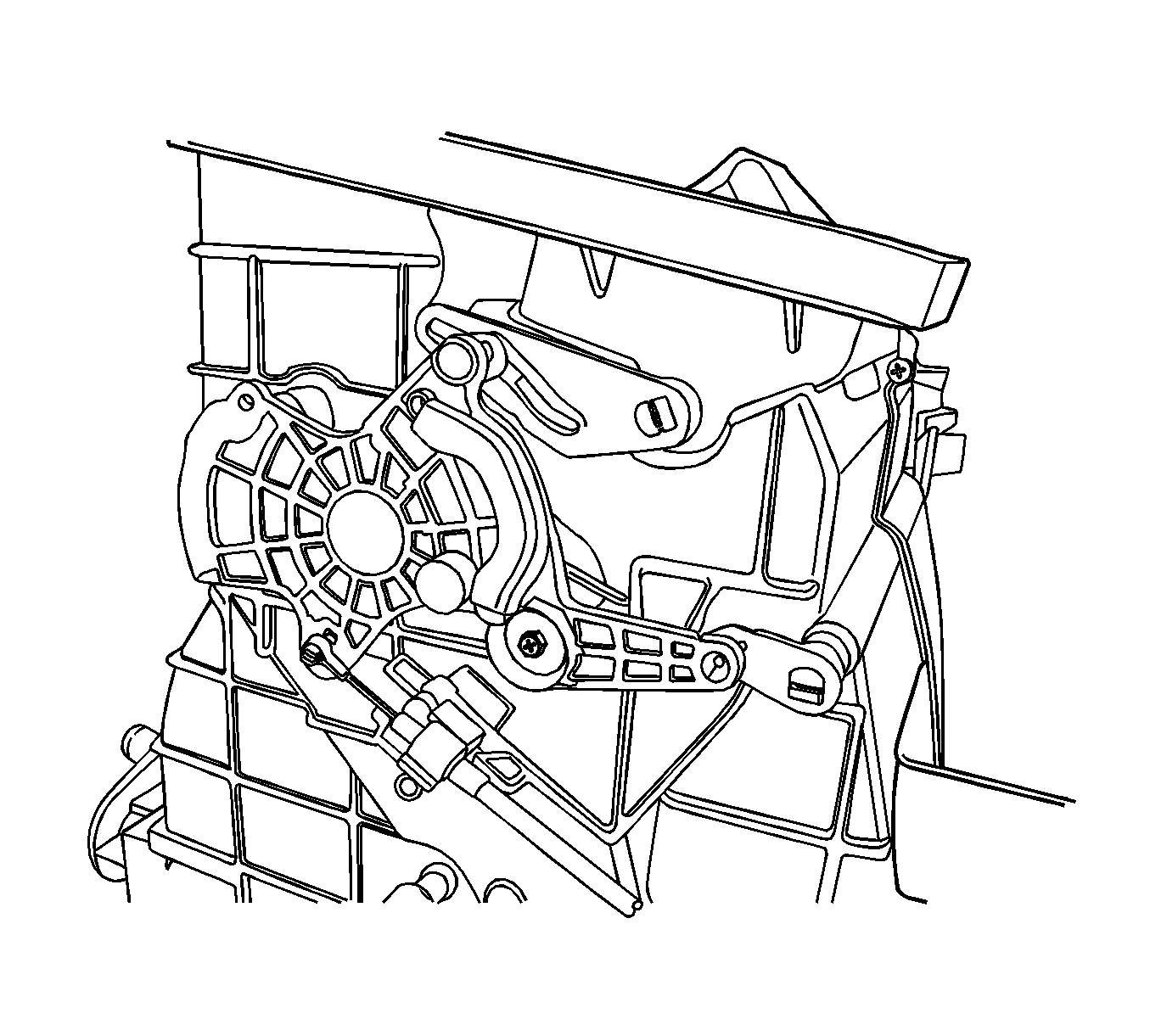

Fig 2: View Of Heater/Defrost Cable Eyelet

Courtesy of GENERAL MOTORS CORP.

Disconnect the heater/defrost cable eyelet from the post.
